Daikin R24LV2S Manual de usuario
REMOVAL
PROCEDURE
SERVICE MANUAL
6.0 kW Class
24000/28000 Class
Outdoor Unit
Non-Inverter
Pair Type
Si011196
Service Manual
Removal Procedure
Outdoor Unit
Applicable Models
zCooling Only
R24LV2S
R28LV2S
RE24NV2S
AR24KV2S
R60HV1
R60HV14
R60JV1V
R60MV16
Si011196
Removal Procedure 1
Table of Contents
1. Removal of Outer Panels ........................................................................2
2. Removal of Outdoor Fan / Fan Motor .....................................................5
3. Removal of Electrical Component ASSY ................................................7
4. Removal of Sound Blankets..................................................................11
5. Removal of Capillary Tube (Pattern 1)..................................................12
6. Removal of Capillary Tube (Pattern 2)..................................................13
7. Removal of Compressor ASSY.............................................................14
Note: The illustrations may be slightly different depending on the model.
Removal of Outer Panels Si011196
2Removal Procedure

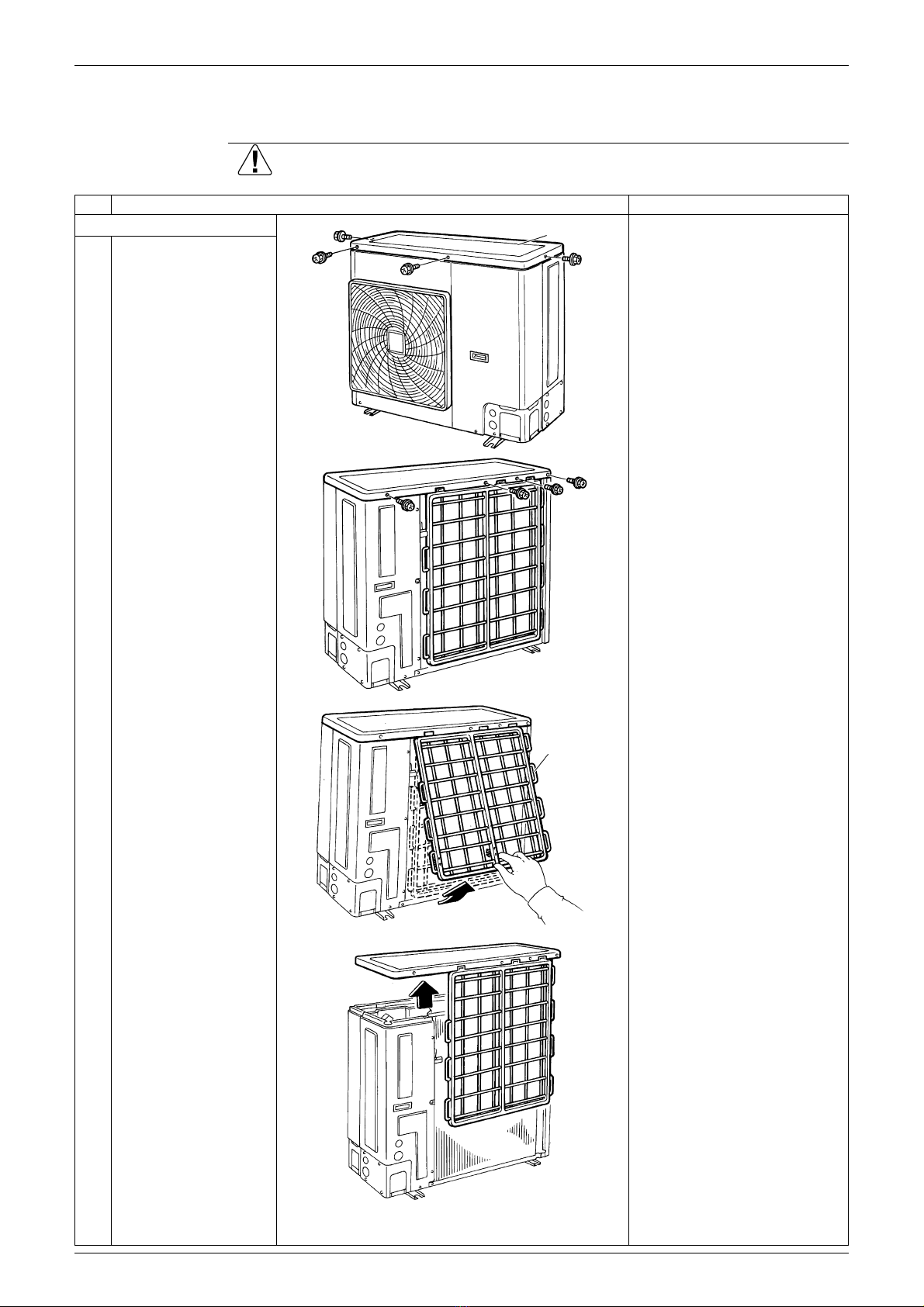

1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the top panel.
1 Remove the 8 screws
of the top panel.
Piping may be slightly
different from the
illustrations.
2 Pull the suction grille to
unfasten the hook.
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
3 Lift up and remove the
top panel.
Top panel
(R5423)
(R5424)
Suction
grille
(R5425)
(R5426)
Si011196 Removal of Outer Panels
Removal Procedure 3

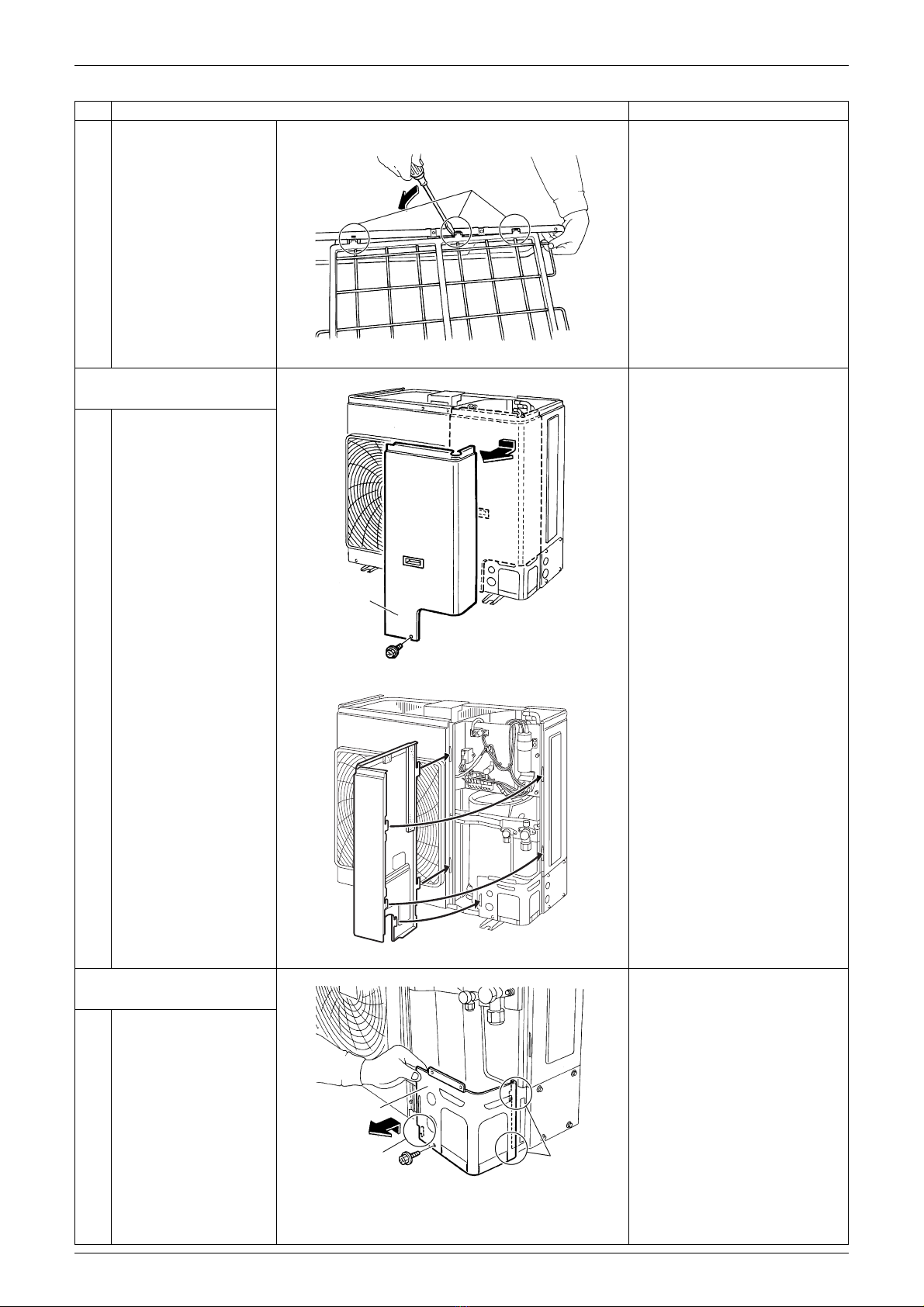

4 Unfasten the hooks with
a flat screwdriver and
remove the suction
grille.
2. Remove the front panel
(2).
1 Remove the screw and
remove the front panel
(2).
When reassembling, fit the 5
hooks.
3. Remove the piping cover
(front).
1 Remove the screw and
remove the piping cover
(front).
Step Procedure Points
Hook
(R5427)
Front
panel
(2)
(R12807)
(R12808)
Piping cover
(front)
Hook Hook
(R13234)
Removal of Outer Panels Si011196
4Removal Procedure

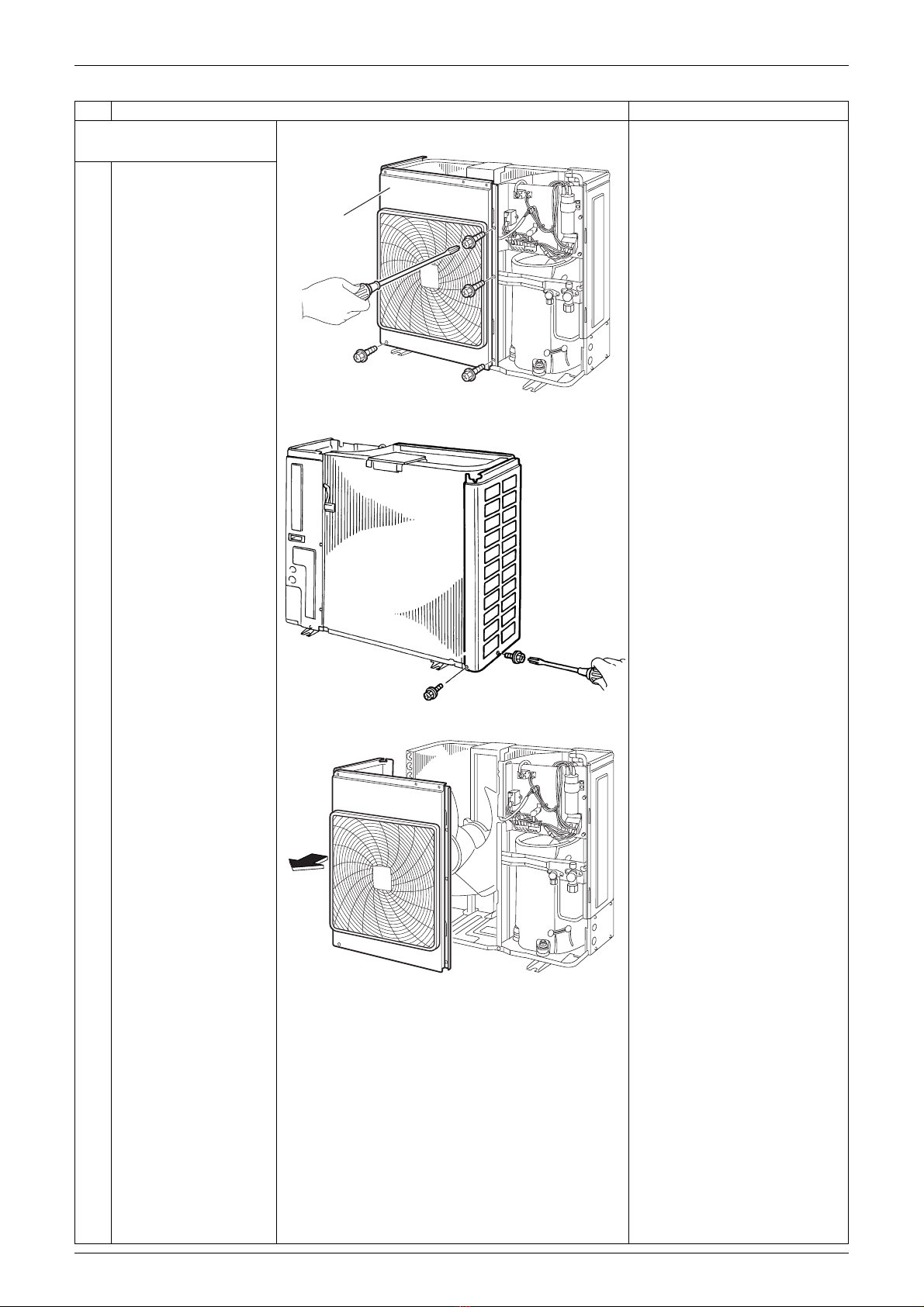

4. Remove the front panel
(1).
1 Remove the 6 screws
and remove the front
panel (1).
Step Procedure Points
Front panel (1)
(R12810)
(R17188)
(R8322)
Si011196 Removal of Outdoor Fan / Fan Motor
Removal Procedure 5

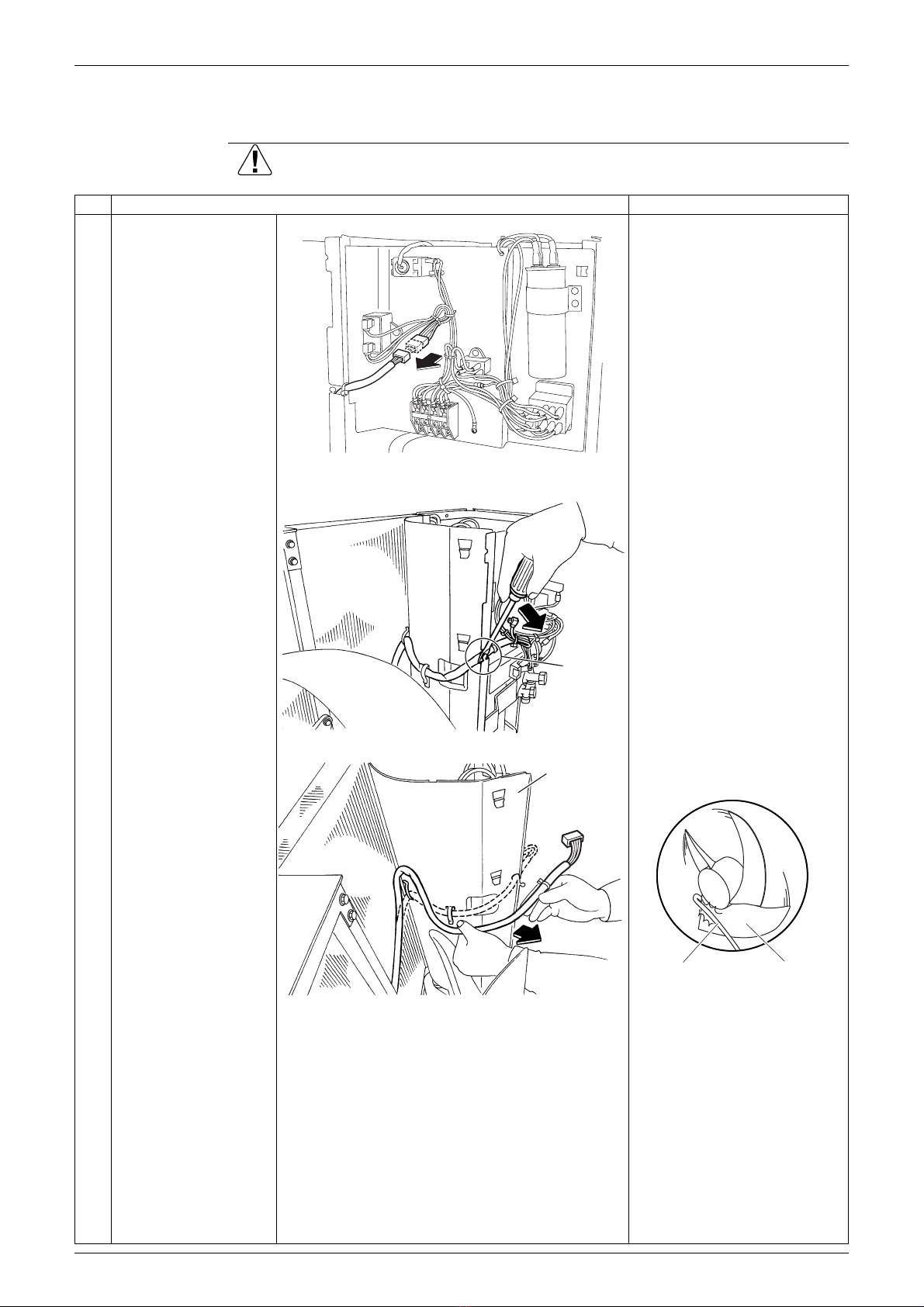

2. Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1 Disconnect the relay
connector for the fan
motor.
Preparation
Remove the front panel
according to the "Removal of
Outer Panels".
2 Unfasten the hook with
a flat screwdriver.
Put the fan motor lead wire
through the back of the fan
motor when reassembling so
as not to be entangled with
the outdoor fan.
3 Release the fan motor
lead wire from the
partition plate.
(R16366)
Hook
(R5436)
(R3249)
Lead wire Outdoor fan
(R12812)
Partition plate
Removal of Outdoor Fan / Fan Motor Si011196
6Removal Procedure
4 Remove the nut and
remove the outdoor fan.
Nut size: M8
When reassembling, fit the
D-cuts of the lock washer
and the shaft of fan motor.
5 Remove the 4 screws
and remove the fan
motor.
Be sure to remove the lower
screws first. If the upper
screws are removed first, the
fan motor may tilt or fall
because the center of its
gravity is toward the front.
It may cause injuries.
Screw size : M5 × 16
Step Procedure Points
Lock washer
Nut
(R15404)
13 mm
(R17450)
(R12834)
D-cut
D-cut
Lock washer
(R12835)
(R5439)
Si011196 Removal of Electrical Component ASSY
Removal Procedure 7

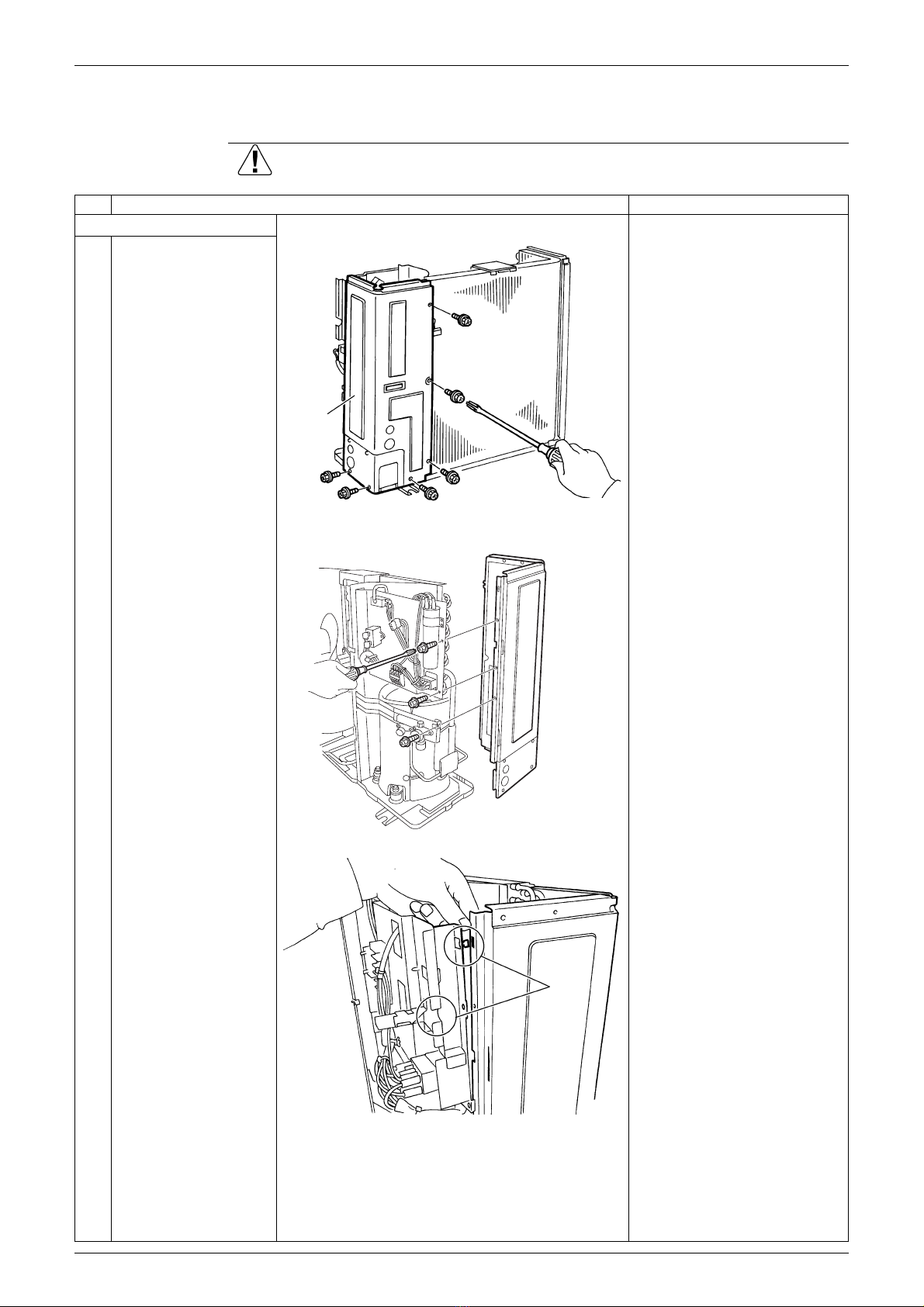

3. Removal of Electrical Component ASSY
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the side panel. Preparation
Remove the top panel, front
panel (1) (2), and piping
cover (front) according to the
"Removal of Outer Panels".
1 Remove the 9 screws
and remove the right
side panel.
Right side
panel
(R15402)
(R16367)
Hook
(R5442)
Removal of Electrical Component ASSY Si011196
8Removal Procedure

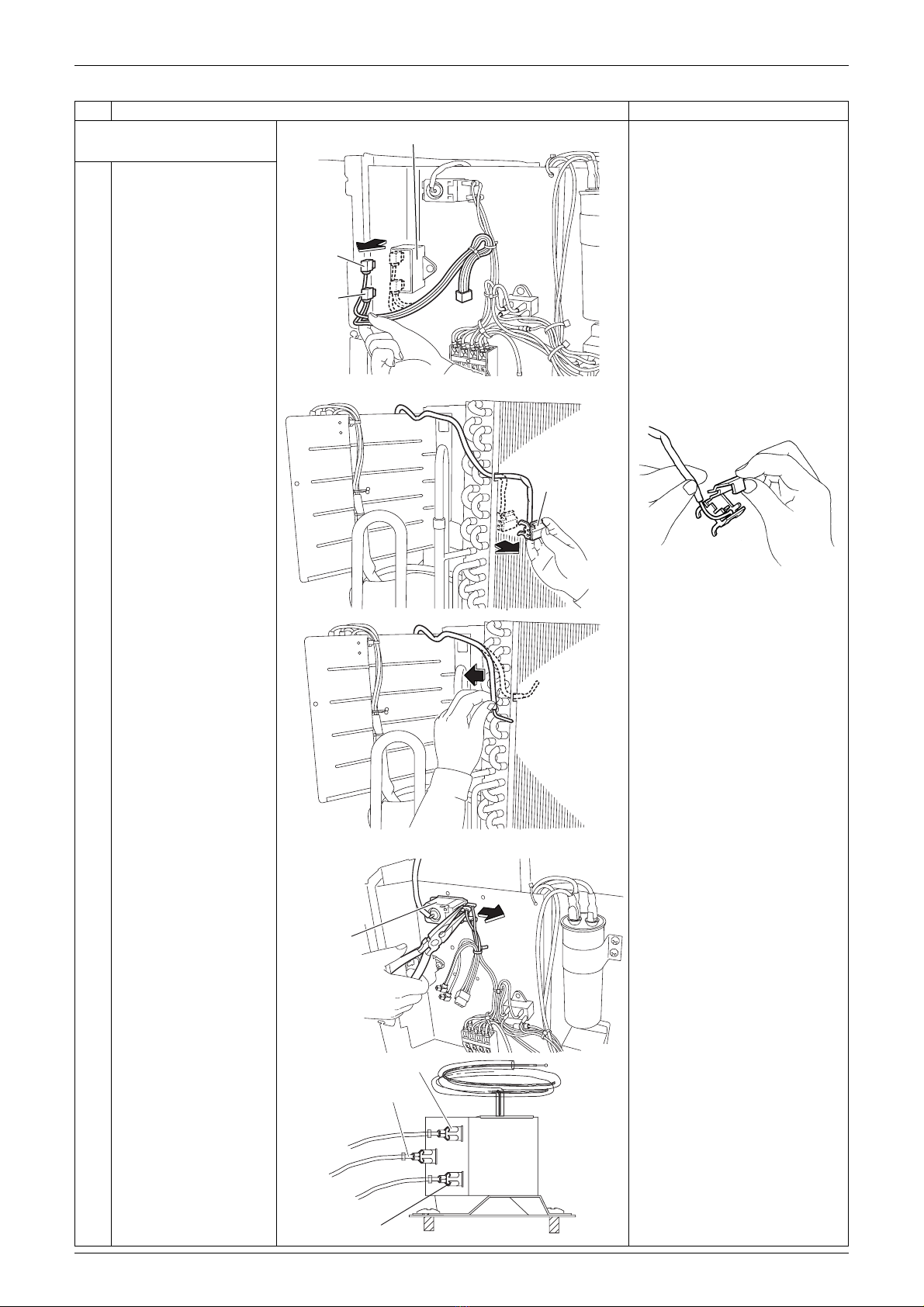

2. Remove the electrical
component ASSY.
1 Disconnect the 2
terminals from the fan
motor capacitor (C2R).
2 Detach the outdoor
temperature sensor.
Remove the sensor fixing
plate.
3 Disconnect the
terminals of the outdoor
temperature thermostat
(S1T).
Step Procedure Points
(R16368)
White
Red
Fan motor capacitor (C2R)
(R12813)
Outdoor
temperature
sensor
(R12814)
(R17451)
(R16369)
Outdoor
temperature
thermostat
(S1T)
to X1A: orange
to X1A: black
S1T
(R15472)
L
H
C
to K1M(4): white
