Daikin FHQ-B8 Manual de instrucciones

FHQ-B8

Technical Data

Air Conditioners

EEDEN12-100

Ceiling suspended unit

• Split - Sky Air®• Indoor Unit 1

• Indoor Unit • Ceiling suspended unit • FHQ-B8

TABLE OF CONTENTS

FHQ-B8

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

8 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

10 Air flow patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Air Flow Pattern - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Air Flow Pattern - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Indoor Unit • Ceiling suspended unit • FHQ-B8

• Split - Sky Air®• Indoor Unit

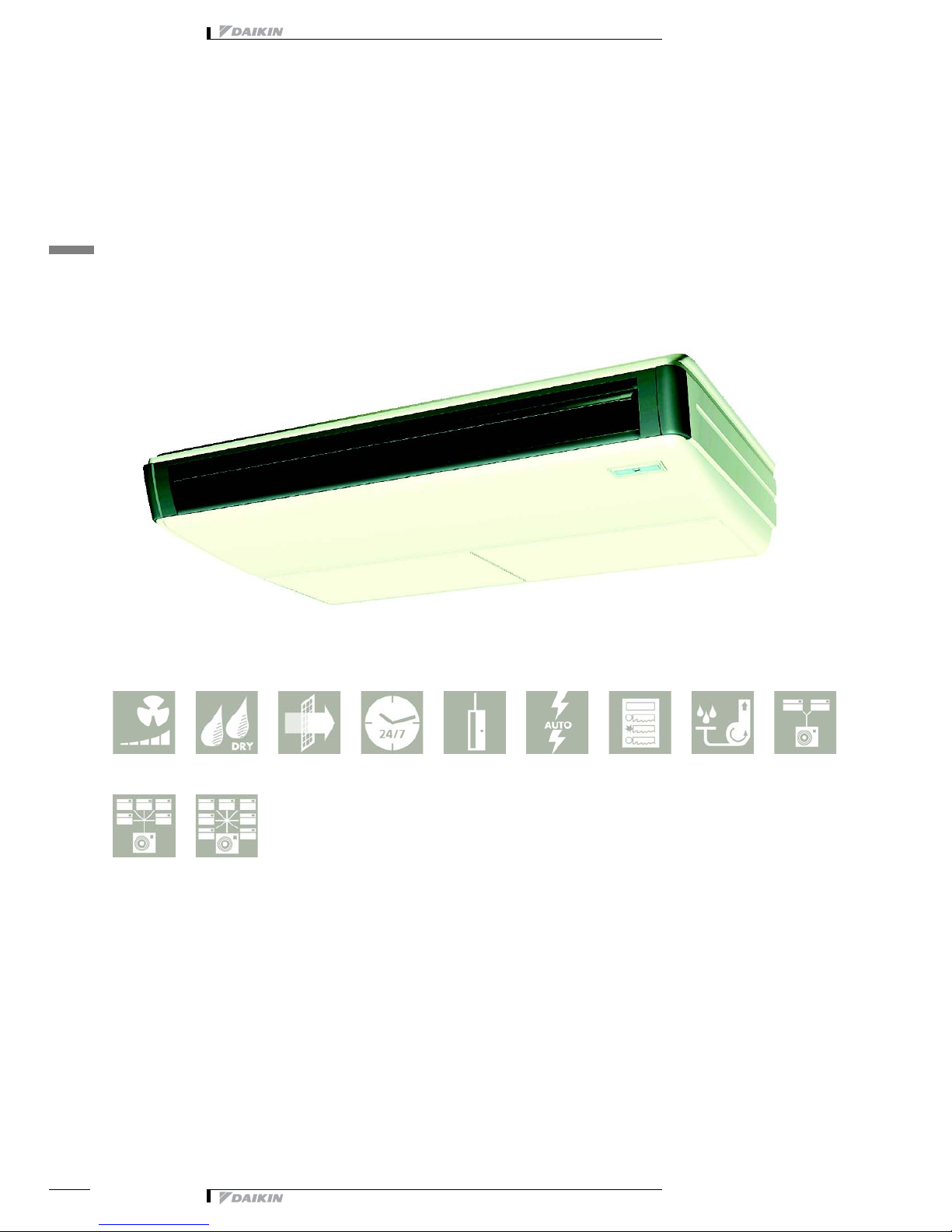

1 Features

IndoorUnit Split-Sk FHQ-B8Ceilingsus

• Seasonal efficiency, optimized for all seasons.

• Seasonal efficiency gives an indication on how efficient an air

conditioner operates over an entire heating or cooling season.

• Can be installed in both new and existing buildings

• Ideal for use in larger areas

• Heat pumps are all-in-one heating & cooling solutions for residential

& commercial applications. They extract thermal energy from the

ambient air and are therfore more energy efficient and emit far less

CO2 than comparable fossil fuel based boiler systems.

• Wider air discharge thanks to Coanda effect: up to 100º

• Air flow distribution for ceiling heights up to 3.8m without capacity

loss

• The unit can easily be mounted in corners and narrow spaces, as it

only needs 30mm lateral service space

2 steps

• Split - Sky Air®• Indoor Unit 3

• Indoor Unit • Ceiling suspended unit • FHQ-B8

2 Specifications

Standard Accessories :Operation manual;

Standard Accessories : Installation manual;

Standard Accessories : Paper pattern for installation;

Standard Accessories : Drain hose;

Standard Accessories : Clamp metal;

Standard Accessories : Insulation for fitting;

Standard Accessories : Sealing pads;

Standard Accessories : Clamps;

Standard Accessories : Washer for hanger bracket;

2-1 Technical Specifications FHQ35B8 FHQ50B8 FHQ60B8

Power input Cooling Nom. kW 0.111 0.115

Heating Nom. kW 0.111 0.115

Casing Colour White

Dimensions Unit Height/Width/Depth mm 195/960/680 195/1,160/680

Packed unit Height/Width/Depth mm 279/1,046/818 279/1,246/818

Weight Unit kg 24 25 27

Packed unit kg 31 32 35

Heat exchanger Length mm 722 922

Rows Quantity 2 3 2

Fin pitch mm 1.75

Passes Quantity 6

Face area m² 0.182 0.233

Stages Quantity 12

Empty tubeplate hole Quantity 0 2 0

Tube type Cross fin coil (Multi louver fins and N-hix tubes)

Fan Type Sirocco fan

Quantity 3 4

Air flow rate Cooling High m³/min 13 17

Low m³/min 10 13

Heating High m³/min 13 16

Low m³/min 10 13

Fan motor Model 3D12K1AA1 4D12K1AA1

Speed Steps 2

Output High W 62

Phase x Voltage V 1 x 220-240

Sound power level Cooling High/Low dBA 53/48 54/49 55/49

Heating High/Low dBA 53/48 54/49 55/49

Sound pressure level Cooling High/Low dBA 37/32 38/33 39/33

Heating Super high/High/Low dBA -/37/32 -/38/33 -/39/33

Refrigerant Type R-410A

Piping connections Sound absorbing insulation Foamed polyurethane / Glass wool

Liquid Type/OD mm Flare connection/6.35

Gas Type/OD mm Flare connection/9.5 Flare connection/12.7

Drain VP20 (I.D. 20/O.D. 26)

Heat insulation Foamed polystyrene / Foamed polyethylene

2-2 Electrical Specifications FHQ35B8 FHQ50B8 FHQ60B8

Power supply Name V1

Phase 1~

Frequency Hz 50

Voltage V 220-240

Current - 60Hz Nominal running current A -

• Indoor Unit • Ceiling suspended unit • FHQ-B8

• Split - Sky Air®• Indoor Unit

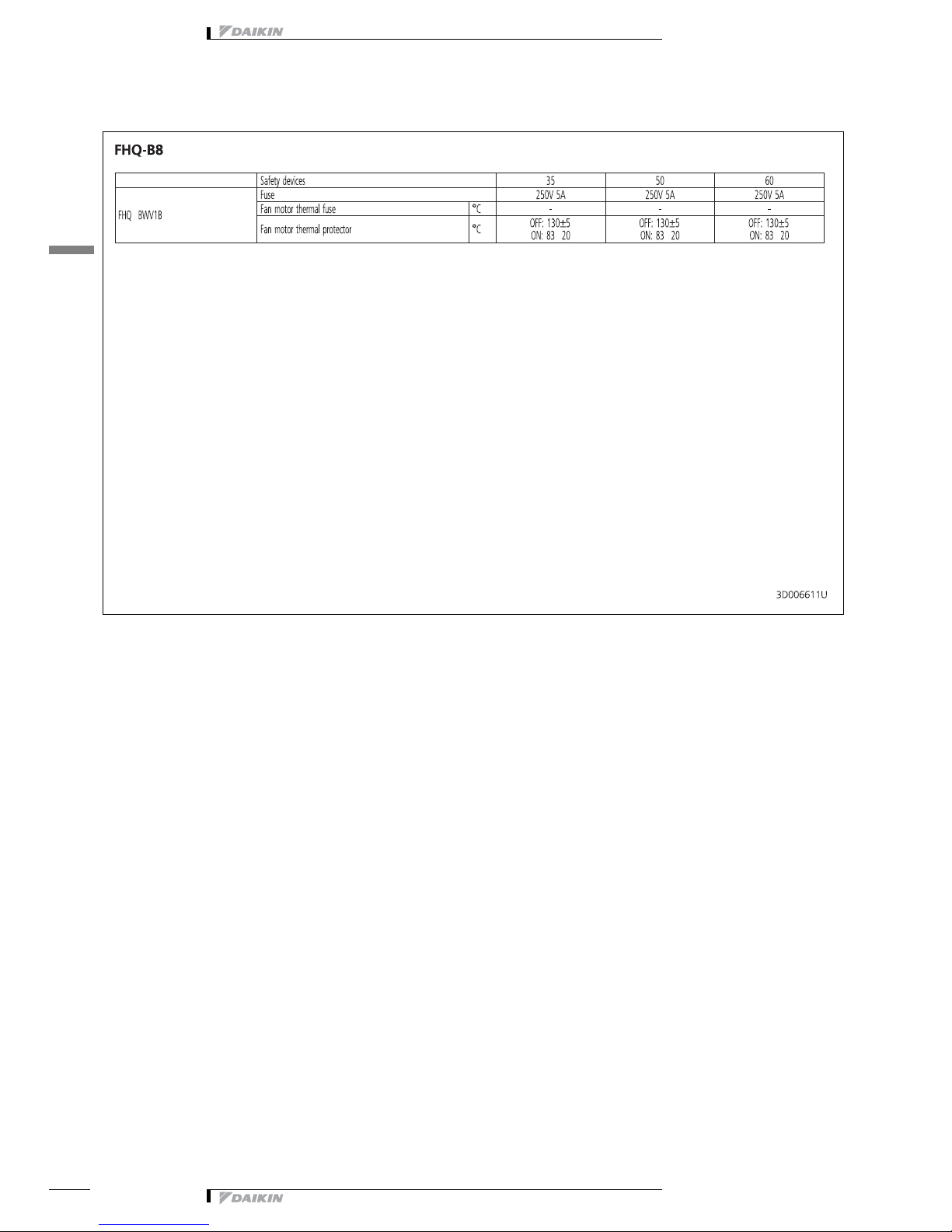

3 Safety device settings

3 - 1 Safety Device Settings

∼

± ± ±

• Split - Sky Air®• Indoor Unit 5

• Indoor Unit • Ceiling suspended unit • FHQ-B8

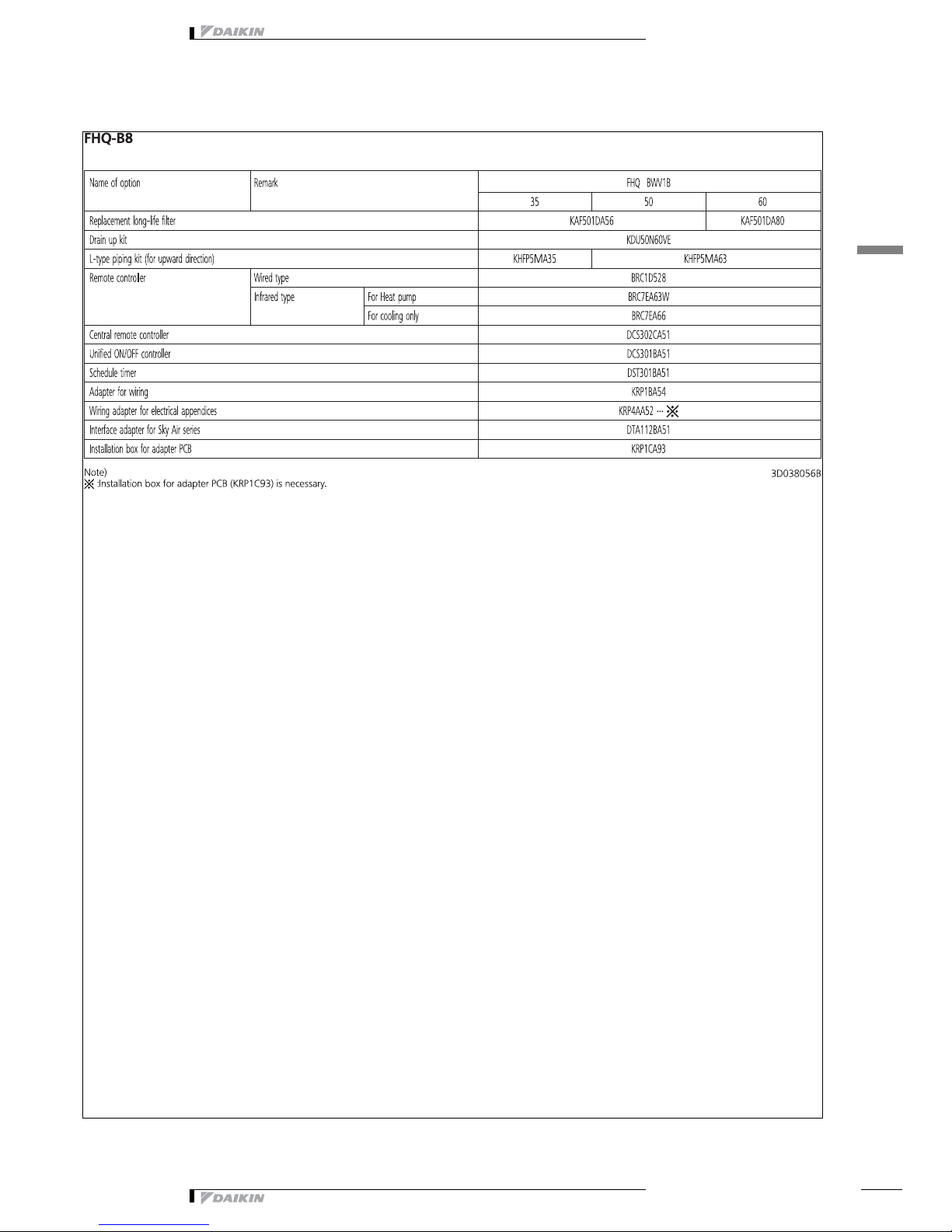

4 Options

4 - 1 Options

∼

• Indoor Unit • Ceiling suspended unit • FHQ-B8

• Split - Sky Air®• Indoor Unit

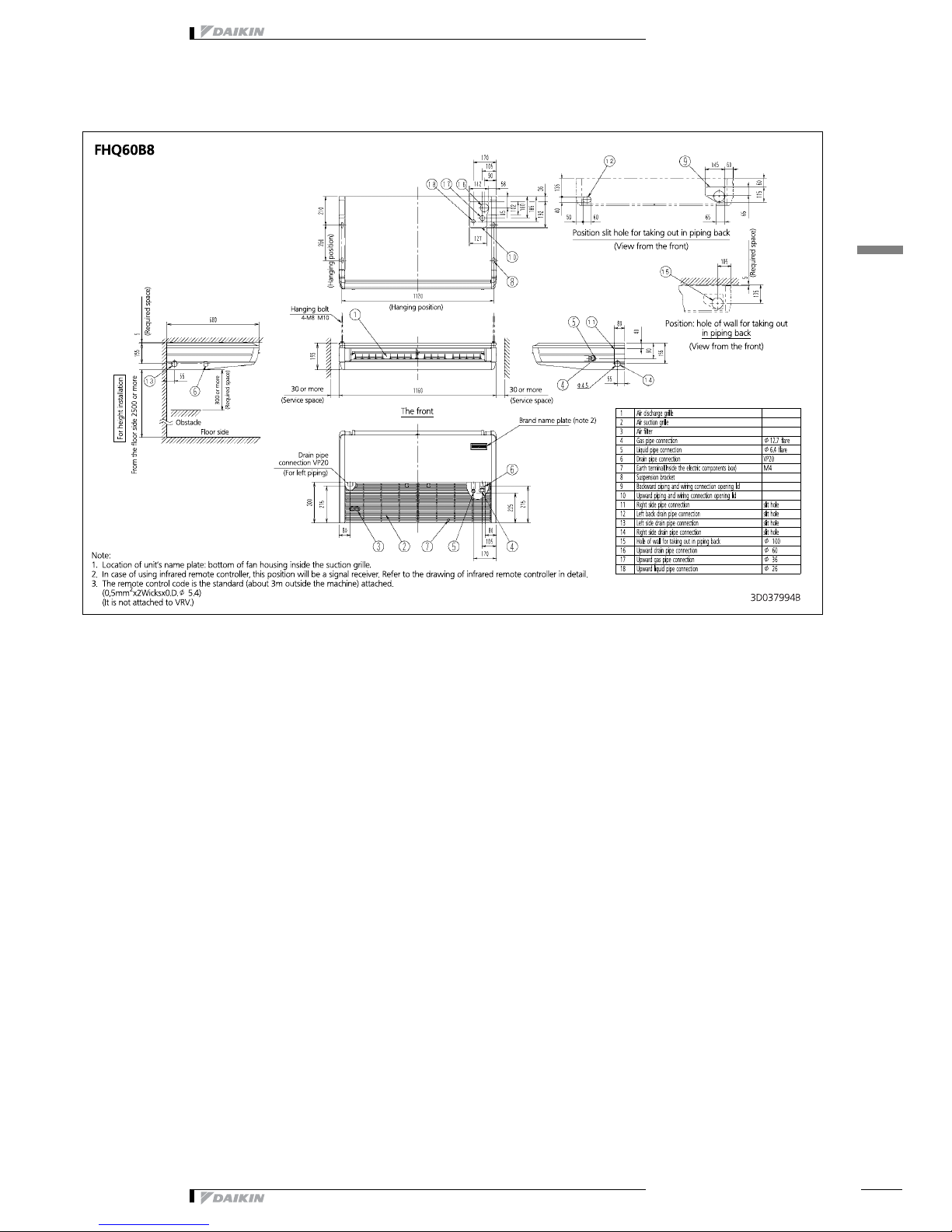

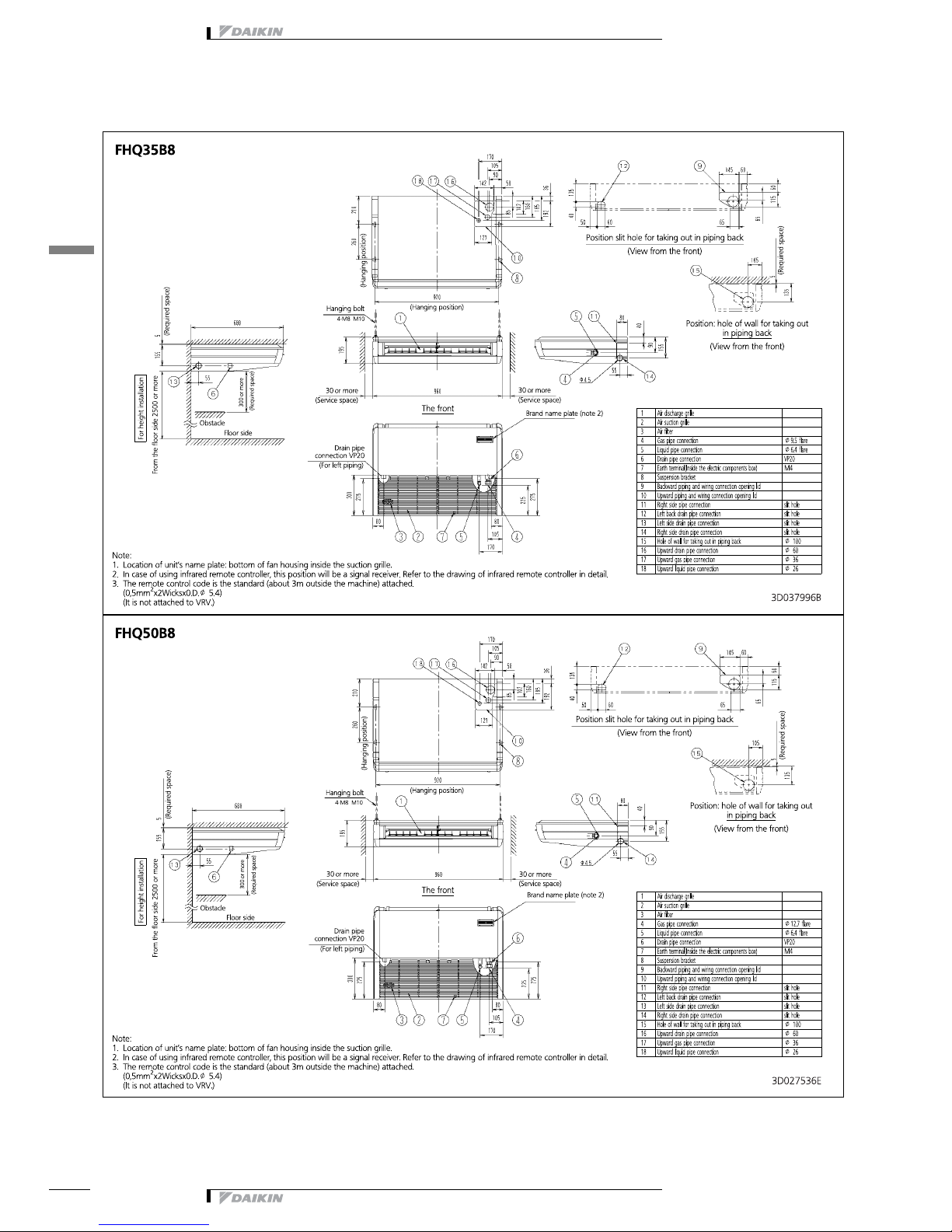

5 Dimensional drawings

5 - 1 Dimensional Drawings

∼

• Split - Sky Air®• Indoor Unit 7

• Indoor Unit • Ceiling suspended unit • FHQ-B8

5 Dimensional drawings

5 - 1 Dimensional Drawings

∼

• Indoor Unit • Ceiling suspended unit • FHQ-B8

• Split - Sky Air®• Indoor Unit

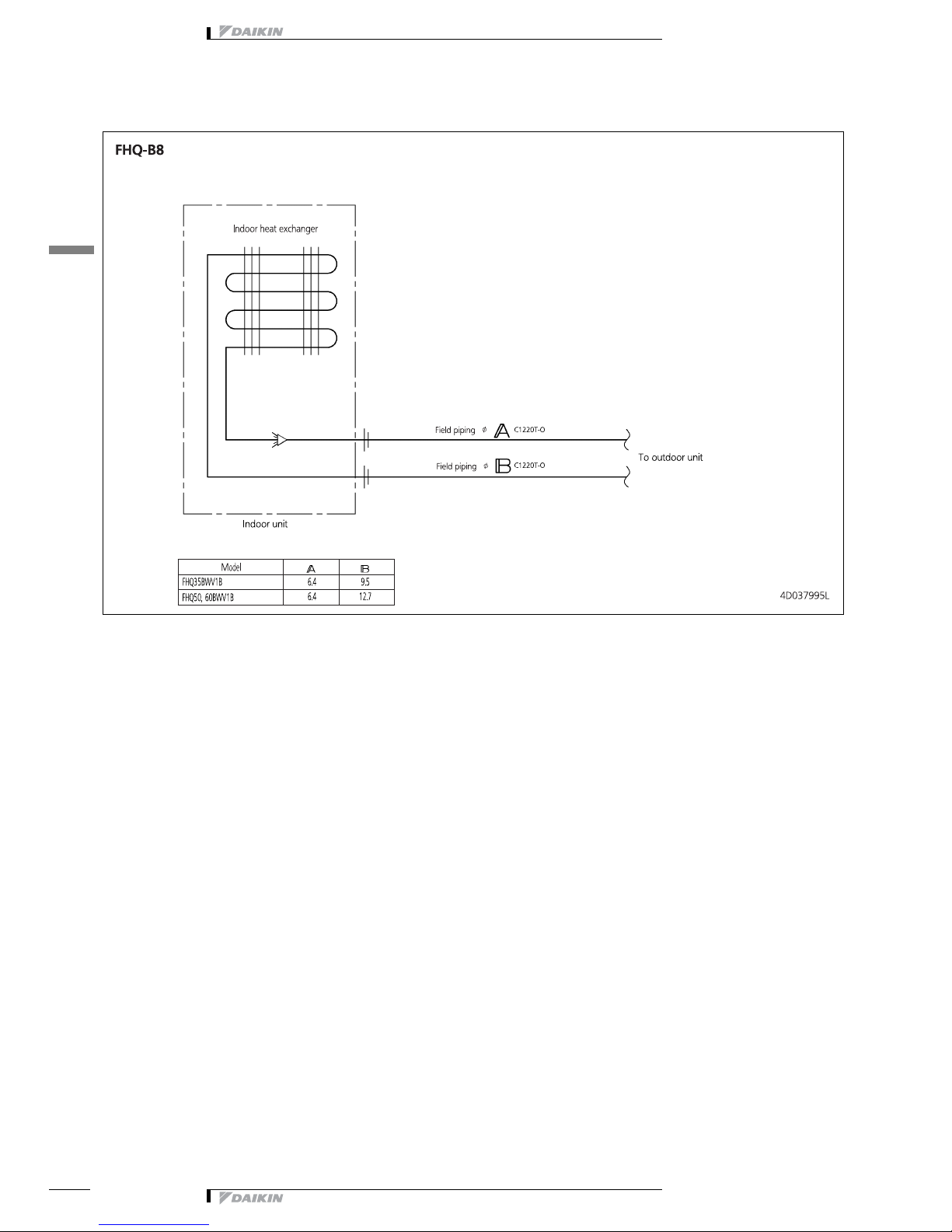

6 Piping diagrams

6 - 1 Piping Diagrams

• Split - Sky Air®• Indoor Unit 9

• Indoor Unit • Ceiling suspended unit • FHQ-B8

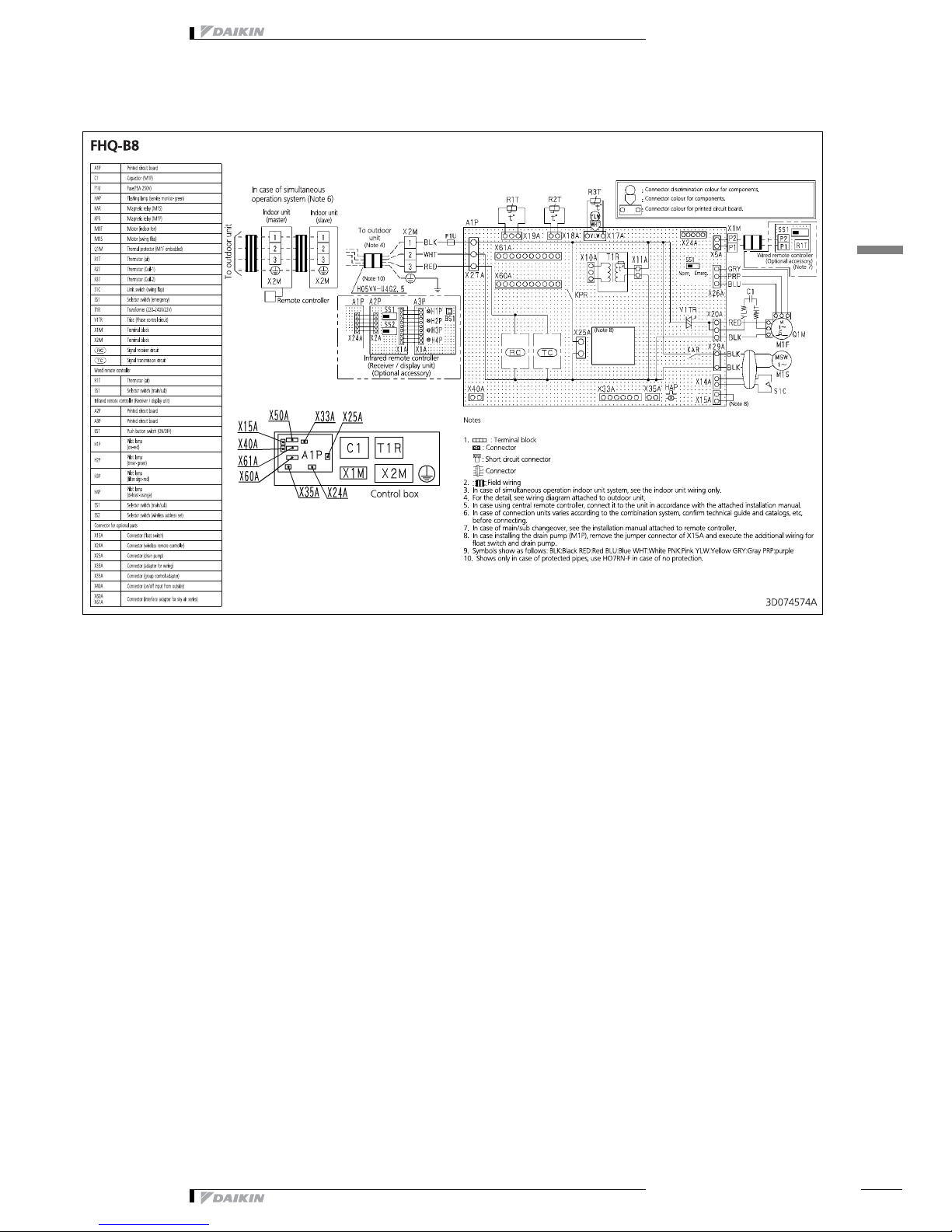

7 Wiring diagrams

7 - 1 Wiring Diagrams - Single Phase
