Daikin FAQ71BVV1B Guía de instalación y uso

technical data

FAQ-BVV1B

Wall Mounted Unit

air conditioning systems

Split

Sky Air

• Split Sky Air • Indoor Units 1

• Indoor Units • R-410A • FAQ-BVV1B

TABLE OF CONTENTS

FAQ-BVV1B

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For indoor units only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Control systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . 8

Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

External connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Sound level data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

10 Air flow pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

11 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

• Indoor Units • R-410A • FAQ-BVV1B

• Split Sky Air • Indoor Units

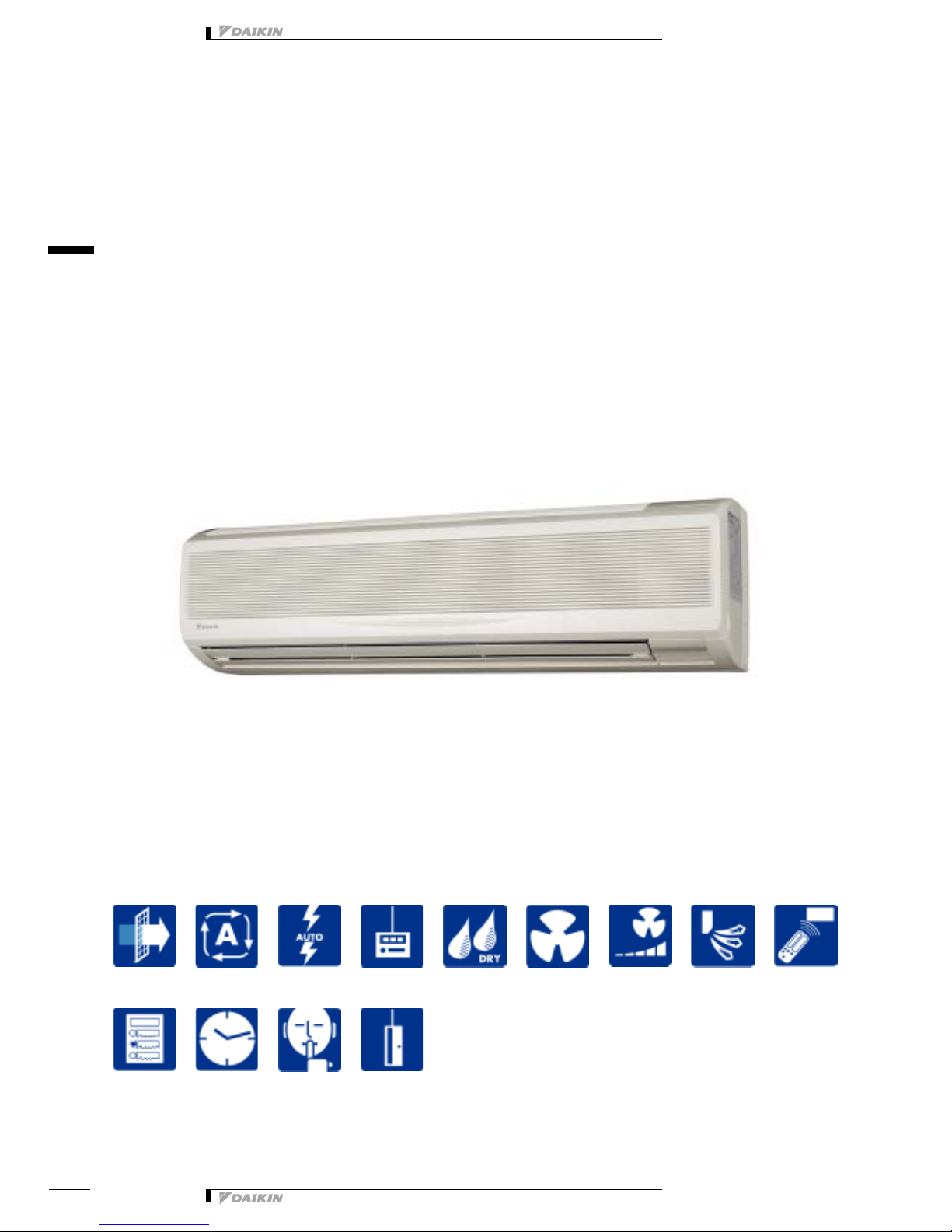

1 Features

IndoorUnit SplitSky FAQ-BVV1B R-410A

• Lightweight and compact

• Ideal for shops, restaurants or offices requiring maximum floor space

for furniture, decorations and fittings

• Fits neatly on a wall

• Nice design and very compact casing

• Both horizontal flaps and front panel can easily be removed and

washed

• Auto-swing function ensures efficient air distribution via louvers that

close automatically when the unit is switched off

• Extremely quiet in operation

• Easy to install

• Daikin remote controls give you easy control at your fingertips.

• The wired remote control provides you with a schedule timer,

enabling to program the air conditioning daily or weekly.

• The optional remote ON/OFF enables you to start/stop the air

conditioning from a mobile phone via a telephone remote control

(field supply).

• The optional forced OFF enables you to switch off the unit

automatically. E.g. when a window is opened, the unit switches off.

• The ’home leave’ operation button prevents large temperature

differences by continuously operating at a minimum (heating mode)

or maximum (cooling mode) preset level while you’re out or sleeping.

It also allows the indoor temperature to return quickly to your

favourite comfort level.

heat pump optional 2 steps optional

optional

• Split Sky Air • Indoor Units 3

• Indoor Units • R-410A • FAQ-BVV1B

2 Specifications

2-1 FOR INDOOR UNITS ONLY FAQ71BVV1B FAQ100BVV1B

Nominal Input Cooling kW 0.068 0.101

Heating kW 0.068 0.101

2-2 TECHNICAL SPECIFICATIONS FAQ71BVV1B FAQ100BVV1B

Casing Colour White

Material Resin

Dimensions Packing Height mm 366 483

Width mm 1147 1740

Depth mm 337 299

Unit Height mm 290 360

Width mm 1050 1570

Depth mm 230 200

Weight Unit kg 13.0 26.0

Packed Unit kg 17.0 34.0

Heat

Exchanger

Dimensions Length mm 863 1320

Nr of Rows 2 2

Fin Pitch mm 1.40 1.40

Nr of Passes 4 9

Face Area m² 0.289 0.332

Nr of Stages 16 12

Empty Tubeplate

Hole

Tube type Hi-XA N-Hix

Fin Type Cross fin coil (Multi louver fins and HI-XA tubes) Cross fin coil (Multi louver fins and N-hix tubes)

Fan Type Cross flow fan

Quantity 1 1

Air Flow Rate Cooling High m³/min 19.0 23.0

Low m³/min 15.0 19.0

Heating High m³/min 19.0 23.0

Low m³/min 15.0 19.0

Fan Motor Quantity 1 1

Model QCL9686M QCL1163MA+QCL1163MB

Number of steps 2 2

Output

(high)

W43 49

Cooling Sound Power High dBA 59.0 61.0

Low dBA 53.0 57.0

Sound

Pressure

High dBA 43.0 45.0

Low dBA 37.0 41.0

Heating Sound Power High dBA 59.0 61.0

Low dBA 53.0 57.0

Sound

Pressure

High dBA 43.0 45.0

Low dBA 37.0 41.0

Refrigerant Type R-410A

Piping

connections

Liquid (OD) Type Flare connection

Diameter

(OD)

mm 9.5 9.5

Gas Type Flare connection

Diameter

(OD)

mm 15.9 15.9

Drain Diameter

(OD)

mm VP13 (I.D. 13/O.D. 18) VP20 (I.D. 20/O.D. 26)

Heat Insulation Foamed polystyrene/polyethylene

Safety Devices PC board fuse

• Indoor Units • R-410A • FAQ-BVV1B

• Split Sky Air • Indoor Units

2 Specifications

Standard

Accessories

Item Installation and operation manual

Quantity 1 1

Item Paper pattern for installation

Insulation tape

Installation panel

Screws

Insulation for fitting

Notes The sound pressure level is measured via a microphone at 1m distance of the unit.

Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details, please

refer to sound level drawings of this chapter.

The sound power level is an absolute value indicating the power which a sound source generates.

2-3 ELECTRICAL SPECIFICATIONS FAQ71BVV1B FAQ100BVV1B

Power Supply Phase V1 V1

Frequency Hz 50 50

Voltage V 220-240

Power Supply Intake Outdoor unit only

2-2 TECHNICAL SPECIFICATIONS FAQ71BVV1B FAQ100BVV1B

• Split Sky Air • Indoor Units 5

• Indoor Units • R-410A • FAQ-BVV1B

3 Safety device settings

FAQ71-100B

Model Safety devices FAQ71B FAQ100B

FAQ∼B

Fuse −−

Fan motor thermal fuse (°C) −−

Fan motor thermal protector (°C) −OFF: 130±5

ON: 83±20

DU423-9101

• Indoor Units • R-410A • FAQ-BVV1B

• Split Sky Air • Indoor Units

4 Options

Optional accessories FAQ71B FAQ100B

Remote control Wired BRC1D528

Infrared type Heat pump BRC7E

618 BRC7C

510W

Cooling only BRC7E

619 BRC7C

511W

Wiring adapter for electrical appendices (2)* *KRP4A

Installation box for adapter PCB KRP4A

93 -

Central remote control DCS302C

Electrical box with earth terminal (3 blocks) KJB311A

Unified ON/OFF control DCS301B

Electrical box with earth terminal (2 blocks) KJB212A

Noise filter (for electromagnetic interface use only) KEK26-

Schedule timer DST301B

Interface adapter for Sky Air series - DTA112B

Remote sensor KRCS01-

Drain up kit K-KDU572CVE -

Connector for forced on, forced off - EKRORO

3D044482A

Note:

1. Installation box (KRP4AA93) is necessary for each adapter marked*

• Split Sky Air • Indoor Units 7

• Indoor Units • R-410A • FAQ-BVV1B

5 Control systems

3TW23651-2

6.5x9(Roundendslit)

Cover open

Cover closed

5 x 7 (Round end slit) HoleJ5

5 x 10 (Round end slit)

BRC1D527

• Indoor Units • R-410A • FAQ-BVV1B

• Split Sky Air • Indoor Units

6 Dimensional drawing & centre of gravity

6 - 1 Dimensional drawing

3D038540

unit (mm)

50 or more

30 or more

(Required space)

J80 hole

approx. 345

approx. 475

FAQ71B

approx. 400

Mounting location

approx. 390

Piping direction

(Required space)

50 or more

Dimensions for

full open front

panel

Outside line

J80 hole

(piping and wiring

intake)

2500 or more

For installation in high

spaces

(Required space)

120 or less

1 Front panel

2 Front grille

3 Air outlet

4 Gas pipe (J15.9 Flare connection)

5 Liquid pipe (J9.5 Flare connection)

6 Drain hose VP13 (External dia J18)

7 Grounding terminal (M4)

8 Right side piping connection hole

9 Left side drain piping connection hole

Notes:

1 Location of general rated name plate

Right side plate outside surface

2 In case of using infrared remote control,

this position will be a signal receiver.

Refer to the drawing of infrared remote

control in detail.

Name plate

50 or more

Piping direction

Note) 2

Piping direction

(Required space)

3D044897

unit (mm)

50 or more

250 or more

(Required space)

J80 hole

approx. 450

approx. 600

FAQ100B

8-5x20 Oval hole (for wood screw)

Mounting location

Detail j

(Mounting hole for installation plate)

approx. 580

Piping direction

(Required space)

50 or more

(Required space)

5-6x20 Oval hole (for wood screw)

13-J5 Hole (for wood screw)

2-J12 Hole (for bolt) (piping and wiring

intake)

Note 2. (service space for air filter)

Direction for air filter draw out

1 Front grille

2 Air filter

3 Discharge outlet

4 Gas piping connection (J15.9 flare)

5 Gas piping connection (J9.5 flare)

6 Drain pipe connection (VP20 O.D. J26)

7 Earth terminal(M4) (inside cover)

8 Slit hole for right side piping connection

9 Slit hole for left side piping connection

Notes:

1 Location of general rated name plate

Right side plate outside surface

2 In case of using infrared remote control, this

position will be a signal receiver. Refer to the

drawing of infrared remote control in detail.

Brand name plate

Ceiling surface

• Split Sky Air • Indoor Units 9

• Indoor Units • R-410A • FAQ-BVV1B

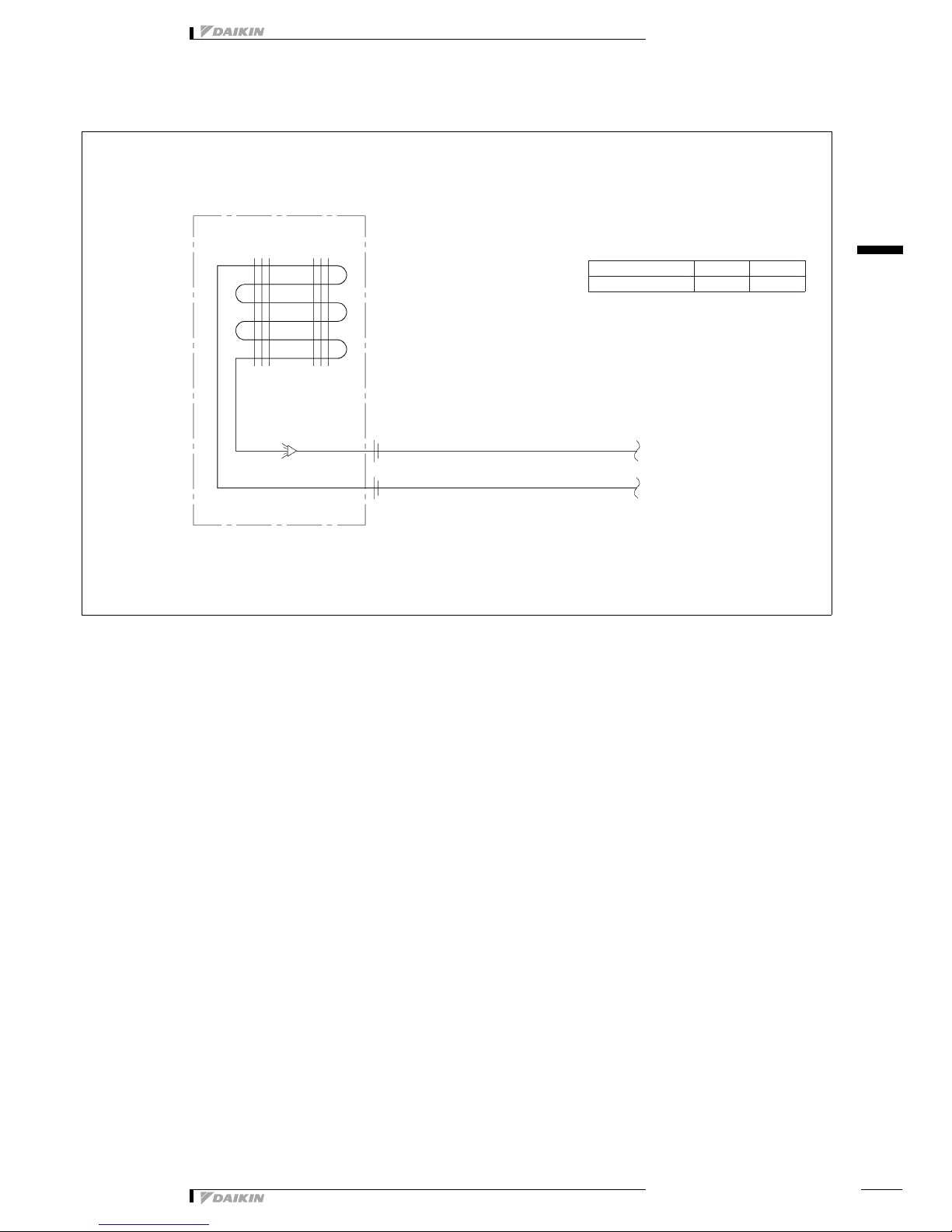

7 Piping diagram

4D037995

OCheck valve LFlare connection MScrew connection NFlange connection ZPinched pipe PSpinned pipe

Indoor heat exchanger

Field piping J9. 5C1220T-0

FAQ71-100B

Field piping J15.9C1220T-0

Refrigerant pipe connection port diameters

Model A B

FAQ71, 100B J9.5 J15.9

To outdoor unit

Indoor unit

Otros manuales para FAQ71BVV1B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Daikin

Daikin

Daikin R410A SPLIT SERIES FTXN25LV1B Manual de usuario

Daikin

Daikin RXL25M2V1B Manual de usuario

Daikin

Daikin FTX20JV FTX25JV FTX35JV Manual de instrucciones

Daikin

Daikin FTX25KV1B Manual de usuario

Daikin

Daikin F/GTKY50UV16V2 Manual de usuario

Daikin

Daikin ERLQ-CV3 Manual de instrucciones

Daikin

Daikin FTXS-L Series Guía de dimensiones

Daikin

Daikin Altherma 3 R F EHVZ04S18E 6V Series Cómo utilizar

Daikin

Daikin ARXB25C5V1B9 Manual de usuario

Daikin

Daikin REQ-BW1 Manual de usuario

Daikin

Daikin FTXM20W1VMA Manual de usuario

Daikin

Daikin Air Conditioner Manual de usuario

Daikin

Daikin VRV III-S Manual de instrucciones

Daikin

Daikin FFA25RV1A Manual de usuario

Daikin

Daikin FXLQ20P7VEB Manual de usuario

Daikin

Daikin FCQH71D8VEB Manual de instrucciones

Daikin

Daikin AZQS125B8V1B Cómo utilizar

Daikin

Daikin CCXS09PVM Manual de usuario

Daikin

Daikin REQ71B8V3B Manual de usuario

Daikin

Daikin FKCA50AV16 Manual de usuario

Daikin

Daikin Altherma EHBH08CBV Manual de usuario

Daikin

Daikin EKVDX-A Guía del usuario

Daikin

Daikin RZQ100B8W1B Manual de instrucciones

Daikin

Daikin Super Multi NX FVXS25FV1B Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario

Webasto

Webasto Frigo Top 25 DS Manual de usuario

Frigidaire

Frigidaire FAZ12ES2A Manual de usuario
