DH-VTH111 Series Digital Video Door Phone Quick Start Guide

Zhejiang Dahua Technology Co.,Ltd

Welcome

Thank you for purchasing our product!

This quick start guide is designed to be a reference tool for your system.

Table of Contents

1Framework........................................................................................................................................4

1.1 Front Panel.........................................................................................................................4

1.2 Rear Panel .........................................................................................................................5

2Basic Operations .............................................................................................................................6

2.1 Emergency Call.................................................................................................................6

2.2 Outdoor Station Call the Indoor Monitor......................................................................6

2.2.1 Call................................................................................................................................6

2.2.2 Dialogue Status .........................................................................................................6

2.3 Monitor ................................................................................................................................7

2.4 Unlock .................................................................................................................................7

2.4.1 Call Centre Implement the Unlock Operation.....................................................7

2.4.2 Unlock During the Talk.............................................................................................8

2.4.3 Unlock During the Monitor Process ......................................................................8

2.5 Information Search Function..........................................................................................8

2.5.1 Search TXT Message...............................................................................................8

2.5.2 Search Telephone Record......................................................................................8

2.6 Search Alarm Function....................................................................................................8

2.7 DND Function ....................................................................................................................9

2.8 Device Setup Function ....................................................................................................9

3Specifications .................................................................................................................................11

4FAQ ..................................................................................................................................................12

1Framework

1.1 Front Panel

Please connect the device to the power socket; you can see the power indication light is on.

After system booted up, you can see the front panel is shown as below. See Figure 1-1.

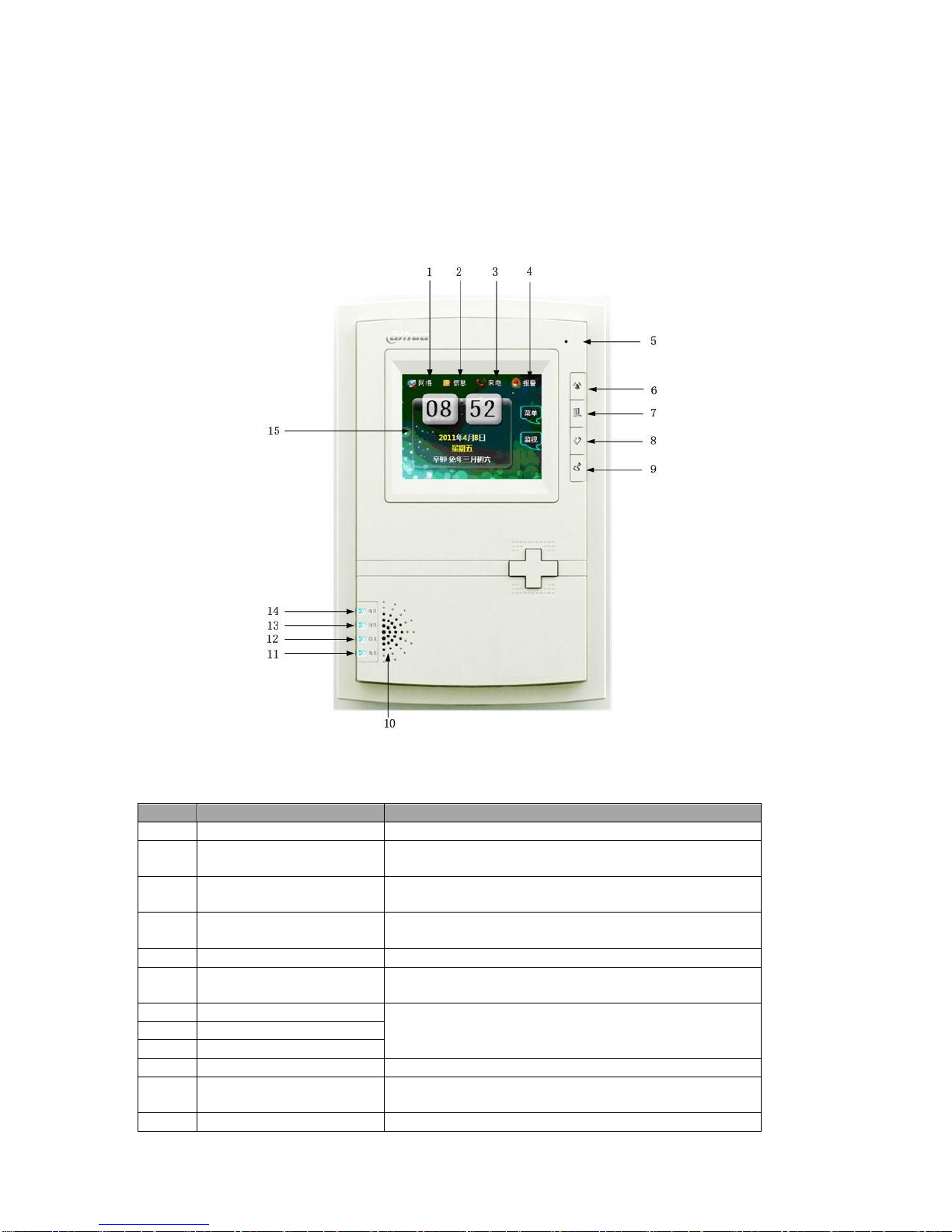

Figure 1-1

Please refer to the following sheet for detailed information.

Name

Function

Network icon

It is to display network connection status.

Information icon

You can see this icon on the standby interface if

there is unread information.

Incoming call icon

You can see this icon on the standby interface if

there is any missed call.

Alarm icon

You can see this icon on the standby interface if

there is any unprocessed alarm.

Microphone

Audio input.

Emergency call button

Click it to generate an emergency call to the

management centre.

Menu button

The function of these buttons may vary in different

interfaces.

Monitor button

Unlock button

Speaker

Audio output

DND status indication

light

The indication light is on (blue) if the do-no-disturb

status is enabled.

Information, missed call,

The indication light is on (red) when there is unread

alarm information status

indication light

information.

The indication light is on (red) when there is any

missed call.

The indication light is on (red) when there is any

unprocessed alarm,

Network status indication

light

The indication light is on (green) when the network

connection is OK.

Power status indication

light

The indication light is on (green) when the power

connection is OK.

Main interface

It is the standby interface after the system booted

up.

1.2 Rear Panel

The rear panel is shown as in Figure 1-2.

Figure 1-2

Please refer to the following sheet for detailed information.

Name

Function

RJ-45 network port

Connect to the Ethernet via the network cable.

JACK power socket

Supply 12V DC power

4 installation ports

Installation bracket

Extension module box

Alarm extension

2Basic Operations

2.1 Emergency Call

In Figure 1-1, click the emergency call button, the indoor monitor will generate an emergency call

to the management centre. The person in the management centre can pick up the phone to

implement the bidirectional talk with the indoor monitor. See Figure 2-1.

You can click the Hang up button to end the call and then go back to the main interface.

Figure 2-1

2.2 Outdoor Station Call the Indoor Monitor

2.2.1 Call

When the outdoor station is calling the indoor monitor, you can hear the bell rings. At the same

time, you can see the video from the outdoor station. There are three options for you:

pickup/hang up/unlock. See Figure 2-2.

Figure 2-2

2.2.2 Dialogue Status

In Figure 2-2, click the Pick up button; you can go to the dialogue status. Now you can begin the

dual-way video talk with the outdoor station.

During the talk, you can implement the hang up or the unlock operation. See Figure 2-3.

Figure 2-3

2.3 Monitor

In the main interface, click the Monitor button; you can view the video from the outdoor station.

See Figure 2-4. You can implement the following operations.

Click the Next button to view the video from the next outdoor station if there are several

stations.

Click the Close button to end current monitor and go back to the standby interface.

Click Unlock button, you can open the door of the current outdoor station.

After the monitor countdown ended, system may pop up a dialogue box asking you to continue

monitor or not. Click the OK button; you can begin a new monitor. Otherwise, system will turn off

the monitor in 5 seconds and then go back to the main interface.

Figure 2-4

2.4 Unlock

2.4.1 Call Centre Implement the Unlock Operation

The call centre can click the Unlock button to open the outdoor station door remotely. At the

same time, there are 15 seconds unlock confirm time. During these 15 seconds, you can still

view the video. The system automatically hangs up after 15 seconds and goes back to the

standby interface. See Figure 2-5.

Figure 2-5

2.4.2 Unlock During the Talk

During the talk process, you can click the Unlock button to open the outdoor station door

remotely. At the same time, there are 15 seconds unlock confirm time. During these 15 seconds,

you can still see the video. The system automatically hangs up after 15 seconds. See Figure 2-3.

2.4.3 Unlock During the Monitor Process

During the monitor process, you can click the Unlock button to open current outdoor station door

remotely. At the same time, there are 15 seconds unlock confirm time. During these 15 seconds,

you can still see the video. The system automatically hangs up after 15 seconds. See Figure 2-4.

2.5 Information Search Function

The information function can receive and record the txt information and telephone record. All the

messages are listed bytime. The information indication light is on when there is any unread

message. The information indication light is off after you read all the messages.

2.5.1 Search TXT Message

In the main interface, from Menu->Search 1, you can go to the information search interface. Here

you can search all the messages and view the txt information you are interested in. Click the OK

button; you can view the detailed contents. The unread txt information status becomes read after

you click the OK button to view.

2.5.2 Search Telephone Record

In the search interface, you can view all the telephone history record. Move your cursor to scan

the unread record; you can see its status becomes read.

2.6 Search Alarm Function

This series product can record, storage all kings of alarm information for future reference.

In the main interface, from Menu->Alarm log 2, you can go to the search alarm information

interface. Here you can search all kinds of alarm records. You can click the PgDn button to view

more if it is more than one page.

2.7 DND Function

This series product supports the do-not-disturb (DND) function. You can enable this function to

reject the call you do not want to pick up. There are total six options: off/1-hour/2-hour/4-hour/8-

hour/24-hour. You can enable or disable this function. You can set the corresponding valid time

after you enabled this function.

2.8 Device Setup Function

This series product supports the customized parameter setup. You can set according to your

own habits or requirements.

Now you can set: ring volume, audio volume, brightness, outdoor station password. See Figure

2-6.

Figure 2-6

Highlight the item you want to set and then click the Modify button to set. Please click the OK

button to save current setup and then return. See Figure 2-7.

Figure 2-7

For the volume and brightness setup, you can click the “+”to increase current value and click the

“-”to decrease current value.

For the password setup, you can click “+”to increase the current value and click the “-”to

decrease the current value.

Note

For the password setup, you need to set according to your room number. For example, you can

set “room number”+”4-digit password”.
