Daewoo DTL-2950 Manual de usuario

DMP3953400

Colour Television

MANUAL INSTRUCTION

DTC-20, 21

DTY-21, 25, 28, 29

DTZ-24, 28, 29

HELPLINE NUMBER :

0870 100 2525

With queries, please quote the page number,

reference number and model number

ADDITIONAL INFORMATION FOR TV’S SOLD IN GREAT BRITAIN

The appliance is supplied with a moulded three pin mains plug ﬁtted with 5Amp fuse.

Should the fuse require replacement, it must be replaced with a fuse rated at 5 amp

and approved by ASTA or BSI to BS1362.

The plug contains a removable fuse cover that must be reﬁtted when the fuse is

replaced.In the event of the fuse cover being lost or damaged, the plug must not be

used until a replacement cover has been obtained.Replacement fuse covers can be

purchased from your nearest electrical dealer and must be the same colour as the

original.

If the moulded mains plug is unsuitable for the socket outlet in your home or is

removed for any other reasons, then the fuse should be removed and the cut oﬀ plug

disposed of safely to prevent the hazard of electric shock.

There is a danger of electric shock if the cut oﬀ plug is inserted into any socket outlet.

If a replacement plug is to be ﬁtted, please observe the wiring code shown below.The

wires in the mains lead are coloured in the accordance with the following code:

Brown-live Blue-neutral

As the colours of the wires in the mains lead of this appliance may not correspond with

the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked

with the letter N or coloured black.The wire which is coloured brown must be connected

to the terminal which is marked with the letter L or coloured red.

Do not make any connections to the terminal in the plug which is marked by the letter

E by the safety earth symbol or coloured green or green and yellow.

A17

A19

A20

A21

A18

A25

A24

A22

A15

A26

A16

A14

A13

A11

A23

A12

A10

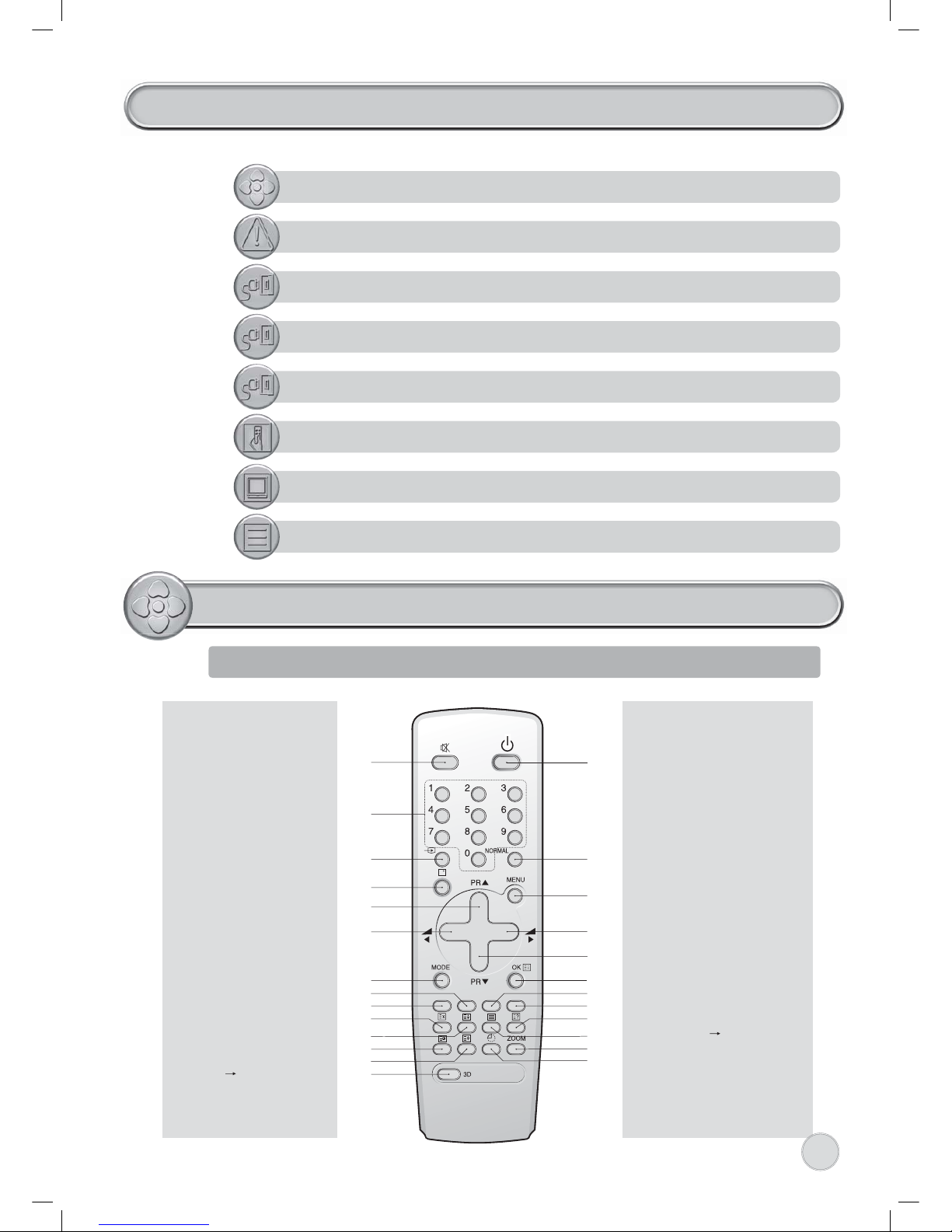

CONTENTS

REMOTE CONTROL & TV CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

START UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CONNECTING EXTERNAL EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . 5

DAILY USE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

MENUS DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TELETEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

REMOTE CONTROL & TV CONNECTIONS

REMOTE CONTROL UNIT

TELETEXT mode

A1 POWER

A2 SOUND MUTE

A3 NUMBER 0..9

A4 .

A5 .

A6 PAGE UP

A7 VOL/BRIGHT

A8 CANCEL

A9 PAGE HOLD

A10 SUBPAGE

A11 RED

A12 GREEN

A13 .

A14 .

A15 .

A16 .

A17 .

A18 INDEX

A19 VOL/BRIGHT

MENU SELECTION

A20 VOL/BRIGHT

A21 PAGE DOWN

A22 TELETEXT TV

A23 HEIGHT

A24 REVEAL

A25 CYAN

A26 YELLOW

TV mode

A1 POWER

A2 SOUND MUTE

A3 NUMBER 0..9

A4 SLEEP

A5 TV / AV

A6 PROGRAM UP

(CURSOR UP)

A7 VOLUME DOWN

(CURSOR LEFT)

A8 .

A9 .

A10 .

A11 SKIP

A12 MOVE

A13 3D(SOUND EFFECT)

A14 MODE

A15 ZOOM

A16 RECALL

A17 NORMAL

A18 OK/PRESET

A19 MENU

A20 VOLUME UP

(CURSOR RIGHT)

A21 PROGRAM DOWN

(CURSOR DOWN)

A22 TV TELETEXT

A23 .

A24 .

A25 .

A26 DELETE / FREEZE

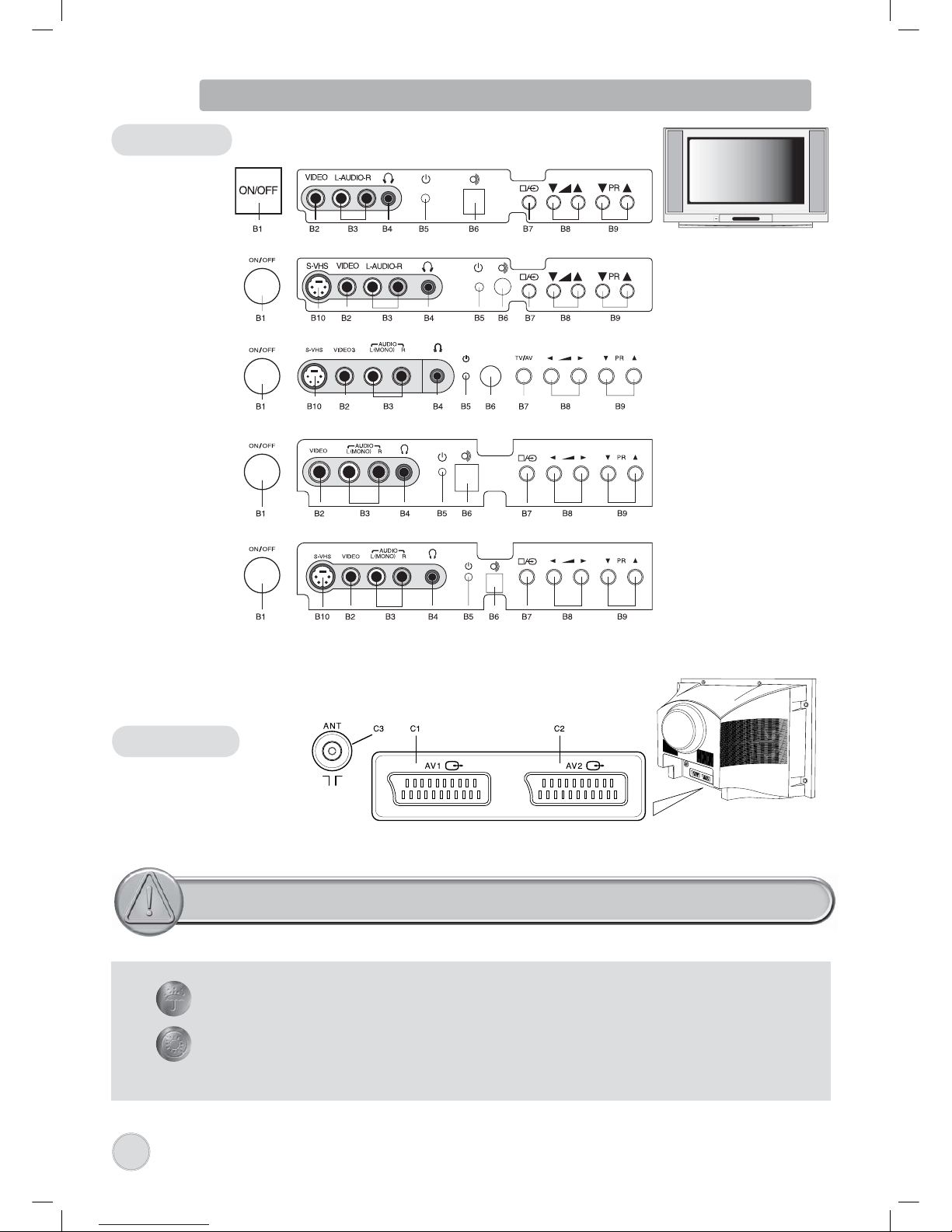

IMPORTANT SAFEGUARDS

Front

B1 MAIN POWER button

B2 FRONT VIDEO INPUT socket

B3 FRONT AUDIO INPUT (L + R) socket

B4 HEADPHONE socket

B5 STAND-BY indicator

B6 REMOTE sensor

B7 TV / AV button

B8 VOLUME UP/DOWN buttons

B9 PROGRAM UP/DOWN buttons

B10 FRONT PANEL S-VIDEO jack

Rear

C1 SCART 1 socket

C2 SCART 2 socket

C3 AERIAL jack

LOCAL CONTROL

WATER AND MOISTURE

The apparatus shall not be exposed to dripping or splashing water and no object ﬁlled with liquids, such as vases , should be

placed on the apparatus.

HEAT

Never place the set near heat sources.

Never put a naked ﬂame, such as a candle, on the top of TV set.

DTZ-24,28 / DTZ-29U7

DTC-20,21 / DTY-21,25,28,29

DTZ-29U3

DTY-21G2

DTZ-29G2 / DTZ-2820

VENTILATION

Do not cover the ventilation openings in the cabinet and never place the set in a conﬁned space such as in a bookcase

or built-in cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around the unit.

OBJECT ENTRY

Do not insert foreign objects, such as needles and coins, in the ventilation openings.

LIGHTNING STRIKE

You should disconnect the set from the mains and the aerial system during thunderstorms.

CLEANING

Unplug the set from the mains while cleaning.

AFTER MOVING THE SET

If the set is moved or turned, the MAIN POWER button must be switched oﬀ for at least 15 minutes

in order to take out colour patches on the screen.

DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household

waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments

waste. In the European Union and Other European countries which there are separate collection systems for used electrical and

electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment

and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials

will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your

household waste. For more detailed information about recycling of this product, please contact your local city oﬃce, your household

waste disposal service or the shop where you purchased the product.

INSTALLATION

Open remote control battery

compartment (at the rear) and insert

two 1.5V type AAA batteries. Warning:

be careful to respect battery polarities.

Insert the main plug into a

230V 50Hz AC power socket.

Connect aerial to aerial jack (C3).

SWITCHING ON AND OFF

Power on the TV set using front panel MAIN POWER button (B1).

Select your preferred language from the LANGUAGE menu (see section START UP on

page 5).

Press the remote control MENU button (A19) to enter the main menu.

Select Install menu to tune and memorise TV programs.

Batteries

The very ﬁrst time that you turn on the TV, the LANGUAGE menu will appear on the screen. Its purpose is to enable you to select the language that will be

used for all the OSD (On Screen Display) menus. The user must enter a choice of language before proceeding further.

The language entered at this stage can still be modiﬁed at any later time, by entering the LANGUAGE menu (accessed from the FEATURES menu: see later

section under MENU DESCRIPTION).

The descriptions used in the menu are those of the country code (e.g. GB = English, NL = Holland etc).

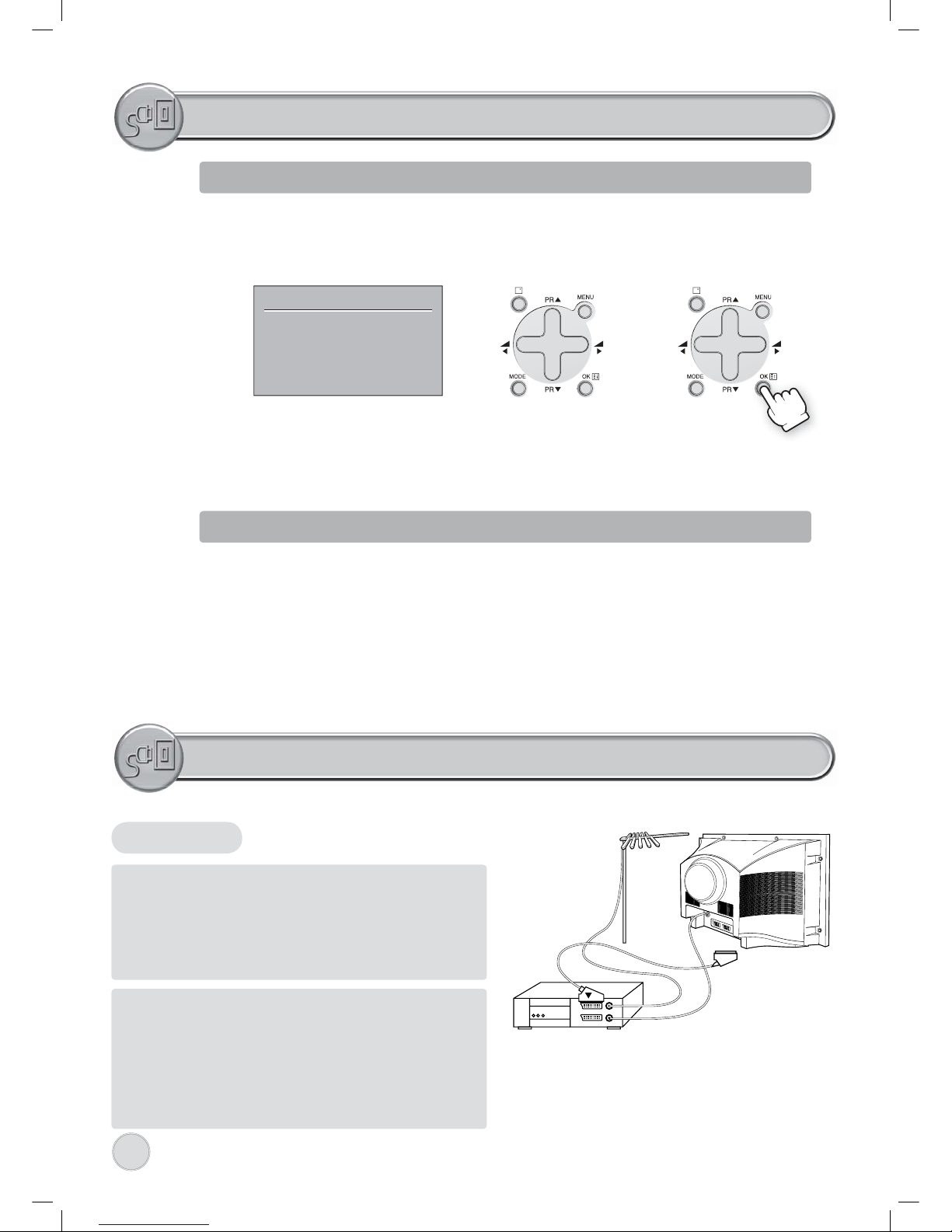

START UP

LANGUAGE MENU

AUTOMATIC TUNING

CONNECTING EXTERNAL EQUIPMENT

The rear Scart1 (C1), Scart2 (C2) sockets, the front AV socket (B2) (B3), and the S-VHS socket (B10, option: real ﬂat TVs) are three dedicated

sockets to connect audio-video equipment.

Rear

REAR SCART 1 SOCKET (AV1)

This socket (C1) has video / audio inputs and outputs. It is recommended to

connect to this socket automatic AV switching equipment such as pay-TV

decoders, video games, DVD players and most VCR’s.

In most cases, when connecting powered equipment to this socket, the TV

set switches automatically to AV mode. If not, then use the TV/AV buttons

(A5) or (B7) to select AV1.

REAR SCART 2 SOCKET (AV2)

This socket (C2) has video / audio inputs and outputs. Automatic AV

switching equipment(for example most VCR’s) can be connected to this

socket.

In most cases, when connecting powered equipment to this socket, the TV

set switches automatically to AV mode. If not, then use the TV/AV buttons

(A5) or (B7) to select AV2.

You can also receive an S-VHS signal with REAR SCART2 socket, by

selecting SVHS2 with the TV / AV buttons (A5) or (B7).

VCR / DVD / Video Game / Pay-TV decoder Important:

If your video equipment does not have SCART socket(s), or

if you wish to use only the aerial (RF) connection (not

recommended), then you should make use of PR 00 on the

TV set for best performance.

Automatic Tuning System

If you have a satellite decoder: If your decoder is connected to the TV set by the aerial jack (C3), you must power on the demodulator and tune

Sky News before starting ATSS .

ATSS = Automatic Tuning and Sorting System. To start the ATSS function:

- Select „ATSS „ function.

- Adjust to the required country.

- Press and hold the OK button (A18) to start the automatic tuning.

The ATSS function has started when the phrase„Please Wait !” appears (in red characters ) in the help instructions box, below the Install menu.

When the ATSS function is ﬁnished, the stored programs are displayed on screen using Edit menu presentation (to Exit tuning before automatic

tuning is ﬁnished, press the remote control MENU button (A19) ).

LANGUAGE

BG CZ D DK E

F FIN GB GR H

I N NL P PL

RO RUS S

Selection is made by use of the remote control CURSOR UP (A6) / CURSOR DOWN (A21) keys and CURSOR RIGHT (A20) / LEFT (A7) keys.

Once you are satisﬁed with your selection, push the OK button (A18) to conﬁrm your choice. The choice will brieﬂy highlight in red, after which the menu

will disappear.

Note : The languages shown are subject to modiﬁcation without prior notice.

TV/AV SELECTION

Allows to switch between TV and external modes.

By repeatedly pressing the remote control TV / AV (A5) or the TV front panel TV /

AV (B7) button, the on-screen display is changed as shown (SVHS3 is an option):

AV1 > AV2 > SVHS2 > AV3 > SVHS3 > TV

Remark: If the signal source from the rear SCART1 socket (AV1) is RGB (e.g.

normally from a DVD player) then AV1 RGB will be displayed.

FRONT AV SOCKET (AV3)

The front AV socket (B2) - (B3)

has audio and video inputs. To

switch from TV to these inputs,

use the TV / AV buttons (A5) or

(B7) and select AV3.

HEADPHONE SOCKET

To hear TV sound with

headphones, insert a 3.5mm

headphone plug into the

headphone socket (B4). The

speaker’s sound will be

automatically cut oﬀ.

FRONT S-VIDEO JACK (Option for DTZ-24,28,29)

The front S-VIDEO jack (B10) has video inputs only.

It is necessary to connect the audio inputs to socket (B3)

in order to have audio and video. To switch from TV to

these inputs, use the TV / AV buttons (A5) or (B7) and

select SVHS3.

DAILY USE

1) If stand-by indicator (B5) is red, then the TV set is in

stand-by mode.

You can switch on using the remote control POWER

button (A1), the NUMBER 0….9 buttons (A3), or

PROGRAM UP (A6) / DOWN (A21) buttons.

The front panel PROGRAM UP/DOWN buttons (B9)

can also be used.

Once on, the stand-by indicator turns to green and

the picture appears on the screen.

2) If stand-by indicator (B5) is not lit, then the TV

set is powered oﬀ.

You must press the TV set front panel MAIN

POWER button (B1).

If a picture does not appear, then the stand-by

indicator will be lighted red.

In this case, use the remote control as

indicated in 1).

3) If stand-by indicator (B5) is ﬂashing red, and

green then the TV set is in child-lock mode. It

is necessary to use the remote control POWER

button (A1), NUMBER 0….9 buttons (A3), or

PROGRAM UP (A6) / DOWN (A21) buttons.

The front panel PROGRAM UP/DOWN buttons

(B9) will not function.

Once on, the stand-by indicator turns to green

and the picture appears on the screen.

SWITCHING ON TV SET

SWITCHING OFF TV SET 1) Pressing the remote control POWER button

(A1), you can switch oﬀ to stand-by mode

(low power consumption mode) which also

allows quick restart by remote control

(see above: SWITCHING ON TV SET).

2) Pressing the TV set front panel MAIN POWER

button (B1), you can completely power oﬀ the

TV set.

In this case, you must use the same front

panel POWER button (B1) to switch on again

(see above: SWITCHING ON TV SET).

Remark: If a broadcast signal is not present after 30 minutes, the TV set will be automatically turned to stand-by mode.

Front

CAMCORDER

VIDEO GAME

SPATIAL

STEREO

18:30

OFF

STEREO

18:30

PROGRAM SELECTION (FROM 0 TO 99)

SOUND CONTROL

Volume adjustment

Use the remote control VOLUME UP (A20) / DOWN (A7) buttons or

the TV set front panel VOLUME UP / DOWN buttons (B8).

Mute

Mute the sound by pressing the remote control

SOUND MUTE button (A2).

Then, logo is displayed. The previous sound

setting is returned after pressing the same button

a second time.

If a sound related function is used (e.g. VOLUME, 3D)

then the MUTE will also be cancelled.

Manufactured under license from Dolby Laboratories,„Dolby”

and the double-D symbol are trademarks of Dolby Laboratories.

Mono forcing, dual language

- If you are unable to get good

sound quality for a program due

to poor reception, you can force

a change from stereo to mono

transmission by pressing the

remote control MODE button

(A14). Then the program status

display will indicate„MONO” with

a icon.

- On the other hand, during a

program with dual language

transmission, the MODE button

(A14) allows you to toggle

between the ﬁrst and second

language. The program status

display will indicate„DUAL 1”or

„DUAL 2”(plus NICAM according

to the received signal).

- To return to initial state, press again the MODE button (A14).

Sound eﬀects

A SPATIAL sound eﬀect is available, using the remote

control 3D (A13) button.

The following display appears:

To return to initial sound eﬀect, press again the 3D (A13) button.

The following display appears:

As an option, the sound eﬀects PANORAMA and Dolby Virtual are

available with the same button. For other adjustments such as

BALANCE, EQUALIZER or AVL(option), use the SOUND menu

(page10).

Direct selection

Use the remote control NUMBER 0….9 buttons (A3).

For two digits program numbers, enter the second digit within 2 seconds.

Up / Down selection

Use the remote control PROGRAM UP (A6) / DOWN (A21) buttons or the

TV set front panel PROGRAM UP / DOWN buttons (B9).

Spatial sound eﬀect

Sound transmission mode

Clock

No sound eﬀect

Sound transmission mode

Clock

PICTURE CONTROL

You can select three pictures settings, by using the remote control NORMAL button (A17) :

- Normal I (standard hard picture)

- Normal II (standard soft picture)

- Favourite

For other adjustments: BRIGHTNESS, CONTRAST, COLOUR, SHARPNESS, NOISE REDUCTION, use the PICTURE menu.

If an NTSC signal is received, then the TINT adjustment will also be available.

SLEEP FUNCTION

The set will turn oﬀ (to stand-by mode) after a period of time that you can select. By repeated use of the remote control SLEEP

button (A4), you can enter one of the following settings :

OFF 20 min 40 min 60 min 80 min 100 min 120 min OFF

01 BBC1

STEREO

Remaining time (minutes)

before TV set switches oﬀ

FORMAT SELECTION

AUTO setting :

If picture format signalling data is

received, then the most appropriate

ZOOM format will be automatically

selected. In the absence of this data, the

default ZOOM format will be selected(see

page 13, ZOOM AUTO function under

FEATURES MENU).

Otherwise, the preferred mode of the user

can be forced by repeated pressing of the

remote control ZOOM button (A15):

Television Format 4:3

The following picture formats are

available:

AUTO 14:9 16:9 FULL SCREEN AUTO

Television Format 16:9

The following picture formats are

available:

AUTO 4:3 ZOOM 14:9 ZOOM 16:9

FULL SCREEN AUTO

The SLEEP time remaining (before TV turn-oﬀ ) can be seen again at any time by one

touch on the remote control SLEEP button (A4).

A second touch (while the status display is active) will modify the SLEEP time remaining.

01 BBC1

FAVOURITE

18:30

01 BBC1

NORMAL I

18:30

01 BBC1

NORMAL II

18:30

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Daewoo

Daewoo

Daewoo DTH-20D5FSN Manual de usuario

Daewoo

Daewoo DTH-21S7NAV Manual de usuario

Daewoo

Daewoo DLT-26C2, DLT-26C3, DLT-32C1, Manual de usuario

Daewoo

Daewoo DTQ-29U1SCV Manual de usuario

Daewoo

Daewoo DTG-28 Manual de usuario

Daewoo

Daewoo DTQ-20U4SC Manual de usuario

Daewoo

Daewoo DTD-29U9WPT Manual de usuario

Daewoo

Daewoo DTX-21G2 Manual de usuario

Daewoo

Daewoo DTQ-29M2FS Manual de usuario

Daewoo

Daewoo DTC Series Manual de usuario

Daewoo

Daewoo DTH-2066FS Manual de usuario

Daewoo

Daewoo DDT-21H9ZDF(21") Manual de usuario

Daewoo

Daewoo DTQ-25G4FS Manual de usuario

Daewoo

Daewoo DTE-29 Series Guía del usuario

Daewoo

Daewoo DTQ-29M2FS Manual de usuario

Daewoo

Daewoo DTT-3250-100D Manual de usuario

Daewoo

Daewoo SuperVision GB14Q2T Manual de usuario

Daewoo

Daewoo DTR-14D9ME Manual de usuario

Daewoo

Daewoo DTQ 14V1FCN Manual de usuario

Daewoo

Daewoo DTD-29U8ME Manual de usuario

Daewoo

Daewoo DTT-3250MT Manual de usuario

Daewoo

Daewoo DTQ-14J4FC Manual de usuario

Daewoo

Daewoo DTQ 27S2FCC Manual de usuario

Daewoo

Daewoo DTE-29G3ZZR Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
