Daewoo FR-5101NT Manual de usuario

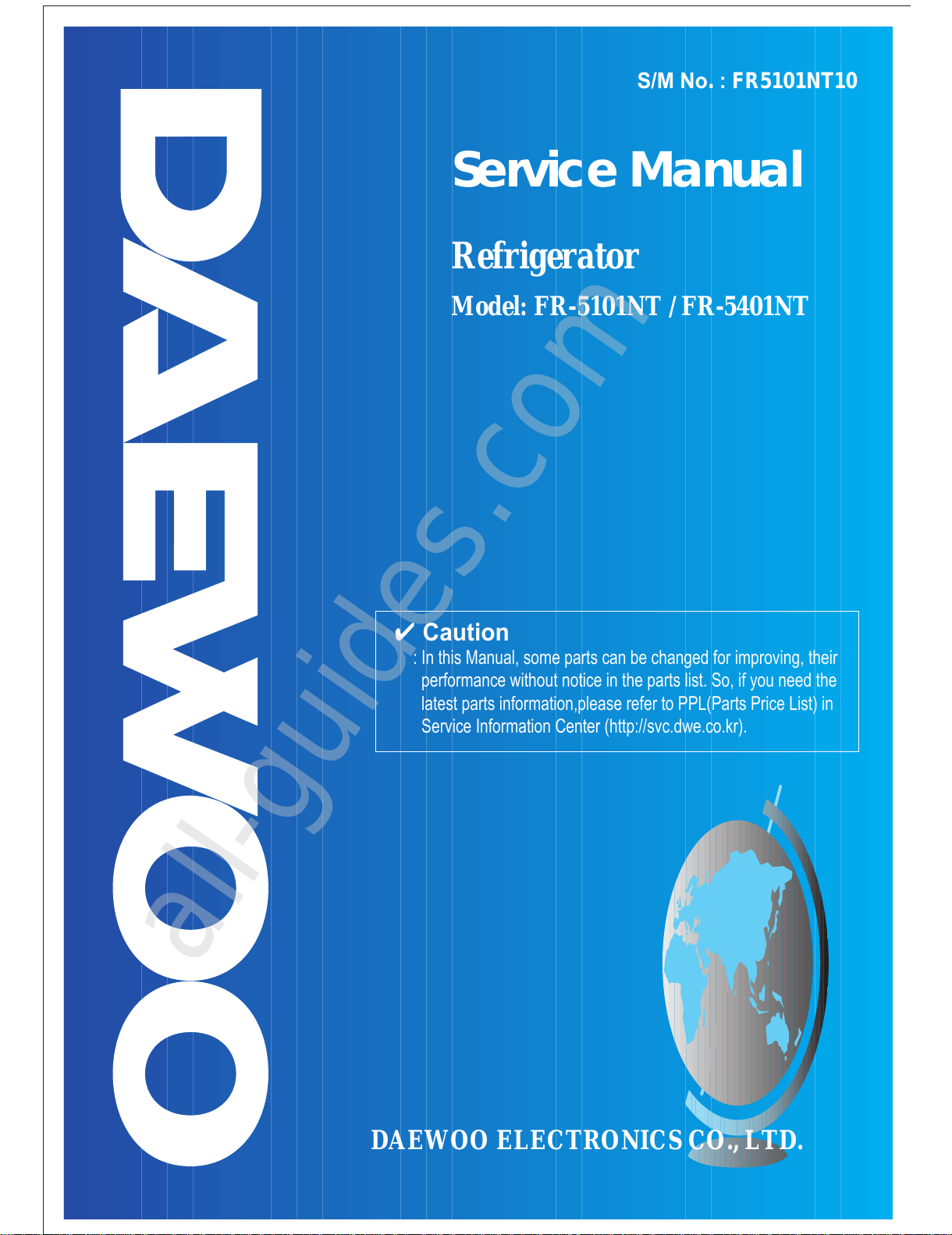

Service Manual

Refrigerator

Model: FR-5101NT / FR-5401NT

DAEWOO ELECTRONICS CO., LTD.

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

S/M No. :FR5101NT10

All manuals and user guides at all-guides.com

all-guides.com

TABLE OF CONTENTS

1. EXTERNAL VIEWS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1

1-1. Name of Parts / 1

2. SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - 2

2-1. Out Line / 2

2-2. Electric Parts / 3

2-3. Power Cord / 6

2-4. Door Color / 7

3. OPERATION AND FUNCTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8

4. DIAGRAM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12

4-1. Wire Diagram / 12

4-2. Air Flow Diagram / 13

4-3. Refrigerant Cycle Diagram / 14

5. DISASSEMBLY AND ASSEMBLY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15

6. EXPLODED VIEW AND PARTS LIST - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26

6-1. Total Exploded View / 26

6-2. Total Parts List / 27

6-3. Machine Room Exploded View And Parts List / 30

SAFETY AND PRECAUTIONS

1) For starters, be sure to check any chances of the leakage ofelectricity

2) You could handle a part in the vicinity of electricity after unplugging

3) You should put on rubber glovers to prevent an electric shock on operation test

4) Make sure the rated current, voltage, capacity before using an instrument

5) Keep your wet hands away from the metal goods in the freezer compartment

not to be frostbitten

6) Be careful not to let water to permeate the electric part in the machine room

7) with the door open during your working, you might be damaged by thatdoor

8) You should give a tilt to the refrigerator for your safe after removing the breakable

goods inside the refrigerator

9) You'd better use cotton gloves if you fix it up around the evaporator

All manuals and user guides at all-guides.com

1. EXTERNAL VIEWS

1-1. Name of Parts

1) FR-5101NT, 5401NT

Freezer Lamp

Freezer Shelf

Case Icing

Ice Box

Deodorant

Chilled Case

Refrigerator

Side Louver

CoverCubicDuct

Crisper Cover

Box Vegetable *L

BoxVegetable*R

Front Grille

Adjustable Foot

Pocket(B)

Pocket(A)

Egg Case

Freezer Pocker

Refrigerator

Shelf

All manuals and user guides at all-guides.com

2. SPECIFICATIONS

2-1. Out Line

1) FR-5101NT, 5401NT

MODEL NAME FR-5101NT FR-5401NT

Refrigerant R12 200g

R134a 170g

Cooling System Fan Cooling Convection

Refrigerant System Air Forced Convection

Defrost System Fin Evaporator Forced

Defrost Operation Automatic Start & Stop

Cold Control Adjustable Button

Capacity Freezer 119



119



Refrigerator 314



337



Total 433



456



External

Dimension Height 1761mm 1788mm

Width 769mm 769mm

Depth 724mm 724mm

Net Weight 84Kg 85Kg

All manuals and user guides at all-guides.com

2-2. Electric Parts

1) Compressor



FR-5101NT, 5401NT

2) Relay Assembly



FR-5101NT, 5401NT

3) Running Capacitor



FR-5101NT, 5401NT

Refrigerant R12

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Comp.model

BL25YE-3-C

××

PL28YE-6-C

×××

Part code

3952125C30

××

3956128C60

×××

Strating type

CSR

××

RSCR

×××

Refrigerant R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Comp.model

HBL25YG-3-C

××

HSL27YE-5-C

←

Part code

3952125L3A

××

3954127L50

←

Strating type

CSR

××

RSIR

←

Refrigerant R12

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Relay model

419RHBYY-52

××

213THBYY-52

×××

Part code

3018105673

××

3018105651

×××

Refrigerant R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Relay model

445RHBZZ-52

××

276THBYY-52

←

Part code

3018101601

××

3018105031

301809901 3018105031

Refrigerant R12

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

300V/ 7



××

350V/5



×××

Part code

3816800400

××

400EL15110

×××

Refrigerant R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

300V/ 7



××××××

Part code

3816800400

××××××

All manuals and user guides at all-guides.com

4) Starting Capacitor



FR-5101NT, 5401NT

5) F-fan Motor



FR-5101NT, 5401NT

6) R-fan Motor



FR-5101NT, 5401NT

7) Defrost Heater



FR-5101NT, 5401NT

Refrigerant R12

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

200V/100



××××××

Part code

40IRD35050

××××××

Refrigerant R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

200V/100



××××××

Part code

401RD35050

××××××

Refrigerant R12, R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

IS3211DWBFN

××

IS3211DWBFR

IS3211DWBFT IS3211DWBFT

Part code

3011800841

××

3011800931

3011801021 3011801021

Refrigerant R12, R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

IS3211DWBFM

××

IS3211DWBFQ

IS3211DWBFS IS3211DWBFS

Part code

3011800851

××

3011800941

3011801031 3011801031

Refrigerant R12, R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

148W

××

148W

←

Part code

3012801300

××

3012801000

←

All manuals and user guides at all-guides.com

all-guides.com

8) Lamp Assembly



FR-5101NT, 5401NT

9) PCB Transformer



FR-5101NT, 5401NT

10) Main PCB Assembly



FR-5101NT, 5401NT

11) Dryer



FR-5101NT, 5401NT

Refrigerant R12, R134a

Voltage 110V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

120V/15W

××

250V/15W

←

Part code

3013600050

××

3013600000

←

Refrigerant R12, R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Part code

3018401120

××

5EPK041000

3018401130 3018401140

Refrigerant R12, R134a

Voltage 100V/50, 60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz

Spec.

N8061

××

N8061

←

Part code

3014364022

××

3014364012

←

Refrigerant R12

R134a

Spec. 10g 15g

Part code 3016800103 3016801100

All manuals and user guides at all-guides.com

2-3. Power Cord

1) FR-5101NT, 5401NT

NO SHAPE OF CODE PART CODE DESCRIPTION REMARK

1 3011315000 CP-2PIN FOR EUROPEAN COUNTRY

2 401RA17200 CP-2PIN FOR OTHER COUNTRY

3 4006D17101 KP-30 FOR AMERICA

4 401PD17101 KP-211 FOR JAPAN & TAIWAN

5 3011300801 BP-3PIN

6 3011303010 #267 FOR CHILE

7 3011315310 FOR ISRAEL

8 3011303050 BS-1363A FOR U.K, MIDDLE ASIA

SINGAPORE & MALAYSIA

3011301200 KP551/550 FOR CHINA & AUSTRALIA

Upper power cord’s part code is only for lead wire, without any kinds of terminal or housing.

All manuals and user guides at all-guides.com

2-4. Door Color

1) Assembly Urethan Freezer Door



FR-5101NT



FR-5401NT

2) Assembly Urethan Refrigerator Door



FR-5101NT



FR-5401NT

Refrigerant R12 R134a

Color type Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM

Partcode

×××

PFFT00T030

×××

PFFT00T035

Refrigerant R12 R134a

Color type Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM

Partcode

×××

PFFT00T060

×××

PFFT00T065

Refrigerant R12 R134a

Color type Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM

Partcode

×××

PFRT00T030

×××

PFRT00T035

Refrigerant R12 R134a

Color type Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM Dull lamina

sheet High glossy

lamina sheet Normal

PCM High glossy

bright PCM

Partcode

×××

PFRT00T0060

×××

PFRT00T065

All manuals and user guides at all-guides.com

3. OPERATION AND FUNCTIONS

CONTROL FUNCTION CONTROL OBJECTS

CONTENTS REMARK

1 Display LED

1) Show the freezer and refrigerator temperature

range with lighting a yellow LED.

2) When choose the Quick freezing, green LED is on.

When start the Quick freezing, red LED is on.

3) When choose the Quick refrigerating, green LED

is on. When start the Quick freezing, red LED is on.

2FreezerTemp.

Control &

Quick freezing

Comp.

F-fan

LED

1) In the initial operation, the temperature of FRZ

automatically set at "2".

2) The freezer temperature range is changed by

pressing FRZ control button.



Q.F



3) The LED will twinkle during adjustment.

4) After seven times twinkle without pressing button,

set the freezer temperature range and light the

LED. without twinkle.

5) Each on/off point is compressor and Freezer fan

on/off point.

Temp

Time

Min. Mid. Max.

OFF

ON/OFF

=5deg

-15.5

-20.5 -17.5

-22.5 -19.5

-24.5

2deg 2deg

All manuals and user guides at all-guides.com

Otros manuales para FR-5101NT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Daewoo

Daewoo

Daewoo FRS-250BAL Manual de usuario

Daewoo

Daewoo FR-143RV Manual de usuario

Daewoo

Daewoo FR-631ND Manual de usuario

Daewoo

Daewoo ERF-310A Instrucciones de funcionamiento e instalación

Daewoo

Daewoo FR-064R Manual de usuario

Daewoo

Daewoo FR-146 Manual de usuario

Daewoo

Daewoo RNH3210WCH Instrucciones de instalación

Daewoo

Daewoo FR-420N Manual de usuario

Daewoo

Daewoo RN-BH2536NPW Manual de usuario

Daewoo

Daewoo FR-330 Manual de usuario

Daewoo

Daewoo FR-370S Manual de usuario

Daewoo

Daewoo FR-031DDRVBE1 Manual de usuario

Daewoo

Daewoo FR-024RVBE Manual de usuario

Daewoo

Daewoo FF-324HFW Manual de usuario

Daewoo

Daewoo ERF-100 Manual de usuario

Daewoo

Daewoo FRS-263 Series Manual de usuario

Daewoo

Daewoo FRU-5711-FRS-U20DA Series Manual de usuario

Daewoo

Daewoo FR-251 Manual de usuario

Daewoo

Daewoo RNV3810DSN Manual de usuario

Daewoo

Daewoo FRS-2021 Manual de usuario

Daewoo

Daewoo FR - 062R Manual de usuario

Daewoo

Daewoo FR-044RCNM Manual de usuario

Daewoo

Daewoo ERF-36.A series Manual de usuario

Daewoo

Daewoo DFT-246 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
