Daewoo FR-420N Manual de usuario

RFP341C001

1. Model Information

Heater

Defrost Shape Sheath Type

Defrost Type

Defrost Heater

Glass Type

AC230V, 180W

* is the Color

595 595

Automatic Start & Stop

657657

Control Type FCP Button Control

AC 220V/50Hz, 2500RPM

Fin Type

R-134a

255

375

120

255

Freezer

C-Pentane

SPECIFICATIONS

Factory No. RFP-341N….C RFP-341N….N

Buyer No. RF-420N* RN-420N*

375

120

Total

242 242

332 332

90 90

Cooling Cycle

Refrigerant Type

Refrigerant Charge

Evaporator Type

Condenser Type

Dryer

Capillary Tube

Blowing Agent

Fan Cooling System

Molecular Sieve xH-9

ID0.7 x T0.55 x L2320

AC 230V/50Hz, 2400RPM

25W x 1EA

Freezer Fan Motor

Electric Part

Weight 68 68

Refrigerator Lamp

Condenser Fan Motor

1898 1898

0.095kg

R-600a

0.040kg

AC230V, 160W

Gross Vol.

(ISO 15502)

Storage Vol.

(ISO 15502)

Diemension

Height

Depth

Width

Refrigerator

Freezer

Total

Refrigerator

2. Interior Parts

SPECIFICATIONS

- Features are model dependent

( Below is RF-420N model )

1. Refrigerator Shelves

2. Lamp Window

3. Multi Duct

4. Basket Multiple (option )

5. Cover Vegetable Case

6. Vegetable Case

7. Feezer Case B

8. Freezer Case C

9. Dairy Pocket As

10. Refrigerator Pocket

11. Adjustable Foot

3. Machine (Compressor) Compartment View

SPECIFICATIONS

- Features are model dependent

( Below is RF-420N model )

8 11

1. Capacitor Run

2. Power Cord

3. Suction Pipe As

4. Pipe Absorber

5. Box Relay As

6. Fixture Compress (Washer)

7. Pipe Connector B

Compressor

8. Compressor Absorber

9. Dryer As

10. Pipe Wire Condensor As

11. Case vaporization As

12. Drain Hose

13. Compressor Cooling Fan

4. Refrigerant Cycle

- Welding Point

Silver Welding ( Ag 30%) 3 Point

SPECIFICATIONS

Copper Welding ( Ag 5%) 6 Point

5. Temperature Diagram

; The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature,

not actual temperature within refrigerator.

; Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum 1 ~ 2 days.

SPECIFICATIONS

* Features are model dependent

( Below model is RF-420NT )

Refrigerator Dial Mode

LOW ('1') : 3 ~ 6 degree

MID ('3') : 0 ~ 3 degree

HIGH ( '5' ) : -2 ~ 0 degree

Vegetable compartment

: 1 ~ 5 degree

Freezer Mode

HIGH : below -20 degree

MID : -18 ~ -20 degree

LOW : -16 ~ -18 degree

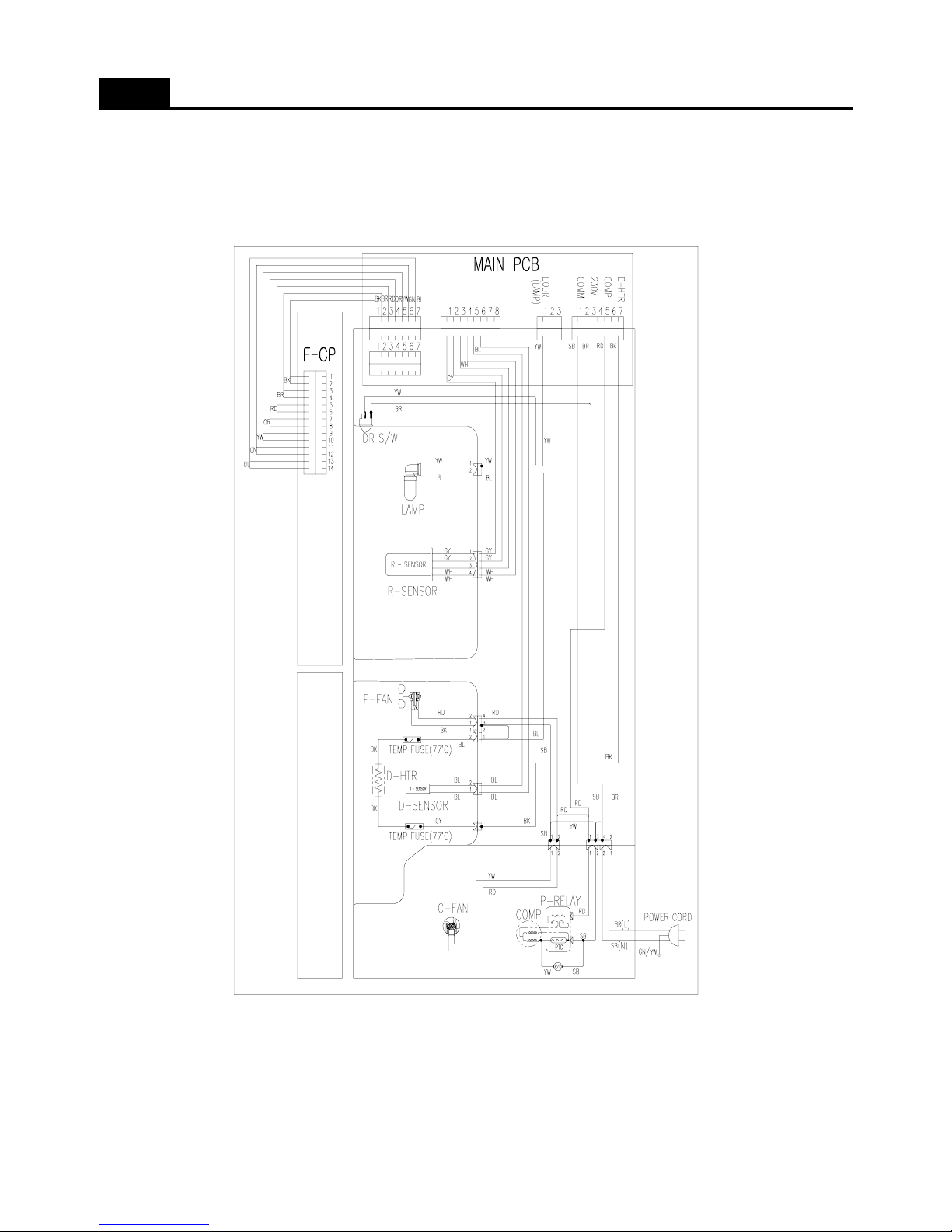

6. Wiring Diagram

6-1. For RF-420N Models

SPECIFICATIONS

6. Wiring Diagram

6-2. For RN-420N (R-600a) Models

SPECIFICATIONS

6. Main PCB Circuit Diagram ( Only for RF-420N and RN-420N Models )

SPECIFICATIONS

FUNCTIONS

PCB Control Panel LED

CONTROL OBJECTINPUT

PCB Control Panel Buttons

1. DISPLAY

Push “TEMP” button 30 times.

And then, push “S-COOL” button for

continuously and “TEMP” button 5 times.

Pull Down Test

“1” & “S-COOL” on

“4” & ”5” flickeringly

ERROR “DEFROST” (F3)

ERROR “CYCLE”

(

)

ERROR “DOOR S/W” (DR)

ERROR “D SENSOR” (D1)

ERROR “RT SENSOR” (RT)

TEMP STEP “2”

TEMP STEP “1”

TEMP STEP “5”

TEMP STEP “4”

Forced Defrost Test

ERROR “R SENSOR”

(

)

TEMP S-COOL

TEMP STEP “3”

FUNCTION

Push “S-COOL” button for continuously

and “TEMP” button 5 times.

The Priorities of Error :

R SENSOR> RT SENSOR> DR S/W>

CYCLE> DEFROST

“3” flickerin

“2” flickeringly

“1” flickeringly

“2” & ”3” flickeringly

“1” & ”3” flickerin

“1” & ”2” flickeringly

Push “TEMP” button for continuously and

“S-COOL” button 5 times.

And then, push “S-COOL” button for

continuously and “TEMP” button 5 times.

“3” & “S-COOL” on,

“4” & ”5” flickeringly

Push “TEMP” button 5 times.LED “2” on

Push “TEMP” button 4 times.LED “1” on

Push “TEMP” button 3 times.LED “5” on

Push “TEMP” button 2 times.LED “4” on

Push “S-COOL” button 1 time.LED “S-COOL” on

Push “TEMP” button 1 time.LED “3” on

OPERATIONLED DISPLA

Temperature adjustment

button for refrigerator

compartment.

“Super Cool” button

Reference Page No.
