Daewoo FR-251 Manual de usuario

Service Manual

Refrigerator

Model: FR-251

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR25100010

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

1. Specification -----------------------------------------------------------------------------------------------1

2. External view ----------------------------------------------------------------------------------------------2

3. Wire diagram ---------------------------------------------------------------------------------------------3

4. Name of parts---------------------------------------------------------------------------------------------4

5. Air flow diagram-----------------------------------------------------------------------------------------5

6. Refrigerant cycle diagram ----------------------------------------------------------------------------6

7. Machine room view and part list-------------------------------------------------------------------7

8. Main components ---------------------------------------------------------------------------------------8

9. Door color specification -------------------------------------------------------------------------------11

10. Exploded view and parts list -----------------------------------------------------------------------14

1. SPECIFICATION

MODEL NAME FR-251

Refirgerant R12 115g

R134a 100g

Cooling System Fan Cooling Convection Type

Refrigeration System AirForced Convection

DefrostSystem Forced Fin-enaporator Type

DefrostOperation Automatic Start& Stop

Cold Control Adjustable Dial

Capacity

Freezer 56



Refrigerator 160



Total216



External

Dimension

Height 1536mm

Width 551mm

Depth576mm

NetWeight 51Kg

2. EXTERNAL VIEW

540

509

465.5

1536

971.4 10.5 499.5

903.543 45 60 19

540

551

1086

3. WIRE DIAGRAM

POWER

CORD

P-RELAY GN/YW

COMPRESSOR

L/BL

WH/BL

TEMP

FUSE

DEFROST

HTR WH

BI-METAL

LAMP

FAT

MOTOR

GRAY

WH/BL DEFROST

TIMER

FREEZER

TEMP

CONTROL

GN : GREEN

BR : BROWN

WH : WHITE

PK : PINK

BK : BLACK

YW : YELLOW

BL : BLUE

GY : GRAY

WH/BL : WHITE WITH

BLUE STRIPE

L/BL : LIGITH-BLUE

A M

PTC

4. NAME OF PARTS

1Freezer Shelf

2 Freezer Temperature

Controller

3 Ice Tray

4 Ice Box

5 Chilled Tray (*Option)

Refrigerator Temperature

Controller

7 Lamp

8 Refrigerator Shelf

9 Vegetable Cover (Glass)

Vegetable Box

Adjustable Foot

Freezer Pocket

(Bar Pocket Type)

Egg Pocket (*Option)

Egg Supporter (*Option)

Refrigerator

Pocket(SM)

(*Option)

Refrigerator

Pocket(BG)

(*Option)

-16~-18

-17~-19

1~32~4

2~3

5~7

2~4

3~5

3~5 2~4

Freezer door pocket

Do not put ice cream or frozen

food in freezer door pocket to

store for a long term. Opening

and shutting the door can rise up

the temperature.

Cold air absorbing duct

Do not place food in front

of the duct because it is the

entrance of the cold air.

Refrigerator door pocket

Temperature is high even if the

pocket is in the middle.

When storing margarine or cheese

for one or two weeks, make use

of the refrigerator shelf.

Crisper

Suitable in storing fruits or

vegetable.

Wrapping can prevent from

dryness.

Freezer room

Do not put in any bottle such as

beer or beverage because it can

be frozen and broken.

Refrigerator room

This model is multi-flow type

which flows out cold air from

each shelf space. The hot air

after making the refrigerator

cold, flows into cooling system

through the front upper part.

Do not put food having much

moisture at the middle part of

each shelf space (ÒAÓ, ÒBÓ and

ÒCÓ part). It can be frozen owing

to the low temperature.

5. AIR FLOW DIAGRAM

6. REFRIGERANT CYCLE DIAGRAM

FIN CROSS

EVA

SUC-PIPE

CAPI. TUBE

SIDE PLATE PIPE

ACCUM

HOT PIPE

DRYER

COMP

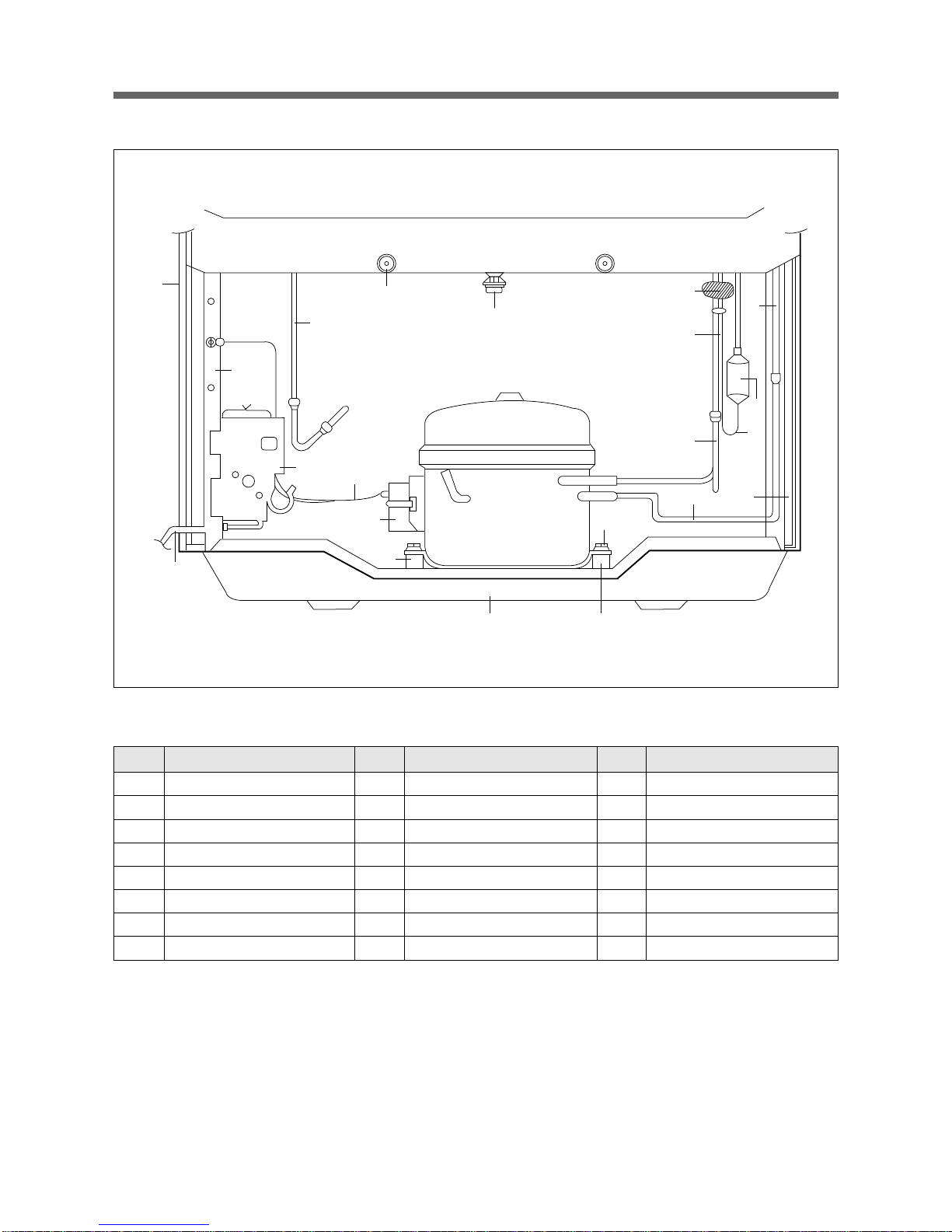

7. MACHINE ROOM VIEW AND PART LIST

21 18

NO PART NAME NO PART NAME NO PART NAME

1 BASE COMP 9 REINFORCE *L 17 SIDE-PLATE PIPE

2 FIXTURE BOLT COMP 10 POWER BOX AS 18 HOT-PIPE

3 WASHER 11 SWITCH P-RELAY AS 19 CAPILLARY TUBE

4 DRYER 12 POWER CORD 20 DRAIN HOSE

5 ABSORBER 13 CABINET URT AS 21 SPECIAL SCREW

6 COMPRESSOR 14 SUC-PIPE 22 VIBRATIONPROOF MASS

7 P-RELAY LEAD WIRE 15 SUC-PIPE CON

8 REINFORCE *R 16 PIPE CON (AH)

8. MAIN COMPONENTS

1. COMPRESSOR

2. RELAY ASSEMBLY

3. RUNNING CAPACITOR

4. F-FAN MOTOR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model X EL19J-3 X FL19J-2 SL21YE-5 PL19J-4 SL21YE-5

Part code X 3953119330 X 3951119320 3954121A50 3956119340 3954121A50

Strating type X RSCR X RSIR RSIR RSCR RSIR

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model HEL19J HEL19J-3 X X HSL23YE-5 X HSL23YE-5

Part code 3953119E00 3953119E30 X X 3954123G50 X 3954123G50

Strating type RSCR X X RSIR X RSIR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model X 232THBYY-52 X 276THBYY-52 197SHBYY-52 129SHBYY-52 197SHBYY-52

Part code X 3018105730 X 3018105750 3018102740 3018105202 3018102740

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model 427THBZZ-52 317NHBYY-52 X X 213THBYY-52 X 213THBYY-52

Part code 3018104730 3018104720 X X 3018102770 X 3018102770

Refrigerant R12, R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec. 3210DWNFQ X3210DWNFQ 3210DWNFO 3210DWNFP 3210DWNFR

Part code 3963220100 X3963220100 4019H24102 400EL18611 3011800561

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

X 230V/10µF X X X 350V/5µF X X

Part code

X 400EL15130 X X X 400EL15110 X X

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

250V/16µF XXXXXX

Part code

3816800600 XXXXXX
