PLASMA DISPLAY

USER’S MANUAL

DT-4280NH

Proper use guarantees

product life.

Before using the product, be advised

that you read this owner’s manual well

and try to operate it.

Helpline Number : 0870 100 2525

This Owner’s Manual presents safety precautions and how to use the product.

After reading it thoroughly, use the product safely.

Keep this manual where the user can see it easily.

Failure to comply with warnings and cautions for the safe use of electric

appliances may cause ﬁre or human injury.

• 42” VGA wide Plasma Panel

• Built in Analog Tuner

PDP has the analog tuner inside for watching terrestrial broadcasting without the need to purchase a

separate broadcasting receiver.

• DVD Direct Connection / Outstanding Picture Quality via a Digital

Broadcast Receiver

A DVD can be directly connected to the unit so that you can view clear digital images. You can enjoy even

higher quality images by connecting a digital broadcasting receiver with which digital broadcasts can be

viewed.

•A

PC Direct Connection

PC can be connected to the PDP without a separate device and can be used as a monitor making it ideal

for presentation, various events and exhibitions.

•

160oWide-Angle Viewing Area

•

Flat Panel with No Distortion and Colour Blurring

Since Plasma TV has no problems such as distortion, blurring, ﬂickering unlike existing CRT type displays

you can enjoy Home Cinema picture quality and sound.

•

Various Video Control

- 17 Languages OSD - 20 Step screen zooming function - Full-screen still function

- Various aspect ratio (16:9, 4:3, Auto, Enlarge LB, Enlarge LBS, Panorama)

•

Free Volt (100-240V~, 50/60Hz)

•

DVI (Digital Visual Interface) Connection

When connected to a PC, you can receive DVI digital signals as well as the former analog signals by

using DVI input and D-Sub input. Furthermore, using the DVI Input, you can receive directly a digital

signal from the computer. Consequently, pictures on the screen are much more clear and fresh.

•

CCF(Capsulated Colour Filter) Technology for natural colour

CCF Technology makes the picture clearer by controlling of the brightness among three different colour

ﬁlters.

•

MGDI (Meta Genuine Digital Image) Engine

MGDI is the image enhancement technology of Daewoo Electronics, which provides more clear, splendid,

and delicated images.

Features

Always obey all

safety messages.

•All the safety and

operating

instructions should

be read before the

product is operated.

If anything strange

happens, unplug

this product from

the wall outlet.

•Do not disassemble

or replace any parts

of the TV.

Refer to a qualiﬁed

service personnel

for repair.

Safety Precautions

WARNING

You can be Killed

or seriously

injured if you do

not follow these

instructions.

During a lightning storm, or when it is left

unattended and unused for a long period

of time, unplug it from the wall outlet.

It can result in ﬁre.

When unplugging your TV, always grip

plug ﬁrmly and pull straight out from the

socket.

It can result in ﬁre or electric shock due to

damaged power cord.

This product must be properly grounded.

• Improper grounding may cause malfunction or

electric shock.

• When proper grounding is not possible, install

circuit breaker.

• Do not ground to gas pipe, water pipe, lightning

rod, or telephone line.

During a lightning storm, unplug the TV

from the wall outlet, and do not touch the

antenna.

It can cause ﬁre or electric shock.

Power

Installation

Do not use this product in the

neighborhood of a bath or shower.

It can result in electric shock or ﬁre.

Do not place this TV on an unstable cart,

stand, or table

It may cause the product and cart to overturn,

damaging equipment or causing possible injury.

During Use

Do not open the cover (or back)

because high voltage is present

within the TV enclosure.

It may cause electric shock.

Never push any kind of objects into

this product through openings at the

back of TV.

It may cause ﬁre or electric shock.

The apparatus shall not be exposed to

dripping or splashing and that no objects

ﬁlled with liquids, such as vases, shall be

placed on the apparatus.

Spilled liquids may cause electric shock or

ﬁre.

Do not allow children to play or hang

on the TV.

These actions may tip it over, causing

personal injury.

Do not place a candle or lighted

cigarette on the TV.

If these fall into the inside of the tv, it may

cause a ﬁre or explosion.

Do not disassemble batteries, and

do not leave around in case children

swallow them.

Heavy metal may contaminate environment,

and can be harmful or detrimental to human

health. (If children swallow the batteries, go to

hospital and consult with a doctor.)

Batteries could explode if Fitted incorrectly.

Align the batteries according to the (+) and (-)

indication inside the case.

Do not spray water Onto the TV or

wipe with damp cloth.

It may cause an electric shock or ﬁre.

Unplug the TV from the wall outlet

when smoke or a strange smell

occurs, then refer to a service

personnel.

Leaving the TV on in this condition, may

cause ﬁre or electric shock.

Always obey all

safety messages.

• All the safety and

operating instructions

should be read before

the product is

operated.

Safety Precautions

Power

Installation

CAUTION

You can be injured,

or this product or

any other of your

property can be

damaged if you

don’t follow

instructions.

When moving your TV, remove the power

plug, antenna, and cables, and be sure to

move it by using two people..

Failure to follow this instruction can result in

electric shock or personal injury.

Do not touch the power plug with wet

hands when plugging or unplugging it

into the wall socket.

It can result in a risk of electric shock.

Do not install the product where it will be exposed to

the direct sunlight, and the product should not be

near heat sources such as radiators, stoves, etc.

It may cause malfunction.

Do not install the product where there is

oil, smog, moist, or dust

It may cause malfunction.

For proper ventilation, separate the product

from the wall, and keep a distance of more

than 10cm (4).

Due to the increase of temperature inside the TV,

it may cause ﬁre.

Minimum distances around the apparatus

for sufﬁcient ventilation.

Due to the increase of temperature inside the TV,

it may cause ﬁre.

If you wish to install this product on the

wall or ceiling, refer to a professional.

Failure to do so may cause damage to product

and injury to human.

When using an outside antenna system, do not

install it in the vicinity of overhead power lines.

If the antenna touches such power lines, it may

cause electric shock.

During Use

Do not wipe the TV using a cloth

damped with chemicals (benzene,

thinners, etc.).

The TV appearance may be marred.

(Unplug the power plug and wipe with soft

cloth.)

Do not place any object or cover on

the TV.

In an event of improper ventilation, the TV

will be overheated causing ﬁre.

Do not place heavy objects or heat

sources on the power cord.

It may damage the power cord, causing ﬁre

or electric shock.

When watching the TV, the distance

between the TV screen and your eye

should be as 5~7 times as the

diagonal distance of the TV.

Watching the TV for a long time may hurt

your eye sight.

When cleaning of the inside of the

TV is required, consult A qualiﬁed

service personnel.

When the TV is not cleaned for a long

period of time, dust in it may cause ﬁre or

malfunction.

When the TV is placed on a cart or

table, the front side of the TV should

not project outward.

Unbalance may cause the TV to drop,

resulting in personal injury or equipment

malfunction and damage.

Do not grip speakers when moving

the TV attached with speakers.

When moving the TV while gripping

speakers, the speakers may fall from the TV

due to its weight, causing personal injury.

Do not allow a still picture to be

displayed for an extended period, as

this can cause a permanent ghost

image to remain on the Plasma

Display.

Examples of still pictures include logos,

video games, computer images, teletext

and images displayed in 4:3 mode.

The warranty does not cover any damage

caused by image retention.

The plasma display panel consists

of ﬁne cells. Although the panels are

produced with more than 99.9

percent active cells, there may be

some cells that do not produce light

or remain lit.

Remote Control

1UNIT

Component Cable

1UNIT

Coaxial Cable

1UNIT

A/V Cable

2UNITS

Note

Check to be sure that the following items are

packed with your Plasma panel.

Checking Accessories

Supplied Accessories

AC Cable 1 UNIT

Ferrite Core

3UNITS

VCR/DVD SATTV CATV

RECALL STILL

MULTIMEDIA

SLEEP

F.F/SLOW

PLAY

F.R/SLOWSTOP

OPEN/

PREVPAUSE

PICT.

MODE SOUND

MODE I-II

Scart(1 unit) Speaker(2 units)

Place the small ferrite

cores in the speaker

cables close to the

speaker terminals of

the PDP unit.

Note

The following items are optional accessories.

Refer purchasing optional accessories from

Daewoo Electronics Local retailer or the retailer

from where you purchased the unit.

Optional Accessories

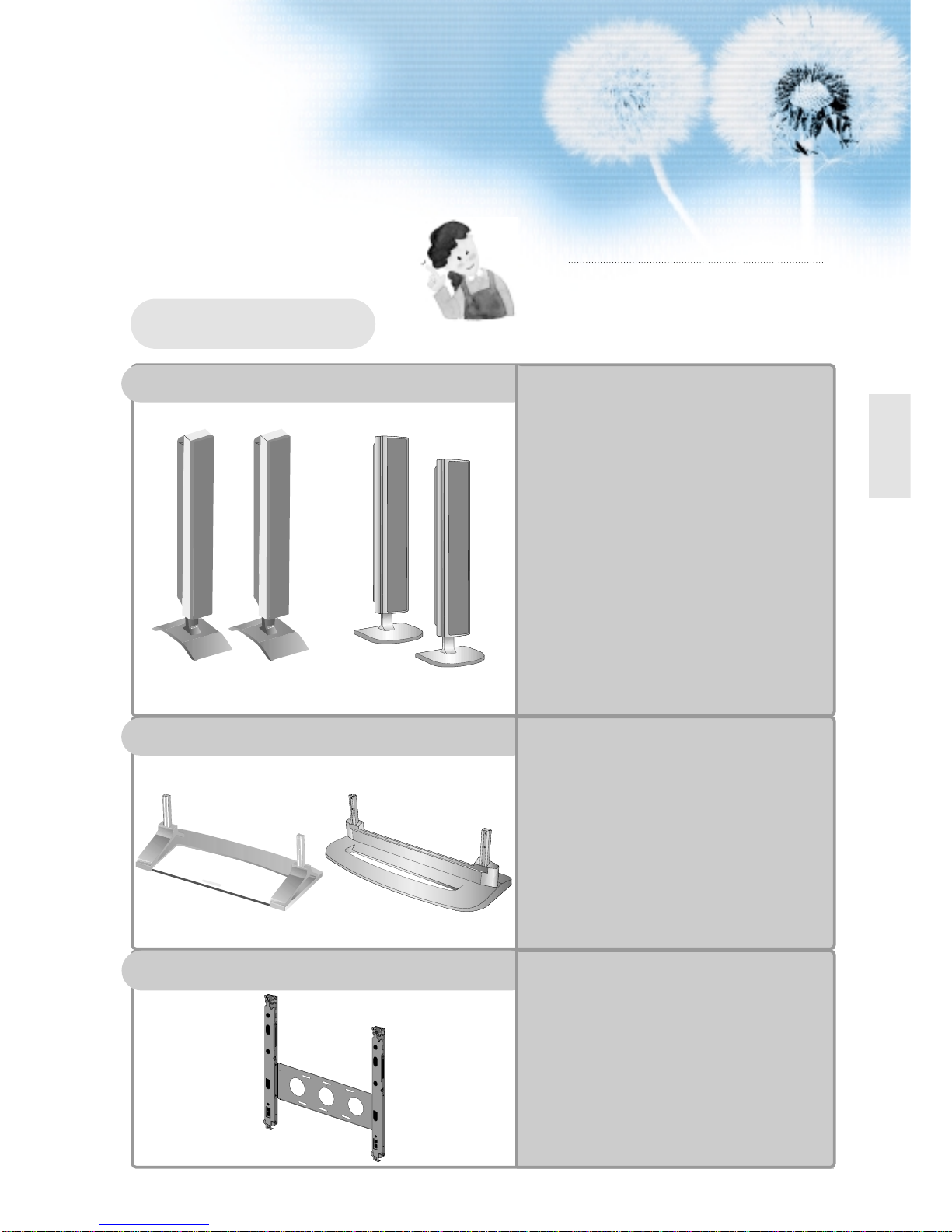

Table Top Stand

Speakers

DT-P20J

- Speaker Main Unit Dimension :

100(W) x 628(H) x 83(D) mm

39.37(W) x 24.72(H) x 3.27(D) inch

- Dimension Including Speaker Stand :

170(W) x 729(H) x 194(D) mm

6.69(W) x 28.7(H) x 7.64(D) inch

- Audio Ampliﬁer : 10W + 10W

- Impedance : 8Ω

- Weight : 6.4kg(14.11 Lbs)

DT-P55P

- Speaker Main Unit Dimension :

100(W) x 628(H) x 88.5(D) mm

39.37(W) x 24.72(H) x 3.48(D) inch

- Dimension Including Speaker Stand :

210(W) x 704(H) x 210(D) mm

8.27(W) x 27.72(H) x 8.27(D) inch

- Audio Ampliﬁer : 10W + 10W

- Impedance : 8Ω

- Weight : 3.5kg(7.72 Lbs)

DT-T20G

Dimension

: 667(W) x 212(H) x 320(D) mm

26.26(W) x 8.35(H) x 12.6(D) inch

- Weight : 7kg(15.43 Lbs)

DT-T55M

Dimension

: 720(W) x 189(H) x 310(D) mm

26.26(W) x 7.44(H) x 12.6(D) inch

- Weight : 4.5kg(15.43 Lbs)

Wall Mounting Unit

DSP/DP-HG10, DSP/DP-HG20,

DSP/DP-HG22

Variable Angles : 0o, 10o, 15o, 20o

Dimension

601(W) x 592(H) x 35(D) mm

23.66(W) x 23.31(H) x 1.9(D) inch

Weight

: 4.5kg(10 Lbs)

DT-P20J DT-P55P

DT-T20G DT-T55M

4•Safety Precautions

8•Checking Accessories

12 •Panel Controls

13 •Remote control

14 •Remote control setup

PREPARATION

CONNECTION

15 •Antenna Connection

18 •To Watch TV

20 •Install Program

26 •Watching Digital Broadcasts

28 •Watching Cable Broadcasts

30 •Watching Satellite Broadcasts

32 •Watching a DVD Image

34 •Watching a VCR Image

36 •Watching a Camcorder/Game Console Image

38 •Connecting PC(15Pin D-Sub)

40 •Connecting PC(DVI)

APPLICATION

MISC.

72 •Before Requesting Service

73 •SPECIFICATIONS

CONTENTS

43 •Selecting Picture Mode 59 •

MENU Background, Language

44 •Customising Picture

and Child Lock Setting

46 •

Adjusting Screen Size

61 •

MGDI (Meta Genuine

(Component, AV, TV)

Digital Image)

48 •

Adjusting Screen Size(PC, DVI)

63 •Time Setting

50 •Enlarging Screen Size 65 •Image Sticking

52 •Watching a Still Image Minimisation(ISM)

53 •Adjusting Auto Sound Mode 67 •Initialise Setting

54 •Customising Sound Mode 69 •Setting Sleep Timer

56 •Selecting INPUT SIGNAL 70 •Teletext

58 •

Checking the Current Input Signal

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Daewoo

Daewoo

Daewoo HL510S Manual de usuario

Daewoo

Daewoo 2708ED Manual de usuario

Daewoo

Daewoo 532X Manual de usuario

Daewoo

Daewoo HL711S Manual de usuario

Daewoo

Daewoo LuComs CML-710 Manual de usuario

Daewoo

Daewoo Lucoms L540 Manual de usuario

Daewoo

Daewoo 103FH Manual de usuario

Daewoo

Daewoo 432X Manual de usuario

Daewoo

Daewoo DP-42GM Manual de usuario

Daewoo

Daewoo 531X-3 Manual de usuario

Daewoo

Daewoo L510B1 Manual de usuario

Daewoo

Daewoo 901D Manual de usuario

Daewoo

Daewoo DP-42SM Manual de usuario

Daewoo

Daewoo Lucoms C940DF Manual de usuario

Daewoo

Daewoo 715B Manual de usuario

Daewoo

Daewoo 526X Manual de usuario

Daewoo

Daewoo HL510S Manual de servicio

Daewoo

Daewoo DPP-4270NHS Manual de usuario

Daewoo

Daewoo L750 Manual de usuario

Daewoo

Daewoo 902D Manual de usuario

Daewoo

Daewoo 710C Manual de usuario

Daewoo

Daewoo DT-4242N Manual de usuario

Daewoo

Daewoo 103FH Manual de usuario

Daewoo

Daewoo L700C Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
