Daewoo DSA-095L Manual de usuario

Manual de servicio

Split Acondicionador de Aire

Modelo:

CONTENTS

1. Specifications..........................................................................................................2

2. Outline and Dimensions.........................................................................................6

3. Operation ..............................................................................................................14

4. Wiring Diagram.....................................................................................................25

5. Control Block Diagram.........................................................................................28

6. Electric Circuit Diagram........................................................................................31

7. Trouble Shooting ..................................................................................................33

8. PCB Driving Description.......................................................................................39

9. Key Components of Electronic Circuit.................................................................63

10. Disassembly Instructions .....................................................................................66

1) Indoor Unit........................................................................................................66

2) Outdoor Unit.....................................................................................................70

3) Exploded Diagram (Indoor Unit)......................................................................73

4) Exploded Diagram (Outdoor Unit)...................................................................81

5) Control Box Assembly......................................................................................89

Contents

MODEL DSA-095L

ITEM

Function Cooling

Class T1

Power AC 230V/ 60Hz

Capacity KJ/h 9,000

Btu/h 8,531

Dehumidification l/h 1.1

Running Current A 3.6

Power Input W 800

Type Rotary

Model QK125KB✳(LGE)

Capacitor 25µF / 400VAC

Indoor Unit Outdoor Unit

Type Cross flow fan Propeller fan

Capacitor 1.0µF 400VAC 2.0µF 400VAC

Motor Model Number YDK-8-4A(Xiang Ming) YDK-35-6A(Xiang Ming)

Sound Level (Hi) dB(A) 39 48

Fan Speed (Hi) RPM 1,350 880

Control Capillary

Charge Q'ty g 680

Type Flare

(Liquid/Suction)

in(mm) 1/4 (6.35) 3/8 (9.52)

Dimensions (W x H x D) mm 750 x 245 x 179 654 x 549 x 256

Net Weight kg 7.0 34

Electrical

Data

Compressor

Fan

Motor

Refrigerant

(R22)

Connection

◆DSA-095L

1. SPECIFICATIONS

MODEL DSA-125L, 125P

ITEM

Function Cooling

Class T1

Power AC 230V/ 60Hz

Capacity KJ/h 12,500

Btu/h 11,848

Dehumidification l/h 1.35

Running Current A 4.7

Power Input W 1,010

Type Rotary

Model QK156KA✳ (LGE)

Capacitor 35µF/ 370VAC

Division Indoor Unit Outdoor Unit

Type Cross flow fan Propeller fan

Capacitor 1.2µF 400VAC 3µF 400VAC

Motor Model Number RP-13B(Welling) YDK-50-6A(Xiang Ming)

Sound Level (Hi) dB(A) 42 52

Fan Speed (Hi) RPM 1,300 870

Control Capillary

Charge Q'ty g 1,000

Type Flare

(Liquid/Suction)

in(mm) 1/4 (6.35) 3/8 (9.52)

Dimensions (W x H x D) mm 815 x 285 x 195 800 x 615 x 320

Net Weight kg 9.2 50

Electrical

Data

Compressor

Fan

Motor

Refrigerant

(R22)

Connection

◆DSA-125L, 125P

MODEL DSA-185L, 185P

ITEM

Function Cooling

Class T1

Power AC 230V/ 60Hz

Capacity KJ/h 17,500

Btu/h 16,588

Dehumidification l/h 2.0

Running Current A 7.2

Power Input W 1,620

Type Rotary

Model QJ250KA✳(LGE)

Capacitor 35µF/ 370VAC

Division Indoor Unit Outdoor Unit

Type Cross flow fan Propeller fan

Capacitor 1.2µF 400VAC 3µF 400VAC

Motor Model Number YDK-20-4A(Xiang Ming) YDK-50-6A(Xiang Ming)

Sound Level (Hi) dB(A) 48.1 56

Fan Speed (Hi) RPM 1,370 870

Control Capillary

Charge Q'ty g 1,070

Type Flare

(Liquid/Suction)

in(mm) 1/4 (6.35) 1/2 (12.7)

Dimensions (W x H x D) mm 1035 x 322 x 205 800 x 615 x 320

Net Weight kg 11.7 50

Electrical

Data

Compressor

Fan

Motor

Refrigerant

(R-22)

Connection

◆DSA-185L, 185P

MODEL DSA-245L, 245P

ITEM

Function Cooling

Class T1

Power AC 230V/ 60Hz

Capacity KJ/h 23,500

Btu/h 22,275

Dehumidification l/h 2.7

Running Current A 10.0

Power Input W 2,220

Type Rotary

Model QP325KBB (LGE)

Capacitor 40µF/ 400VAC

Division Indoor Unit Outdoor Unit

Type Cross flow fan Propeller fan

Capacitor 1.2µF 400VAC 3µF 400VAC

Motor Model Number IC-9430DWKF7A(Sung shin) A2929GS010(DMI)

Sound Level (Hi) dB(A) 48.5 57

Fan Speed (Hi) RPM 1,300 950

Control Capillary

Charge Q'ty g 1,850

Type Flare

(Liquid/Suction)

in(mm) 3/8 (9.52) 5/8 (15.9)

Dimensions (W x H x D) mm 1080 x 298 x 200 872 x 675 x 325

Net Weight kg 14.7 64

Electrical

Data

Compressor

Fan

Motor

Refrigerant

(R-22)

Connection

◆DSA-245L, 245P

750

Plate Mounting

REMOCON

Connecting Pipe

Grille Insert

179

245

REMOTECONTROLLER

Frame Grille

Body

Plate Mounting

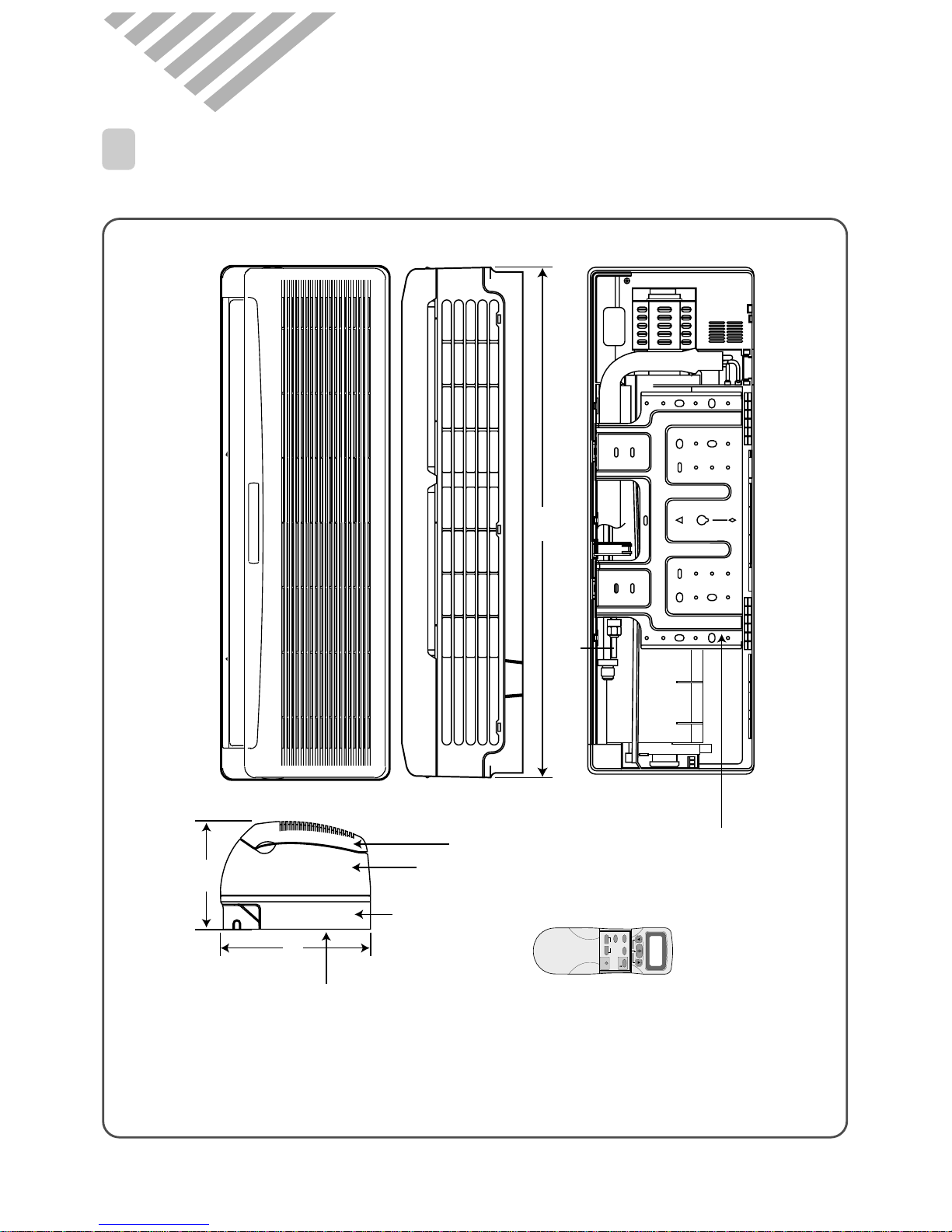

2. OUTLINE AND DIMENSIONS

INDOOR UNIT

◆DSA-095L

MODE

SLEEP

ON/OFF

TIMER

ENTER/

CANCEL

FAN SPEED

TURBO/MILD

FAN DIR.

REMOCON

Insert Grille

Frame Grille

Body

Connecting Pipe

Plate Mounting

815

195

285

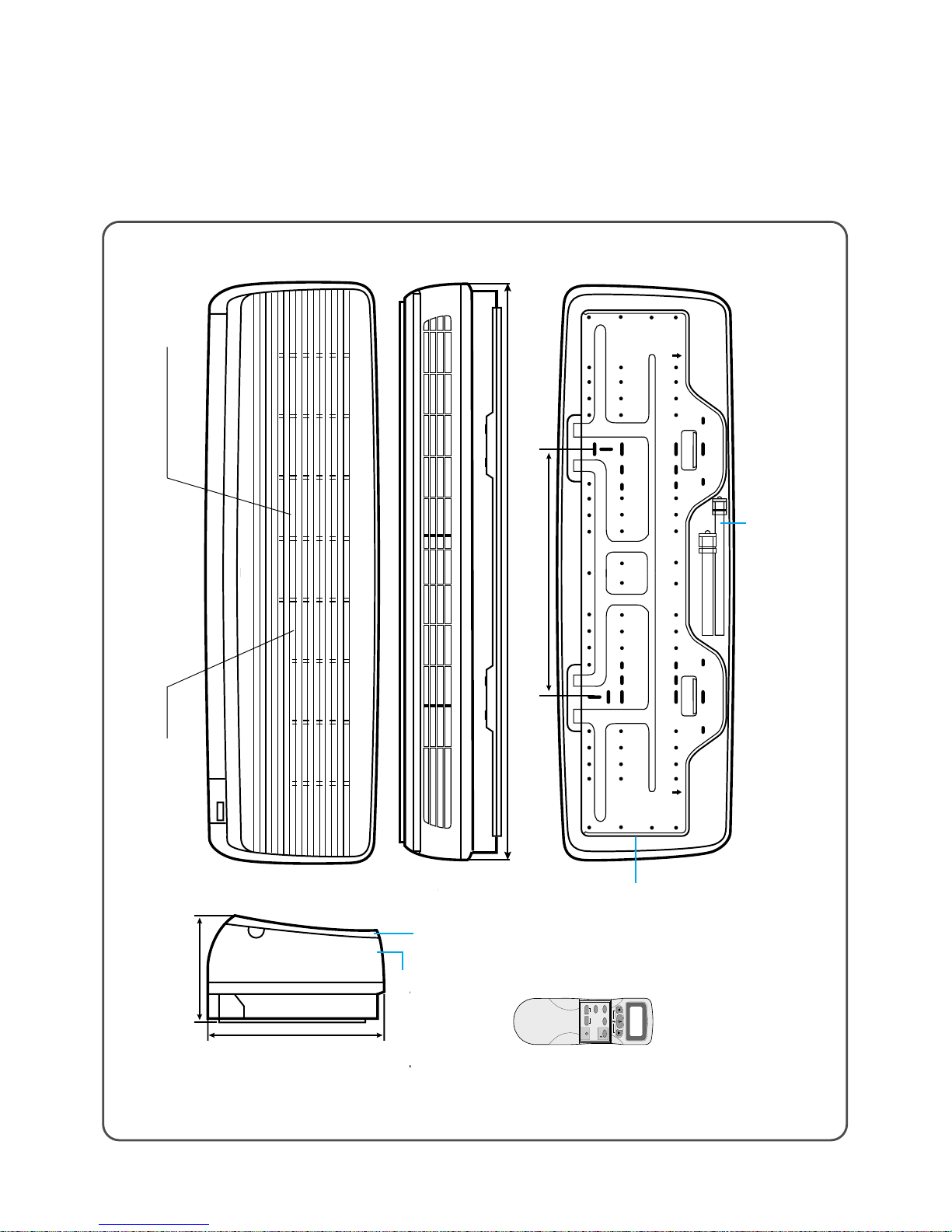

◆DSA-125L, 125P

MODE

SLEEP

ON/OFF

TIMER

ENTER/

CANCEL

FAN SPEED

TURBO/MILD

FAN DIR.

REMOCON

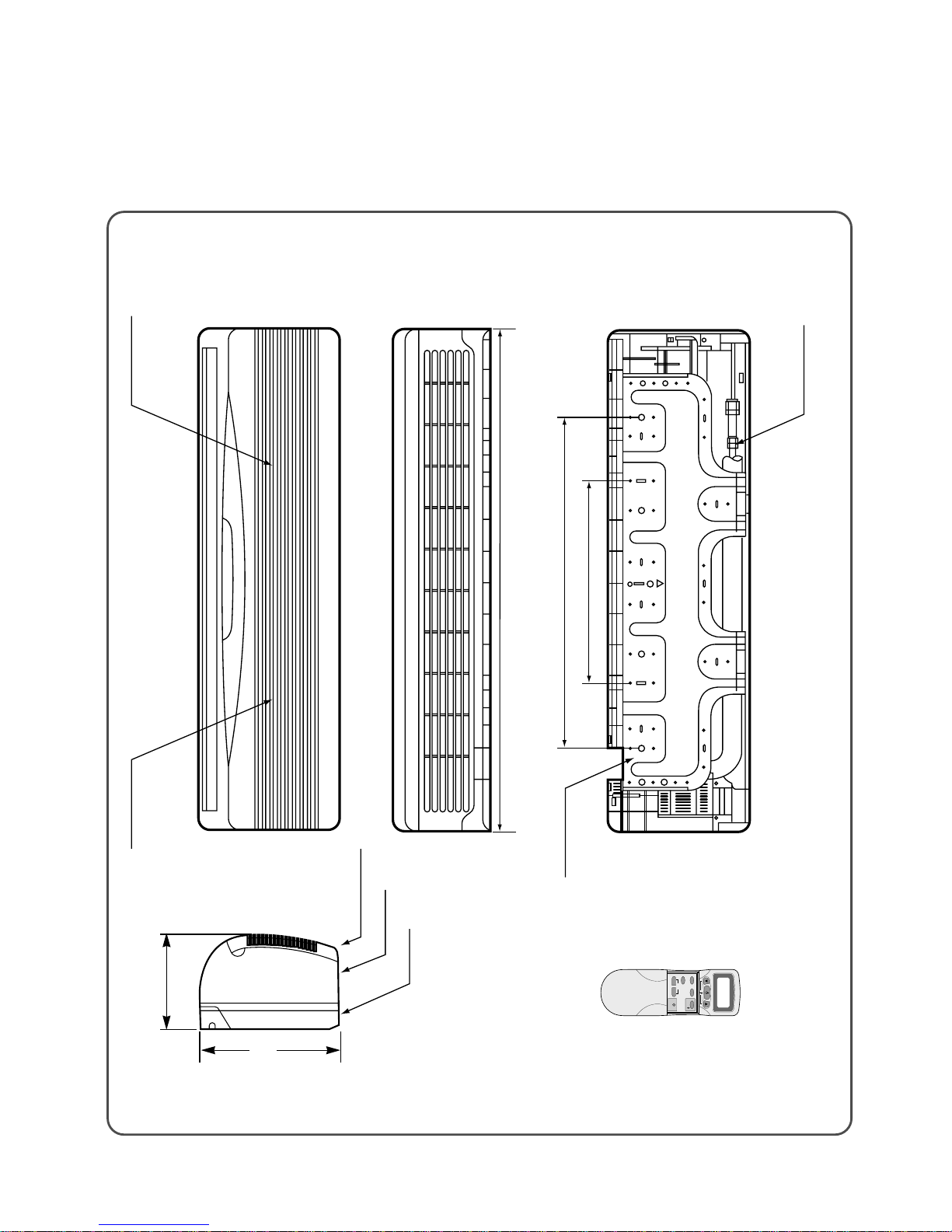

◆ DSA-185L, 185P

1035

205

322

453

¿‹ Æ˘˜ ˙`

”ﬁ `⁄˘˙

`⁄„«…–‚ﬁ‚ ˜

‰˙‡»– ‚Ø– ‚–

‰˙‡»– ‚ ˆ…

Connecting Pipe

Filter-L Filter-R

Grille Insert

Body

Plate

Mounting

453

1035

MODE

SLEEP

ON/OFF

TIMER

ENTER/

CANCEL

FAN SPEED

TURBO/MILD

FAN DIR.

REMOCON

Connecting Pipe

Body

Frame Grille

Grille Insert

Plate Mounting

430

710

1080

Filter-L Filter-R

REMOCON

◆DSA-245L, 245P

200

298

MODE

SLEEP

ON/OFF

TIMER

ENTER/

CANCEL

FAN SPEED

TURBO/MILD

FAN DIR.

REMOCON
