Dacor ILHSF10 Manual técnico

PLANNING

GUIDE

www.Dacor.com Phone: (800) 793-0093

Specications subject to change without notice.

Install all appliances according to accompanying installation instructions. 9.5

In-line Blower

ILHSF8, ILHSF10

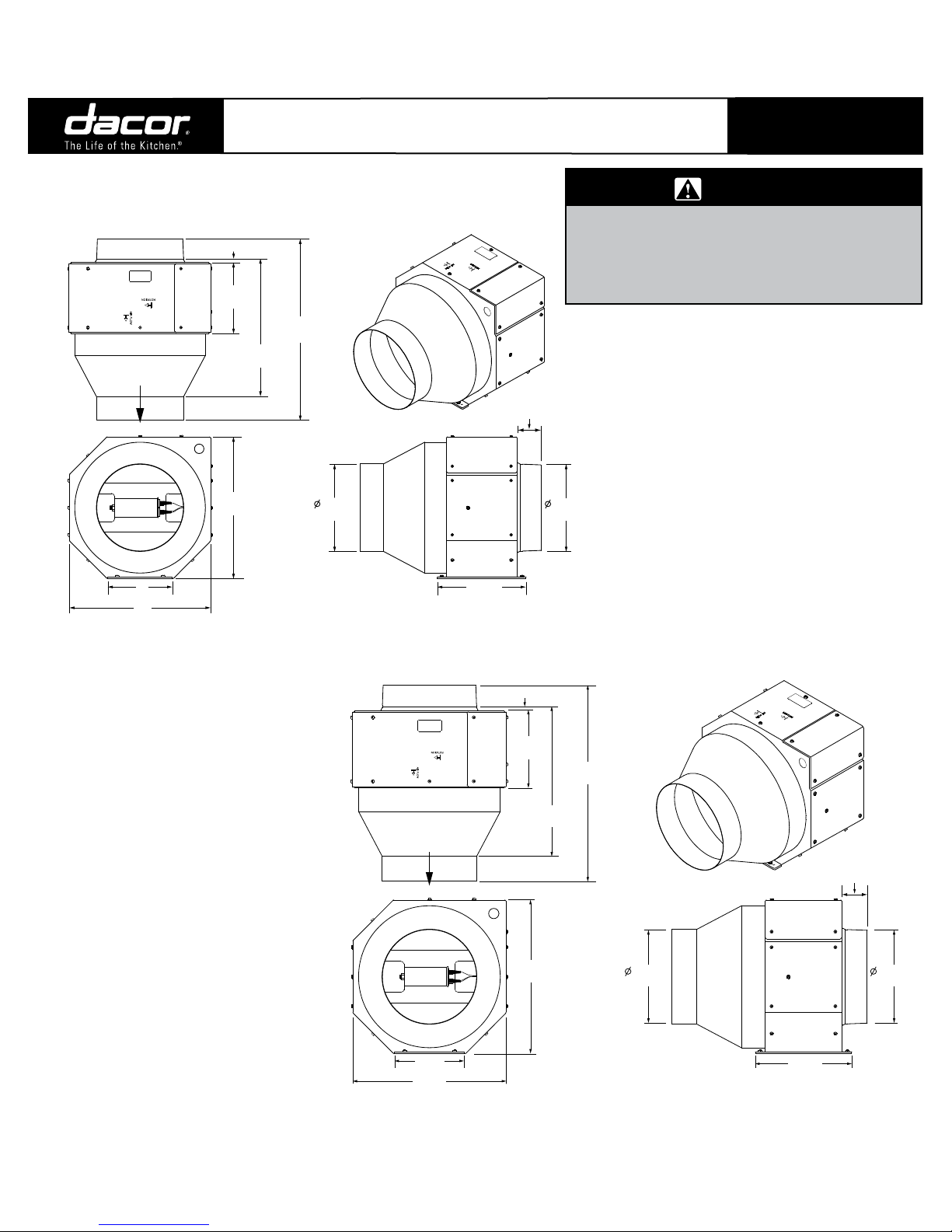

ILHS8 OVERALL DIMENSIONS

3/16” (0.5 cm)

(16.5 cm)

6 ½"

(33.6 cm)

13 ¼"

(33.0 cm)

Air Flow

13”

(20.3 cm)

(20.8 cm)

8” REF

8 3/16”

(5.7 cm)

2 1/4”

(20.3 cm)

8” REF

(33.0 cm)

13”

(15.2 cm)

6”

(41.9 cm)

16 ½"

3/16” (0.5 cm)

15 1/4”

(38.7 cm)

19”

(48.3 cm)

16”

(40.6 cm)

8 1/4”

(21.0 cm)

15 3/4”

(40.0 cm)

10 3/4”

(27.3 cm)

2 1/4”

(5.7 cm)

10” REF

(25.4 cm) 10” REF

(25.4 cm)

9 1/8”

(23.2 cm)

Air Flow

ILHSF10 OVERALL DIMENSIONS

All tolerances ±1/16” (±1.6 mm) unless otherwise noted.

WARNING

Observe all governing codes and ordinances•

during planning and installation. Contact your local

building department for further information.

This appliance must be installed in accordance•

with the accompanying installation instructions.

Document # PG09 - 002 Revised 12/09/09 Page 1/2

PLANNING

GUIDE

www.Dacor.com Phone: (800) 793-0093

Specications subject to change without notice.

Install all appliances according to accompanying installation instructions. 9.6

In-line Blowers

ILHSF8, ILHSF10

Model Number Power Requirements* Blower Rating

ILHSF8 120 Vac, 60 Hz.,

3.5 Amp.

600 CFM**

620.7 CFM***

ILHSF10 120 Vac, 60 Hz.,

4.5 Amp.

1100 CFM**

1115.9 CFM***

* In addition to the hood or raised vent

** Nominal at 0 inches static pressure

*** Actual at 0 inches static pressure

Model Number Weight

ILHSF8 22 lbs. (10 kg.)

ILHSF10 31 lbs. (14 kg.)

ELECTRICAL ACCESS KNOCK-OUTS

NOTE:

The above specifications are for reference only. See the1.

data label on the blower for exact specifications. If the

above specifications vary from the label on the blower,

use the data on the blower label.

Install this blower only with approved Dacor hoods/2.

vents. See the hood/vent installation instructions to

determine suitability.

All models are thermally protected3.

GRN

BLU

BLK

GND

Knock-out

Airflow CFM (Cubic feet/minute)

Static pressure - inches of water

0.5

1.0

1.5

2.0

2.5

3.0

3.5

200 400 600 800 1000 1200

ILHSF10 Blower Performance

Airflow CFM (Cubic feet/minute)

Static pressure - inches of water

0.5

1.0

1.5

2.0

2.5

3.0

3.5

200400 600800

ILHSF8 Blower Performance

WARNING

To avoid the risk of fire due to the unit overheating:

DO NOT• install this blower with a hood or raised vent that

has an internal blower.

DO NOT• install more than one blower to increase the length

of the duct run. Even small differences between blower air

flow rates can greatly reduce the air draw by the hood or

raised vent.

Document # PG09 - 002 Revised 12/09/09 Page 2/2
