Dacor EF36LNFSSPA Manual de usuario

CABINET PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

1−08 Litho In U.S.A. (PAL) Part No. W10186595 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

67006616 Tech Sheet

W10171467

Owners Manual

W10187132

Guide, Energy

W10137519

Elbow, Fill Tube

3 Plug Button (3)

M0310731 Black

4 B5759649 Gasket

5 M0114003 Clip

6 67006642 Pin, Center Hinge

W10164397

Tube, Drain

8 67006287 Screw

9 67006521 Screw

10 67001067 Clip, Drain Tube

11 67006380 Screw (3)

12 67006400 Screw (3)

13 Cover, Hinge

67001012 Black

14 67006303 Screw (3)

15 Hinge, Center

67007043 Black

16 67004092 Block, Fill Tube

17 Cover, Corner (2)

67003485 Black

12566604ED

Hinge, Top

19 Roller Assy.

(Front)

W10130459

Right

W10130460

Left

20 67006564 Screw (8)

21 M0108105 Clamp, Tube

22 Grille, Toe

W10131134

Black

W10141622

Brake, Foot

24 67003796 Insulation, Sound

25 67006425 Screw (10)

26 67003331 Cover, Water Line

27 67004098 Cover, Water Valve

28 A3076901 Plug, Button

29 67004101 Sweep, Dual Tube

30 67006101 Cover, Unit

31 Cabinet (Not A

Servicable Part)

FREEZER LINER PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

FREEZER LINER PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67005874 Guide, Fill Tube

4 67003905 Cover, Light

5 67003636 Motor, Evaporator

Y12570701

Socket, Light

7 12002355 Thermistor

8 67003924 Cover, Thermistor

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (4)

W10121318

Grommet

14 67003906 Housing, Light

W10167028

Clip, Evap Motor

16 67005653 Switch, Light

17 67006530 Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 67002492 Gasket, Bottom

21 B8381501 Gasket

W10175909

Grille, Fz Air

W10167023

Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10119064

Left

W10119295

Right

26 67006473 Screw (8)

27 Cradle, Basket

67004728 Left

67004729 Right

W10180420

Slide, Drawer (2)

29 Adapter, Slide

67004971 Left

67004972 Right

30 67006406 Screw (6)

31 67004017 Shaft

32 12002497 Gear (Left)

(Includes Item 33)

33 12002497 Gear (Right)

(Includes Item 32)

Following Parts Not Illustrated

67006095 Harness, Fz Module

REFRIGERATOR LINER PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

REFRIGERATOR LINER PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Module, Light

3 67006910 Keyboard

W10185585

Module, Control

5 67005397 Board, Control

6 C3680310 Switch, Light (1)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 67001668 Plate

18 67006524 Head, Water Filter

19 67006470 Filter, Water

20 12568001 Cover, Filter

21 67006415 Screw (2)

22 B8390302 Clip, Facade (2)

W10158503

Facade, Disp.

24 67002742 Plate, Switch

25 12575501 Switch, Limit

26 67003728 Guide, Waterline

27 67002816 Clip, Waterline

28 67006909 Facade, Disp (Top)

W10153959

Tank, Water

30 61006182 Union

31 61003146 Plug, Bypass

32 67006400 Screw

W10163893

Insulation, Water

Tank

Following Parts Not Illustrated

67005644 Harness, Control

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

REFRIGERATOR DOOR PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

W10187133

Stainless

(For EF36LNFSSPA)

W10187135

Stainless

(For EF36RNFSSPA)

2 67003776 Bin, Shelf (2)

(Large)

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 67003775 Bin, Shelf (1)

(Medium)

6 67002477 Retainer, Door

W10133608

Screw

8 Gasket, Door

W10133881

Black

9 Gripper

67006906 Medium Bucket

67007055 Large Bucket

10 67006109 Mount, Handle

11 67006172 Nameplate

12 67006229 Dish Assy., Butter

13 67006287 Screw

14 Bushing, Door

67004978 Black

15 67004838 Plug, Button

67004838 (Black)

16 Closure, Door

67003639 Black

17 Stop, Door

67003780 Black

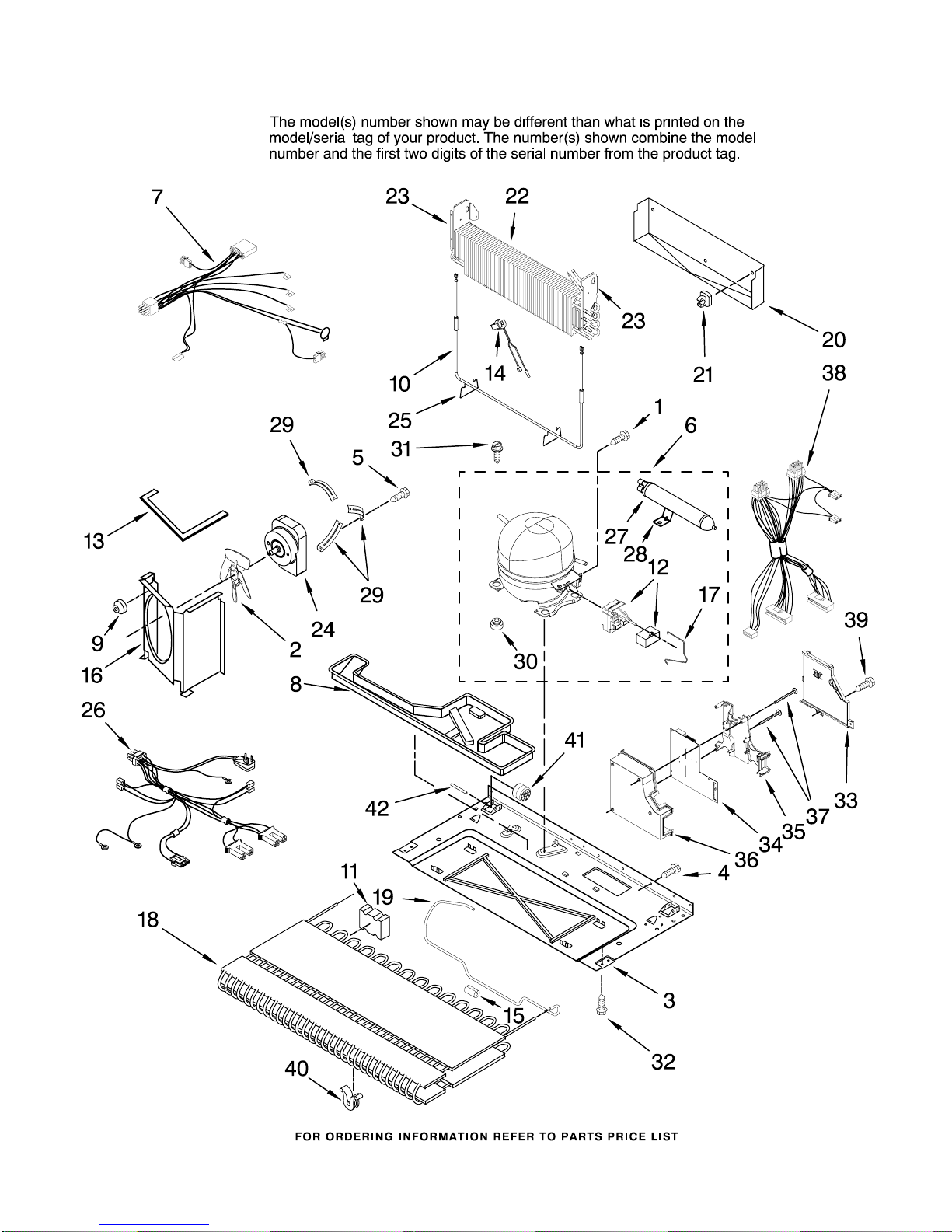

UNIT PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

UNIT PARTS

For Models: EF36LNFSSPA, EF36RNFSSPA

(Stainless) (Stainless)

W10186595

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw (2)

5 67004954 Screw (3)

6 12002634 Compressor Kit

(Includes items

12,17,27, & 30)

W10119857

Harness, Evap

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 67005491 Block, Condenser

12 67005560 Relay Assy.

(Incl. Capacitor)

13 61003210 Gasket

W10165425

Thermostat, Def.

15 67005680 Grommet (2)

W10158508

Shroud

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 12002041 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060201 Harness, Unit

with Power Cord

27 2317845 Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Fan Motor

30 67003493 Grommet (4)

31 67006432 Screw (3)

32 67006573 Screw (4)

33 67005421 Cover, HV Box

W10173398

Board, HV Control

(Inc. Inst. Sheet)

35 67005418 Spacer, HV Box

36 67004969 Box, HV

37 67006550 Screw (2)

38 67005419 Harness, HV

39 67006615 Screw, Cover

W10137529

Grommet, Cond. (4)

41 67005149 Roller (2)

42 67006434 Axle, Roller (2)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
