Installation Instructions

Modernist Rangetop

DTT36M974L*/DTT48M976L*

English2

Contents

Before you begin 5

Important 5

About this manual 5

Important note to the installer 5

Important note to the consumer 6

Important note to the servicer 6

Customer-service information 7

Important safety instructions 8

Read all instructions before using this appliance 8

Symbols used in this manual 8

State of California Proposition 65 warning (US only) 8

Commonwealth of Massachusetts 8

Safety and warning information 9

General safety 9

Fire safety 10

Gas safety 11

Electrical and grounding safety 12

Installation safety 13

Location safety 14

Rangetop safety 15

Product specifications 17

What’s in the box 17

Installation requirements 19

Pre-installation checklist 19

Location requirements 19

Gas supply requirements 28

Special gas requirements (gas models sold in Massachusetts) 29

Electrical requirements 29

Installation instructions 31

Installing your rangetop 31

English 3

To Our Valued Customer:

Congratulations on your purchase of the very latest in Dacor® products! Our unique

combination of features, style and performance make us The Life of the Kitchen™, and a

great addition to your home.

In order to familiarize yourself with the controls, functions and full potential of your new

Dacor Appliance, read this use and care manual thoroughly, beginning with the Before you

begin section.

All Dacor appliances are designed and manufactured with quality and pride, while working

within the framework of our company value. Should you ever experience a problem with

your product, please first check the Troubleshooting section of this manual for guidance. It

provides useful suggestions and remedies prior to calling for service.

Valuable customer input helps us to continuously improve our products and services, so

please feel free to contact our Customer Service Team for assistance with any of your

product support needs.

Dacor Customer Service Team

14425 Clark Avenue

City of Industry, CA 91745

Telephone: (800) 793-0093

Fax: (626) 403-3130

Hours of Operation: Monday through Friday 6:00 A.M. to 5:00 P.M. Pacific Time

Website: www.Dacor.com

Thank you for choosing Dacor for your home. We are a company built by families for

families, and we are dedicated to serving yours. We are confident that your new Dacor

product will deliver a high level of performance and enjoyment for many years to come.

Sincerely,

English4

WARNING: Failure to follow the instructions in this manual exactly

may cause a fire or explosion, and, consequently, property damage,

personal injury, or death.

•DO NOT keep or use gasoline or other flammable products near

this appliance.

•IF YOU SMELL GAS:

-DO NOT light any appliances.

-DO NOT touch any electrical switches.

-DO NOT use any phone in your building.

-Immediately call your gas supplier from a neighbor's phone,

and follow the supplier's instructions. (If you cannot reach

your gas supplier, call the fire department.)

•Installation and service must be performed by a qualified

installer, service agency, or the gas supplier.

English 5

Before you begin

Important

•The overall design and/or accessories may

differ with the model.

Installer

•To promote safety and minimize

problems, read this manual thoroughly

before starting the installation. Leave

this manual with the user.

•Write the appliance’s model/serial

numbers in this manual for service/

maintenance reference.

User

•Keep this manual for personal reference

and for that of inspectors, service

personnel, etc.

About this manual

READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.

Important note to the installer

•Read all instructions contained in these installation instructions before installing the

appliance.

•Remove all packing materials from the appliance compartments before connecting the

electric and gas supply to the appliance.

•Observe all governing codes and ordinances.

•Be sure to leave these instructions with the consumer.

•Installation of this appliance requires basic mechanical skills.

•Proper installation is the responsibility of the installer.

•Product failure due to improper installation is not covered under the Warranty.

English6

Before you begin

Important note to the consumer

Keep these instructions with your user manual for future reference.

•As when using any appliance generating heat, there are certain safety precautions you

should follow.

•Be sure your appliance is installed and grounded properly by a qualified installer or

service technician.

•Make sure the wall coverings around the cooktop can withstand the heat generated by

the appliance.

•Cabinet storage space above the rangetop burners should be a minimum of 30 in

(76.2 cm).

Important note to the servicer

The electrical diagram is attached inside the burner box.

English 7

Customer-service information

Customer-service information

If you have questions or problems with installation, contact your Dacor dealer or the

Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the

Dacor Distinctive Service line. Whenever you call, have the model and serial number of

the appliance ready. The model and serial number are printed on a label.

Dacor Customer Service

Phone: (800) 793-0093 ex. 2813 (U.S.A. and Canada)

Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time

Web site: www.dacor.com

Dacor Distinctive Service (for repairs under warranty only) Phone: (800) 793-0093

ex.2822 (U.S.A. and Canada) Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time

Label

English8

Important safety instructions

Important safety instructions

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

•Electrical and gas equipment with moving parts can be dangerous. The important

safety instructions in this manual are intended to minimize the risk of property

damage, personal injury, and death. Be sure to read them.

•Keep this manual in a handy place so you can refer to it as needed.

Symbols used in this manual

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in electric shock, personal injury, or property

damage.

NOTE

Useful tips and instructions.

These warning icons and symbols are intended to prevent property damage and personal

injury. Follow them explicitly.

State of California Proposition 65 warning (US only)

WARNING : This product contains chemicals known to the State of California to cause

cancer and birth defects or other reproductive harm.

Gas appliances can cause low-level exposure to Proposition 65 listed substances (including

benzene, carbon monoxide, formaldehyde, and soot) resulting from the incomplete

combustion of LP or natural gas.

Commonwealth of Massachusetts

This product must be installed by a licensed plumber or gas fitter qualified or licensed by

the State of Massachusetts. When using ball-type gas shut-off valves, you must use the

T-handle type. Multiple flexible gas lines must not be connected in series.

English 9

Safety and warning information

Safety and warning information

General safety

WARNING

To reduce the risk of fire, electric shock, personal injury, or death, observe these

precautions:

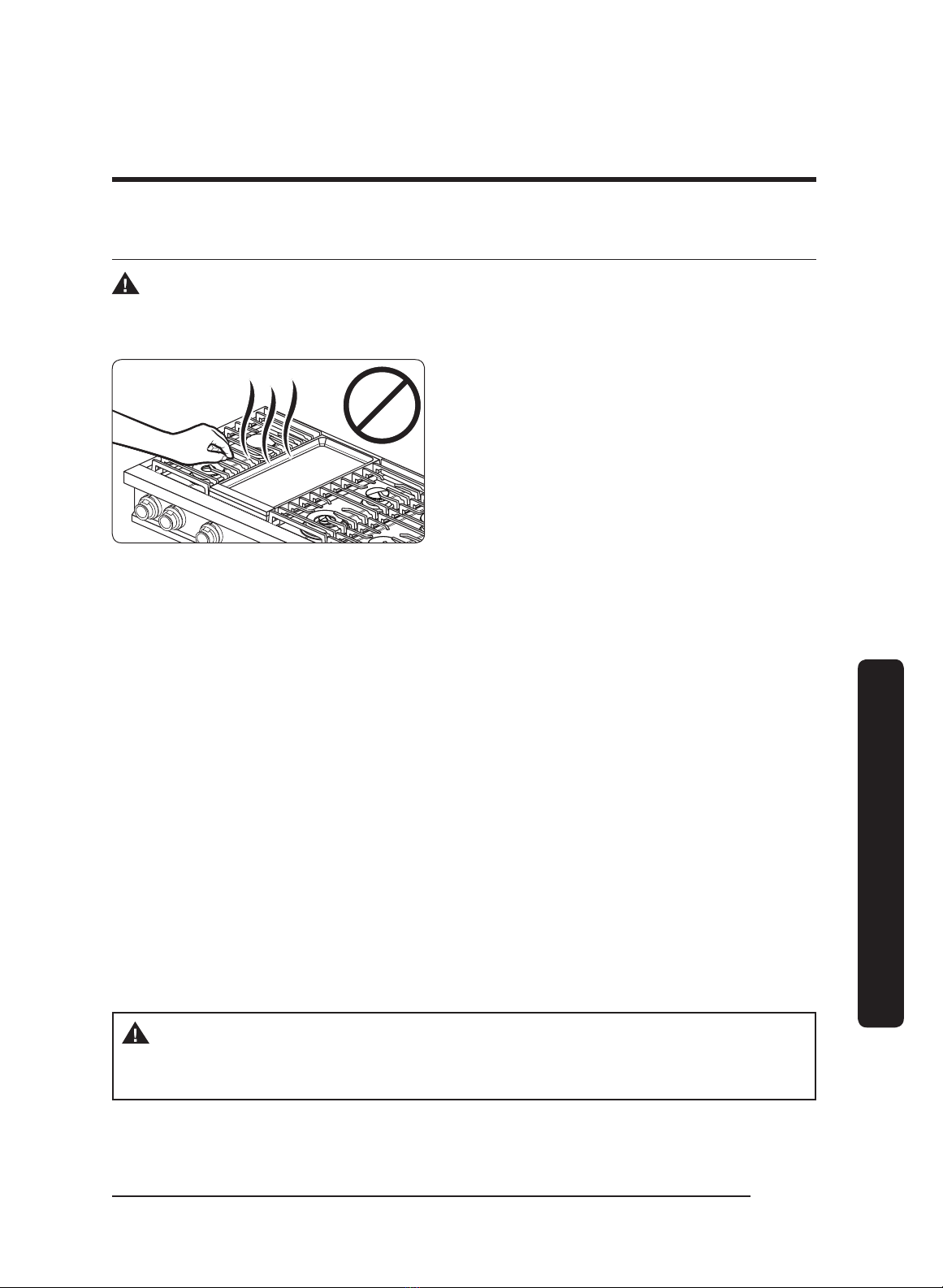

•Do not touch any surface, component,

or mechanism of the appliance during

or immediately after cooking.

•Learn where and how to shut off the

valve that feeds gas to the appliance.

•Make sure the rangetop's hold-down brackets are properly installed. (See the

Installation Instructions for details.)

•Do not let children sit/stand on the appliance or play with any of its parts. Do not leave

children unattended in the kitchen when the appliance is in use.

•Remove all packaging before operating the appliance to keep this material from

catching fire. Keep all packaging away from children. Properly dispose of packaging as

soon as the appliance is unpacked.

•Do not keep objects of interest to children on or around the appliance.

•Do not operate the appliance if it is damaged in any way, if it malfunctions, or is

missing parts.

•Do not use the appliance as a space heater. This appliance is to be used for cooking

purposes only.

•Use only dry pot holders.

•Do not use the appliance to heat sealed food containers.

•Unplug the appliance before service/maintenance.

•An air curtain or other overhead range hood, which operates by blowing a downward

airflow onto a range, shall not be used in conjunction with a gas range unless the

hood and range have been designed and tested in accordance with the Standard

for Domestic Gas Ranges, ANSI Z21.1 • CSA1.1, and listed by an independent testing

laboratory for combination use.

WARNING

NEVER use this appliance as a space heater to heat or warm the room. Doing so may

result in carbon monoxide poisoning and overheating of the oven.

English10

Safety and warning information

Fire safety

WARNING

To reduce the risk of fire, electric shock, personal injury, or death, observe these

precautions:

•Do not store/place/use combustible

materials (e.g., paper, plastic, pot

holders, linens, gasoline, alcohol) near

the appliance.

•Do not wear loose fitting or hanging

garments while using the appliance.

•To avoid grease buildup, regularly clean the vents.

•Do not let pot holders or other flammable material touch a heating element. Do not use

a towel or other bulky cloth item as a pot holder.

•Do not douse a grease fire with water. Instead, turn off the heat source, and smother

the fire with a tight-fitting lid, or use a multi-purpose, dry-chemical or foam

extinguisher.

•Do not heat unopened food containers - buildup of pressure may cause container to

burst and result in injury.
