User Manual
WWW.D3Dsecurity.com
Email:Support@D3Dsecurity.com

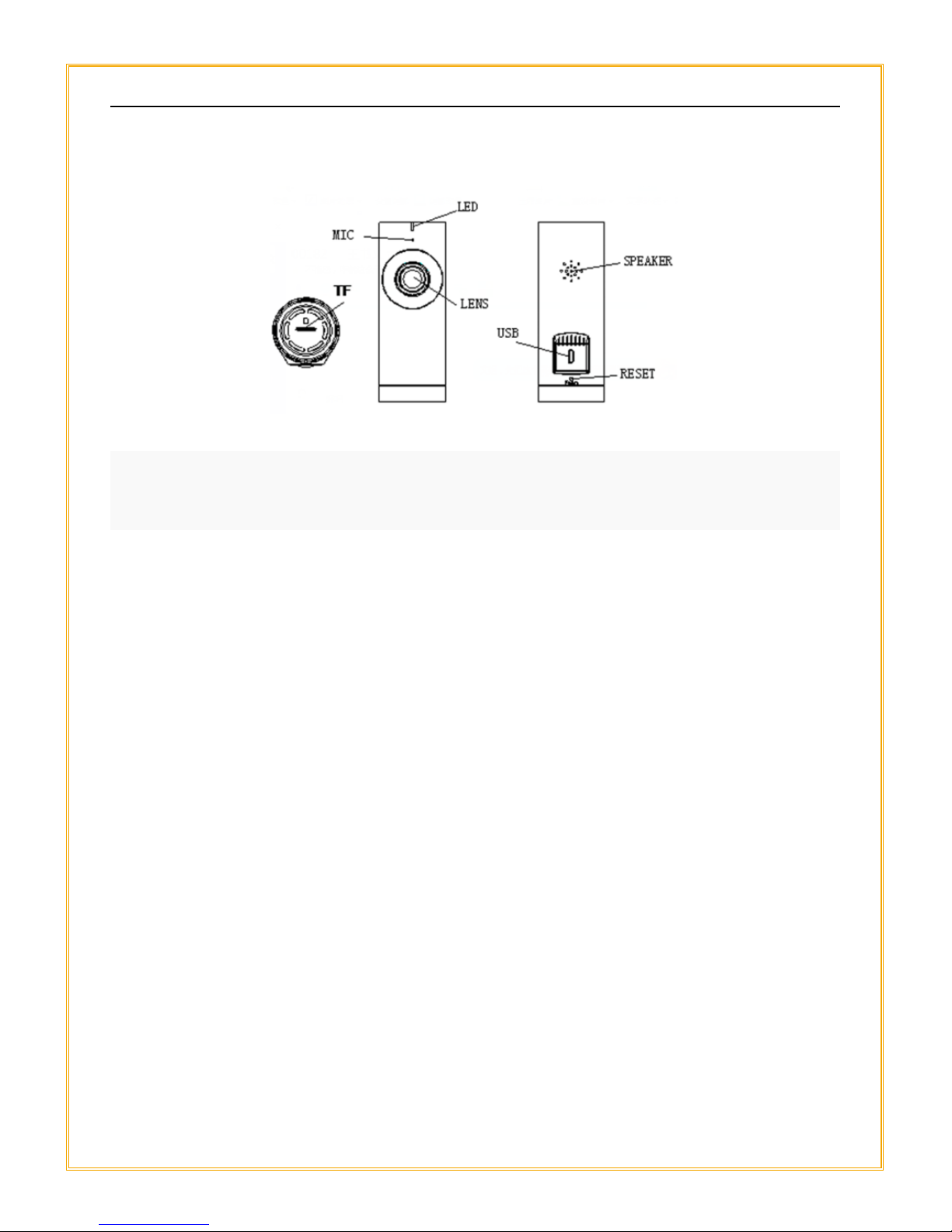

①Diagram
USB interface: 5V external power supply
Micro SD card slot: For local storage, up to 128G
②Install Mobile APP‘D3DPano’
Visit Apple Store or Google Play to download and install
“D3DPano”on your smart phone. Launch the APP and
create a new account.
*Click on Login and select Sign Up button.
*Select Country, enter email id and then press „Obtain‟
button. Check your email id for the verification code
*Enter verification code and press NEXT
*On next screen, enter new password for the mobile app
*Now Login with registered email id & new password
Camera connection
Using the adaptor and USB cable, connect the camera
with power and wait until red light blinks.
Connected your Android or IOS device to your Wi-Fi
and enter Wi-Fi password in APP as guided (5G Wi-Fi
is currently not supported), turn on the phone volume
and get it close to the camera. When heard beeping
sound from camera, please tab “next”and wait until
green light blink accompany with the voice “camera
ready” which means connection is done.
Name the camera and enjoy the video.
Q&A
①Why is the camera not shown online?
Please check you have entered the right Wi-Fi
password. Change password if there is any special
symbol.
Make sure DHCP of router is enabled.
③How can I playback recorded video on Micro SD card?
Move the cursor on the time line to the required date and
time, camera will play the video recorder at that time.
Instruction
①Indicating light
Stable red Power is on
Blink red Waiting for Wi-Fi password
Stable green Waiting for connection to Internet
Blink green Camera is working
②Working Temperature
The camera is fit for the environment between -5～40℃。
It‟s normal if you feel the camera a bit hot when in
working condition.
③Camera reset
User will need to reset the camera when there is a
requirement to:
Change of Wi-Fi name or password.
Change of Wi-Fi router
Change of user to pair with the camera
*Ensure the camera is ON
*Insert a pin into the Reset hole on the camera and Press firmly and
push the tool straight.
○4Package list
D3D Panoramic Camera
Power adaptor & cable
User‟s manual
Product qualified card
APP Illustration
Warranty terms
We are entitled to discontinue the warranty period if
product has been serviced or tempered with by
unauthorized personnel.
We reserve the right to modify the contents of the
product at any time without prior notice.
Unless otherwise specified, this warranty only covers
the defect in material, design and workmanship of the
hardware components of the product as originally
supplied. The warranty does not cover any software,
consumable items, or accessories even if packaged or
sold together with the product.
Note
Please be sure that power is off when remove/insert
micro SD card.
Keep the product out of children‟s reach.
Keep it away from direct sunlight, strong light or dust
The camera is suitable for indoor environment. Please
keep it away from humidity such as around the
humidifier.
To make the connection among Wi_Fi router, camera
and phone, please ensure that all devices are in the
effective range of Wi-Fi router.
