D-Link Express EtherNetwork DI-604 Manual de usuario

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with

other computers, you must have either an Ethernet-based Cable or a DSL modem

with an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for

configuring the DI-604 router. The DI-604 Router acts as a DHCP server and will

assign all the necessary IP address information on your network. See Appendix

at the end of this Quick Installation Guide or the Manual on the CD-ROM for

setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

These are the items included with your DI-604 purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice. DI-604.03072003

This product can be set up using any current

web browser, i.e., Internet Explorer 5x,

Netscape Navigator 4x.

DI-604

Express EtherNetwork™

Broadband Router

• DI-604 Ethernet Broadband Router

• CD-ROM (containing Manual and Warranty)

• Ethernet (CAT5 UTP/Straight-Through) Cable

• 5V DC, 2A Power Adapter

Using a powe

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Connecting The DI-604 Broadband Router

To Your Network

A. First, connect the power adapter to the receptor at the back panel of the

DI-604 and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-604

should be powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DI-604 (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable /

DSL modem by turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DI-604 (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on the back

panel of the DI-604. The WAN LED light will illuminate to indicate proper

connection. If the WAN LED is not illuminated, please go back and step B and

repeat its instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-604 and an

available Ethernet port on the network adapter in the computer you will use to

configure the DI-604. The LED light for LAN Port 1 will illuminate to indicate

proper connection. (Note: The LAN Ports on the DI-604 are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover-Ethernet cable to the

LAN Ports.)

B.WAN Port

This is the connection for the

Ethernet Cable to Ethernet Port on

the Cable or DSL Modem.

C.LAN Ports

These are the connections for Ethernet

cables to your Ethernet-enabled computers

Reset Button

Pressing this button

restores the router

to its original factory

default settings.

A.Receptor for

Power Ada

Connecting Additional Computers To The

DI-604 Broadband Router

Using additional Ethernet (CAT5 UTP/Straight-Through) cables, connect

your Ethernet-equipped computer(s) to one of the 3 remaining Ethernet

LAN ports on the back panel of the DI-604.

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

Cable or DSL

Modem

DI-604 Ethernet

Broadband Router

Computers connected

to the LAN Ports

LAN Port LEDs. Each of the

LAN ports on the back of the

DI-604 have a corresponding

LED light on the front panel

of the unit. When a proper

connection has been made

to a computer that is ON, the

LED on the front panel

should illuminate.

Using The Setup Wizard

The logon pop-up

screen will appear.

Once you have

logged in, the

Home screen

will appear.

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

Type “admin” for the

username and leave the

password field blank.

Click OK

Click Run Wizard

You will see the following screens.

Step 1 - Set up your new

password.You have the option to

establish a password.

Step 2 - Choose your time zone.

Click Next

The Setup Wizard (continued)

Select the type of Internet connection for your router.

If you selected Dynamic IP

Address, this screen will

appear:

Select one of

these settings

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

Click the “Clone MAC

Address” button to

automatically copy the MAC

address of the network adapter

in your computer. You can also

manually type in the MAC

address. What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

If your ISP requires a Static IP

Address, and this option is

selected, then this screen will

appear:

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet) and

this option is selected, then this

screen will appear:

Enter in the username

and password provided

to you by your ISP.

Do not use

the numbers

displayed in these

fields. They are only

shown as an example.

Click Next

Enter the IP address

information originally

provided to you by your ISP.

You will need to complete all

the required fields.

Click Next

Please be sure

t to remove any

existing PPPoE

client software

installed on your

com

uters.

Your Setup is Complete!

You will be returned to the Home tab.

Click Restart

Click Close

Test Your Internet Connection

Relaunch your Web

browser (i.e., Internet

Explorer or Netscape

Navigator), to link to

your favorite Web site

to test your Internet

connection.

For additional settings

or information, refer to

the Advanced, Tools,

or Status tabs on the

web-management

interface; or to the

manual located on the

CD-ROM.

Click Exit

APPENDIX

To connect to the network, make sure

the network adapter in your computer

is configured properly. Here’s how to

configure the network adapter to obtain

an IP address automatically for the

DI-604 Broadband Router.

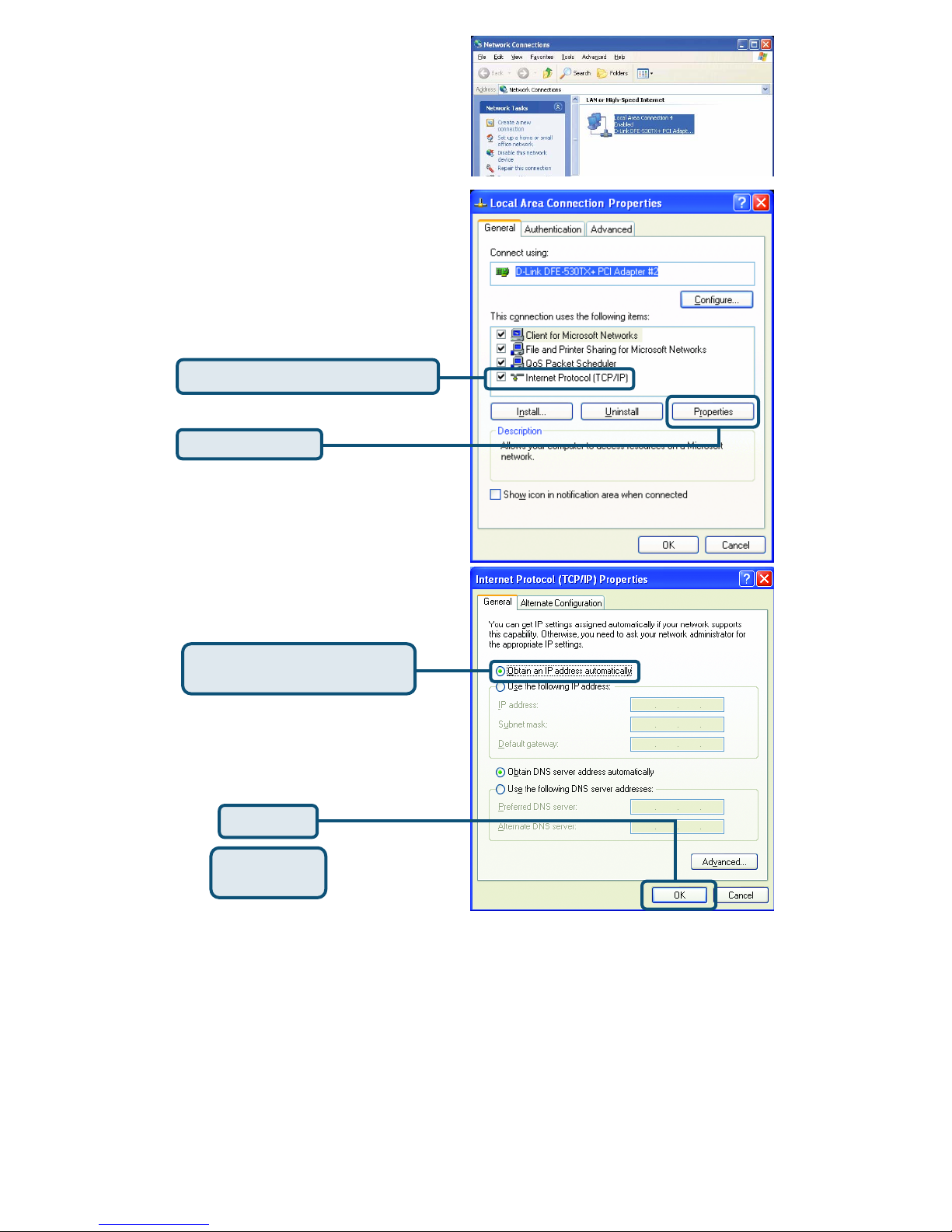

For Microsoft Windows XP:

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with the Ethernet adapter (i.e.,

D-Link DFE-530TX+).

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

Click OK

Restart your

computer
