D-Link Express EtherNetwork DI-604 Manual de usuario

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with

other computers, you must have either an Ethernet-based Cable or a DSL modem

with an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for

configuring the DI-604 router. The DI-604 Router acts as a DHCP server and will

assign all the necessary IP address information on your network. See Appendix

at the end of this Quick Installation Guide or the Manual on the CD-ROM for

setting each network adapter to automatically obtain an IP address.

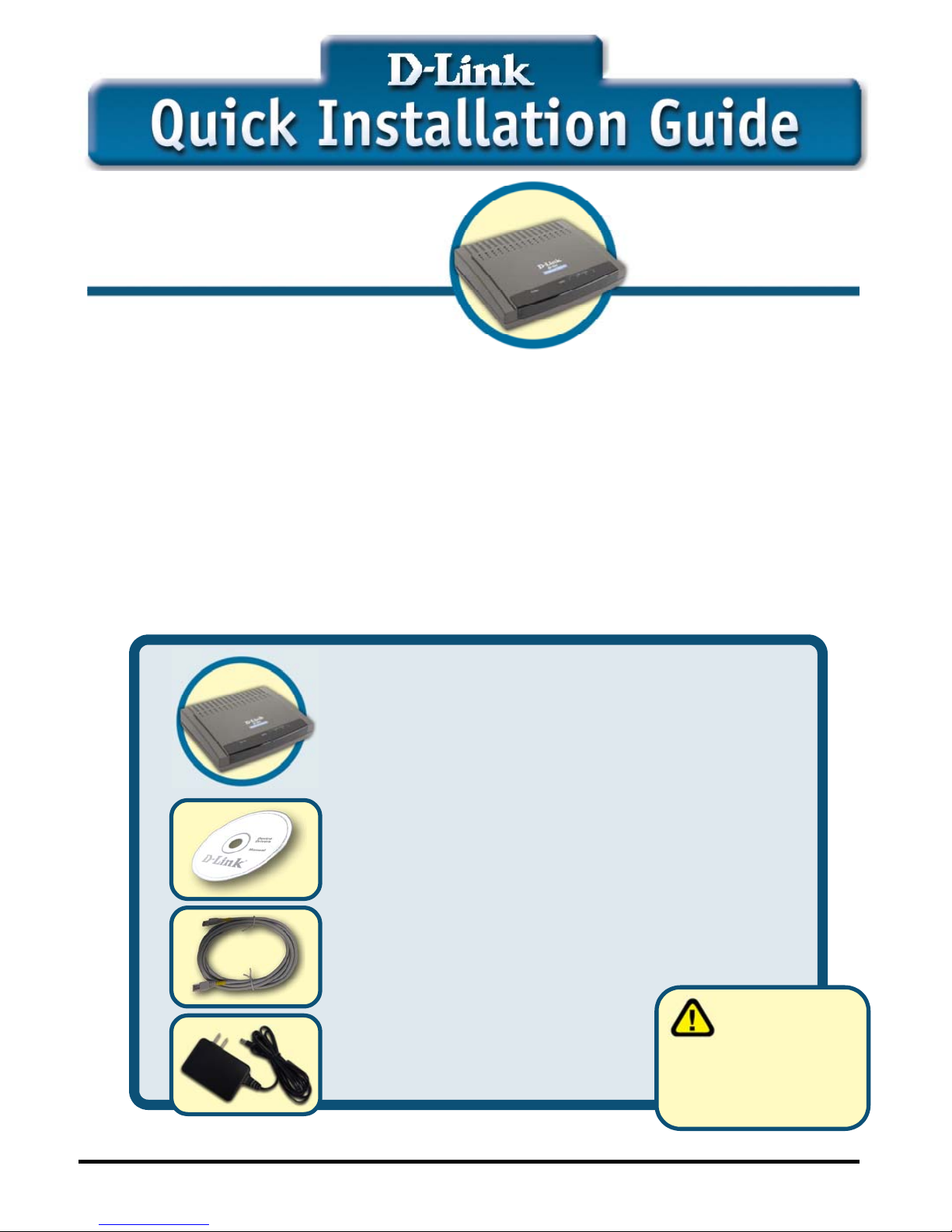

Check Your Package Contents

These are the items included with your DI-604 purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice. DI-604.05082002

This product can be set up using any current

web browser, i.e., Internet Explorer 5x,

Netscape Navigator 4x.

DI-604

Express EtherNetwork™

Broadband Route

• DI-604 Ethernet Broadband Router

• CD-ROM (containing Manual and Warranty)

• Ethernet (CAT5 UTP/Straight-Through) Cable

• 5V DC, 2A Power Adapter

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Connecting The DI-604 Broadband Router

To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DI-604 and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of an Ethernet cable to the WAN port on the back

panel of the DI-604 and the other end to the Ethernet port located on

your Cable or DSL modem. The WAN LED light will illuminate to

indicate proper connection.

C. Insert one end of an Ethernet cable to LAN port 1 on the back panel

of the DI-604 and the other end to an available Ethernet port on the

network adapter in the computer you will use to configure the DI-604.

The LED light for LAN Port 1 will illuminate to indicate proper

connection. (Note: Some computers already have network adapters

pre-installed.)

Restart Your Computer

B.WAN Port

This is the

connection for the

Ethernet Cable to

Ethernet Port on the

Cable or DSL

Modem.

C.LAN Ports

These are the

connections for

Ethernet cables to

your Ethernet-

enabled com

uters

A.Receptor for

Power Ada

ter

Reset Button

Pressing this button

restores the router

to its original factory

default settings.

Connecting Additional Computers To The

DI-604 Broadband Router

Using additional Ethernet (CAT5 UTP/Straight-Through) cables, connect

your Ethernet-equipped computer(s) to one of the 3 remaining Ethernet

LAN ports on the back panel of the DI-604.

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

LAN Port LEDs. Each of the

LAN ports on the back of the

DI-604 have a corresponding

LED light on the front panel

of the unit. When a proper

connection has been made

to a computer that is ON, the

LED on the front panel

should illuminate.

Cable or DSL

Modem

DI-604 Ethernet

Broadband Router

Computers connected

to the LAN Ports

Using The Setup Wizard

The logon pop-up

screen will appear.

Once you have

logged in, the

Home screen

will appear.

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

Type “admin” for the

username and leave the

password field blank.

Click OK

Click Run Wizard

You will see the following screens.

Step 1 - Set up your new

password.You have the option to

establish a password.

Step 2 - Choose your time zone.

Click Next

The Setup Wizard (continued)

Select the type of Internet connection for your router.

If you selected Dynamic IP

Address, this screen will

appear:

Select one of

these settings

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

Click the “Clone MAC

Address” button to

automatically copy the MAC

address of the network adapter

in your computer. You can also

manually type in the MAC

address. What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

If your ISP requires a Static IP

Address, and this option is

selected, then this screen will

appear:

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet) and

this option is selected, then this

screen will appear:

Enter in the username

and password provided

to you by your ISP.

Do not use

the numbers

displayed in these

fields. They are only

shown as an example.

Click Next

Enter the IP address

information originally

provided to you by your ISP.

You will need to complete all

the required fields.

Click Next

Your Setup is Complete!

You will be returned to the Home tab.

Click Restart

Click Close

Test Your Internet Connection

Relaunch your Web

browser (i.e., Internet

Explorer or Netscape

Navigator), to link to

your favorite Web site

to test your Internet

connection.

For additional settings

or information, refer to

the Advanced, Tools,

or Status tabs on the

web-management

interface; or to the

manual located on the

CD-ROM.

Click Exit

APPENDIX

To connect to the network, make sure

the network adapter in your computer

is configured properly. Here’s how to

configure the network adapter to obtain

an IP address automatically for the

DI-604 Broadband Router.

For Microsoft Windows XP:

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with the Ethernet adapter (i.e.,

D-Link DFE-530TX+).

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

Click OK

Restart your

computer
