D-Link DWM-162 Manual de usuario

CDMA 2000 EVDO Rev.A USB Dongle

DWM-162

Quick Installation Guide+

Draft Version

2

Quick Installation Guide

DWM-162

CDMA 2000 EVDO Rev. A USB Dongle

About D-Link DWM-162

Hardware Installation

DWM-162 is a CDMA EVDO Rev.A USB Dongle. Besides Windows OS, DWM-162

can also be run under MAC environment which makes it become the perfect solution for

customization.

DWM-162 can support the downlink up to 3.1 Mbps and uplink up to 1.8Mbps.

UIM Card Installation Steps:

1. Ensure the USB modem is plug off. Remove the back cover.

2. Hold the UIM card with the cut corner oriented as shown and then slide it into the

card holder face down.

3. Replace the back cover.

MicroSD Card Installation Steps:

1. Ensure the USB modem is plug off. Remove the back cover.

2. Hold the MicroSD card with the oriented as shown and then slide it into the card

holder face up.

3. Replace the back cover.

S te p 1 S te p 2 S te p 3

S te p 1 S te p 2 S te p 3

3

Software Installation

Before you install the software, you must ﬁrst install a UIM card into the USB

modem and connect the modem to a USB port on your computer.

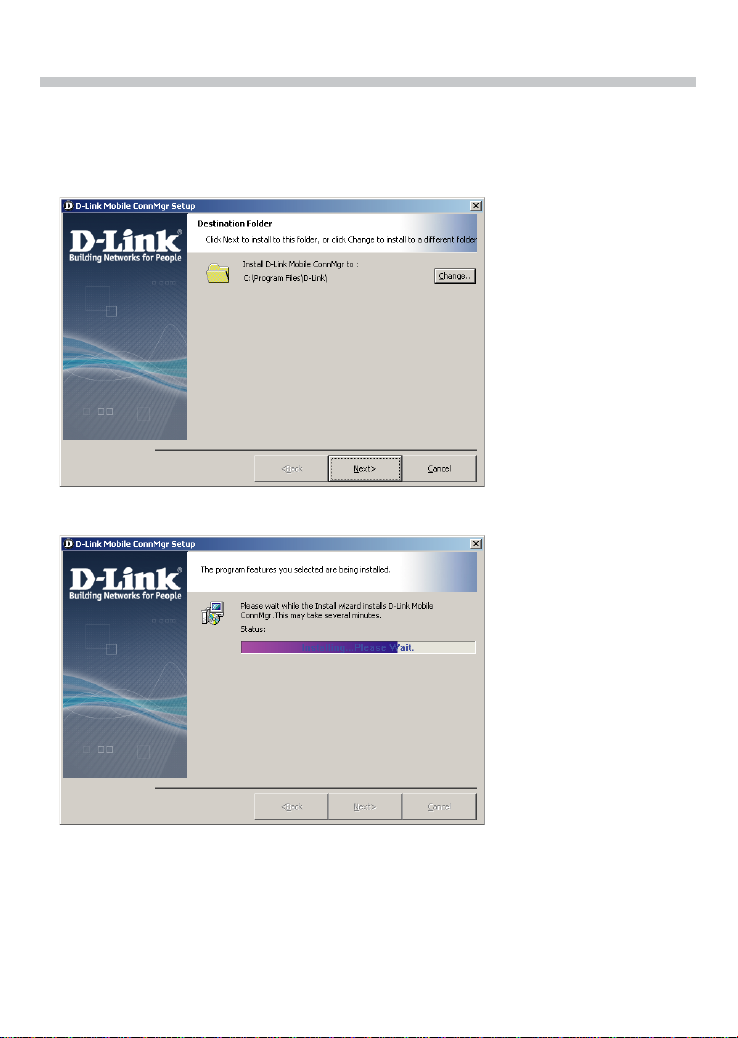

1. Step 1: The first time you plug in the dongle to your computer, the dongle

will run the installation application automatically.

2. Step 2: Please follow the intallation by clicking “Next”, the application will install

the driver and the connection manager to your computer automatically.

3. Step 3: Please click “Finish” to finish the installation. Then plug out the dongle

and reinsert the dongle to PC. The connection manager will pop up automatically.

Now you could use your dongle to go to the internet.

4

Troubleshooting

1. Connect the USB modem on the computer, Connection Manager can not

install Automatically.

Please enter the virtual CD ROM in explorer, then click Autorun.exe.

2. Connect the USB modem on the computer, the modem can not work.

Please check the UIM card is installed property. Make sure your UIM card do

have 3G data service. Or check if the Antivirus Software block the connection.

Technical Support:

Thank you for choosing D-Link products. For further information, technical support,

product drivers, and manuals, please visit the D-Link website.

FCC statement :

Se ction15.105(b)

Note:Thisequipmenthasbeentestedandfoundto

complywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsare

designedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedin

accordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereis

noguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,

whichcanbedeterminedbyturningtheequipmentoff

andon,theuserisencouragedtotrytocorrectthe

interferencebyoneormoreofthefollowingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentand

receiver.

‐‐Connecttheequipmentintoanoutletonacircuit

differentfromthattowhichthereceiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TV

technicianforhelp.
