D-Link DVG-N5402SP Manual de usuario
Quick Installation Guide
DVG-N5402SP
Wireless Router with 1 FXS Port
DVG-N5402SP Quick Installation Guide
BEFORE OU BEGIN
Delivery Package
•Router DVG-N5402SP
•Power adapter DC 12V/1.25A
•Ethernet ca le (CAT 5E)
•RJ-11 telephone ca le
•“Quick Installation Guide” ( rochure).
If any of the items are missing, please contact your reseller.
The “User Manual” and “Quick Installation Guide” documents are availa le
on D-Link we site (see www.dlink.ru).
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
2
DVG-N5402SP Quick Installation Guide
Default Settings
IP address of device 192.168.8.254
Username (login) admin
Password admin
Name of wireless network (SSID) DVG-N5402
Network key (PSK password)
see WPS PIN on the arcode
la el on the ottom panel of
the device
!
Router DVG-N5402SP with default settings cannot connect to the
Internet. To get started, please set your own password for access to the
we - ased interface and change the WLAN name (SSID); then, if
needed, configure other settings recommended y your ISP.
3
DVG-N5402SP Quick Installation Guide
System Requirements and Equipment
•A computer with any operating system that supports a we rowser.
•A we rowser to access the we - ased interface of the router:
◦Apple Safari 8 and later
◦Google Chrome 48 and later
◦Microsoft Internet Explorer 10 and later
◦Microsoft Edge 20.10240 and later
◦Mozilla Firefox 44 and later
◦Opera 35 and later.
•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.
•An 802.11 , g, or n Wi-Fi adapter to create a wireless network.
•Analog phone.
4
DVG-N5402SP Quick Installation Guide
CONNECTING TO PC
PC with Ethernet Adapter
1. Connect an Ethernet ca le etween any of LAN ports located on the ack
panel of the router and the Ethernet port of your PC.
2. Connect the phone ca le etween the FXS1 port of the router and the
phone.
3. Connect the power cord to the power connector port on the ack panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
4. Turn on the router y pressing the ON/OFF utton on its ack panel.
Then make sure that your PC is configured to o tain an IP address
automatically (as DHCP client).
5
DVG-N5402SP Quick Installation Guide
Obtaining P Address Automatically
(OS Windows 7)
1. Click the Start utton and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel
has the category view (the Category value is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line under the Network and Internet
section.)
3. In the menu located on the left part of the window, select the Change
adapter settings line.
4. In the opened window, right-click the relevant Local Area Connection
icon and select the Properties line in the menu displayed.
5. In the Local Area Connection Properties window, on the
Networking ta , select the Internet Protocol Version 4 (TCP/IPv4)
line. Click the Properties utton.
6
DVG-N5402SP Quick Installation Guide
6. Make sure that the Obtain an IP address automatically and Obtain
DNS server address automatically choices of the radio uttons are
selected. Click the OK utton.
7. Click the OK utton in the connection properties window.
7
DVG-N5402SP Quick Installation Guide
PC with Wi-Fi Adapter
1. Connect the phone ca le etween the FXS1 port of the router and the
phone.
2. Connect the power cord to the power connector port on the ack panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
3. Turn on the router y pressing the ON/OFF utton on its ack panel.
4. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern
note ooks with uilt-in wireless NICs are equipped with a utton or
switch that turns on/off the wireless adapter (refer to your PC documents).
If your PC is equipped with a plugga le wireless NIC, install the software
provided with your Wi-Fi adapter.
Then make sure that your Wi-Fi adapter is configured to o tain an IP address
automatically (as DHCP client).
8
DVG-N5402SP Quick Installation Guide
Obtaining P Address Automatically and
Connecting to Wireless Network (OS Windows 7)
1. Click the Start utton and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel
has the category view (the Category value is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line under the Network and Internet
section.)
3. In the menu located on the left part of the window, select the Change
adapter settings line.
4. In the opened window, right-click the relevant Wireless Network
Connection icon. Make sure that your Wi-Fi adapter is on, then select
the Properties line in the menu displayed.
5. In the Wireless Network Connection Properties window, on the
Networking ta , select the Internet Protocol Version 4 (TCP/IPv4)
line. Click the Properties utton.
9
DVG-N5402SP Quick Installation Guide

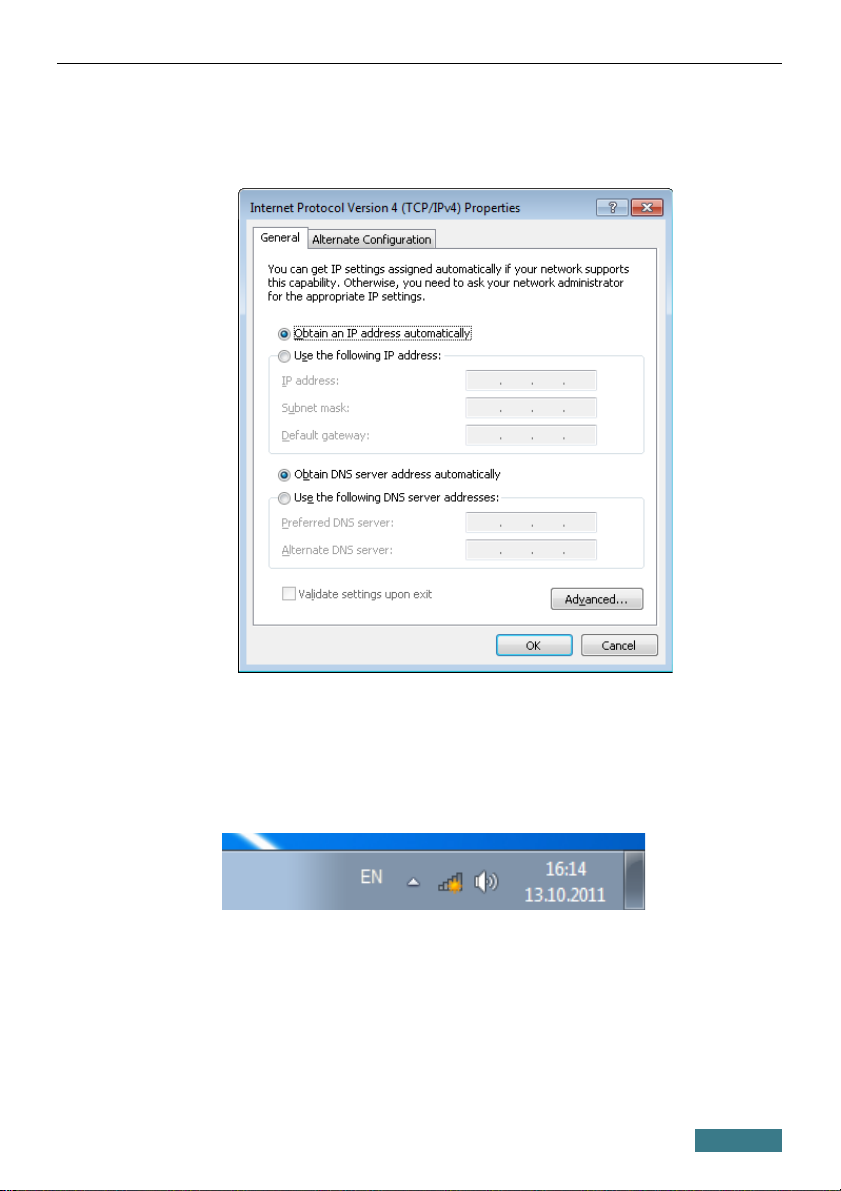

6. Make sure that the Obtain an IP address automatically and Obtain
DNS server address automatically choices of the radio uttons are
selected. Click the OK utton.
7. Click the OK utton in the connection properties window.
8. To open the list of availa le wireless networks, select the icon of the
wireless network connection and click the Connect To utton or left-
click the network icon in the notification area located on the right side of
the task ar.
10
