D-Link DI-514 - Wireless Router Manual de usuario

DI-514

2.4GHz Wireless

Router

5V DC Power Adapter

specifications subject to change without notice. DI-514. 10242003

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-514 Wireless Router. The DI-514 acts as a DHCP server and will assign all

the necessary IP address information on your network. See Appendix at the end

of this Quick Installation Guide or the Manual on the CD-ROM for setting each

network adapter to automatically obtain an IP address.

Check Your Package Contents

DI-514 2.4GHz Wireless Router

CD-ROM (containing Manual and Warranty)

Ethernet (Straight Through) Cable

If any of the above items are missing, please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

Using a power supply

with a different voltage

rating will damage this

product and void the warranty

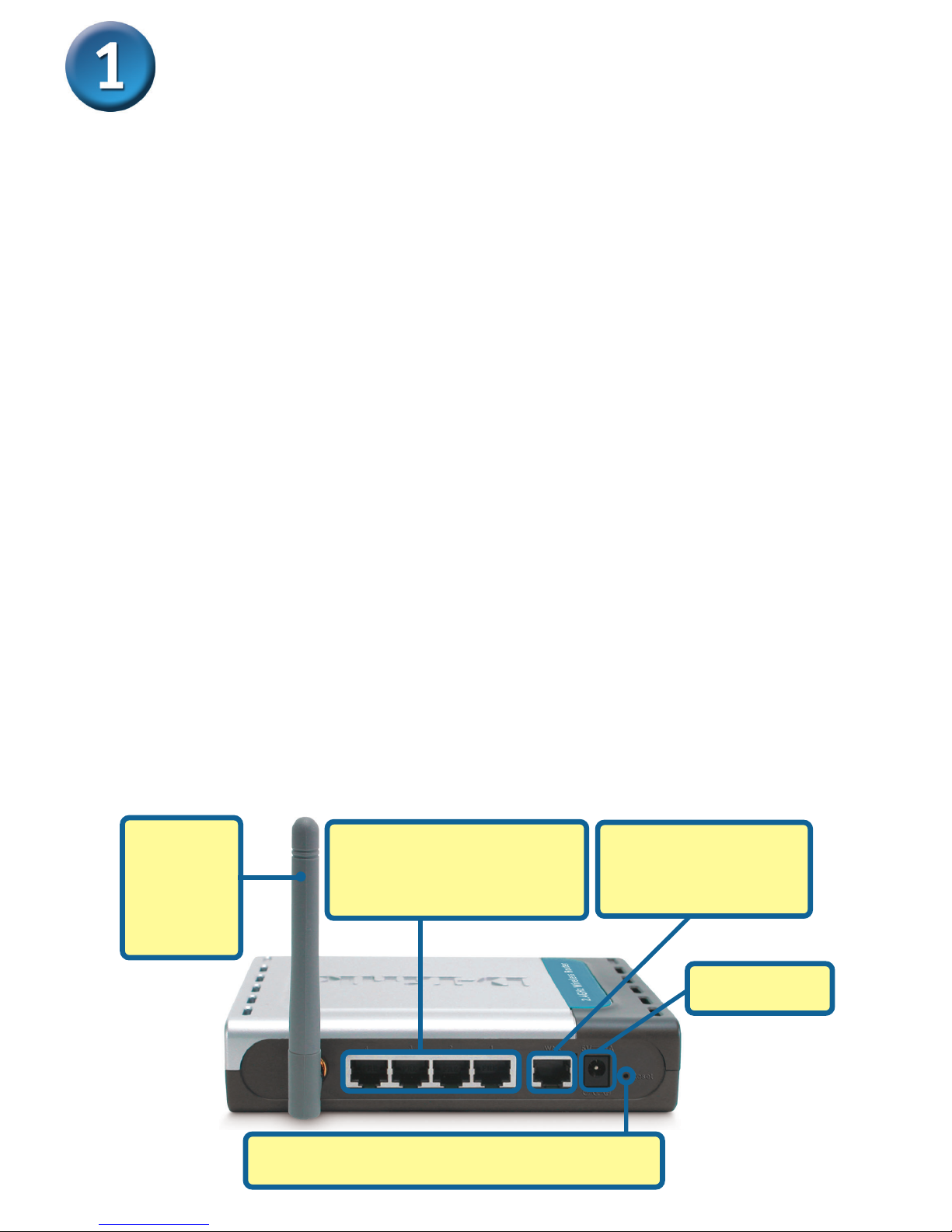

Connecting The DI-514 Wireless Router

To Your Network

D. Antenna

Used to

wirelessly

connect to

802.11b

adapters.

C. LAN PORTS These are

the connections for

Ethernet cables to Ethernet

enabled computers.

Reset Button Pressing this button restores the

Router to its original factory default settings.

B. WAN PORT This is

for the connection of an

Ethernet cable to the

Cable or DSL modem

A. First, connect the power adapter to the receptor at the back panel of the

DI-514 and then plug the other end of the power adapter to a wall outlet or power

strip. The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off switch

and will require you to unplug the power adapter. Now, the DI-514 should be

powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DI-514 (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem.

After the Ethernet cable is securely connected, power on the Cable / DSL modem by

turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DI-514 (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on the back panel of the

DI-514. The WAN LED light will illuminate to indicate proper connection. If the WAN

LED is not illuminated, please go back to step B1 and repeat the instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-514 and an

available Ethernet port on the network adapter in the computer you will use to

configure the DI-514. The LED light for LAN Port 1 will illuminate to indicate proper

connection. (Note: The LAN Ports on the DI-514 are Auto-MDI/MDIX. Meaning you

can use a straight-through or crossover-Ethernet cable to the LAN Ports.)

D. Computers equipped with 802.11b wireless adapters will be able to connect to the

DI-514. The DWL-650+ Air Wireless Cardbus Adapter and the DWL-520+ Air

Wireless PCI Adapter will be able to connect out of the box with the router using their

default wireless settings.

A. Receptor for

Power Adapter.

Restart Your Computer

Connecting Additional Computers To

The DI-514

WAN LED – a solid light

indicates connection on the

WAN port. This LED blinks

during data transmission.

POWER LED – a solid

light indicates a proper

connection to the power

supply.

Status LED

– a

blinking light indicates

that the DI-514 is ready.

When you have completed the steps in this Quick Installation Guide, your connected

network should look similar to this:

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DI-514.

WLAN LED – a solid

light indicates that the

wireless segment is

ready. This LED

blinks during wireless

data transmission.

LOCAL NETWORK LEDs –

a solid light on the port

indicates a connection to

an Ethernet enabled

computer on ports 1-4.

This LED blinks during

data transmission.

Once you have logged in, the Home

screen will appear.

Click Run Wizard

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

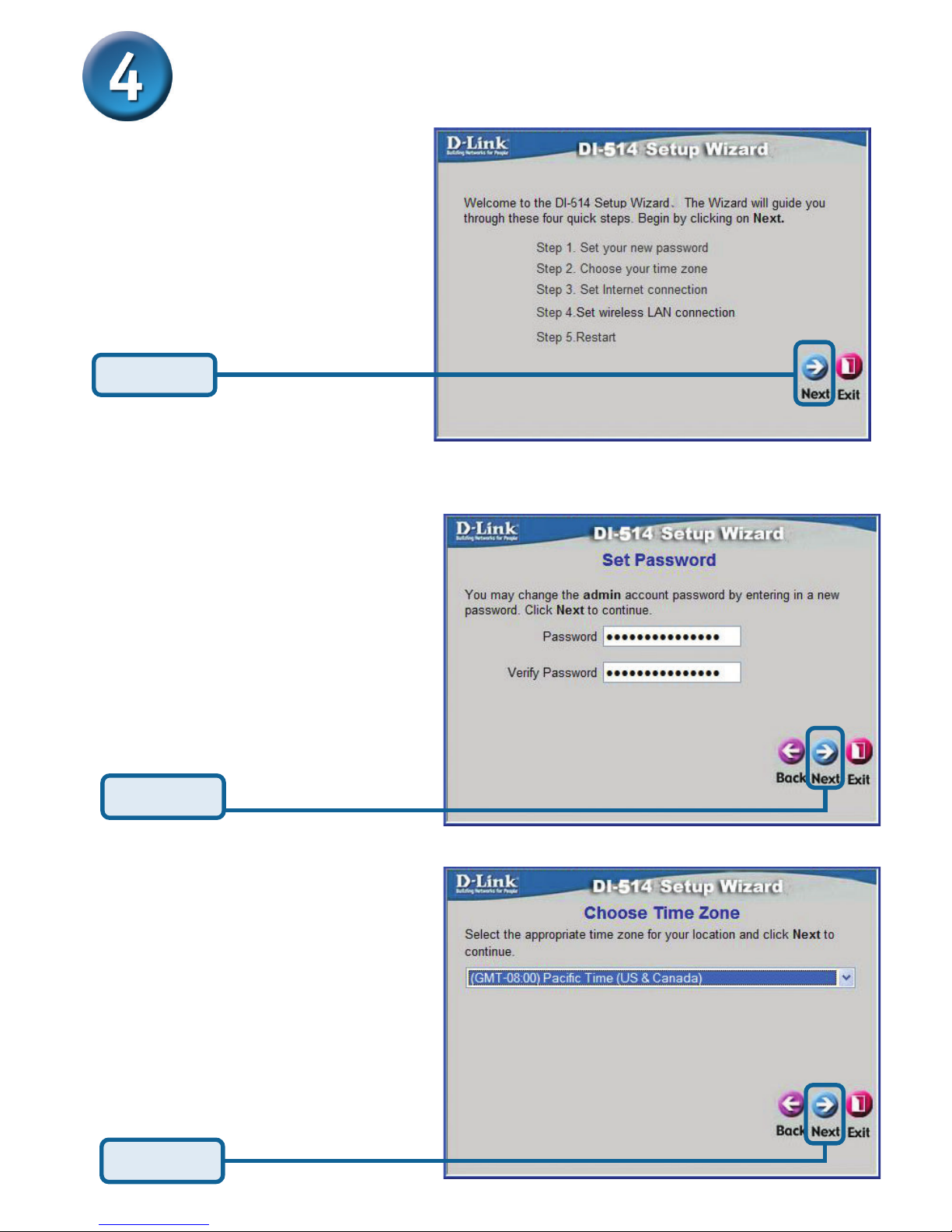

The Setup Wizard (continued)

You will see the following screens

Set up your new password.You

have the option to establish a

password.

Click Next

Choose your time zone from the

drop down list.

Click Next

If you selected Dynamic IP Address,

this screen will appear: (Used mainly

for Cable Internet service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

The Setup Wizard (continued)

Select your Internet Connection.

You will be prompted to select the

type of Internet connection for your

router.

If you are unsure of which setting

to select, please contact your

Internet Service Provider.

Click Next

This setup should be done on

the computer that is registered

on the ISP’s network.

Please continue to Wireless Setup.

A this point, the setup wizard will try

to auto-detect your Internet connec-

tion type. If you have a Dynamic or

PPPoE connection, you will be

brought to their corresponding page.

Otherwise, you will see the following screen:

The Setup Wizard (continued)

If your ISP requires a Static IP

Address, and this option is selected,

then this screen will appear:

Enter the IP address information

originally provided to you by your ISP.

You will need to complete all the

required fields.

Click Next

Please continue to Wireless Setup.

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet), and

this option is selected, then this

screen will appear: (Used mainly for

DSL Internet service.)

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and pass-

word provided to you by your ISP.

Click Next

Please continue to Wireless Setup.

If you wish to use encryption for your

802.11b network, the DI-514 is

capable of two levels of wireless

encryption - 64-bit and128-bit. By

default the encryption is disabled.

You can change the encryption

settings for more secure wireless

communication.

The Setup Wizard (continued)

The default wireless settings for your

802.11b wireless network are:

SSID = default

Channel = 6

You can change these settings to

match an existing wireless network.

Click Next

Wireless Setup

Click Next

Your Setup is Complete!

Click Restart

Click Close

Test Internet Connection

You will be returned to the Home tab.

For additional settings or informa-

tion, refer to the Advanced,

Tools, or Status tabs on the web-

management interface; or to the

Manual located on the CD.

Then relaunch your Web browser

(i.e., Internet Explorer or Netscape

Navigator), to link to your favorite

Web site to test your Internet

connection.

Click to Exit

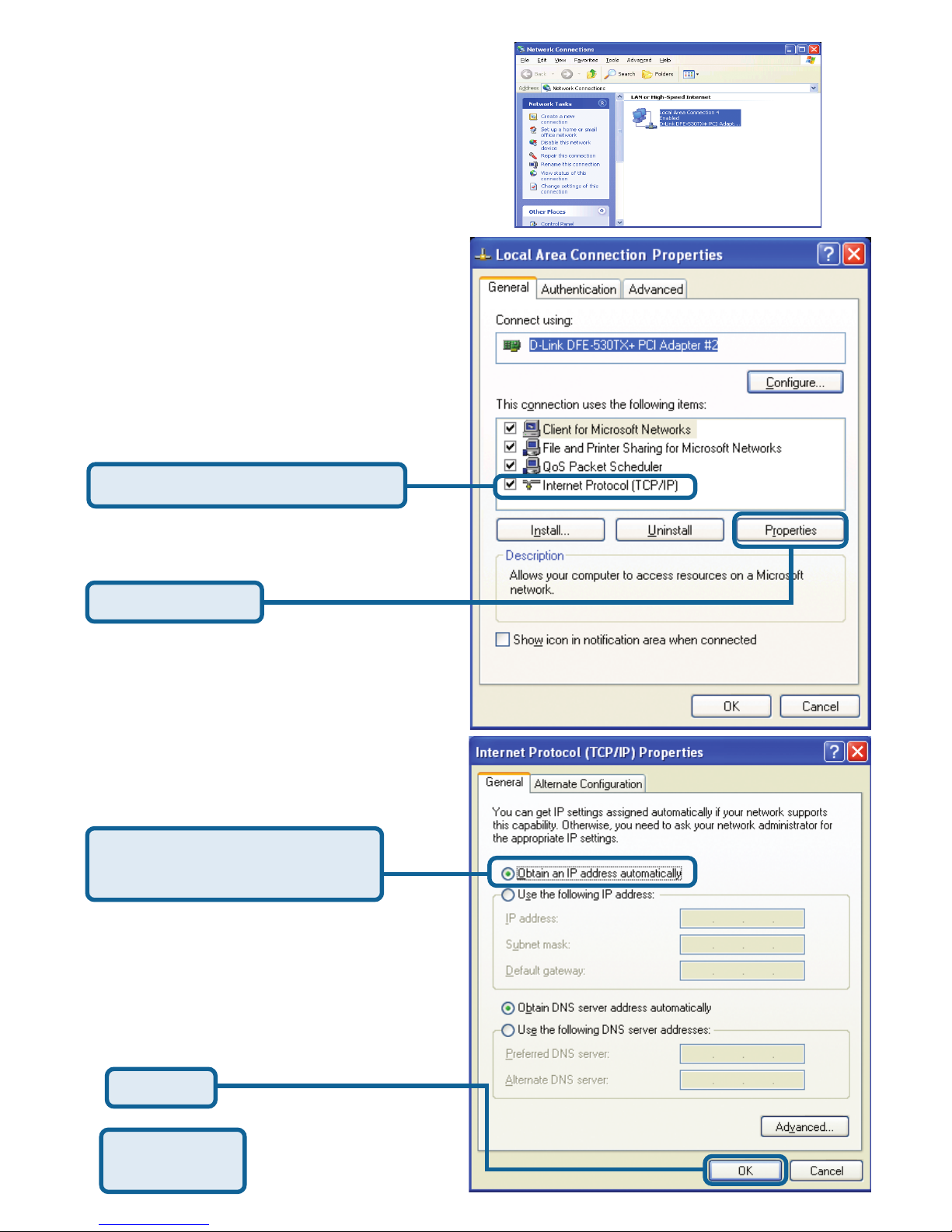

To connect to the network, make sure

the network adapter in your computer

is configured properly. Here’s how to

configure the network adapter to obtain

an IP address automatically for the

DI-514 Wireless Router.

APPENDIX

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

Restart your

computer

Click OK

For Microsoft Windows XP: Go to

Start > right click on My Network

Places > select Properties > Right

click on the Network Connection

associated with the Ethernet adapter

and select Properties (i.e., D-Link

DFE-530TX+).
