Quick Install Guide

DAP-1353

RangeBooster N 650

Access Point

2D-Link DAP-1353 Quick Install Guide

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

• Computers with Windows®, Macintosh®, or Linux-based operating systems

and an installed Ethernet Adapter

• Internet Explorer version 6.0 or Netscape Navigator 7.0 or higher

(for conguration)

• D-Link DAP-1353 RangeBooster N 650 Access Point

• 3 Detachable Antennas

• Power Adapter

• CAT5 Ethernet Cable

• CD-ROM with Installation Guide, User Manual, and Special Offers

Note: Using a power supply with a different voltage than the one included with

the DAP-1353 may damage the unit and will void the warranty for this product.

3 D-Link DAP-1353 Quick Install Guide

Connecting the DAP-1353 to your network

C. Antennas

Used to broadcast wireless network

and recieve connections from 802.11

b/g/draft n wireless clients.

B. LAN Port

Connects DAP-1353 to a switch

or PC.

A. Connect the power adapter to the receptor on the rear panel of the

DAP-1353 and then plug the other end of the power adapter to a wall

outlet or power strip. The power LED will turn ON to indicate proper

operation.

B. Using an Ethernet cable, insert one end of the cable to the LAN port

on the rear panel of the DAP-1353 and the other end of the cable to a

switch.

Note: You can also connect the DAP-1353 directly to the computer that

will be used for conguration. The Link LED will illuminate to indicate a

proper Ethernet connection.

A. Power Receptor

Receptor for Power Adapter.

C.Computers with 802.11 b/g/draft n wireless adapters can connect to

the DAP-1353.

4D-Link DAP-1353 Quick Install Guide

Using the Wireless Security Setup Wizard

Open your web browser and

type http://192.168.0.50 into

the URL address box. Press

Enter.

Type a d m i n f o r the

username and leave the

password blank.

The login screen will appear:

Once you have logged in, the Setup screen will appear:

Click Launch Setup Wizard

5 D-Link DAP-1353 Quick Install Guide

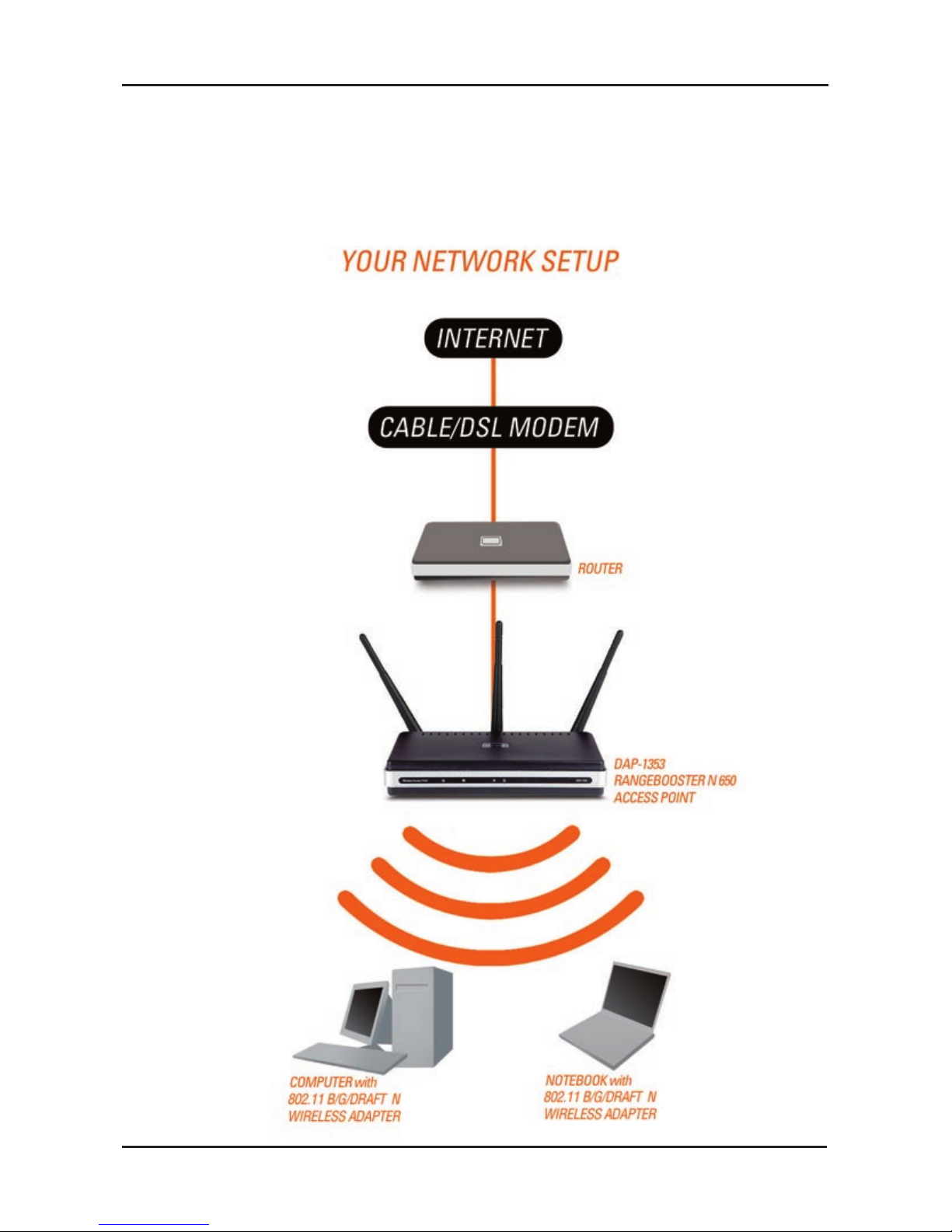

After completing the steps in this Quick Install Guide, your DAP-1353

should be integrated into your network:

Your Setup is Complete!

Technical Support

You can nd software updates and user documentation on the

D-Link websites.

If you require product support, we encourage you to browse our

FAQ section on the Web Site before contacting the Support line.

We have many FAQ’s which we hope will provide you a speedy

resolution for your problem.

For Customers within

The United Kingdom & Ireland:

D-Link UK & Ireland Technical Support over the Internet:

http://www.dlink.co.uk

ftp://ftp.dlink.co.uk

D-Link UK & Ireland Technical Support over the Telephone:

08456 12 0003 (United Kingdom)

+1890 886 899 (Ireland)

Lines Open

8.00am-10.00pm Mon-Fri

10.00am-7.00pm Sat & Sun

For Customers within Canada:

D-Link Canada Technical Support over the Telephone:

1-800-361-5265 (Canada)

Mon. to Fri. 7:30AM to 9:00PM EST

D-Link Canada Technical Support over the Internet:

http://support.dlink.ca

email: [email protected]
