D-Link DWL-700AP - Air - Wireless Bridge Manual de usuario

Manual

D-Link Air

DWL-700AP

2.4GHz

Building Networks for People

Wireless Access Point

Contents

PackageContents ................................................................................3

Introduction............................................................................................4

Wireless Basics....................................................................................6

GettingStarted......................................................................................8

UsingtheConfigurationUtility................................................................9

NetworkingBasics ..............................................................................21

Troubleshooting...................................................................................34

TechnicalSpecifications ......................................................................39

ContactingTechnicalSupport ..............................................................41

WarrantyandRegistration ...................................................................42

Computer with Windows, Macintosh, or Linux-based

operating system with an installed Ethernet adapter

Contents of Package:

D-Link Air DWL-700AP

2.4GHz Wireless Access Point

Power Supply - 5V DC, 2.0A

ManualonCD

QuickInstallationGuide

Ethernet Cable

Package Contents

If any of the above items are missing, please contact your reseller.

System Requirements:

Note:Usingapower supplywith adifferent voltagerating thanthe oneincluded

withthe DWL-700AP will causedamage and void the warranty for this product.

Internet Explorer or Netscape Navigator version 6.0 or above,

with JavaScript enabled

Introduction

The versatile D-Link Air DWL-700APWirelessAccess Point is an 802.11b high-perfor-

mance wireless device that can be used in one of three modes: as an access point, a

repeater, or a wireless client. It is an ideal way to extend the reach and number of

computers connected to your wireless network.

TheDWL-700APiscompatiblewith existing802.11b devicessuch astheD-Link Air and

AirPlus family of products including the DWL-650 and DWL-650+ Wireless Cardbus

Adapters, the DI-614+ Wireless Router, and the DWL-120 Wireless USBAdapter.

The IEEE 802.11b Ethernet standard allows you to connect computers and 802.11b

compatible devices at speeds up to 11Mbps, dependent upon the distance between

wirelessadapters, the configuration of your working environment, or the capabilities or

limitations of your computer systems.

After completing the steps outlined in the Quick Installation Guide (included in your

package)you will havethe ability to share information and resources, such as files and

printers,and enjoy thefreedom that wirelessnetworking brings.

TheDWL-700APiscompatiblewithmostpopularoperatingsystems,includingMacintosh,

LinuxandWindows,andcanbeintegratedintoalargernetwork.Thismanualisdesigned

to help you connect theAccess Point and the D-Link WirelessAdapters into a network

inInfrastructure mode.Please takea look at the Getting Started sectionin thismanual

tosee an example of an Infrastructure network using the DWL-700AP.

!3 Operational Modes – Use the DWL-700AP as an access point,

a repeater, or a wireless client.

!Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b standard

andinteroperable with all existing 802.11bcompliant devices.

!Provides a level of security with up to 128-bit WEP Encryption –

Supports 64-,128-bit WEP encryption for a level of security for your data and

wirelesscommunication.

!Built-in DHCP Server – If enabled, it will automatically assign IP addresses to

wireless clients on the local network.

!Web-based interface for managing and configuring –

Easy-to-useinterface independent of the operating system.

Features and Benefits

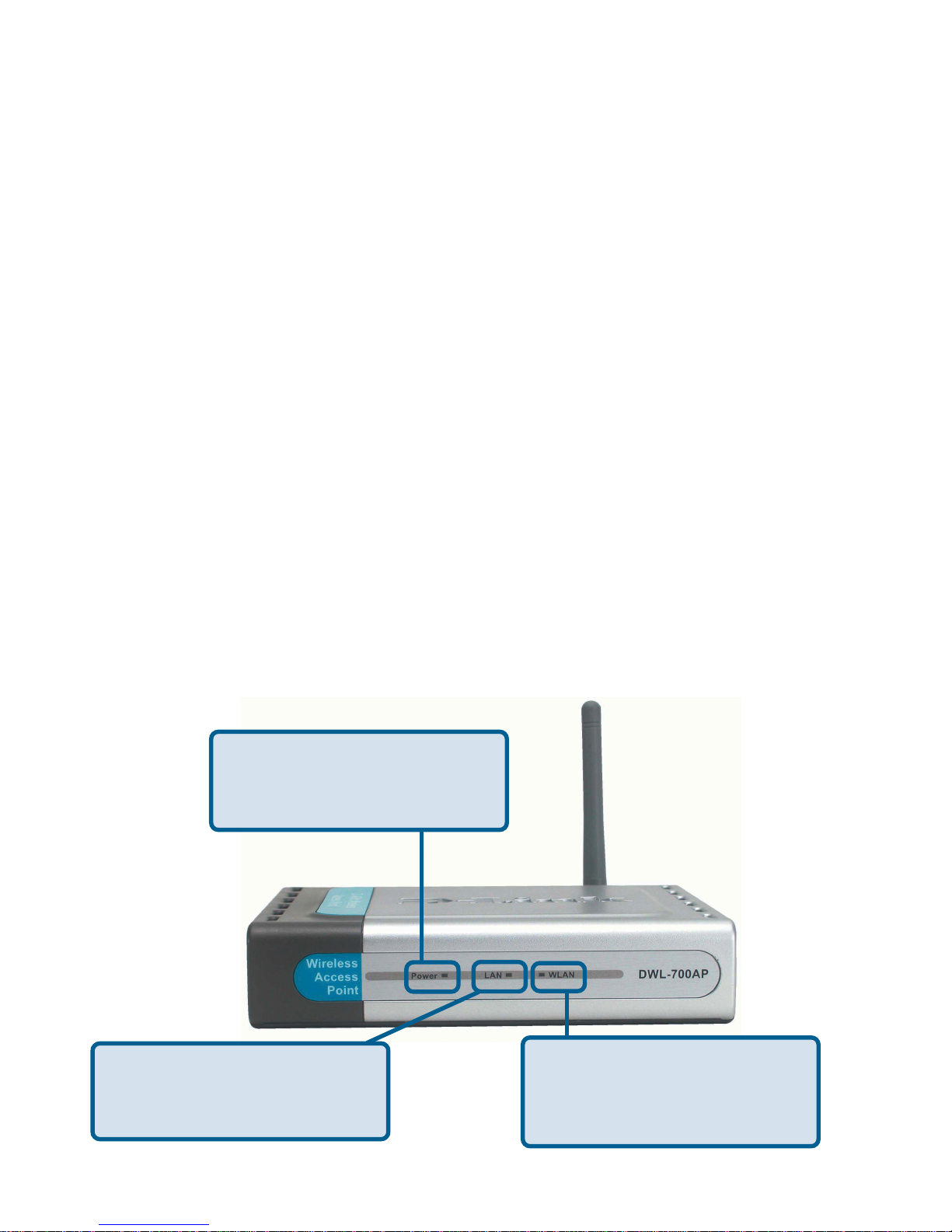

LEDs

WLAN: blinkinggreen light

indicates wireless activity;

solid green light indicates

connection

LAN: blinkinggreen light

indicates activity; solid green

light indicates connection

Power: solid green light

indicates connection to a

powersource

LED standsfor Light-EmittingDiode. The DWL-700AP Wireless Access Point has 3

LEDsas shown below:

Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and

compatiblehigh-speedwirelessconnectivitywithinyourhome,businessorpublicaccess

wirelessnetworks. D-Link wireless products willallow you accessto the data you want,

whenandwhereyouwantit.Youwillbeabletoenjoythefreedomthatwirelessnetworking

brings.

A Wireless Local Area Network (WLAN) is a cellular computer network that transmits

and receives data with radio signals instead of wires. WLANs are used increasingly in

bothhomeand office environments,andpublic areas suchasairports, coffeeshopsand

universities.Innovativeways toutilizeWLAN technologyarehelping peopletowork and

communicatemore efficiently. Increased mobility and the absence of cabling and other

fixedinfrastructure haveproven to be beneficial formany users.

Wireless users can use the same applications they use on a wired network. Wireless

adapter cards used on laptop and desktop systems support the same protocols as

Ethernetadapter cards.

Peopleuse WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any location

within the operating range of the WLAN. Management decisions based on real-time

informationcan significantlyimprove workerefficiency.

Low Implementation Costs –WLANs are easy to set up, manage, change and

relocate. Networks that frequently change can benefit from WLANs ease of

implementation. WLANs can operate in locations where installation of wiring may be

impractical.

Installation and Network Expansion - Installing a WLAN system can be fast

andeasy and caneliminate the needto pull cable through walls and ceilings. Wireless

technologyallows the network to gowhere wirescannot go - even outsidethe home or

office.

Scalability – WLANs can be configured in a variety of ways to meet the needs of

specific applications and installations. Configurations are easily changed and range

fromPeer-to-Peer networks suitablefor asmallnumber ofusers to largerinfrastructure

networksto accommodate hundreds or thousands of users, dependingon the number

ofwireless devicesdeployed.

Inexpensive Solution - Wireless network devices are as competitively priced as

conventionalEthernetnetworkdevices.

Installation Considerations

The number, thickness and location of walls, ceilings, or other objects that the wireless

signals must pass through, may limit the range. Typical ranges vary depending on the

typesofmaterials andbackground RF (radiofrequency) noise inyour home orbusiness.

The key to maximizing wireless range is to follow these basic guidelines:

Wireless Basics (continued)

BuildingMaterialscanimpedethewirelesssignal-asolidmetaldoororaluminum

studsmayhavea negative effectonrange.Try to positionwirelessdevicesand

computerswith wirelessadapters sothat the signal passes through drywall or

opendoorways andnot other materials.

Beaware ofthe direct line between networkdevices.Awall that is1.5 feetthick

(.5meters), at a 45-degree angleappears tobe almost3 feet (1meter) thick.At

a2-degreeangle it looksover 42 feet(14meters) thick!Positiondevices so that

thesignal willtravel straightthrough awall or ceiling (instead of at anangle) for

betterreception.

Keepthe number of walls and ceilings between the DWL-700AP and

other network devices to a minimum - each wall or ceiling can reduce

your D-Link Air Wireless product’s range from 3-90 feet (1-30 meters.)

Position your devices so that the number of walls or ceilings is minimized.

Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devicesor appliances thatgenerate RF noise.

Please remember that D-Link Air wireless devices are pre-configured to connect

together, right out of the box, with their default settings.

Youwillneedbroadband Internetaccess (aCable or DSL-subscriberline into

yourhomeor office).

Consultwithyour Cableor DSL providerfor proper installationof themodem.

Connectthe Cableor DSL modemto yourbroadband router(see theQuick

Installation Guide included with your router.)

If you are connecting a desktop computer in your network, you can install the

D-Link Air DWL-520 Wireless PCIAdapter into an available PCI slot on your

desktopcomputer.

(See the Quick Installation Guide included with the DWL-520.)

Install the D-Link Air DWL-650 Wireless CardbusAdapter into a laptop com-

puter.

(See the Quick Installation Guide included with the DWL-650.)

Setting up a Wireless

Infrastructure Network

Getting Started

Connect the router to the D-Link Air DWL-700AP.

(See the Quick Installation Guide included with the DWL-520.)

For a typical wireless setup at home (as shown above), please do the following:

Whenever you want to configure your network or the DWL-700AP, you can access the

Configuration Utility by opening the web-browser and typing in the IP address of the

DWL-700AP.TheDWL-700AP’sdefault IPaddressis shownbelow:

Opentheweb browser

Type in the IP address

of the access point

(TheIP address shownin the exampleabove is thedefault setting. Usethis IP address

when connecting to a network consisting of other D-Link devices set to their default

settings. If you have changed the IP address of the DWL-700AP to conform to a net-

workother than one with D-Link devices, then inputthat IPaddressin theweb browser,

instead of the default IP address shown.)

Type admin in the

User name field

LeavethePassword

blank

ClickOK

admin

Using the Configuration Utility

If you wish to change the default settings or optimize the performance of the

DWL-700AP, D-Linkhas includeda configurationutility forthis purpose.

Home > Wizard

Clicking Apply will save changes made to the page.

Apply

Clicking Cancel will clear changes made to the page.

ClickingHelp will bringuphelpful informationregarding the page.

Help

ClickingRestart willrestartthe router..(Necessary for some changes.)

Restart

Cancel

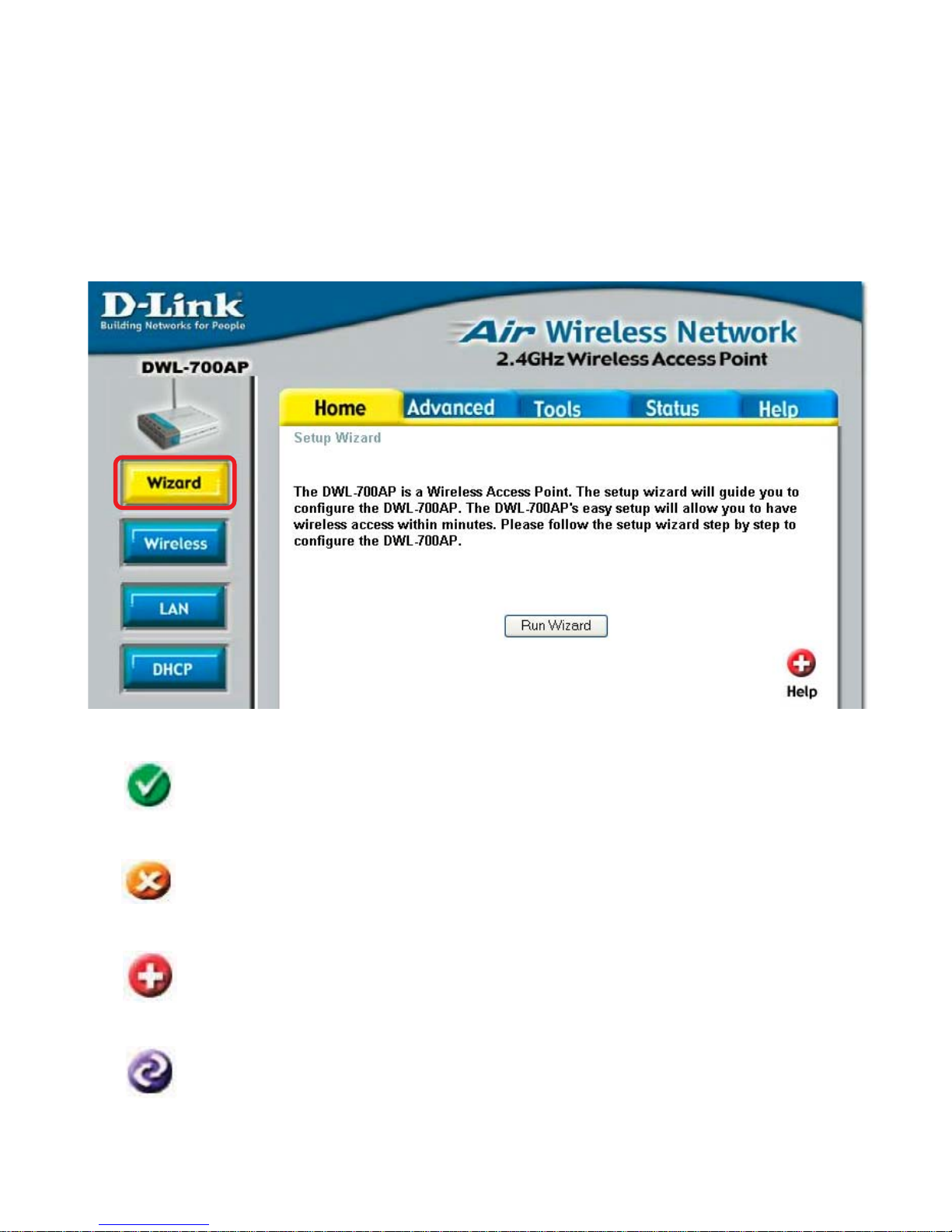

After logging in, the screen below will appear. Click on the tabs in the screen to access

different segments of the Configuration Utility. If you choose to use the web-based con-

figurationmenu,pleaseconfiguretheDWL-700APfrom a computer withanethernetcon-

nectionto theDWL-700AP.

Using the Configuration Utility (continued)
