2 DAP-2360 Install Guide

• CD-ROM Drive

• Computers with Windows®, Macintosh®, or Linux-based

operating systems

• Installed Ethernet Adapter

• Internet Explorer version 7.0 or Firefox 3.0 and above

Safety Notice:

Installation and servicing should be done by certied technicians so

as to conform to all local codes and prevent voiding your warranty.

Minimum System Requirements

Package Contents

Note: Using a power supply with a dierent voltage than the one included with the

DAP-2360 will cause damage and void the warranty for this product. If any of the

above items are missing, please contact your reseller.

• DAP-2360 AirPremier® N PoE Access Point

• Power Adapter

• Mounting Plate

• Ethernet Cable

• Manual and Software on CD-ROM

DAP-2360 Install Guide 3

Hardware Overview

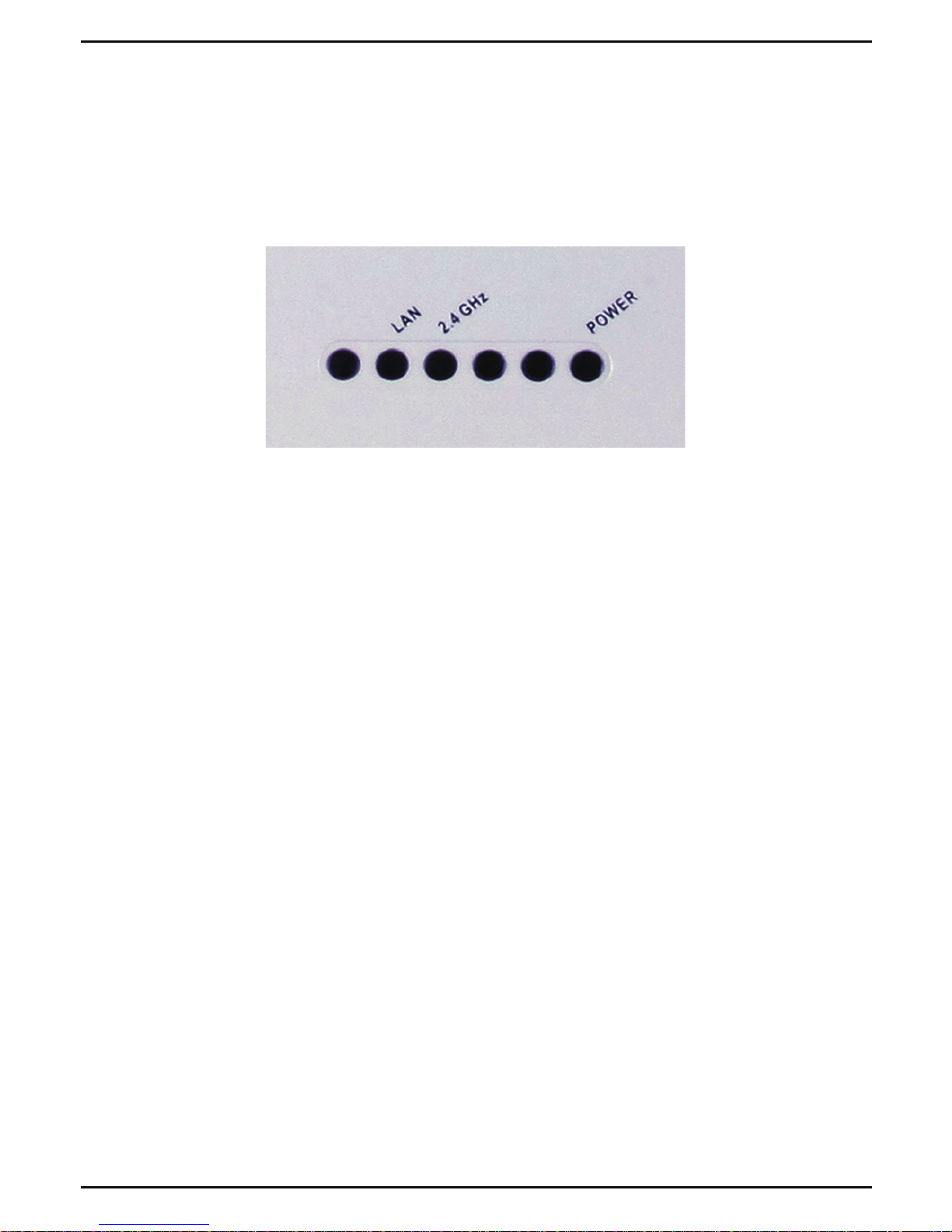

LEDs

LAN - Solid light when the Ethernet port is connected to a working

Ethernet device, such as a router or switch. The light will blink when

there is trac through LAN port.

2.4 GHz - When lit, the wireless function of the access point is work-

ing properly. This light will blink when there is wireless trac.

POWER - The light will blink during boot up. Once solid, the access

point is ready.

4 DAP-2360 Install Guide

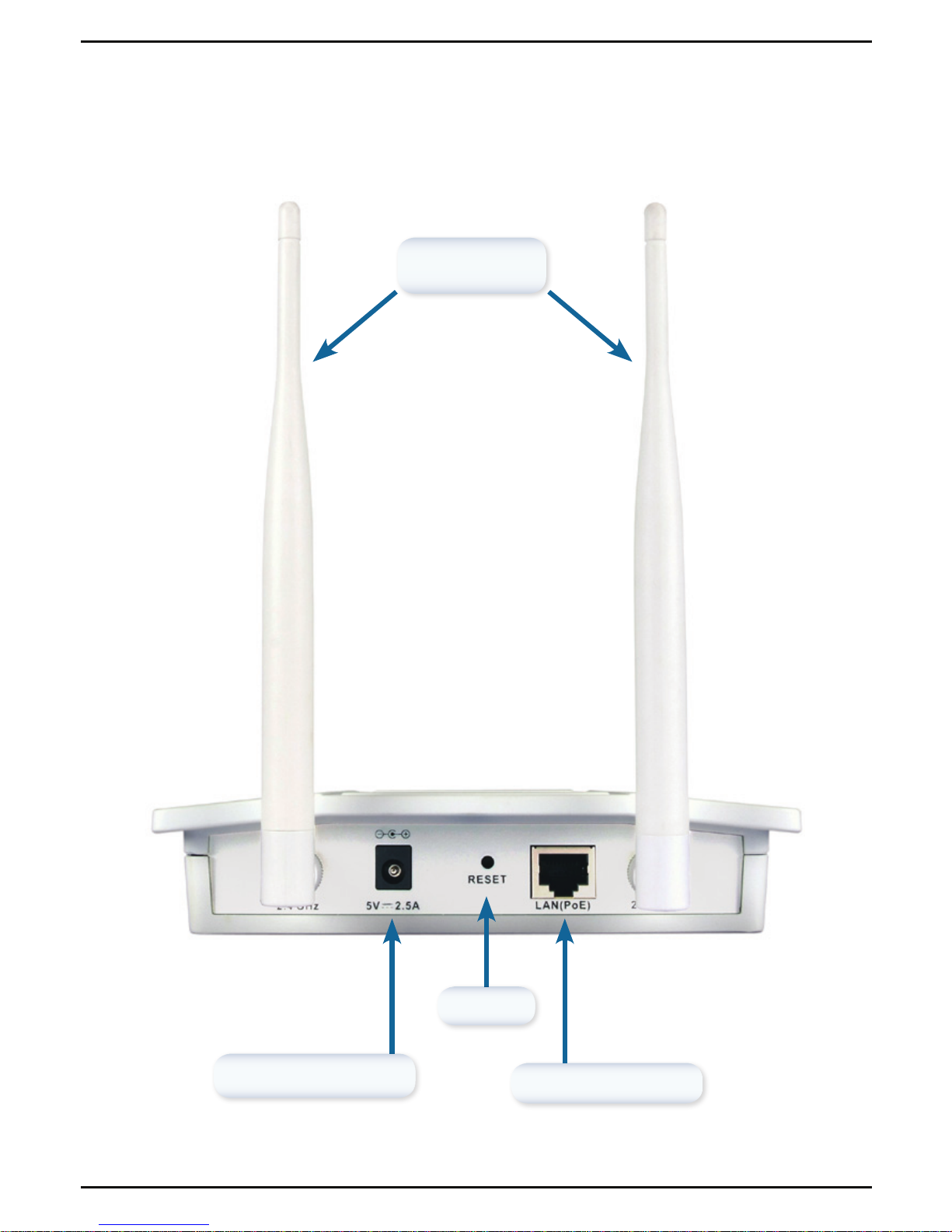

Installing the Hardware

LAN Port (PoE)

Power Receptor

Reset

Antennas

DAP-2360 Install Guide 5

To power the access point, you can use one of the following methods:

1. Standard - Use the supplied power adapter.

2. Power over Ethernet - Connect one end of your Ethernet cable into the LAN

(PoE) port on the DAP-2360 and the other end into one port on a PoE switch or

router.

6 DAP-2360 Install Guide

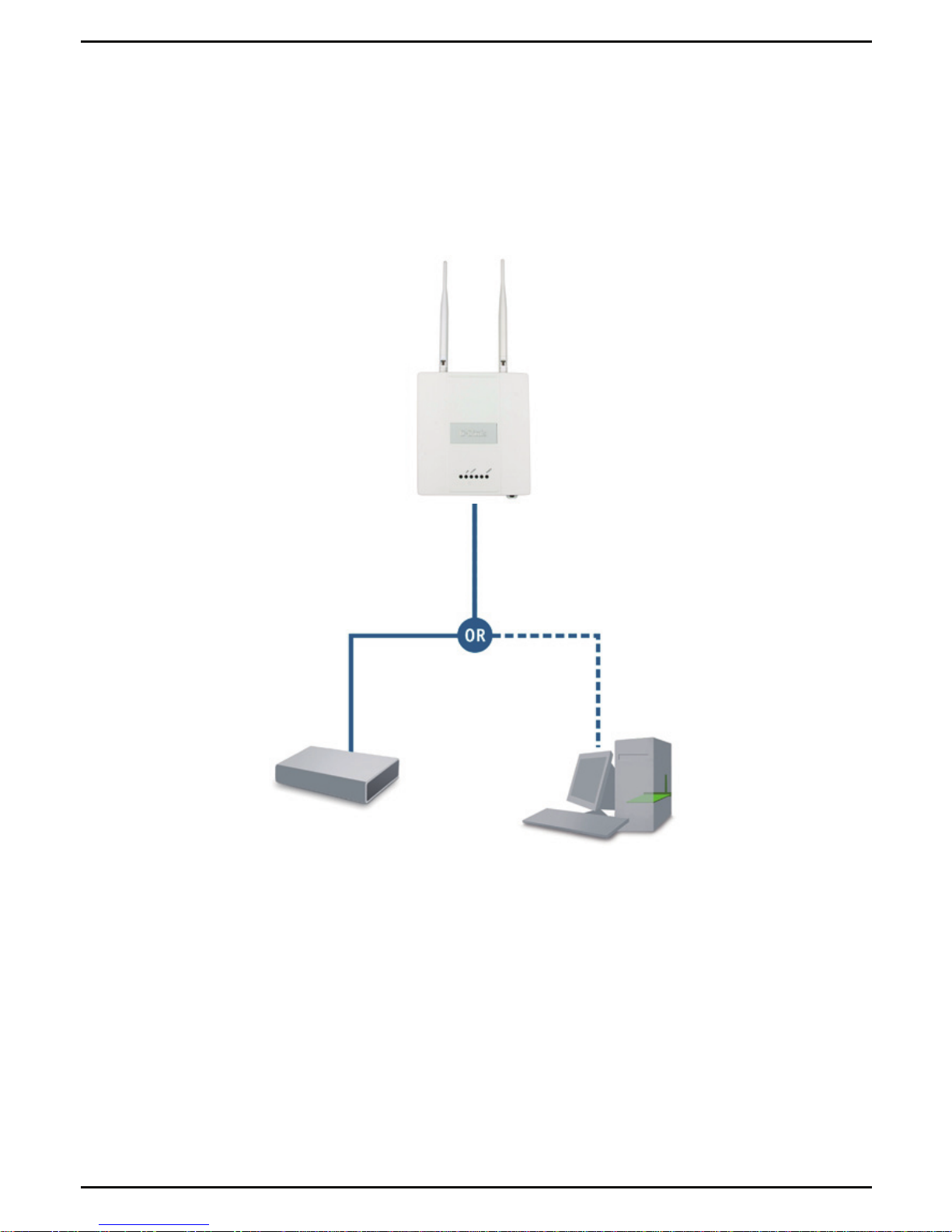

To setup and manage the DAP-2360 from a computer, use one of

the following methods:

1. Connect a straight through Ethernet cable between the

access point and your computer.

2. Connect the access point to a switch or router and use a

computer that is also connected to that switch or router.

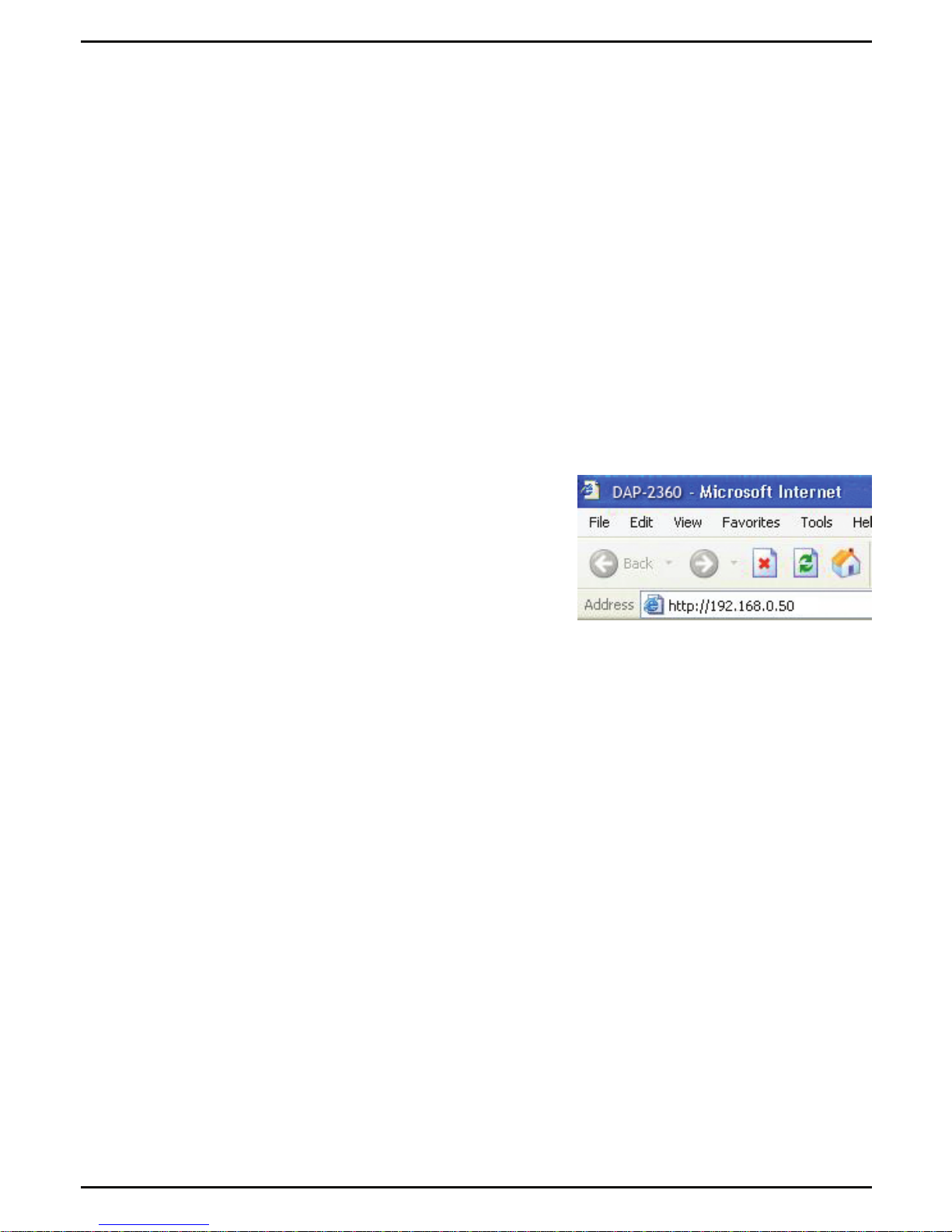

3. Please start your web browser

program, type the IP address of the

device (http://192.168.0.50) and

press Enter. Make sure that the IP

addresses of the device and your

computer are in the same subnet.

Conguration

DAP-2360 Install Guide 7

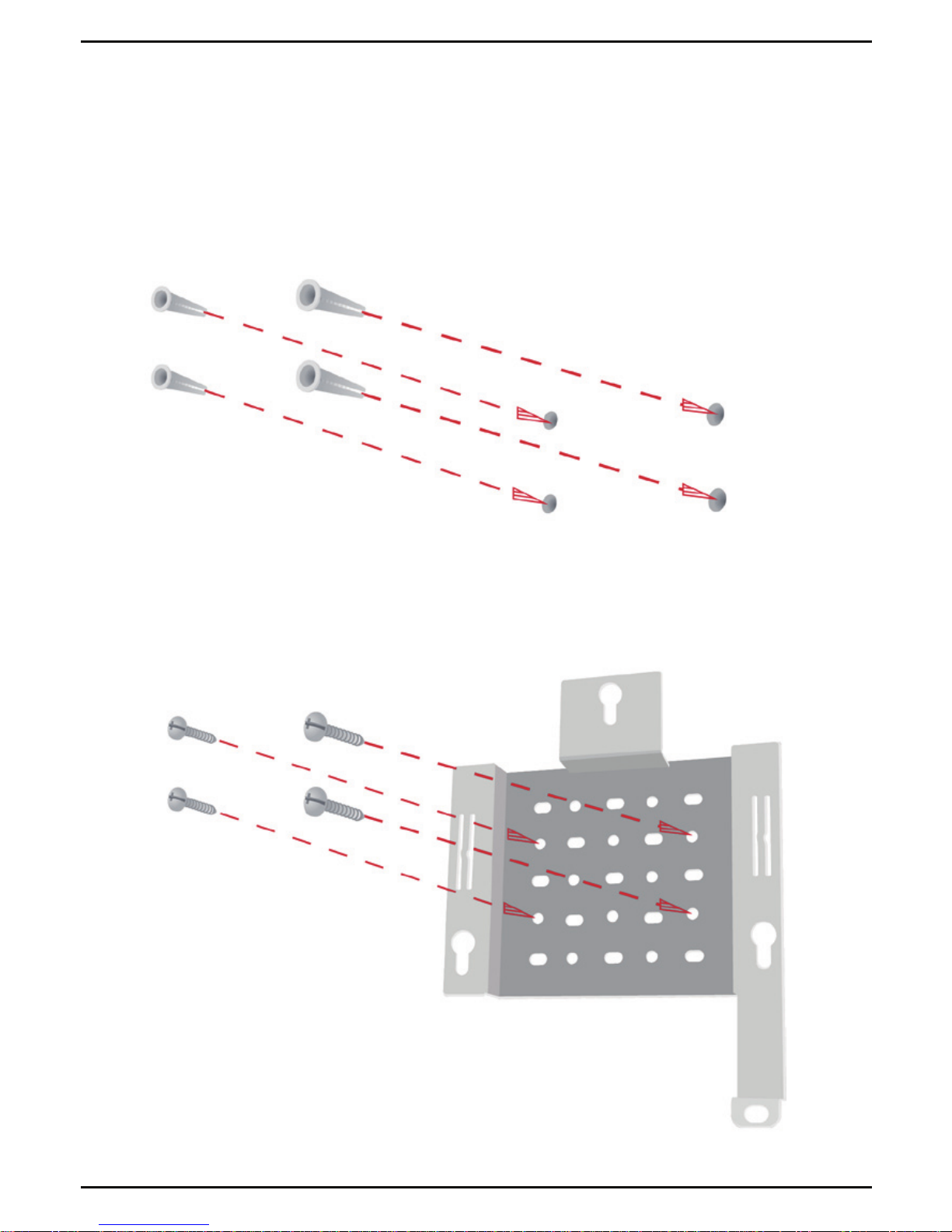

Step 1: Insert provided wall anchors in the wall where the mounting plate will be

attached.

Mounting Plate Assembly

Step 2: Use the provided screws to secure the mounting plate on the wall.

8 DAP-2360 Install Guide

Step 3: Attach the remaining screws securely to the back of the DAP-2360.

Step 4: Attach the DAP-2360 to the mounting plate.

DAP-2360 Install Guide 9

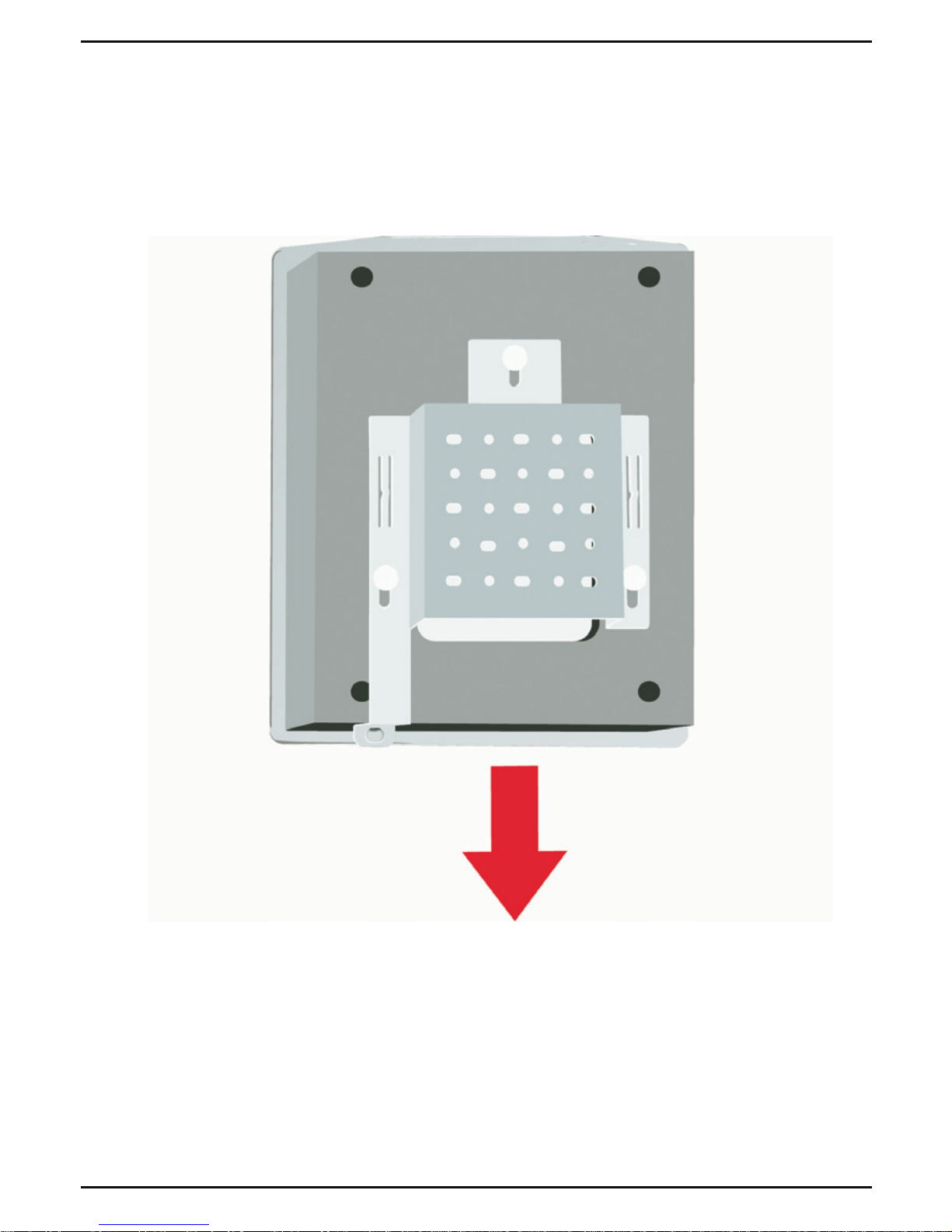

Step 5: Slide the DAP-2360 down into the grooves on the mounting plate to secure

it to the plate.

10 DAP-2360 Install Guide

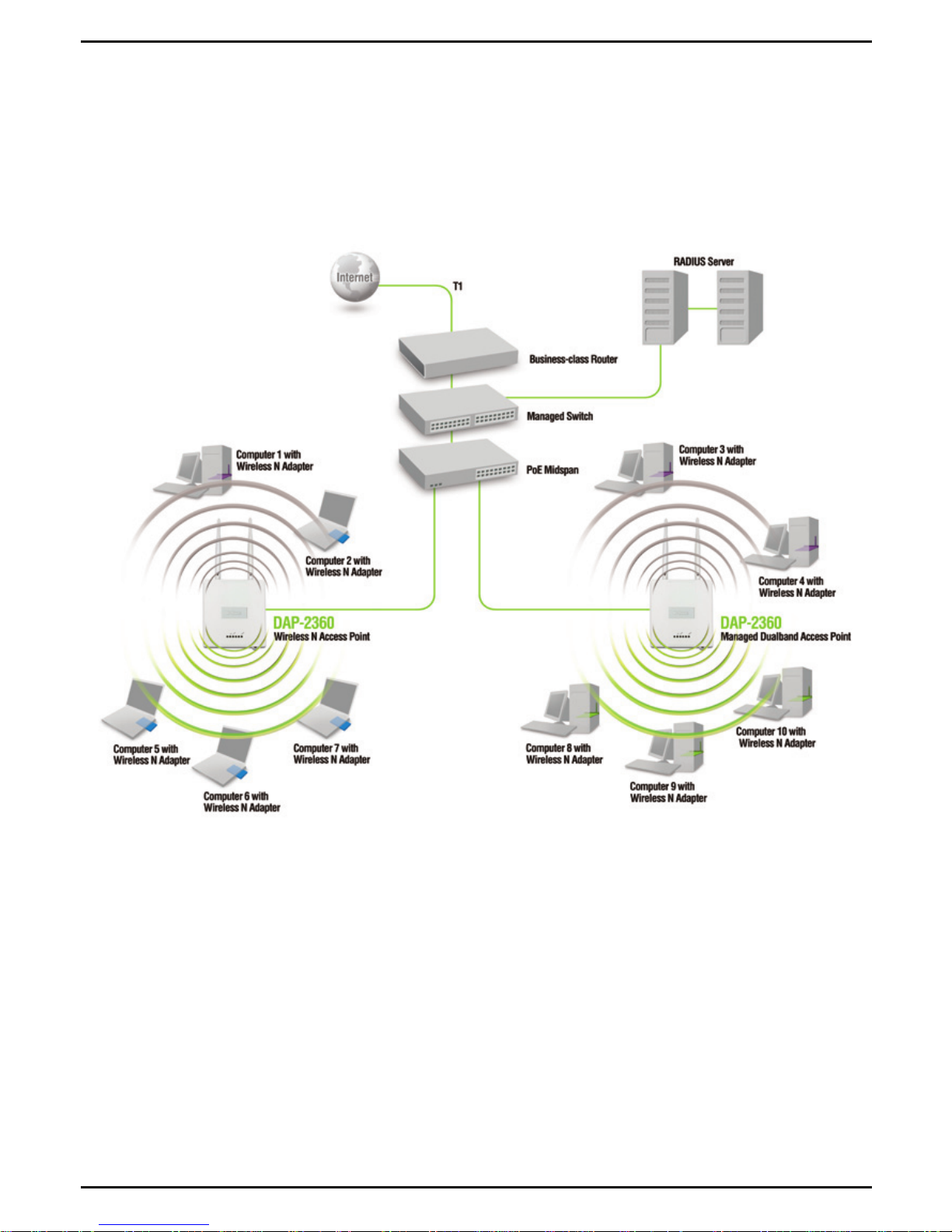

When you have completed the steps in this Installation Guide and congured your

for your network, your network should look similar to this:

Your Setup is Complete

* Maximum Wireless signal rate derived from IEEE 802.11n specications. Actual data throughput will vary.

Network conditions and environmental factors, including volume of network trac, building materials

and construction, and network overhead lower actual data throughput rate.
