D-Link DVC-2000 Manual de usuario
Before You Begin
•Using the D-Link i2eye™DVC-2000 VideoPhone requires a Broadband
Internetconnection.
•If you are sharing the Internet connection with another device (such as a
PC), you will also need a broadband router or residential gateway.
Check Your Package Contents
Stand-alone Videoconferencing
Over Broadband IP.
No Computer Needed
12V DC, 1A Power Adapter
i2eye™DVC-2000 VideoPhone
Ethernet (CAT5 UTP/Straight Through) Cable
Standard Composite RCAAudio/Video Cable
PatentPending
DVC-2000
Broadband
Desktop
VideoPhone
Using a power
supply with a
different voltage rating
will damage this product
and void the warranty.
©2005D-LinkSystems,Inc.Allrightsreserved.Trademarksorregisteredtrademarksarethepropertyoftheirrespectiveholders.
Softwareandspecificationssubjecttochangewithoutnotice.DVC-2000.06222005
If any of the above items are missing, please contact your reseller.
Quick Installation Guide and Instruction Manual
Standard Telephone Cable
2
Connecting the DVC-2000 VideoPhone
A. PlacetheDVC-2000VideoPhoneinalocationwhereyou caneasilyconnect
to a phone jack, power outlet, and to your router or gateway.
B. Attach the supplied Ethernet cable (blue) to the blue colored port labeled
ETHERNET on the DVC-2000 and connect the other end to your Ethernet
network device (hub, switch, router, or broadband modem).
C. Attach the supplied standard telephone cable (grey) to a telephone wall
jack and connect the other end to the grey port labeled PHONE on the
DVC-2000.
D. Optional: If you want to use a television instead of the built in video display
screen, connect the supplied yellow and white RCA cables to the yellow
and white RCA connectors on the DVC-2000 and to the matching
audio/video jacks on the television or VCR.
Note:YoumusttoggletheTV/LCDswitchonthesideontheunitifyouwant
to use the television output.
E. Plug the suppliedAC power cable into anAC outlet and then connect the
other end to the DVC-2000.
D B C E
3
Sharing a Broadband Connection
With the i2eye DVC-2000
Ifyouaresharingyourbroadbandconnectionwithanyotherdevices,useadditional
Ethernet (CAT5UTP)cablesto connectyourbroadbandequipmenttoarouteror
residential gateway. Whenyou have completed thestepsin this QuickInstallation
Guide, your connected VideoPhone should look similar to this:
Before using your D-Link DVC-2000 VideoPhone, you will want to
understand the network requirements for this device. If you are using a
residential gateway or router and sharing the broadband connection with
yourDVC-2000, please read the section startingonPage51of the manual
included with the DVC-2000.
4
The DVC-2000 VideoPhone needs to be setup before use. There is an easy to
use Setup Wizard built into the DVC-2000 to accomplish the setup.
Privacy: Used to
block video and/or
audiotransmissions.
Cancel: Takes you
tothepreviousitem.
Speakerphone
Asterisk (*): Sometimes
referredto as a “star” key)
isusedtoentera“.”(period
also called a “dot”.)
Numeric Keypad: Used when
numeric input is required, (e.g., a
telephone number or IP address)
lift up the receiver or press the
speakerphonebuttonand youcan
enternumbers directly.
Arrows: Used to move the position of
the on-screen cursor. When entering
alphanumericinformation,theleftarrow
key performs a backspace, deleting
thecharactertotheleftoftheon-screen
cursor.
OK: Used to confirm a selection or to
bringupthe on-screenkeyboard.
Hardware Overview
Self/Remote:Togglesbetweenthe
local camera view and the remote
cameraview.
Full-Screen/Standard: Toggles
between full-screen and standard
modedisplay.
Speed Dial:
Opens up a
window with
the speed dial
listandmanual
dialingoptions.
LCDDisplay
Video Camera
Broadband:Togglesbetween
PSTNandBroadbandmodes.
5
Using the On-Screen Keyboard
Whenever you need to enter numbers or letters into a Setup screen, press OK
on the DVC-2000 and the on-screen keyboard appears:
Use the arrow keys to move the cursor to the desired character. The cursor can
wrap around on the right and left side of the keyboard to assist you in “typing” a
character quickly.
To remove the keyboard from the screen highlight OK in the bottom right corner
of the keyboard window and press the OK button on the DVC-2000. The Cancel
buttonontheDVC-2000canalsobeusedtoremovethekeyboardfromthescreen
and will leave the information you typed on the screen.
Shift Key for UPPER,
lower case or shift lock
6
Personal Information Screen
Enter your name and phone
number (consisting of a
Countrycode,Areacodeand
Phonenumber.)
The phone number you
enter is one you create for
family, friends and others to
call you. You can use your
regular phone number or
make up a new one. The
Caller ID function displays
thisname attheother endof
theconnection. Yournumber
will not be visible to anyone
else.
The Setup Wizard
Click Next
Click Next
Press thepowerswitchonthe
backoftheDVC-2000andthe
Welcome Screen appears.
Note: The Country code for the United States and Canada is “1”. See
Page 68 of the DVC-2000 manual for Country codes of other countries.
7
The Setup Wizard (continued)
NetworkAddress Screen
Chooseoneofthethreeavailableoptionsthatbestsuitsyourenvironment.Ifyou
are not sure which option will work with your Internet connection, please contact
your ISP or network administrator for support.
Option 1: DHCP
Used when connecting
directly to a broadband
modem, router, gateway or
DHCP server that offers
dynamicIP addressing.
Option 2: Fixed IP
Used when you are
connecting to a broadband
modem, router, or gateway
that is configured to use a
staticIPaddress.Thischoice
requires the input of specific
IPaddressinformation.
Click Next
Click Next
8

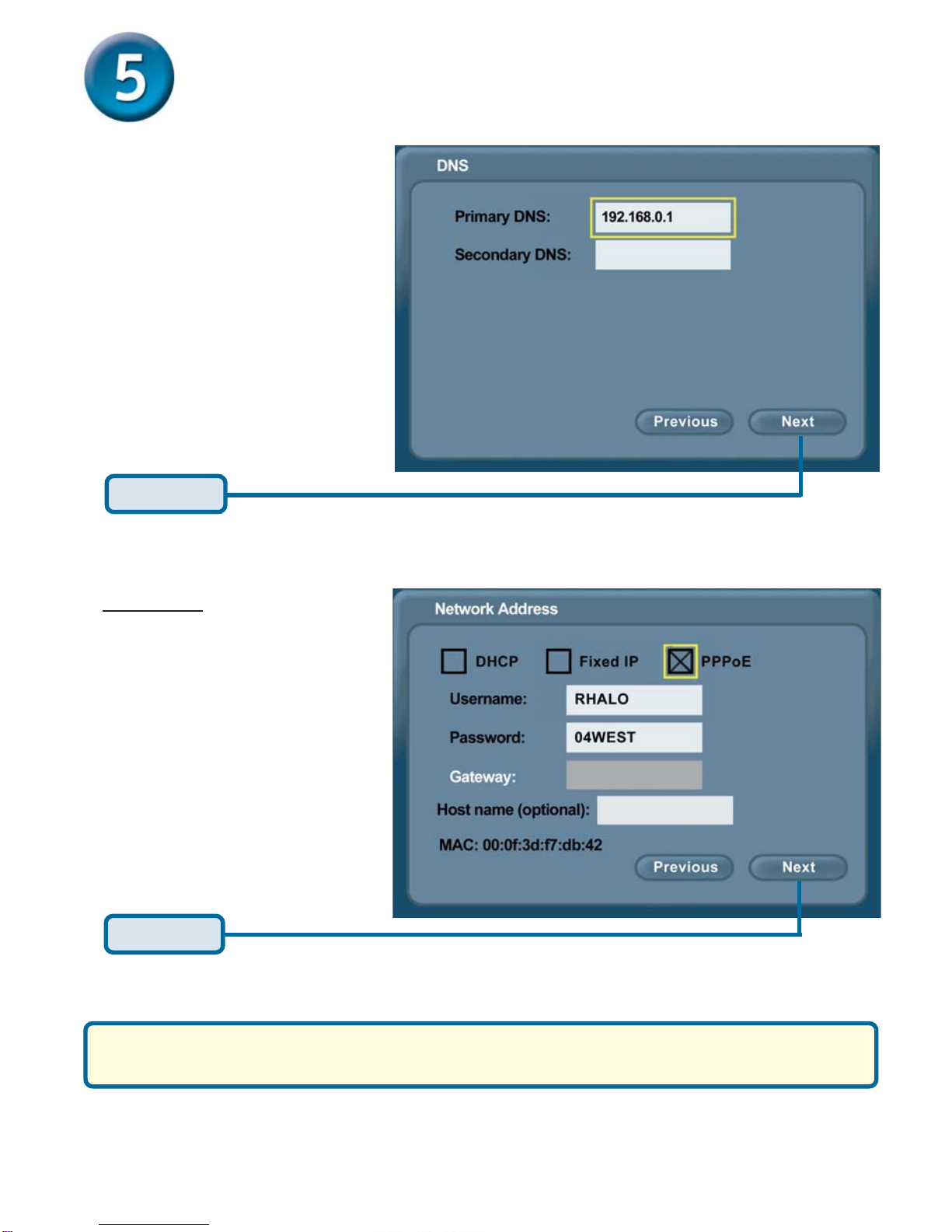

The Setup Wizard (continued)
Click Next
Option 3: PPPoE
Usedwhenconnectingdirectly
toaDSLmodemthatoffersa
PPPoEconnection.Youruser
name and password for the
PPPoE account must be
enteredintheprovidedfields.
DNS Screen
IfyouselectedFixedIPinthe
Network Address screen,
you will see the screen for
settingDNSserveraddresses.
Only the primary DNS is
required, although entering
bothaprimaryandsecondary
isrecommended.
Click Next
To configure a router to work with the DVC-2000, please see the
section starting on Page 51 of the DVC-2000 manual.
9
The Setup Wizard (continued)
Network Speed Screen
Selectthetypeofbroadband
Internetconnection you use.
Click Next
Your Setup is Complete!
ClickYes
System Restart
10
Using the DVC-2000
TheDVC-2000offerstwo differentoperatingmodes,PSTNmodeand Broadband
mode. PSTN Mode is the default startup mode and functions as a standard
telephone. The PSTN screen appears after you’ve completed the Setup Wizard
(as shown below). To dial, lift up the receiver or press the speakerphone button
andyoucanmakeacallasyounormallywouldviayourstandardphoneconnection.
In PSTN mode neither party can see the party on the other end. The DVC-2000
functionssolelyasastandardtelephoneinPSTNmodewithnovideofunctionality.
To toggle between PSTN and Broadband mode, click on the Broadband button.
PSTN Mode: PSTN stands for Public Standard Telephone Network. This is the
internationalphonestandardoftransmittinganalogvoice data over copper wires.
In PSTN mode, your DVC-2000 functions as a standard telephone using your
standard phone line connection.
Broadband Mode: Broadband mode allows you to video conference via your
Internet connection using digital communication standards. You can connect to
anyonewithabroadbandconnectionandani2eye™devicefromanywhereinthe
world.
