D-Link WDA-1320 Manual de usuario

2D-Link WDA-1320 Quick Install Guide

Manual, software, and

warranty on CD

Package Contents

D-Link WDA-1320

Wireless PCI Card

• A desktop computer with an available 32-bit PCI slot

• Windows®2000 or XP

• 300MHz processor and at least 64MB of RAM

• An 802.11g or 802.11b access point (for Infrastructure mode), or another

802.11g or 802.11b wireless adapter (for Ad-Hoc networking mode.)

System Requirements

If any of the above items are missing, please contact your reseller.

3 D-Link WDA-1320 Quick Install Guide

WLAN LED

A solid light indicates that wireless is

ready. This LED blinks during wireless data

transmission.

Hardware Overview

4D-Link WDA-1320 Quick Install Guide

Installation Considerations

The D-Link wireless adapter lets you access your network using a wireless connection

from virtually anywhere within the operating range of your wireless network. Keep

in mind, however, that the number, thickness and location of walls, ceilings, or other

objects that the wireless signals must pass through, may limit the range. Typical

ranges vary depending on the types of materials and background RF (radio frequency)

noise in your home or business. The key to maximizing wireless range is to follow

these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link adapter and

other network devices to a minimum - each wall or ceiling can reduce your

adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that

the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet

thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter)

thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position

devices so that the signal will travel straight through a wall or ceiling (instead

of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs

may have a negative effect on range. Try to position access points, wireless

routers, and computers so that the signal passes through drywall or open

doorways. Materials and objects such as glass, steel, metal, walls with

insulation, water (ﬁsh tanks), mirrors, ﬁle cabinets, brick, and concrete will

degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as

ceiling fans, lights, and home security systems), your wireless connection

may degrade dramatically or drop completely. Make sure your 2.4GHz

phone base is as far away from your wireless devices as possible. The base

transmits a signal even if the phone in not in use.

5 D-Link WDA-1320 Quick Install Guide

Adapter Installation

Turn on the computer and Insert the D-Link WDA-1320 Driver CD in the

CD-ROM drive. The step-by-step instructions that follow are shown in

Windows XP. The steps and screens are similar for the other Windows

operating systems.

If the CD Autorun function does not automatically start on your computer, go to

Start > Run. In the run box type “D:\Drivers\setup.exe” (where D: represents

the drive letter of your CD-ROM drive).

When the autorun screen appears, click Install Drivers.

6D-Link WDA-1320 Quick Install Guide

The InstallShield Wizard window

will appear.

Click Next to continue.

By default setup will install to the

default location: C:\Program Files\

Wireless G WDA-1320, where C:

represents the drive letter of your hard

drive. To install to a different location

click Browse and specify the location.

Click Next.

Select the Program Files folder

location. Click Next to continue.

7 D-Link WDA-1320 Quick Install Guide

The D-Link conﬁguration wizard will

now appear.

If you are using Windows®XP (SP2),

you will have the option to use either the

D-Link utility or the built-in Windows®

Wireless utility.

Click Next to continue.

Enter the network name (SSID)

manually. If you enter the SSID

incorrectly, you will automatically be

brought to the site survey page.

Click Next to continue or click Scan to

display the site survey page.

Click the Scan button to display a list

of wireless networks (site survey).

Click on the network name (SSID) and

click Connect.

8D-Link WDA-1320 Quick Install Guide

If the wireless network you are trying

to connect to is encrypted, enter the

WEP key or WPA-PSK passphrase.

Click Next to continue.

Click Finish to continue.

If you are prompted to reboot your

computer, select Yes, I want to restart

my computer now.

9 D-Link WDA-1320 Quick Install Guide

Connect to a Wireless Network

The D-Link WDA-1320 uses the Conﬁguration Utility as the management

software. The utility provides the user an easy interface to change any settings

related to the wireless adapter. After you have completed the installation of

the WDA-1320 and whenever you start the computer, the Conﬁguration Utility

starts automatically and the system tray icon is loaded in the toolbar. Clicking

on the utility icon will start the Conﬁguration Utility.

If you are using Windows®XP, please skip to page 11.

This window will allow you to see available wireless networks in your area.

Simply click the network (SSID) you want to connect to and click the Connect

button.

10D-Link WDA-1320 Quick Install Guide

If you are attempting to connect to a secure network, You must supply the

encryption key that is on the router or access point you are trying to connect

to.

Please refer to the manual on the CD for more information on Wireless

Security.

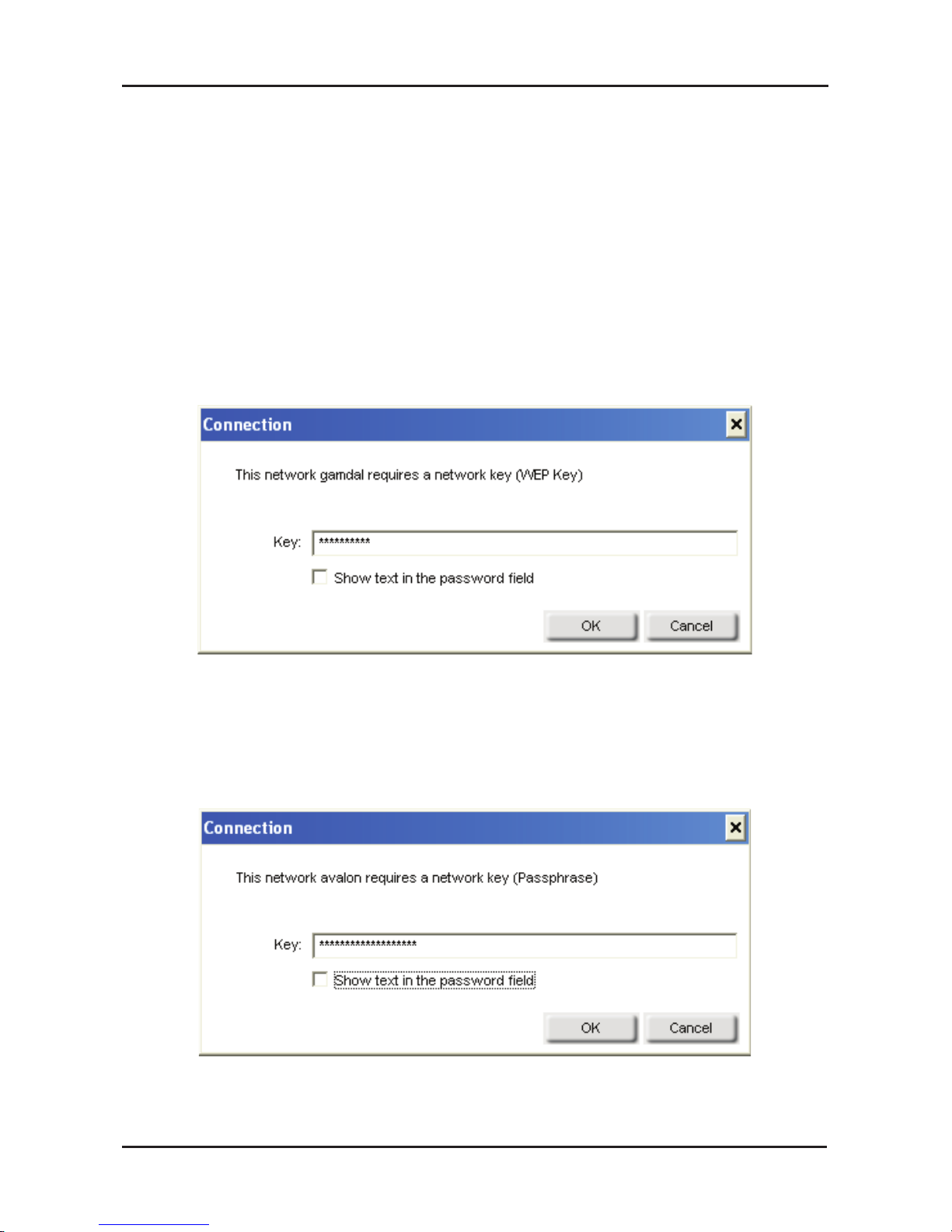

If the network you are connecting to is using WEP, enter the WEP key for the

network and click OK.

If the network you are connecting to is using WPA-PSK, enter the passphrase

for the network and click OK.
