D-Link DHP-209AV Manual de usuario

DHP-209AV

User Manual

PowerLine AV 200 Mini Adapter Starter Kit

Version 1.0 | 07/17/2013

2D-Link DHP-209AV User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Systems, Inc.

Revision Date Description

1.0 July 17, 2013 • Initial release for hardware A1

Preface

3D-Link DHP-209AV User Manual

Table of Contents

Preface................................................................................ 2

Manual Revisions.......................................................................... 2

Trademarks ..................................................................................... 2

Product Overview.............................................................. 4

Package Contents......................................................................... 4

System Requirements................................................................. 4

Introduction ................................................................................... 5

Features............................................................................................ 5

Hardware Overview..................................................................... 6

LEDs........................................................................................... 6

Connection ............................................................................. 7

Hardware Installation ....................................................... 8

Push Button Security.................................................................11

PowerLine Installation Considerations ...............................13

Safety ..............................................................................................14

Troubleshooting ..............................................................15

Technical Specications ..................................................16

Contacting Technical Support ........................................17

Warranty...........................................................................18

Registration .....................................................................23

Table of Contents

4D-Link DHP-209AV User Manual

Section 1 - Product Overview

Two PowerLine AV 200 Mini Adapters (DHP-208AV)

Two Ethernet Cables

Quick Install Guide

If any of the above items are missing, please contact your reseller.

System Requirements

Product Overview

Package Contents

Network Requirements

• Ethernet Interface (10/100 Mbps)

• PC with 1.5GHz Processor

• Router with Internet Connection

• An available electrical outlet

5D-Link DHP-209AV User Manual

Section 1 - Product Overview

Features

• Transforms Your Home’s Electrical Wiring into a Home Network Using Existing Power Outlets

• Fast Data Transfer Rate of Up to 200Mbps*

• One 10/100 Ethernet Port

• Plug & Play, Easy Installation

• Supports 128-bit AES Link Encryption for Secure PowerLine Communications

• Push and Secure Encryption Button

• Power Saving Mode

* Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of trac

and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect

the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other PowerLine devices that

do not follow the HomePlug AV standard.

Introduction

The DHP-209AV is D-Link’s PowerLine AV 200 Mini Adapter Starter Kit. It contains two DHP-208AVs. The DHP-208AV is a fast, 200Mbps* PowerLine

AV Mini Adapter, which allows you to connect your home computers, networking devices, and video game consoles using the most pervasive

medium in your home - the existing electrical wiring.

6D-Link DHP-209AV User Manual

Section 1 - Product Overview

Hardware Overview

LEDs

1Power LED

• Solid Green: The device is receiving electrical power.

• Blinking Green: The device is booting up or in Power Saving Mode.

• O: The device is not receiving electrical power.

2PowerLine LED

• Solid: The device is connected to a PowerLine network.

• O: The device has not found any other compatible PowerLine devices using the

same encryption key.

The color indicates the PowerLine link rate:

• Green: The PowerLine link rate is best.

• Amber: The PowerLine link rate is better.

• Red: The PowerLine link rate is good.

3Ethernet LED

• Solid Green - The Ethernet port is linked but there is no data trac.

• Blinking Green - The device is transmitting data.

• O - There is no Ethernet connection.

7D-Link DHP-209AV User Manual

Section 1 - Product Overview

Hardware Overview

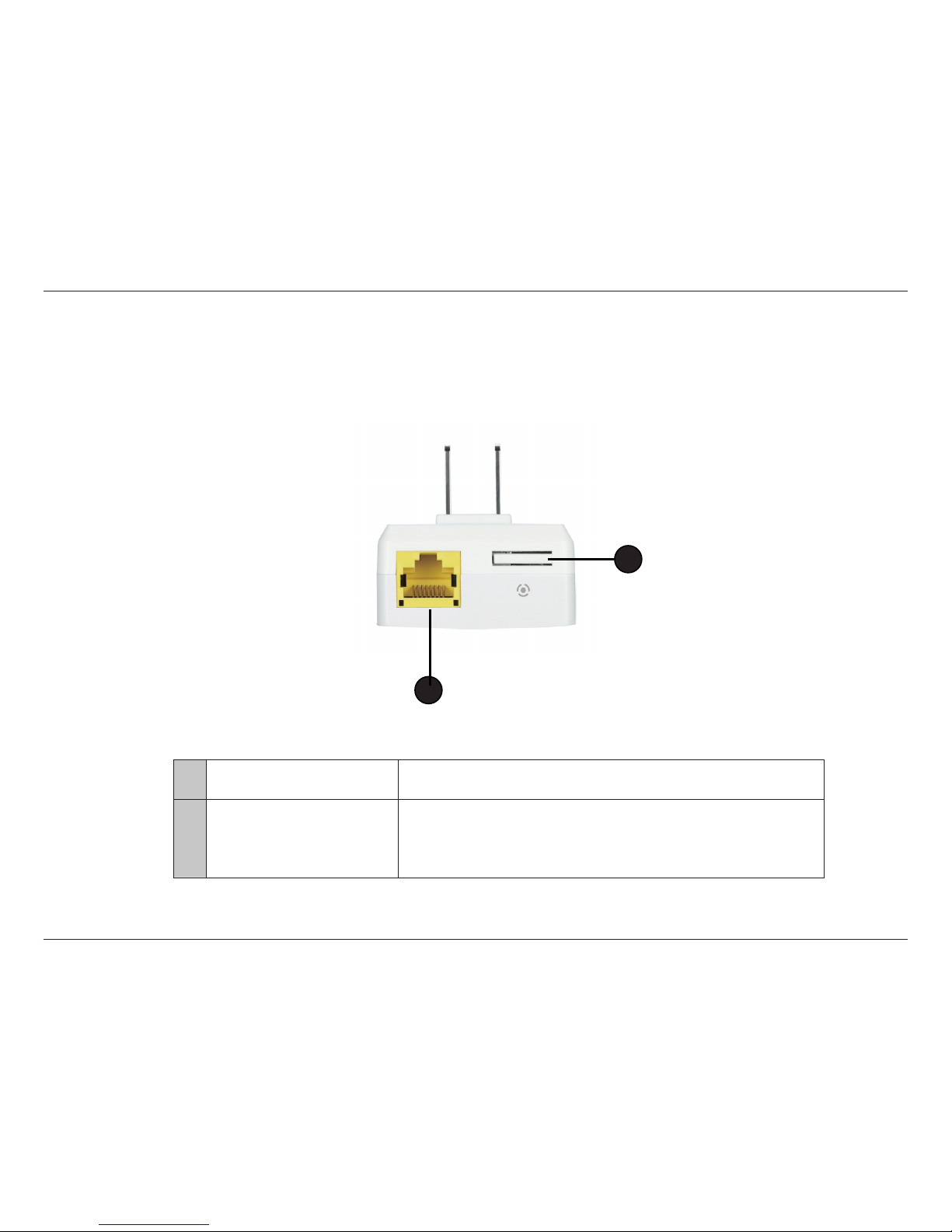

Connection

110/100 Ethernet Port Connect to an Ethernet device such as a router, computer, video game

console, network storage device, or a media player.

2Simple Connect Button/Reset

Button

Press and hold the button for one second to secure your network.

(Refer to “Push Button Security” on page 11 for more information.)

Hold the button for 10 seconds to reset the device back to the factory

default settings.

8D-Link DHP-209AV User Manual

Section 2 - Installation

Hardware Installation

Installation

1. Plug in one of the DHP-208AV adapters and connect to your router with an Ethernet cable. The Power and Ethernet LEDs should both light up.

Recommendations

• For best results, use in a regular wall outlet without any other devices plugged in. Connecting this product to a power strip or a surge protector

may adversely aect the performance of this device.

• Avoid using the PowerLine adapters in an electrical outlet that is located near an appliance that uses a lot of power such as a washer, dryer,

refrigerator, microwave, hair dryer, or air conditioning unit.

• If you are having connection problems, plug in both adapters within the same room to determine whether your home’s electrical wiring is

contributing to the issue. The adapters’ PowerLine LED indicators will illuminate if the connection is established. Once congured, you may

move an adapter to another location.

2.5A

USB

WPS

INTERNET

POWER

Router

Internet

DHP-208AV

9D-Link DHP-209AV User Manual

Section 2 - Installation

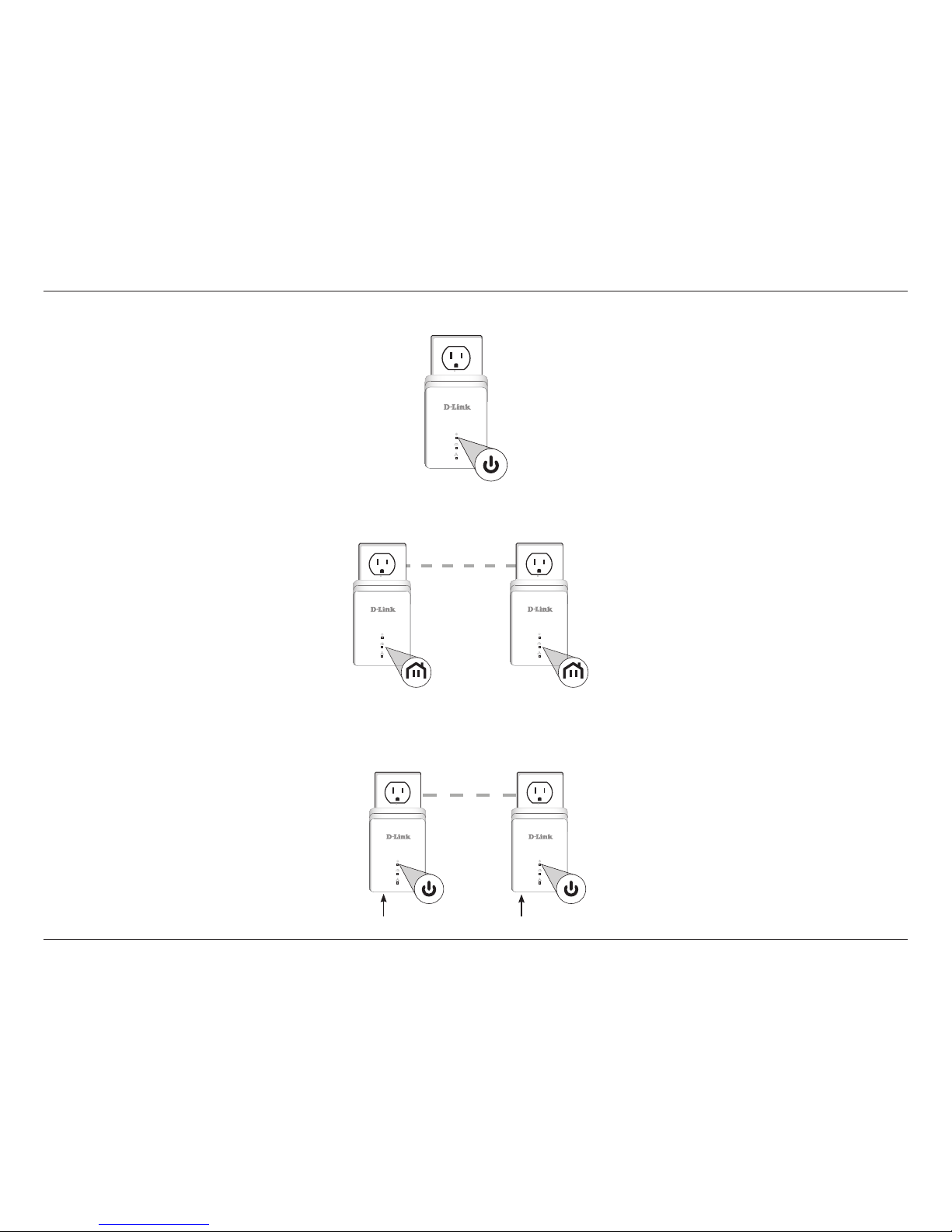

2. Plug in the other DHP-208AV adapter in the room that you want to extend your network to. The Power LED will light up.

3. Verify that the PowerLine LEDs on both adapters are lit. If they are, the adapters are connected. If not, try another wall outlet (closer to the other

PowerLine adapter).

4. To secure your network, press the Simple Connect button for one second on one of the adapters. The Power LED will start to blink. Then, within two

minutes, press the Simple Connect button on the other adapter for one second. Once the Power LEDs stop blinking, verify that the PowerLine LEDs on

both adapters are lit (as in Step 3). This indicates that your adapters are properly connected to each other.

Simple Connect Button Simple Connect Button

10D-Link DHP-209AV User Manual

Section 2 - Installation

5. You may now connect another device to the DHP-208AV adapter, using an Ethernet cable. Verify that the Ethernet LED is lit. Your hardware

installation is complete.

Power Saving Mode

The DHP-208AV will automatically go into Power Saving Mode when there is no activity for ve minutes. The Power LED will blink intermittently

while the device is in Power Saving Mode.

Note: D-Link PowerLine devices can not be congured while in Power Saving Mode.
