CYBEX GOLD Manual de usuario
EN
Eos Stroller/Travel System
Carriola/Sistema de viaje Eos
Owner’s Manual
Manual del propietario
READ this Owner’s Manual carefully before rst use, and keep it for future reference.
LEA con cuidado este manual del propietario antes de usar el producto por primera vez y guárdelo para uso futuro.
SP
2
Table of Contents
Child Requirements ..........................................................................................................3
Registration Information ...................................................................................................3
Warnings ..........................................................................................................................4
Overview of the Eos Stroller/Travel System ......................................................................8
Identication of Parts ......................................................................................................10
Choosing Mode of Use ...................................................................................................11
Assembling Your Stroller .................................................................................................12
Using Your Stroller
Brakes ........................................................................................................................................20
Canopy .......................................................................................................................................21
Folding and Unfolding the Stroller ..............................................................................................23
Footrest ......................................................................................................................................23
Harness ......................................................................................................................................27
Parent's Handle ..........................................................................................................................30
Reclining the Toddler Seat ..........................................................................................................31
Removing the Toddler Seat ........................................................................................................32
Reversing the Seat Position........................................................................................................33
Converting to Carriage Mode .....................................................................................................34
Using Your Stroller with CYBEX Infant Car Seats ...........................................................36
Stroller Congurations ....................................................................................................38
Care and Maintenance ...................................................................................................39
Removing/Replacing Softgoods .................................................................................................39
Care Instructions ........................................................................................................................45
Limited Warranty .............................................................................................................46
Read these instructions carefully before use and save for future reference.
It is very important to assemble the stroller according to these instructions.
3
Child Requirements
Carriage Mode
• Age: Up to 6 months
• Maximum Weight: 9.1 kg (20 lbs)
Toddler Seat
• Maximum Weight: 22.7 kg (50 lbs)
• Maximum Height: 96.5 cm (38 in)
Please register this product so we can reach you if there is a safety alert or recall.
We will not sell, rent, or share your personal information. To register your product,
please complete and mail the card that came with it or visit our online registration at
http://register.cybex-online.com/us/carseats.
For future reference, record the Model Number and Date of Manufacture below. You
can nd this information on one of the rear stroller legs.
Model Number:
Date of Manufacture:
Registration Information
4
!WARNING!
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!
• This stroller is ONLY designed for
use with CYBEX infant car seats. To
ensure safety for your baby, please refer
to the manufacturer’s instructions for
the use of your CYBEX infant car seat
and keep all instructions available for
reference.
• DO NOT USE with any infant car seat
that is not specied in these instructions.
Use of this stroller with an incompatible
infant car seat may result in serious
injury to your child.
• Adult assembly required. Take care
when unpacking and assembling;
contains small parts and some items
with sharp edges.
• The stroller is intended for use with
one child and to accommodate only
the additional weights in storage as
listed in these instructions. DO NOT
carry additional children, goods, or
accessories in or on this stroller except
as advised in these instructions as
they may cause the stroller to become
unstable or could lead to breakage.
• To avoid stroller instability and tip-overs,
DO NOT load Cupholder with over 0.45
kg (1 lb), and the Storage Basket with
over 5 kg (11 lbs).
• Sharp or heavy objects placed in
pockets may cause damage to the
stroller, or injury to the child.
• NEVER leave stroller on a hill or incline,
even with Brakes set. Stroller may tip,
injuring the child.
• Be sure stroller is fully assembled and
locked in unfolded position before using.
• Care must be taken when folding or
unfolding stroller to prevent nger injury
to you or your child in hinge areas. Make
5
sure child is not in the seat or near the
stroller when folding or unfolding.
• When making adjustments to the
stroller, ALWAYS ensure that all parts of
the child’s body are clear of any moving
parts of the stroller.
• DO NOT use stroller if any parts are
missing or broken.
• To prevent a possible choking hazard,
remove and discard packing material
before using this product.
• NEVER leave child unattended.
ALWAYS keep child in view while in the
stroller.
• DO NOT carry or roll stroller on stairs or
escalators with child in it.
• To avoid accidental rolling, ALWAYS set
Brakes when stroller is not being pushed.
• ALWAYS exercise care when going over
curbs or steps, and never use stroller
for anything other than transporting your
child. Push stroller at a normal walking
pace only; faster strolling can cause a
loss of control and injury to the child.
• DO NOT place hot liquids in Cupholder.
Spills can burn you or your child.
• DO NOT allow child to climb on, into, out
of, or around stroller.
• DO NOT allow child to stand on Footrest.
Stroller may tip over and injure child.
• To avoid serious injury from child falling
or slipping out of stroller, ALWAYS use
the internal harness system in Toddler
Seat Mode and Carriage Mode.
• To avoid serious injury from child falling
or slipping out of stroller, DO NOT raise
or recline seat with child in stroller.
!WARNING!
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!
6
!WARNING!
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!
• AVOID STRANGULATION:
– DO NOT suspend strings or toys from
the Canopy.
– DO NOT place stroller anywhere near
cords from window blinds, draperies,
phone, etc.
– DO NOT place items with a string
around your child’s neck such as hood
strings or pacier cords.
– If not properly secured, the child may
slip into leg openings and strangle.
NEVER used in reclined carriage
position(s) unless the restraint system
is adjusted.
• NEVER lift or carry the stroller by the
Bumper Bar in Carriage or Toddler Seat
Mode.
• DO NOT lift stroller by using the infant
car seat handle when installed on
stroller.
• DO NOT use seat unit in either carriage
mode or toddler mode outside of the
stroller frame.
• NEVER use the stroller frame without
the toddler seat or car seat attached.
• NEVER use toddler seat in a motor
vehicle or use it as a booster seat.
• NEVER use the toddler seat without the
Canopy attached.
• The stroller Canopy is not intended to
provide UV protection.
7
• TO AVOID FALLS:
– NEVER remove toddler seat from the
stroller with child in it.
– ALWAYS make sure the toddler seat
or car seat is securely attached into
the Seat Mounts on both sides of the
stroller before placing child in the seat.
• If unable to securely attach the infant car
seat to this stroller, remove the car seat
and contact 1-877-242-5676.
• NEVER use in Carriage Mode unless
the straps under the seat are unbuckled
and the seat is set up in Carriage Mode
as per the instructions.
!WARNING!
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!
• ONLY use the stroller in Carriage Mode
for a child up to 6 months of age or 9.1
kg (20 lbs), whichever comes rst. Once
the child is capable of sitting upright
unassisted, discontinue use of Carriage
Mode.
• ONLY use the stroller in Toddler Seat
Mode with a child who is over 6 months
of age or capable of sitting upright
unassisted.
• This stroller can be used in multiple
congurations. To avoid serious injury,
NEVER use the stroller in any other
conguration other than what is shown
in this manual on page 38.
8
Overview of the Eos Stroller/Travel System
Front of Stroller 1. Canopy
2. Parent’s Handle
3. Cupholder
4. Adjustable Handle Buttons
5. Fold Release Levers
6. Toddler Seat Release Button
7. Seat Mount
8. Footrest Adjustment Button
9. Footrest
10. Swivel Wheels
11. Shoulder Straps
12. Bumper Bar
13. Harness Covers
14. Buckle
w
y
1)
1!
1@
1#
1$
o
t
q
i
e
r
u
9
Overview of the Eos Stroller/Travel System
15. Canopy Window
16. Recline Handle
17. Recline Adjuster Strap
18. Storage Basket
19. Side Frame Lock
20. Brakes
Rear of Stroller
1%
1(
1^
1&
1*
2)
10

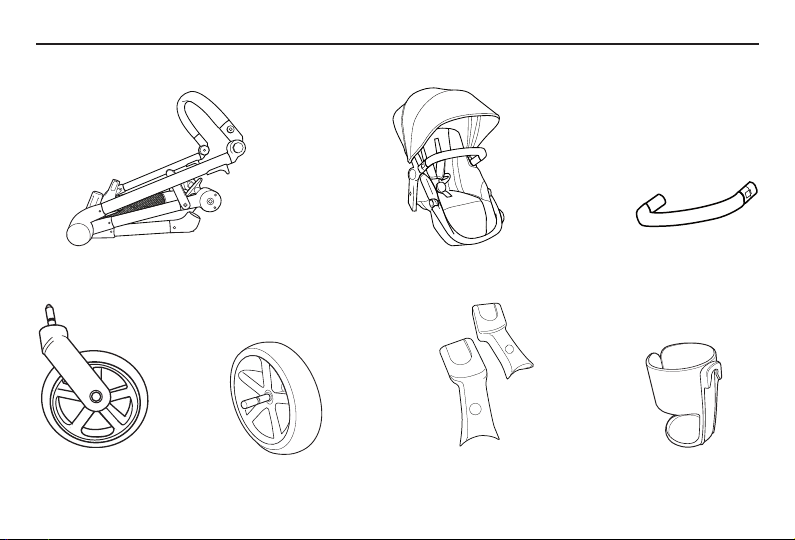

Identication of Parts
Front Wheel
Assembly (2) Rear Wheel (2) Cupholder (1)
Frame Seat/Carriage Bumper Bar
Car Seat Adapters
IMPORTANT: If you are missing parts, do not use stroller and call 1-877-242-5676 to order
replacement parts.
