User’s Manual

Office Series UPS

OP650

ADDITIONAL INSTALLATION TIPS CAN BE FOUND AT:

www.cyberpowersystems.com/FAQs.htm

TABLE OF CONTENTS

IMPORTANT SAFETY WARNINGS…………….……………………………………….………1

INSTALLING YOUR UPS SYSTEM…………………….………………………………….……2

-UNPACKING…… ………………………………………………………………..2

- HARDWARE INSTALLATION GUIDE…………………………………….……2

BASIC OPERATION…………………………………………...................................................2

- FRONT PANELAND REAR PANEL DESCRIPTION....................................2

BATTERY REPLACEMENT AND STORAGE………………………………………….…...….4

- BATTERY REPLACEMENT PROCEDURE……………………………...……4

TROUBLESHOOTING……………………………………………………….........................….6

TECHNICAL SPECIFICATIONS…………………………………………………….………..….7

DEFINITION FOR ILLUMINATED LED INDICATORS……………………………………..…8

LIMITED WARRANTY AND POWER CONTROL GUARANTEE……………………………9

Thank you for purchasing a CyberPower Systems Product. To enjoy all the features and

benefits of this Uninterruptible Power System (UPS), please read and follow all installation

and operation instructions completely. This UPS is designed to provide guaranteed power

protection for connected electronic equipment. The accompanying PowerPanel Plus™

software saves data, closes open applications and automatically shuts down your computer

system in an intelligent and orderly manner.

OP650

Guaranteed Uninterruptible Power System

IMPORTANT SAFETY WARNINGS

(SAVE THESE INSTRUCTIONS)

This manual contains important instructions that should be followed during installation and

maintenance of the UPS and batteries. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting

to unpack, install, or operate.

CAUTION! UPS must be live parts inside can be energized by the battery, even when

AC outlet with fuse or circuit breaker protection. DO NOT plug unit into an outlet that is not

grounded.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT

EQUIPMENT! CyberPower Systems does not sell products for life support or medical

applications. DO NOT use in any circumstance that

would affect operation or safety of any life support equipment, with any medical applications,

or patient care.

CAUTION! The battery can energize hazardous live parts inside even when the AC

input power is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and

humidity controlled indoor area, free of conductive contaminants. (Please see specifications

for acceptable temperature and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to

service the battery. No user serviceable parts inside, except for the battery.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power

source before servicing the battery or installing a computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire,

do not use with or near aquariums. Condensation from the aquarium can cause the unit to

short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING

Inspect the UPS upon receipt. The box should contain the following:

(1) UPS Unit; (1) User’s Manual for UPS; (1) Warranty Registration Card;

(1) PowerPanel PlusTM Software Disk; (1) User’s Manual for PowerPanel PlusTM;

(1) Serial Interface Cable (DB-9); (1) Serial-to-USB cable; (1) Telephone Cable

HARDWARE INSTALLATION GUIDE

1. Connect the equipment to your UPS outlets. Items such as copiers, laser printers,

vacuums, space heaters, or other large electrical devices should not be connected to

the UPS. Please assure that the total loads of your equipments must be less than the

maximum total power load of your UPS.

2. Connect your UPS power cord into a two-pole, three-wire

grounding receptacle only. Please avoid using extension

cords and adapter plugs. (To maintain optimal battery

charge, leave the UPS plugged in at all times.)

3. Press the UPS power button to turn it on. The “Power On” indicator will be illuminated in

“Green”.

4. Install your optional software and accessories. To use the software, simply connect the

enclosed serial interface cable to the serial port on the UPS and an open serial port on

the computer.

BASIC OPERATION

FRONT PANEL AND REAR PANEL DESCRIPTION

OP650

Guaranteed Uninterruptible Power System

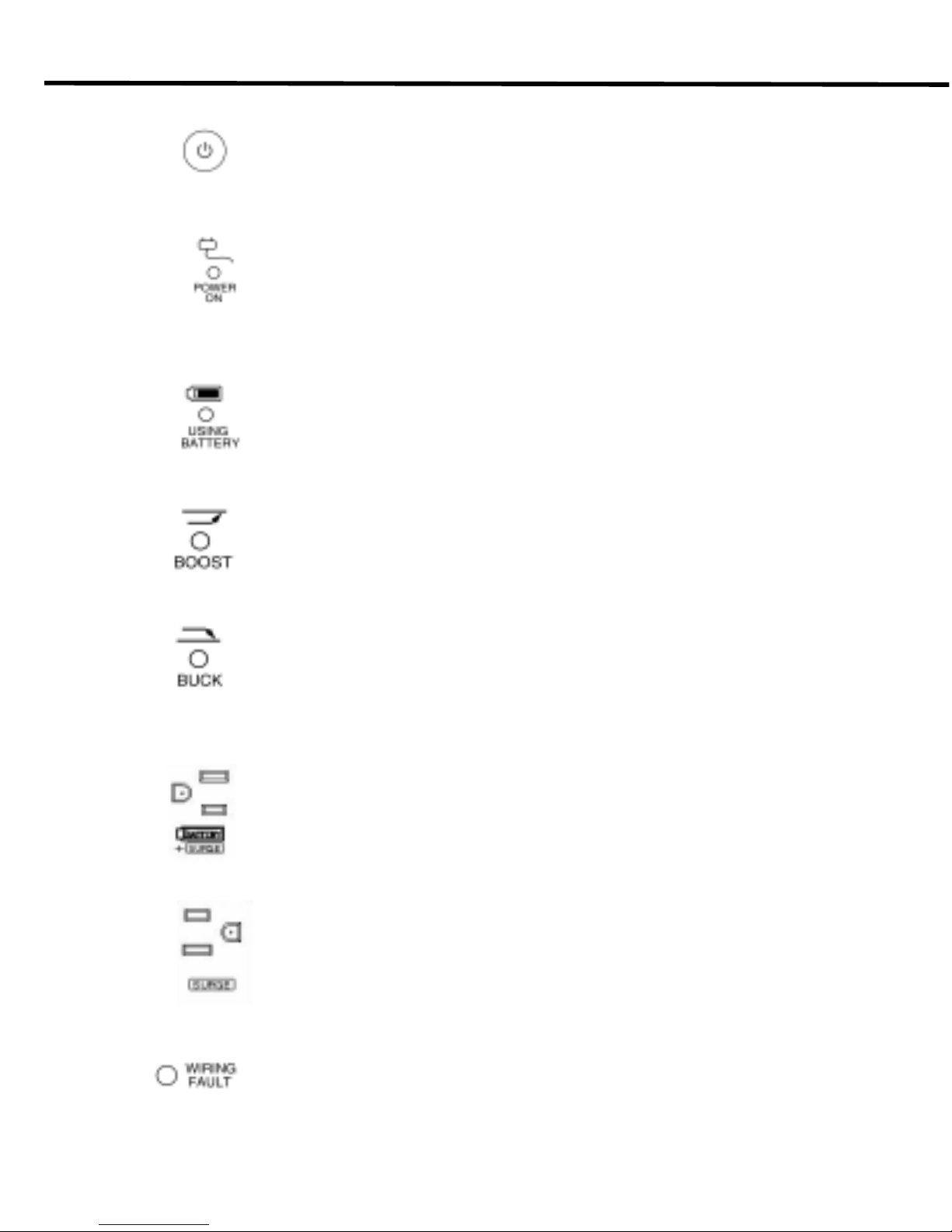

◆ Power Switch

Press the power button to turn the UPS ON or OFF

◆ Power On Indicator

This LED is illuminated when the utility condition is normal and

the UPS outlets are providing “clean power”, free of surges and

spikes

◆ Using Battery Indicator

This illuminates during utility failure, indicating that the battery is

supplying power to the battery-power supplied outlets.

◆BOOST Indicator This LED indicates that the UPS is operating in automatic

voltage regulation mode. When the led is flashed in rotation, it

indicates that the UPS unit boosts input voltage.

◆Buck Indicator This LED indicates that the UPS is operating in automatic

voltage regulation mode. When the led is illuminated

continuously, it indicates input over-voltage and the UPS unit

bucks the voltage.

◆ Battery Backup and Surge Protection Outlets

Provides three battery powered and surge protected outlets for

connected equipment to insure temporary uninterrupted

operation during a power failure and against surges and spikes.

◆ Surge Protection Outlets

Provides three surge protected only outlets for connected

equipment against surges and spikes

◆ Wiring Fault Indicator

This LED indicator will illuminate to warn the user that a wiring

problem exits with the AC outlet, such as bad ground, miss

ground or reversed wiring. If this is illuminated, the user is

advised to disconnect all electrical equipment from the outlet

and have an electrician check the outlet to insure proper wiring.

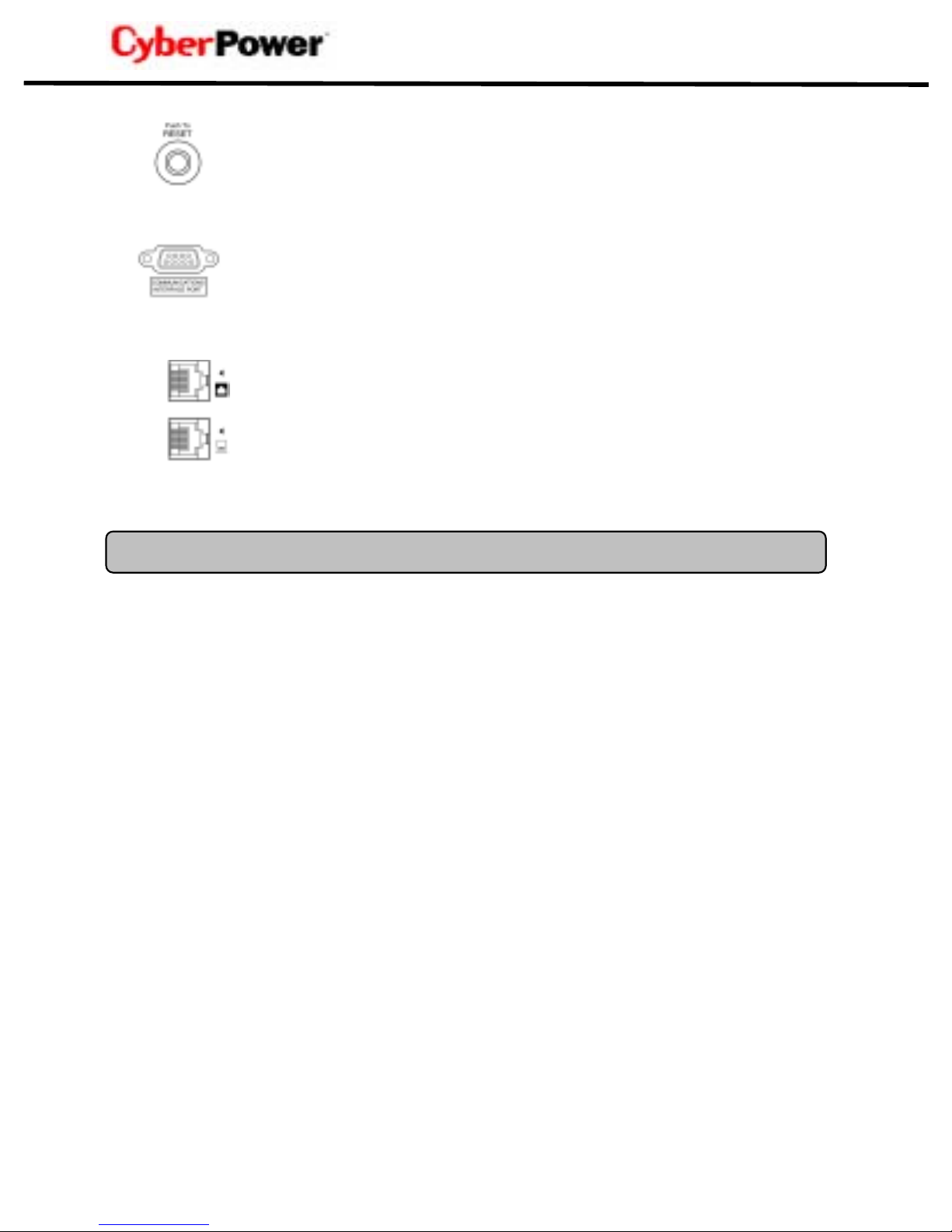

◆ Circuit Breaker Reset for Overload Protection

Circuit breakers provide optimal overload protection. When overload

occurs, the circuit breaker will switch to battery mode. You will need to

reset the circuit breaker so UPS will provide the power from utility.

◆ Serial Port to PC

This port allows connection and communication from the DB-9 serial or

USB port on the computer to the UPS unit. The UPS communicates its

status to the PowerPanel Plus™ software. This interface is also

compatible with the UPS service provided by Windows NT, 2000 and XP.

◆ Ethernet (RJ-45) Network Protection Ports

These ports are the protection for your computer network cable, modem

or telephone.

BATTERY REPLACEMENT AND STORAGE

Contact your dealer or call the number in this manual for information on battery replacement.

The order numbers for the battery are as follows:

BA-OP650 for OP650

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing

the battery. Service the battery under the supervision of personnel knowledgeable of

batteries and their precautions. Keep unauthorized personnel away from batteries.

CAUTION! Use only the specified type of battery. See your dealer for replacement

batteries.

CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries

in a fire, as it may explode. Follow all local ordinances regarding proper disposal of

batteries.

CAUTION! Do not open or mutilate the batteries. Release electrolyte is harmful to the skin

and eyes and may be toxic.

CAUTION! Abattery can present a high risk of short circuit current an electrical shock. Take

the following precautions before replacing the battery:

1. Remove all watches, rings or other metal objects.

2. Only use tools with insulated handles.

3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.

4. Wear rubber gloves and boots.

5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove

source of ground. CONTACT WITH A GROUNDED BATTERY CAN RESULT IN

ELECTRICAL SHOCK! The likelihood of such shock will be reduced if such grounds

are removed during installation and maintenance (applicable to a UPS and a remote

battery supply not having a grounded circuit).

OP650

Guaranteed Uninterruptible Power System

BATTERY REPLACEMENT PROCEDURE:

1. Turn off and unplug all connected equipment.

2. Turn the UPS off and unplug it from the AC power source.

3. Turn the UPS upside down.

4. Remove the 4 retaining screws and remove the cover.

5. Remove the battery from the compartment.

6. Disconnect the battery wires from the battery.

7. Install the replacement battery by connecting the red wire to the

positive (+) terminal of the battery and connecting the black

wire to the negative (-) terminal of the battery.

8. Slide the battery back into the compartment.

9. Replace the cover and the 4 retaining screws.

10. Recharge the unit for 4 – 8 hours to ensure the UPS performs

expected runtime

REMINDER: Batteries are consider HAZARDOUS WASTE and must be disposed of

properly. Contact your local government for more information about proper disposal and

recycling of batteries.

STORAGE:

First turn off your UPS and disconnect its power cord from the wall outlet. Disconnect all

cables connected to the UPS to avoid battery drain. To store your UPS for an extended

period, cover it and store with the battery fully charged. Recharge the battery every three

months to insure battery life. If the battery remains uncharged for an extended period of time,

it may suffer permanent loss of capacity. 5

TROUBLESHOOTING

Problem Possible Cause Solution

Batteries are not fully charged. Recharge the battery by leaving the

UPS plugged in.

The UPS does not

perform expected

runtime. Battery is slightly worn out. Contact CyberPower Systems at

tech@cyberpowersystems.com

The on/off switch is designed to

prevent damage by rapidly turning

it off and on.

Turn the UPS off. Wait 10 seconds

and then turn the UPS on.

The unit is not connected to an AC

outlet. The unit must be connected to a

110/120v 60Hz outlet.

The battery is worn out. Contact CyberPower Systems at

tech@cyberpowersystems.com

The UPS will not

turn on.

Mechanical problem. Contact CyberPower Systems at

tech@cyberpowersystems.com

Circuit breaker is tripped due to

overload Turn the UPS off and unplug at least

one piece of equipment. Wait 10

seconds, reset the circuit breaker

and then turn the UPS on.

Batteries are discharged Allow the unit to recharge for at least

4 hours.

Outlets do not

provide power to

equipment

Unit has been damaged by a

surge or spike. Contact CyberPower Systems at

tech@cyberpowersystems.com

The serial cable is not connected. Connect the serial cable to the

UPS unit and an open serial

port on the back of the

computer. You must use the

cable that came with the unit.

The serial cable is connected to

the wrong port. Check the back of the computer

for an additional serial port.

Move the cable to this port.

The unit is not providing battery

power. Shutdown your computer and

turn the UPS off. Wait 10

seconds and turn the UPS back

on. This should reset the unit.

PowerPanel Plus™

is inactive (all icons

are gray).

The serial cable is not the cable

that was provided with the unit. You must use the cable that

was included with the unit for

the software and the unit to be

able to communicate.

OP650

Guaranteed Uninterruptible Power System

TECHNICAL SPECIFICATIONS

Model OP650

Capacity (VA) 650VA

Capacity (Watts) 350W

Input

Input Voltage Range 85Vac – 145Vac

Frequency Range 47 – 63 Hz

Output

On Battery Output Voltage Simulated Sine Wave at 120Vac +/- 5%

On Battery Output Frequency 60 Hz +/- 1%

Transfer Time (Typical) 4ms

Overload Protection On Utility: Circuit Breaker, On Battery: Internal Current Limiting

Surge Protection and Filtering

Lightning / Surge Protection Yes

Internet Ready (DSL / Phone /

FAX / Modem Protection) RJ11/RJ45 (One In/One Out)

Physical

Total # of UPS Receptacles 3

Maximum Dimensions 28.3cm*9.1cm*16.4cm

Weight 6.4kg

Battery

Sealed Maintenance Free Lead

Acid Battery 12V / 7AHx1

User Replaceable Yes, Hot Swappable Battery Pack

Typical Recharge Time 8 Hours

Warning Diagnostics

Indicators Power On, Using Battery, Boost, Buck

Audible Alarms On Battery, Low Battery, Overload

Environmental

Operating Temperature +32°F to 95°F ( 0°C to 35°C )

Operating Relative Humidity 0 to 95% NON-CONDENSING

Communication

PowerPanelTM Software Windows 95/98/ME/NT/2000/XP

Management

Self-Test Yes

Auto-Charger Yes

Auto-Restart Yes

USB Yes

DEFINITIONS FOR ILLUMINATED LED INDICATORS

Power

Using

Battery

Wiring

Fault

Boost

Buck

Circuit

Breaker

Alarm

Condition

On Off Off Off Off Set Off Normal

On Off Off Flash Off Set Off

Max. boost 15% of input

voltage for output

regulation while input

voltage is from 8% to

30% under nominal.

On Off Off Off Flash Set Off

Max. buck 15% of input

voltage for output

regulation while input

voltage is from 8% to

26% over nominal.

Off On On/Off Off Off Set

Two

Beeps

Utility Failure- The UPS is

providingbatterypower to

theBattery-Power Supplied

outlets.

Off On On/Off Off Off Set

Rapid

Beeps

Utility Failure- The UPS is

providingbatterypower.

The rapid beeps indicatethe

battery will run outof charge

withina few minutes.

Off On Off Off Off Up

Two

beeps or

rapid

beeps

Overload- Occurs in the

Full-timeSurgeProtection

Outlets. Turn the UPS off

and unplugat least one

piece of equipment from the

UPS. Wait 5 seconds,

reset the circuitbreaker and

turnthe UPSon.

Off On/Off On/Off

On/Off/

Flash

On/Off/

Flash Set Long

Beep

Overload- Occurs in the

Battery-powerSupplied

Outlets. Turn the UPS off

and unplugat least one

piece of equipment from the

UPS. Wait 5 seconds,

reset the circuitbreaker and

turnthe UPSon.

On/Off On/Off On On/Off/

Flash

On/Off/

Flash Set/Up None

ElectricalWiring Fault- This

indicates a wiringa problem

such as abad ground,

missed ground or reversed

wiring within the AC outlet.

User is advised to

disconnect all electrical

equipmentfromthe outlet

andhavethe outletchecked

byanelectrician.

Otros manuales para OP650

Tabla de contenidos

Otros manuales de Unión Postal Universal de CyberPower

CyberPower

CyberPower BPSE240V75ART3UOA Manual de usuario

CyberPower

CyberPower VP700EILCD Manual de usuario

CyberPower

CyberPower CP1100AVRLCD Manual de usuario

CyberPower

CyberPower Paragon UPS Manual de lista de piezas

CyberPower

CyberPower Value1200ELCD Manual de usuario

CyberPower

CyberPower Professional Rack Mount UPS 2200VA Manual de usuario

CyberPower

CyberPower OP1250 Manual de usuario

CyberPower

CyberPower MEMBER'S SELECTION PS1500AVRLCD Manual de usuario

CyberPower

CyberPower OL1000EXL Manual de usuario

CyberPower

CyberPower PR3000 Manual de usuario

CyberPower

CyberPower 649532107506 Manual de usuario

CyberPower

CyberPower PowerPanel Business Edition Manual de usuario

CyberPower

CyberPower OL6000RT3UTAA Manual de usuario

CyberPower

CyberPower PR3000ELCDRT2U Manual de usuario

CyberPower

CyberPower Value1200EILCD Manual de usuario

CyberPower

CyberPower BPSE240V82A Manual de usuario

CyberPower

CyberPower UT1500 Manual de usuario

CyberPower

CyberPower UT400EG Manual de usuario

CyberPower

CyberPower OR1500LCDRTXL2U Manual de usuario

CyberPower

CyberPower CyberShield CS24C12V-E Manual de usuario

CyberPower

CyberPower OR1500LCDRTXL2U Manual de usuario

CyberPower

CyberPower PowerPanel Cloud Manual de usuario

CyberPower

CyberPower OL6000RT3U Manual de usuario

CyberPower

CyberPower RMCARD400 Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario

ZincFive

ZincFive BC Series Manual de usuario

BPC

BPC 1.5K SMART Manual de usuario

IBM

IBM 5595-1AX Manual de usuario
