K01-0000190-00

CP900EPFCLCD

User’s Manual

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,

install, or operate your UPS.

CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker

protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this

equipment, turn off and unplug the UPS.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems

does not sell products for life support or medical applications. DO NOT use in any circumstance that

would affect the operation and safety of life support equipment, medical applications, or patient care.

CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power

is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled

indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature

and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery.

There are no user serviceable parts inside, except for the battery.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before

servicing the battery or installing a computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or

near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts

and cause the machine to short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following:

(1) UPS Unit x 1; (2) Telephone Cable x 1; (3) USB Cable x 1; (4) User Manual x 1; (5) Management

software Disk x 1; (6) Function Setup Guide x 1

OVERVIEW

The CP900EPFCLCD provides automatic voltage regulation for inconsistent utility power. The

CP900EPFCLCD features 405 Joules of surge protection, and provides battery backup during power

outages. The CP900EPFCLCD ensures consistent power to your computer system and its included

software will automatically save your open files and shut down your computer system during a utility

power loss.

SUPPORTS Active PFC POWER SUPPLIES

This CyberPower UPS system supports High Efficiency power supplies with Active Power Factor

Correction (Active PFC). Active PFC is used to improve the efficiency of power delivery. The current US

Energy Star® Program Requirements for Computers (version 5.0) mandates Active PFC for all power

supplies over 100 watts. Additionally, programs such as 80 Plus® are often used to identify high

efficiency power supplies with Active PFC.

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR

EQUIPMENT

1.Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and

peripheral equipment does not exceed 900VA.

2

2.Ensure that the equipment plugged into the battery power-supplied/surge outlets does

not exceed the UPS unit's rated capacity (900VA/540W for CP900EPFCLCD). If the rated unit

capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down or

the circuit breaker to trip.

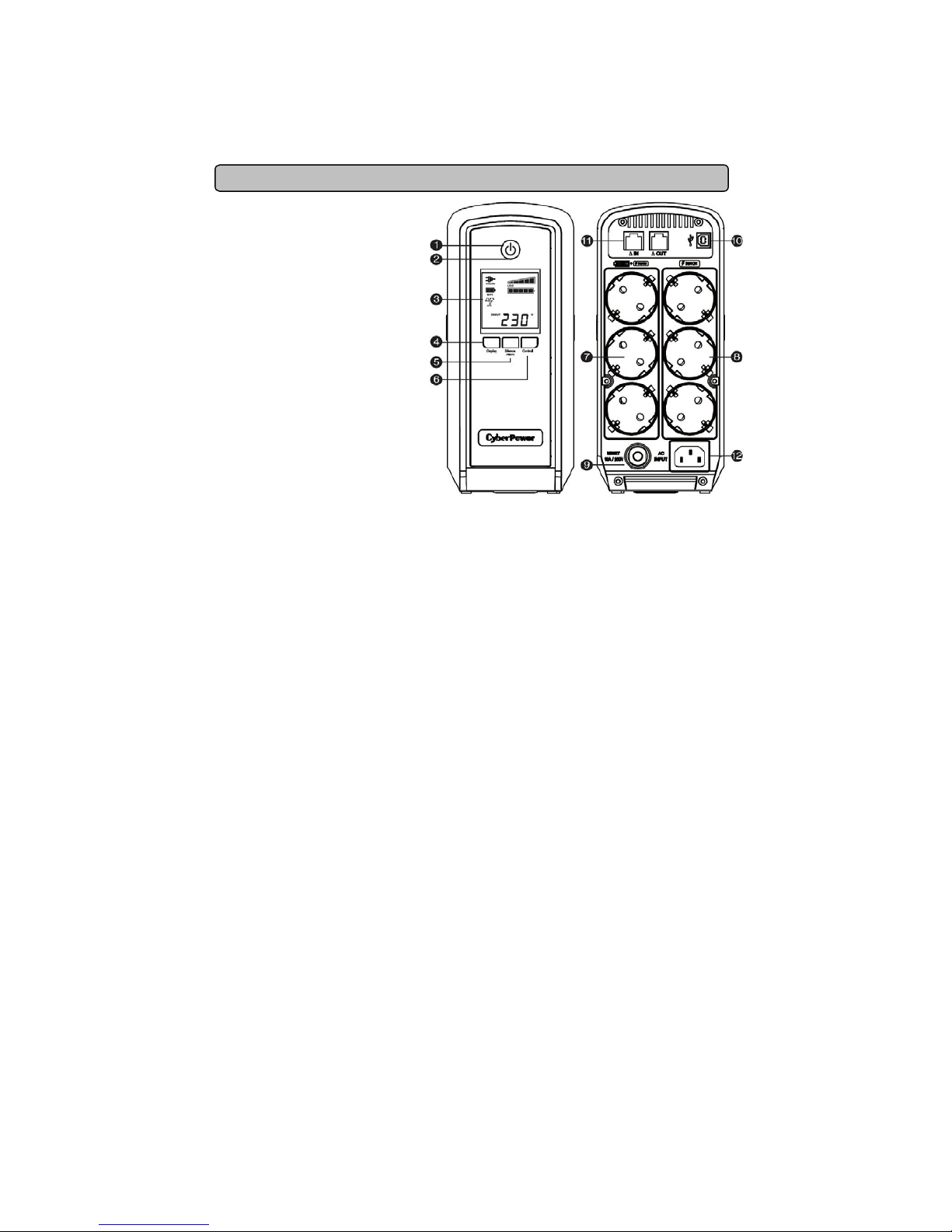

BASIC OPERATION

3

DESCRIPTION

1. Power Switch

Used as the master on/off switch

for equipment connected to the

battery power supplied outlets.

2. Power On Indicator

This LED is illuminated when the

utility power is normal and the UPS

outlets are providing power, free of

surges and spikes.

3. LCD Module Display

High resolution and intelligent LCD

display shows all the UPS

information with icons and

messages. For more information

please check the “Definitions for

Illuminated LCD Indicators”

section.

4. Display Switch

The switch can be used to select the LCD display contents including Input Voltage, Output Voltage

and Estimated Run Time. The toggle frequency is set to one time per 0.5 second. Press the switch

to roll down the function menu. Pressing the switch for 2 seconds will turn the LCD display on or off

while in AC/Utility power mode.



5. Silence Alarm Switch

The toggle frequency is set to one time per 0.5 second. Press the switch to roll up the function

menu. Holding the switch for more than 2 seconds will silence the buzzer.

6. Control Switch

Press the Control switch for 3 seconds in AC/Utility Power Mode to perform a Self Test of the

battery.

7. Battery and Surge Protected Outlets

The unit has three battery powered/surge suppression outlets for connected equipment to ensure

temporary uninterrupted operation of your equipment during a power failure. (DO NOT plug a laser

printer, paper shredder, copier, space heater, vacuum, sump pump or other large electrical

devices into the “Battery and Surge Protected Outlets”. The power demands of these

devices may overload and damage the unit.)

8. Full-Time Surge Protection Outlets

The unit has three always on surge suppression outlets.

9. Circuit Breaker

Located on the back of the UPS, the circuit breaker serves to provide overload and fault protection.

10. USB Port to PC

This port allows connection and communication from the USB port on the computer to the UPS unit.

The UPS communicates its status to the PowerPanel®Personal Edition software.

11. Communication Protection Ports RJ11/RJ45

Communication protection ports will protect any standard modem, fax, telephone line, or network

cable from surge and spikes.

12. AC Input

Connect the AC Power cord to a properly wired and grounded outlet.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8

hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge

loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged

into an AC outlet. The unit will charge in both the on and off position.

Note: This UPS is designed with a safety feature to keep the system from being turned on during

shipment. The first time you turn the UPS on, you will need to have it connected to AC power or it will

not power up.

2. If you will use the software, connect the USB cable to the USB port on the UPS.

3. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered

data storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets.

DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical

device into the battery power supplied outlets. The power demands of these devices will overload

and possibly damage the unit.

4. To protect a fax, telephone, modem line or network cable, connect a telephone cable or network

cable from the wall jack outlet to the IN jack of the UPS. Then connect a telephone cable or network

cable from the OUT jack on the UPS to the modem, computer, telephone, fax machine, or network

device.

5. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet

is protected by a fuse or circuit breaker and does not service equipment with large electrical

demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using extension cords.

6. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit

will "beep".

7. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To

correct this, turn the UPS off and unplug at least one piece of equipment from the battery power

supplied outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the UPS

on.

8. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the

battery will automatically recharge.

9. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

10. To store your UPS for an extended period, cover it and store with the battery fully charged.

Recharge the battery every three months to ensure battery life.

4

CYBERPOWER GREENPOWER UPS™ TECHNOLOGY

CyberPower’s Green Commitment

CyberPower is dedicated to the development of green products, and has adopted



Green practices throughout its business, including: membership in Climate Savers

Computing Initiative (CSCI), accordance with the Restriction on Hazardous

Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols,

as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the

advanced energy solution for the environment and become a leading eco-friendly

organization in the UPS industry.

Reduce Energy Cost with GreenPower UPSTM Technology

CyberPower’s goal is not only to provide eco-friendly products but also to bring the best value for

consumers. The advanced energy-saving design improves the operating efficiency and eliminates

waste energy consumption.As a result, consumers will enjoy significant energy cost savings with the

adoption of GreenPower UPSTM technology.

BATTERY REPLACEMENT

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the

battery. Service the battery under the supervision of personnel knowledgeable of

batteries and their precautions.

CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.

CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in

a fire, as they may explode. Follow all local ordinances regarding proper disposal of batteries.

CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to the skin

and eyes and may be toxic.

CAUTION! A battery can present a high risk of short circuit current and electrical shock. Take

the following precautions before replacing the battery:

1. Remove all watches, rings or other metal objects.

2. Only use tools with insulated handles.

3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.

4. Wear rubber gloves and boots.

5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source

of ground. CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL

SHOCK! The likelihood of such shock will be reduced if such grounds are removed during

installation and maintenance (applicable to a UPS and a remote battery supply not having a

grounded circuit)

BATTERY REPLACEMENT PROCEDURE:

1. Turn off and unplug all connected equipment.

2. Turn the UPS off and unplug it from the AC power source.

3. Turn the UPS on its side.

4. Remove the retaining screw located on the bottom of the UPS.

5

5. Slide the battery compartment cover completely off of the unit.

6. Remove the batteries from the compartment.

7. Disconnect the battery wires from the batteries.

8. Install the replacement batteries by connecting the red wire (+) and black wire (-) to the same color

connectors from the battery pack.

9. Put the batteries back into the compartment.

10. Slide back the battery compartment cover and tighten the retaining screw.

11. Recharge the UPS for 8-16 hours to fully charge the battery.

REMINDER: Batteries are considered HAZARDOUS WASTE and must be disposed of properly.

Almost any retailer that sells lead-acid batteries collects used batteries for recycling.

  

DEFINITIONS FOR ILLUMINATED LCD INDICATORS

6

1. ONLINE: The UPS is supplying utility power to

connected equipment.

2. BATTERY: During a severe brownout or

blackout, this icon appears and an alarm sounds

(two short beeps followed by a pause) to indicate

the UPS is operating from its internal batteries.

During a prolonged brownout or blackout, the

alarm will beep rapidly every 1/2 second (and the

BATT.CAPACITY meter shows one 20% capacity

segment shaded. The capacity depends on how

much load added and the runtime left.) to indicate

the UPS’s batteries are nearly out of power. You

should save files and turn off your equipment immediately or allow the software to shut the system

down.



3. Energy-Saving: The UPS in energy-saving bypass mode. See “CyberPower GreenPower UPSTM

Technology” section for more information.

4. LOAD capacity / Sensitivity setup: This meter displays the approximate output load level (in

20% increments) of the UPS battery outlets. It can also be sensitivity setup meter if you are in

programming mode. It is to control the sensitivity of the UPS to switch to Battery Mode by

selecting UPS shutdown voltage range. The higher the sensitivity, the easier the UPS will switch to

Battery Mode.

7

5. BATTERY capacity: This meter displays the approximate charge level (in 20% increments) of the

UPS’s internal battery. During a blackout or severe brownout, the UPS switches to battery power,

the BATTERY icon appears, and the charge level decreases.

6. FAULT: This icon appears if there is a problem with the UPS. Press the POWER button to turn off

the UPS.

F01: Battery Mode or AC/Utility Power Mode Overload fault (Turn on the UPS again.)

F02: Battery Output Short fault (Turn on the UPS again.)

F03: Charger Fault (Contact CyberPower Systems for support.)

F04: Internal Fault (Contact CyberPower Systems for support.)

7. OVER LOAD: This icon appears and an alarm sounds to indicate the battery-supplied outlets are

overloaded. To clear the overload, unplug some of your equipment from the battery-supplied

outlets until the icon turns off and the alarm stops.

8. SCHEDULE: Users can setup the schedule to turn on and shut down the computer and UPS

through PowerPanel®Personal Edition software. The LCD display will show how much time that

the UPS is about to turn on or shut down.

9. ESTIMATED RUNTIME: This displays the run time estimate of the UPS with current battery

capacity and load.

10. OUTPUT meter: This meter measure, in real time, the AC voltage that the UPS system is

providing to the computer, such as normal AC line mode, AVR mode, and battery backup mode.

(Note: The OUTPUT meter shows the status of the battery backup outlets in terms of load,

frequency, and voltage.)

11. INPUT meter: This meter measures the AC voltage that the UPS system is receiving from the

utility wall outlet. The UPS is designed, through the use of automatic voltage regulation, to

continuously supply connected equipment with stable, 220/230 output voltage. In the event of a

complete power loss, severe brownout, or over-voltage, the UPS relies on its internal battery to

supply consistent 220/230 output voltage. The INPUT meter can be used as a diagnostic tool to

identify poor-quality input power.

12. EVENT: This meter records the number of power outages.

13. MUTE: This icon appears whenever the UPS is in silent mode. The buzzer does not beep during

silent mode until the battery reaches low capacity.

14. AVR (Automatic Voltage Regulation): This icon appears whenever your UPS is automatically

correcting low AC line voltage without using battery power. This is a normal, automatic operation

of your UPS, and no action is required on your part.

For more information about functions setup, please refer to the Function Setup Guide.

TECHNICAL SPECIFICATIONS

Model CP900EPFCLCD

Capacity (VA) 900VA/540W

Input

Frequency Range 47~63Hz (Auto Sensing)

AVR Function Yes

Output

On Battery Output

Voltage 230Vac +/-10%

On Battery Output

Frequency 50/60Hz +/-1%

Transfer Time 4ms Typical

Overload Protection On Utility: Circuit Breaker, On Battery: Internal Current Limiting

Surge Protection

Lightning / Surge

Protection Yes

Network/ Phone/ Fax/

Modem Protection RJ11/RJ45 ( One In/ One Out )

Operating Temperature +32°F to 104°F ( 0°C to 40°C )

Physical

Total # of UPS outlets Schuko x 6 ( Backup x 3 )

Maximum

Dimensions(LxWxH) 275 x 100 x 230 mm

Weight (kg) 6.6kg

Battery

Battery Sealed Maintenance Free Lead Acid Battery

Typical Recharge Time 8 hours

Charging Current(Max.) 0.6A

User Replaceable Yes

Status Indicators

Indicators Power On, LCD Display

Audible Alarms On Battery, Low Battery, Overload

Communication

PowerPanel®Personal

Edition Software Windows 7/Vista/XP/2000/Server 2003, Linux

Management

Auto-Charger Yes

Auto-Restart Yes

USB interface Yes

8

TROUBLESHOOTING

Problem Possible Cause Solution

Circuit breaker button is

projecting from the back of

the unit.

Circuit breaker has

tripped due to an

overload.

Turn the UPS off and unplug at least one

piece of equipment. Wait 10 seconds, reset

the circuit breaker by depressing the

button, and then turn the UPS on.

Battery not fully

charged. Recharge the battery by leaving the UPS

plugged in.

The UPS does not perform

expected runtime. Battery is slightly worn

out.

Contact CyberPower Systems about

replacement batteries at

[email protected]

The on/off switch is

designed to prevent

damage by rapidly

turning it off and on.

Turn the UPS off. Wait 10 seconds and

then turn the UPS on.

The battery is worn

out.

Contact CyberPower Systems about

replacement batteries at

[email protected]

The UPS will not turn on.

Mechanical problem. Contact CyberPower Systems at

[email protected]

The USB cable is not

connected.

Connect the USB cable to the UPS unit

and an open serial port on the back of the

computer. You must use the cable that

came with the unit.

PowerPanel® Personal

Edition is inactive. The unit is not

providing

battery power.

Shutdown your computer and turn the

UPS off. Wait 10 seconds and turn the

UPS back on. This should reset the unit.

Additional troubleshooting information can be found at eu.cyberpowersystems.com

For more information, visit eu.cyberpowersystems.com or contact

Cyber Power Systems B.V.

E-MAIL: [email protected]

in whole or in part without permission is prohibited. PowerPanel® and PowerPanel® Plus are

trademarks of CyberPower Systems (USA) Inc.



9

10

Otros manuales para CP900EPFCLCD

Tabla de contenidos

Otros manuales de Unión Postal Universal de CyberPower

CyberPower

CyberPower BL1250U Manual de usuario

CyberPower

CyberPower OL6KRTMB Manual de usuario

CyberPower

CyberPower 649532012855 Manual de usuario

CyberPower

CyberPower 649532210039 Manual de usuario

CyberPower

CyberPower EC750G Manual de usuario

CyberPower

CyberPower Professional Tower UPS PP1500E Manual de usuario

CyberPower

CyberPower HSTP3T15KE-C Manual de usuario

CyberPower

CyberPower 649532005024 Manual de usuario

CyberPower

CyberPower UT850E-FR/UPS Manual de usuario

CyberPower

CyberPower OR1500LCDRTXL2U Manual de uso y cuidado

CyberPower

CyberPower PR1500 Manual de usuario

CyberPower

CyberPower OL6KRT Manual de usuario

CyberPower

CyberPower OL6KERT3UDPM Manual de usuario

CyberPower

CyberPower OR600ELCDRM1U Manual de usuario

CyberPower

CyberPower BU600E Manual de usuario

CyberPower

CyberPower Surge Buster SB501BA-FR Manual de usuario

CyberPower

CyberPower PR1500LCDRTXL2U Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

CyberPower

CyberPower DL450ELCD Manual de usuario

CyberPower

CyberPower 649532004256 Manual de usuario

CyberPower

CyberPower 649532010004 Manual de usuario

CyberPower

CyberPower OR500LCDRM1U Manual de usuario

CyberPower

CyberPower Value 600EI Manual de usuario

CyberPower

CyberPower UP1200 Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario

ZincFive

ZincFive BC Series Manual de usuario

BPC

BPC 1.5K SMART Manual de usuario

IBM

IBM 5595-1AX Manual de usuario
