Peavey MMA 8150T Amplifier to V3 Paging Server Connections
Peavey MMA 8150T Amplifier V3 Paging Server Connections
+-+
-
Notes
CyberData V3 Paging Server's RCA line level output can connect to either an AUX 2 module
or a TPM-S2 Module.
This page shows the possible connections to an AUX 2 module.
Connect the V3 Paging Server's Line Out to one of the RCA phono input jacks.
PGM IN
or
The IP Endpoint Company
Peavey MMA 8150T Amplifier to V3 Paging Server Connections
Peavey MMA 8150T Amplifier V3 Paging Server Connections
+-+
-
Notes

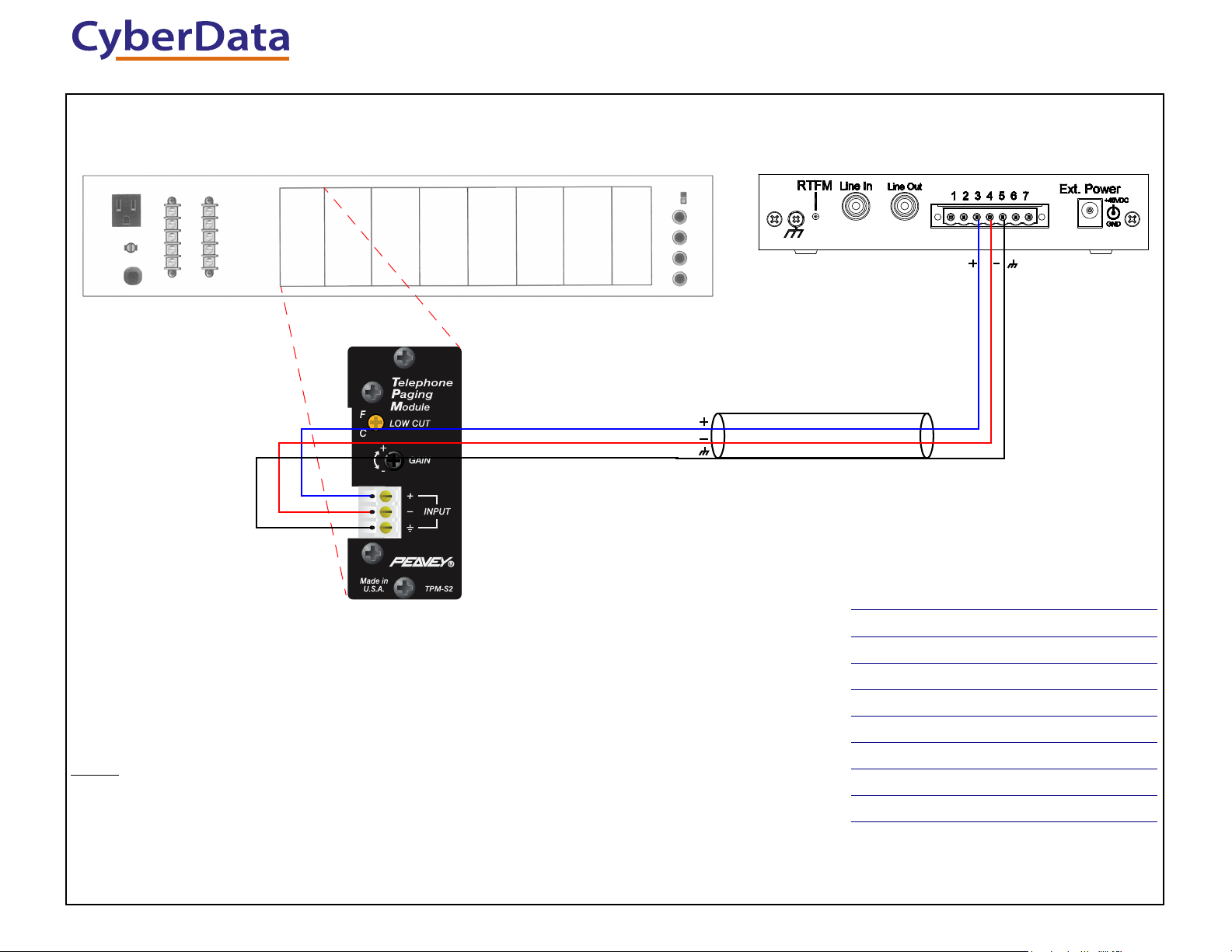

This page shows possible connections to a TPM-S2 module
Connect the V3 Paging Server's Page Port output terminal pins to the INPUT
on the TPM-S2 module.
2 conductor, shielded speaker wire is recommended.
s
V3 Paging Server Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Outputa
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
4 Negative 600-Ohm Audio Outputa
5 Audio Ground Reference.
6 Relay Contact - Commonb
b.1 Amp at 30 VDC for continuous loads.
7 Relay Contact - Normally Openb
PGM IN
930990A
Keep as short as possible
Shield/Drain Wire Shield/Drain Wire
Hi
Lo
Hi
Lo
Balanced
