CyberData 3CX Manual de usuario

VoIP Intercom with

3CX Server Setup Guide

CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193

www.CyberData.net

Server Setup Guide 930272B CyberData Corporation

1.0 Setup Diagram

Figure 1-1 is a setup diagram for a single VoIP Intercom configuration. In this configuration, the

Intercom acts as a standalone SIP telephony device.

Figure 1-1. Setup Diagram

Aastra 480i CT IP Phone

xxx.xxx.x.xx

CyberData VoIP Intercom

xxx.xxx.x.xx

3CXSystem

xxx.xxx.x.xxx (default)

NetGear EtherFast FS108P 10/100 8-port Pro-Safe Switch with PoE

Windows Server

Server Setup Guide 930272B CyberData Corporation

2.0 Host PC Environment

3.0 Test Setup Equipment

Table 2-1. Host PC Environment Details

Description

Hardware Type Windows Server

Hardware Version Windows Server 2008

Software Type 3CX Phone System for Windows

Software Version 6.1.0

Table 3-1. Test Setup Equipment

Equipment Model Version

Aastra IP Phone 480i CT N/A

Notes:

CyberData VoIP Intercom 010935B 3.3.2

Notes:

Linksys EtherFast 10/100 8-port Workgroup Hub N/A N/A

Notes:

Server Setup Guide 930272B CyberData Corporation

4.0 Setup Procedure

To set up the 3CX SIP Server for the CyberData VoIP Intercom,

1. Go to the web address of the Login page. The web address is determined by the customer.

2. On the Login page, type the user name and password into the User Name and Password fields.

See Figure 4-2. The user name and password are determined by the customer.

Figure 4-2. Login

PasswordLoginUser Name

Server Setup Guide 930272B CyberData Corporation

3. Click on the Login button to go to the Main Page.

4. On the Main Page under the “Complete the following steps to start using 3cx Phone System

for Windows:” section, look for the section that has the text, “Click here to add an extension.”

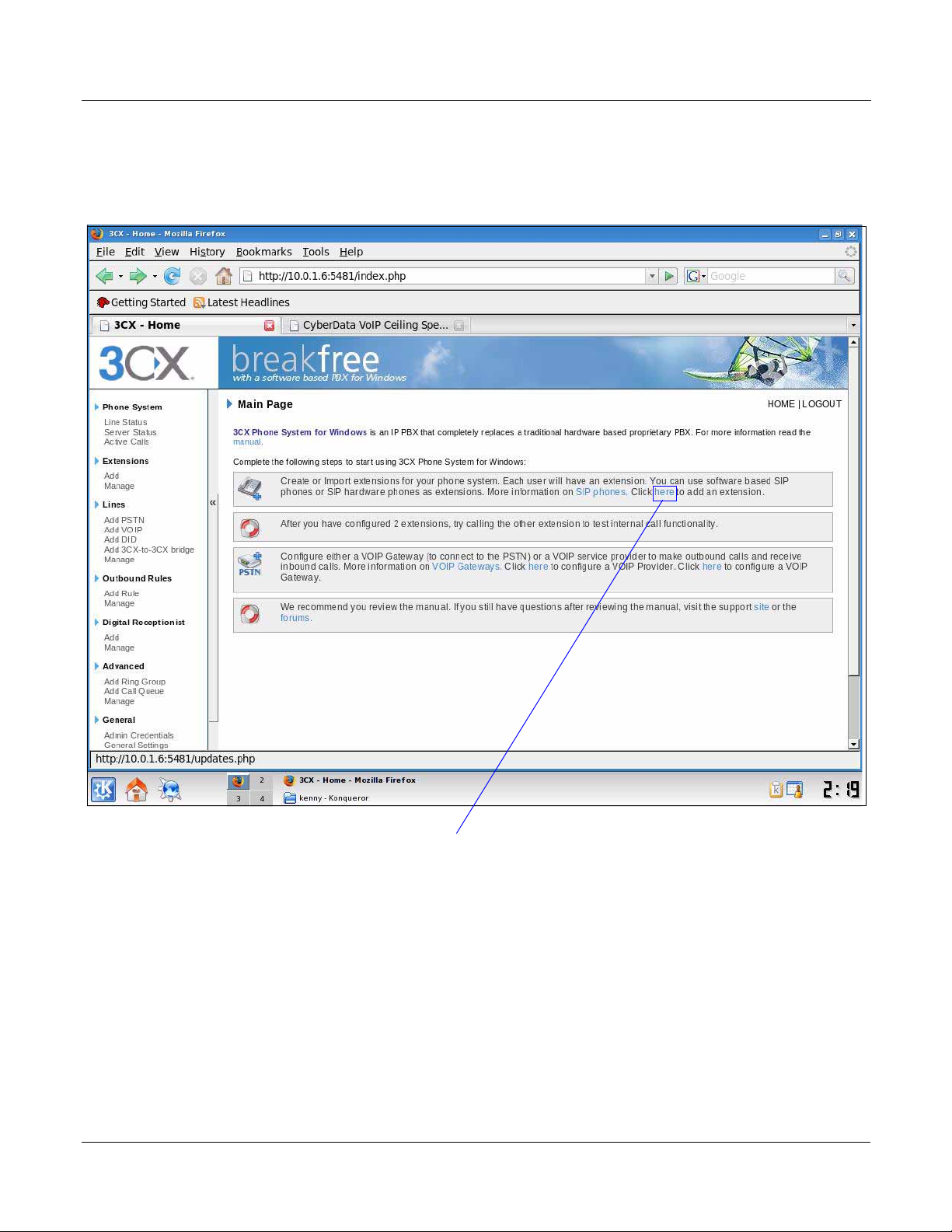

Figure 4-3. Main Page

5. Click on the word here to add an extension (Figure 4-3). This will take you to the Add

Extension page. See Figure 4-4.

Click on here to add an extension.

Server Setup Guide 930272B CyberData Corporation

6. On the Add Extension page (Figure 4-4), type the following information:

• Extension Number

• First Name

•LastName

• Email Address

•LoginID

• Password

Figure 4-4. Add Extension Page

7. Click the Next button. You will see the Extension Created page. See Figure 4-5.

PasswordFirst Name Email Address Login IDExtension Number Last Name Next

405

Server Setup Guide 930272B CyberData Corporation

Figure 4-5. Extension Created Page

8. To register the Intercom, you will need to enter the information from the 3CX Extension

Created page into the Intercom by logging into the CyberData Configuration Home page.

Log into the CyberData Configuration Home page (Figure 4-6) by pointing your browser to the

Intercom’s IP address.

For the initial configuration of the Intercom, refer to the VoIP Intercom Operation Guide PDF

which can be found at the VoIP Intercom product page at:

http://www.cyberdata.net/support/voip/index.html

Note You may also download CyberData’s VoIP Discovery Utility program which allows you

to easily find and configure the default web address of the CyberData VoIP products.

CyberData’s VoIP Discovery Utility program is available at the following web address:

http://www.cyberdata.net/support/voip/discovery_utility.html

405

Server Setup Guide 930272B CyberData Corporation

9. When prompted, enter the following Web Access Username and Web Access Password to

access the CyberData Configuration Home page (Figure 4-6):

Default Login:

Web Access Username: admin

Web Access Password: admin

Figure 4-6. CyberData Configuration Home Page

10. Click SIP Setup to open the SIP Setup page. See Figure 4-7.

SIP Config

000000

Server Setup Guide 930272B CyberData Corporation

11. Use the information from the Extension Created page (Figure 4-5) to enter the following

information on the SIP Config page:

•SIPServer

• Remote SIP Port

•LocalSIPPort

•SIPUserID

• Authenticate ID

• Authenticate Password

• Dial-Out Extension (put the phone extension into this field)

Note Figure 4-7 is an example of a CyberData VoIP Intercom that is configured to extension

405 and configured to call extension 409.

Figure 4-7. SIP Config Page

12. Click Save.

Save Settings

405

409

Server Setup Guide 930272B CyberData Corporation

13. After clicking on Save, a reboot timer countdown will begin.

Figure 4-8. Intercom Reboot Timer

14. After the Intercom reboots, the green Status LED on the Intercom will blink at one second

intervals to indicate normal operation.

Note If Yes is selected for Speaker Beep After Initialization on the Intercom Setup page, you

will hear a tone after the initialization sequence is complete.

15. To test the Intercom, complete the following steps:

• Pick up any phone that is configured to the 3CX system and call the Intercom’s extension

number.

• When a connection is established (as indicated by a beep), speak into the phone and verify

that you can hear your voice through the Intercom.

• Hang up the phone and press the Call Button on the Intercom.

• When the phone rings, pick up the phone. Speak into the phone and verify that you can

hear your voice through the Intercom.

This step completes the procedure.

Rebooting, please wait... 00:04
