Smart Video Doorbell
User Manual
※Packing List
After opening the package, please check whether the doorbell(hereinafter
referred to as the “device”) is in good condition
Package Contents(Standard):
Wi-Fi Video Doorbell x 1 Pcs
Installation Screws x 1 Pack
User Manual x 1 Pcs
---------------------------------------------------------------------
Optional Accessories:
Rechargeable 3.7V 18650 Batteries
Indoor Chime
Micro SD Card
※Specification:
Processor
HUAWEI Hisilicon Hi3518EV201
Image Sensor
1.0MP 1/4" CMOS
Video Output
Dual-stream(HD: 1280*720@25fps / Fluent:
704*576@25fps)
Viewing Angle
166°
Audio
Two-way audio with noise cancellation
Main Function
720p HD Video, Live View(Real-time Monitor),
Night Vision(6 IR LED/IR-CUT/Distance 0~8m),
Motion Detection, Human Body Induction(PIR Sensor),
Video Recording, Snapshot, Unlock(customized)
Connectivity
802.11 b/g/n Wi-Fi connection @ 2.4GHz
Power Supply
2*Rechargeable 3.7V 18650 Batteries/ AC 8-24V/Micro
USB
Standby time of 2 batteries: 6-8 months
App
Android / iOS
Storage
Support Micro SD Card: 32GB maximum
Power Consumption
Max 3W
Push Notification
Within 1 second
Cellphone need to connect to Wi-Fi or Mobile 4G/5G Data
Operating
Temperature
-20°C(-4℉) to 65°C(149℉)
Dimensions(WxDxH)
76mm*28mm*142mm
Weight
0.377kg
※ Appearance Introduction
※Indicator Light Introduction
Blue light always on
Starting up/Active
Blue light flashes slowly
App remote access
Red light flashes slowly
Low battery
※Operation Manual
1. Download & Install App
Method One: Scan the QR Code below to download and install
Method Two: Search and download “wifidoorbell Cusam” in App Store or
Google Play.
Note: Please agree all the permissions(popup confirmation dialog box by App)
in order to make sure App is able to receive notifications.
2. Creating an Account & Log in
Open “Wi-Fi Doorbell”, sign up a new account and log in
PS: If your email inbox doesn’t receive the verification code, please check the
spam box
The same user account can be logged in on different cellphones. Each family
only needs to register one account
After signing up, you can bind your new user account with WeChat if you have
installed WeChat App

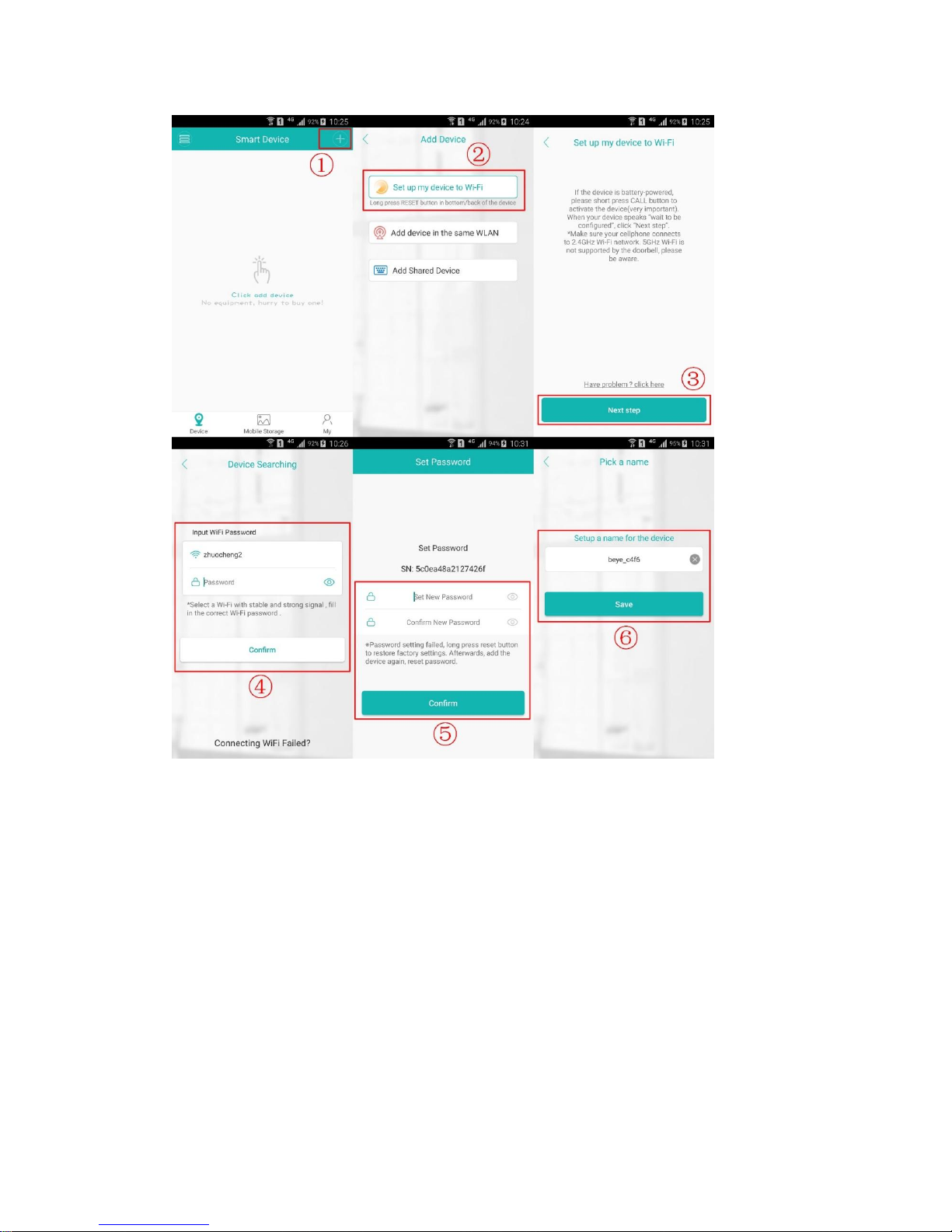

3. Wi-Fi Setup(connect the device to Wi-Fi)
①Connect your cellphone to 2.4GHz Wi-Fi, open App, click “+” at the top right
corner
②Click “Set up my device to Wi-Fi””
③Power on the device, indicator light turns to blue, when device makes a
sound of “Wait to be configured”, click “Next step”(If you don’t continue doing
next steps, after a period of time, the device will enter into sleep mode. In this
case please press CALL button to awaken it)
④Input your Wi-Fi password and then click “Confirm”
⑤Set device password and then click “Confirm”
⑥Set the device name and then click “Save”
PS: If you are using iPhone, please note: After adding device successfully,
please wait 10~30 seconds before ringing the doorbell. Because it need some
time to register at Apple Server for push service, if you press “CALL”button
during this period, your iPhone will not receive the push message from device.
Don’t worry, this situation only happens once at the first use. About half a
minute later, your iPhone is able to receive the push notifications from the
device in real time.
Tips: 1) Please keep the device close to router when setting
2) Please be sure to connect your cellphone to 2.4GHz Wi-Fi to set up,
because the device is not compatible with 5GHz Wi-Fi
3) Please DO NOT use Wi-Fi Extender(Bridged connection Wi-Fi is not
supported)
4) If the indicator light doesn’t turn to blue, or the device doesn’t make a sound
of prompt, please short press CALL button to awaken the device
5) If connecting to Wi-Fi failed, please try again(sometimes it may take several
times to succeed). Or RESET the device and try again
6) If still failed, please check whether you opened the MAC address filtering in
the settings of your router. If yes, please disable it.
7) If you have tried all the ways above but the device still can’t connect to Wi-Fi,
please contact us.
How to Reset:
①Make sure the indicator light turns to blue. If not, short press CALL button.
②Long press the RESET button, DON’T loosen until you hear the voice
prompt “Restore factory setting, pleases don’t power off”.
③About 10 seconds later, short press CALL button to awaken the device,
then open App to set up.
---------------------------------------------------------------------
If the device has already done with Wi-Fi setup, other family members also
want to add device in App, it’s highly recommended to use the same account
to log in.If using different user accounts, please add device by the following
functions:
1) Add device in the same WLAN: Make sure that the device and your
cellphone connect the same Wi-Fi. Short press CALL button to awaken the
device, indicator light turns to blue, and then click this function to add device.
2) Add Shared Device: Add a device by inputting serial number or scanning the
QR Code shared by the other user account.
PS:
1. If the device has not been connected to Wi-Fi yet, please don’t use “Add
device in the same WLAN” and “Add Shared Device” to add device
2. After adding device successfully, all the user accounts will be added in the
contact list of the device, but only one user account(the first account to finish
Wi-Fi Setup) is available to receive push notifications. If you add device by
using two methods above, your user account is not able to receive notifications
unless you set your user account as current permission account and enable
“Alarm Push”(Android) or ”APP message reception”(iOS).If all of you want to
receive notifications in the same time, please log in with the same user
account, and then set it as current permission account in App.
Device Status
After adding device successfully, you can use mobile phone to remote access
device by using App, the device has the following states:
The device is in low-power mode, it needs to be awakened
before access
The device is being awakened
Device offline
4. Indoor Chim/Bell(Each doorbell can connect up to 4pcs at the same time)
If you bought the indoor chime/bell as well, you can match it to the doorbell.
When somebody press CALL button, the indoor chime plays music. The steps
are as following:
1) Plug the indoor chime into AC Socket, long-press the volume key, don’t
loosen;
