Current LOOP 4300 Manual de usuario

Each LOOP Marine Bundle Kit includes:

Item Description

A LOOP® Power Center (Pre-Assembled) 1 1 1

BOrbit™ Marine IC PRO LED (2 Lights) 1x36" 1x48" 1x72"

C eFlux™ Wave Pumps 2x1050 gph 2x1050 gph 2x2100 gph

D eFlux™ DC Flow Pump 1x1900 gph 1x1900 gph 1x3170 gph

EOrbit™ Adjustable Tank Mount Bracket 2 2 2

Additional Help

Note:

If your LOOP®Bundle is missing any part, please contact us directly at www.current-usa.com

DO NOT RETURN TO RETAILER

LOOP® Marine Bundle Kit

What’s Included

For additional installation instructions and videos, please visit our website at www.current-usa.com

P1P3 P2 L1L2

Model 4300, 4301, 4302

NOTE: READ ALL SAFETY INSTRUCTIONS

INCLUDED WITH EACH PRODUCT

personal information, choose "LOOP Marine Bundle" and use the model number for the

serial number (#4300, #4301, #4302)

Page 1

Items Included

Model #4300 Model #4301 Model#4302

36" Bundle Kit 48" Bundle Kit 72" Bundle Kit

Qty. 1

Qty. 2

Step 1. Install the Power Center

1. Unpack Power Center box and remove components and mounting hardware. Each Power

center box should include the following:

1 x Power Center (Pre-Assembled)

1 x LOOP® IC Controller, IR Remote, IR Cable & Mounting Hardware

1 x Surge Protector Power Strip

1 x Mounting Hardware Kit:

1 x Velcro Strip

4 x Wood Mounting Screws

2 x Cable Holders w/Mounting Screws

2 x Cable Tie Wraps

2. Check all DC cables, microUSB cables and

AC plugs on transformers and ensure all are

firmly plugged in.

3. Locate where the Power Center will be installed. The minimum space required is:

16.5"L x 7"W x 13"H. The surface must be flat and in a dry location protected from water and

salt creep. It MUST be mounted to a surface in a vertical position, DO NOT set Power Center on

stand floor due to a risk of water damage. We recommend the following locations:

Power Center Installation

IMPORTANT: Before installing, read ALL SAFETY INSTRUCTIONS and WARNINGS

Quick Start Guide

LOOP® Marine Bundle Kit

P1P3 P2 L1L2

Stand Side Walls

Stand Back Panel

DO NOT REST

ON STAND FLOOR

Ensure all cables

are plugged in

3Location

Page 2

4. Install Velcro strip to bottom of surge protector. Attach surge protector to bottom shelf on

Power Center, ensuring the cable is located in the right direction for easy plug in (determined

location and cable access location on stand.)

5. Plug the four DC power supplies into surge protector.

6. Install cable tie mounts to side panels of power

center using the flat mounting screws and wing nuts.

There are 4 locations for the mounting the 2 included

cable tie mounts on the Power Center. These can be

used to wrap and organize excess cable from the LED

lights or wave pumps.

7. Use the template below to pre-install the mounting

screws for the power center. Use a pencil to mark

mounting holes - square 15" wide x 10-1/8 high.

Power Center Installation

LOOP® Marine Bundle Kit

P1P3 P2 L1L2

15"

10-1/8"

8. Use a small drill and drill a small hole fr screw insertion.

CAUTION: Do not to drill through entire stand wall.

Using a small Phillips head screwdriver, install the four

wood mounting screws.Leave 1/4" of screw offset for

Power Center installation.

1/4" Offset

6Install 2 cable

tie mounts

4Install surge protector

using velcro

5Plug power supplies

into surge protector

7Mark mounting holes for power center

15" Wide x 10-1/8" High

8Install screws and

leave 1/4" offset

Page 3

9. Plug the LOOP® IC controller into Port #1 on

the Orbit IC manifold HUB. If using the optional

remote IR sensor, plug into Port #2.

10. Use either the velcro tape included with the

LOOP® IC controller or install the controller

mounting bracket to the desired location

following the included instructions.

11. Unpack IR remote and remove clear tab

located at the bottom of the remote. Press

the red POWER key located in the top

right corner and ensure to ensure the

controller and remote are communicating.

12. Plug surge protector into a GFCI protected outlet and ensure drip loop is in place. CAUTION:

This product MUST be plugged into a GFCI protected outlet.

13. Toggle the surge protector POWER switch to the ON

position. Ensure the green indicator lights on all power

supplies illuminate and the LOOP® IC controller and

HUB indictor lights all turn On.

14. Install Power Center to stand wall by squeezing each

side of the Power Center inwards and aligning the

mounting slots with the wood mounting screws.

Power Center should flex out when released and be

mounted to stand wall. (See below)

Power Center Installation

P1P3 P2 L1L2

LOOP® Marine Bundle Kit

PORT #2

IR Sensor

(Optional) PORT #2

LOOP® IC

Controller

Orbit Marine IC

Manifold HUB

eFlux Wave Pump

Manifold HUB

eFlux DC Pump

Manifold HUB

! " #

POWER

Remove

clear tab

AC Power

GFCI Outlet

Use only with GFCI

Protected AC Outlet

Ensure use of drip

loop for all cables

Surge Protector

P1P3 P2 L1L2 P1P3 P2 L1L2

+Wood

Screw

+Wood

Screw

Wood

Screw

Wood

Screw

Squeeze side panels slightly together

Side panels will ex out when released

+Wood

Screw

+Wood

Screw

Wood

Screw

Wood

Screw

10 Install controller

9Plug in controller

11 Remove IR Remote clear tab

Press Power Key

12 Plug surge protector

into GFCI AC outlet

14 Install

Power Center

Page 4

Step 2. Install Adjustable Tank Mount Arm Brackets

1. Unpack both Tank Mount Arm Bracket boxes, remove components and mounting hardware.

Each arm bracket should include the following:

1 x Aluminum arm w/bracket (pre-installed)

2 x Light fixture clip with screw and turn nut

4 x Bracket attachment screws

2. Determine mounting location on tank where

the arm bracket will be installed. Clean glass

of any algae or debris before installation.

3. Determine bracket mounting height to suspend fixtures over aquarium.

Bottom Holes = Suspends fixture ~5"over tank

Middle Holes = Suspends fixture ~6"over tank

Top Holes = Suspends fixture ~7"over tank

4. If mounting height needs adjusted, unscrew the back tank mount

screws with a screwdriver. Adjust bracket to the correct height

and reassemble.

5. Loosen adjustment screws to fit over aquarium glass or frame. DO

NOT CUT YOUR FRAME. If you require a larger bracket for a wide

frame tank, please contactus at [email protected].

6. Place arm bracket on aquarium in desired location and hand tighten

adjustment screws to fasten the arm bracket to tank. DO NOT

OVERTIGHTEN.

7. Place light fixture clips with screw into slot of arm bracket, then

tighten with turn nut. Front-to-back position can be adjusted using

turn nut and sliding light and clip to optimal position.

8. When ready, slide light fixture into light clip and position fixture to

optimal position. Route light cable behind tank arm mount and

follow fixture instructions.

IMPORTANT: Follow all safety instructions

included with each tank mount arm bracket.

Adjustable Tank Mount Arm Bracket Installation

LOOP® Marine Bundle Kit

Attach fixture by sliding

horizontally into fixture clip

1 Unpack components

5 Loosen adjustment screws

attach bracket to tank.

4 Adjust height

Attach fixture clips

8 Slide fixture into clips

Page 5

Step 3. Install Orbit Marine PRO IC LED Lights

1. Unpack LED light fixture box and remove all components and mounting hardware.

2. Mount light fixture on aquarium

Method 1: Adjustable docking legs

Slide the adjustable docking legs on the sides of the light fixtures to match the length of

your aquarium. Ensure the LED light cords are located on the side of the aquarium closest

to the Power Center installation. Set fixtures on aquarium and ensure docking legs fit snug

on edges of aquarium. Route lighting cables down to Power Center and organize

using the included velcro cable wraps.

Method 2: Adjustable tank arm mounts

Remove adjustable docking legs from each light by sliding legs outwards. The legs do

have a lock washer installed to prevent accidental pull out - therefore some force may

be required to remove them (give them a good pull.) Slide fixtures into light clips on each

arm bracket and adjust fixtures to optimal position. Route lighting cables down arms

using the included velcro cable wraps.

3. Route lighting cables behind stand and to

Power Center. Plug Orbit Marine IC LED lights

into lighting ports L1 and L2 on Orbit IC HUB.

4. Wrap any excess cable together and use

Power Center Tie Wrap to attach the excess

cable.

5. Press red POWER key on remote, turn LED

lighting ON.

6. Follow programming steps included with

Orbit Marine IC LED light to set the

LOOP® IC controller clock and begin

operation.

7. Wrap excess lighting cable to

power center using cable tie

mounts.

Orbit Marine IC PRO Installation

LOOP® Marine Bundle Kit

Light #2 Light #1

L1L2

LOOP® IC

Controller

Orbit IC HUB

Page 6

Step 4. Install eFlux Wave Pumps

1. Unpack all components from eFlux Accessory Wave Pump boxes.

2. Choose a mounting location inside the aquarium on one of the vertical glass walls for your

wave pumps. Clean location of any dirt, algae or calcium deposits.

3. Install cable wrapping around wave pump

cable. This protects the pump cable from

triggerfish, urchins and other animals that

may damage the pump cable. Place pump

prefilter over pump end.

4. Carefully separate magnet from pump and

place pump into position in the aquarium.

Attach pump to tank using magnet. Swivel

and adjust pump as desires.

5. Route wave pump cables behind stand to

Power Center. Plug wave pumps into wave

pump ports P1 and P2 on eFlux Wave Pump

Manifold HUB (middle blue HUB). Ensure a drip

loop is in place.

6. Wrap any excess cable together and use

Power Center Tie Wrap to attach the excess

cable.

7. Press light blue wave pump POWER key

on remote, turn wave pumps on.

8. Follow programming steps included with

Orbit Marine IC PRO LED light to program

pumps and adjust flow mode and flow

rate on wave pumps.

eFlux Wave Pump Installation

LOOP® Marine Bundle Kit

Install cable

wrapping & optional

pump prefilter

P1P3 P2

eFlux Wave Pump

Manifold HUB

Connect to P2 Connect to P1

5 5

Install wave pump

attach with magnet

NOTE: READ ALL SAFETY INSTRUCTIONS

INCLUDED WITH EACH PRODUCT

Page 7

Step 5. Install eFlux DC Flow Pumps

1. Unpack all components from eFlux DC Flow Pump box.

2. Determine installation method

eFlux DC Flow Pump Installation

LOOP® Marine Bundle Kit

The eFlux DC flow pump can be installed either submersible (internal) or inline (external). If using

in a submersible application, please use the inlet pump screen (included).

Submersible External Inline

3. Install Pump from eFlux DC Flow Pump box.

1. Thread pump filter screen to inlet of the pump.

Place O-ring inside the outlet barb fitting and quick

coupling. Thread barb fitting to pump and hand tighten.

Submersible (internal) Installation

3. Connect return hose (not included) by sliding over barb

fitting. Ensure hose is secured using a hose clamp (not

included).

2. Place o-ring inside the outlet barb fitting and quick coupling.

Thread barb fitting to pump outlet and hand tighten.

Inline (external) Installation

3.Connect inlet hose (not included) by sliding over inlet barb

fitting. Ensure hose is secured by using a hose clamp (not

secure with clamp (not included).

1. Place o-ring inside the inlet barb fitting and quick coupling.

Thread barb fitting to pump inlet and tighten.

Fill sump with water and check for water/air leaks.

included.) Connect return hose to outlet barb fitting and

Fill sump with water and check for water/air leaks. 1

4. Route DC pump cable to Power Center (larger model #4302 includes a DC pump extension

cable if required.) Plug DC pump into pump connection on DC manifold HUB (gray HUB.)

5. Adjust flow dial from 0-100% until desire flow rate is

achieved. Note: eFlux DC Flow pumps have a slow

start up/ramp to full speed. Allow pump to run 30

seconds to reach adjusted flow. eFlux DC Pump

Manifold HUB

NOTE: READ ALL SAFETY INSTRUCTIONS

INCLUDED WITH EACH PRODUCT

Connect to

Pump Input

Adjust

Flow

Page 8

Este manual sirve para los siguientes modelos

Otros manuales de Acuario de Current

Current

Current SERENE Manual de usuario

Current

Current Satellite LED Plus Pro Manual de usuario

Current

Current AQUACHEF 8024 Manual de usuario

Current

Current Satellite Manual de usuario

Current

Current Aquabetta 7001 Manual de usuario

Current

Current 7058 Manual de usuario

Current

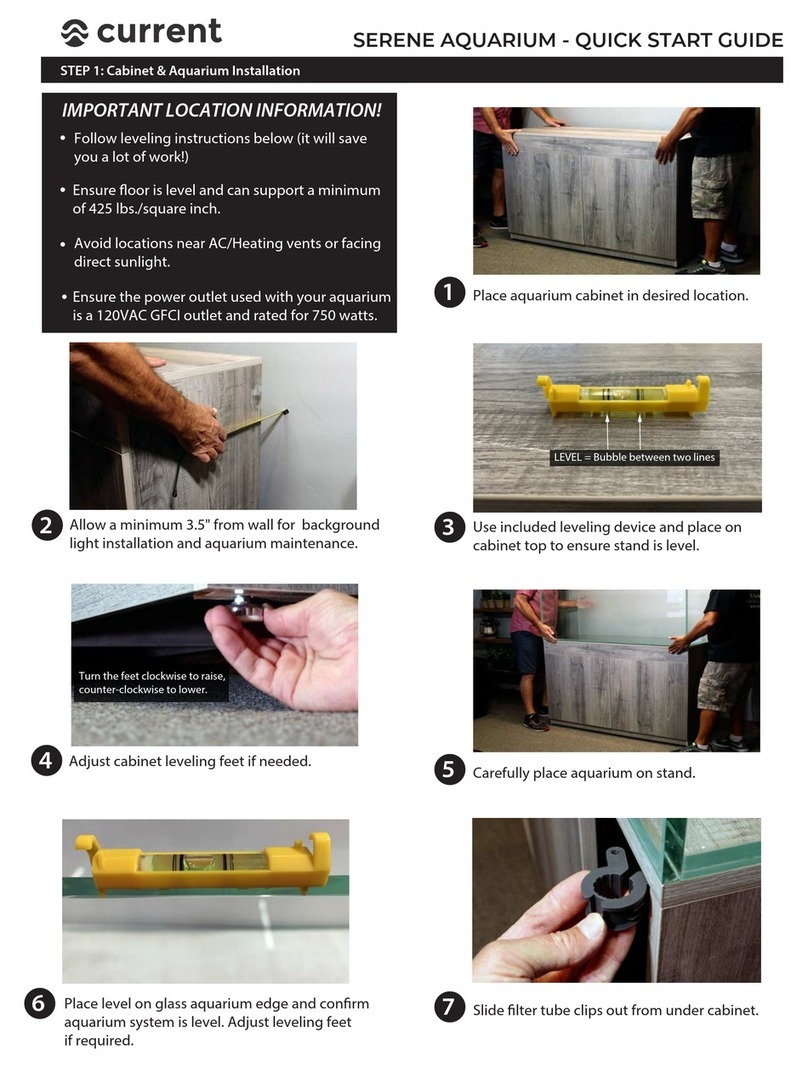

Current SERENE 13G Manual de usuario

Manuales populares de Acuario de otras marcas

AquaLighter

AquaLighter Aquascape Manual de usuario

EHEIM

EHEIM 600 T Manual de usuario

Red Sea

Red Sea REEFER XL300 Manual de usuario

AutoAqua

AutoAqua Smart Stir SS-100 Manual de usuario

eKoral

eKoral eKoral Pro Manual de usuario

fish mate

fish mate F14 Manual de usuario

JBL

JBL PRO SILENT S-100 Manual de usuario

Amtra

Amtra VEGA Manual de usuario

JBL

JBL CRISTALPROFI i60 greenline Manual de usuario

Aquatlantis

Aquatlantis Tecatlantis EASY LED UNIVERSAL 2.0 Manual de usuario

Innovative Marine

Innovative Marine MightyJet 8500 Mini Instrucciones de funcionamiento

SuperFish

SuperFish Planty 25 Guía de instalación

Royal Exclusiv

Royal Exclusiv Bubble King DeLuxe 300 Manual de usuario

Sera

Sera Marin Precision Biotop LED Cube 130 Manual de usuario

Commodity Axis

Commodity Axis ViaAqua Titanium Heater Manual de usuario

Sander

Sander Ozonizer P 2000 Manual de usuario

Hagen

Hagen HALF MOON Manual de usuario

CPR

CPR CS150 Manual de usuario
