Cumberland CCF20 Manual de usuario

PNEG-1565

Circulation Fan

Models:

CCF20

3CF20

BSK24

BSK24HD

BSK36

Installation Manual

PNEG-1565

Version: 5.0

Date: 01-31-20

2PNEG-1565 Circulation Fan

All information, illustrations, photos and specifications in this manual are based on the latest

information available at the time of publication. The right is reserved to make changes at any

time without notice.

Table of Contents

PNEG-1565 Circulation Fan 3

Contents

Chapter 1 Safety Information ................................................................................................................................4

Chapter 2 Safety Decals ........................................................................................................................................5

Chapter 3 Installation ............................................................................................................................................6

Fan Hanger Installation ..........................................................................................................................6

Fan Installation Options .........................................................................................................................7

Chapter 4 Parts List ...............................................................................................................................................9

20" Circulation Fan (CCF20) Parts .......................................................................................................10

20" Circulation Fan (3CF20) Parts .......................................................................................................11

24" Circulation Fan (BSK24) Parts .......................................................................................................12

24" HD Circulation Fan (BSK24HD) Parts ...........................................................................................13

36" Circulation Fan (BSK36) Parts .......................................................................................................14

Chapter 5 Warranty ..............................................................................................................................................15

4PNEG-1565 Circulation Fan

1. Safety Information

ELECTRICAL SAFETY

An adequate and safe power supply to the Circulation Fan is essential for

safety. A competent and qualified electrician must undertake all electrical

wiring. All wiring is to be installed according to the National Standards and

Regulations relevant to your Country and Region. Remember, electrical safety is

your responsibility.

CORRECT USE OF YOUR CIRCULATION FAN

Only genuine Cumberland parts are to be used in installation and use of the

Circulation Fan. Use of other non-genuine parts is a misuse of the system and

may lead to dangerous situations imperilling the safety and health of you

and others.

This product is intended for the use in ventilation of poultry buildings only.

Any other use is considered a misuse of the product. This fan is not designed

for use in atmospheres where there is a risk of explosion. Such environments

may include enclosed areas of high dust concentrations, gas vapors and fumes.

Use of the Circulation Fan in such an environments is prohibited. If in doubt,

contact Cumberland or your dealer.

SAFETY GUARDS

The Circulation Fan contains many moving and electrical parts, which will

cause serious injury or death if touched. Guards are placed on the unit for your

protection. Operating the unit at any time with guards removed or incorrectly

fitted is a serious misuse of the fan and endangers safety.

SAFETY IN HANDLING THE CIRCULATION FAN

Components of the Circulation Fan require manual handling and lifting during

assembly and installation. To prevent injury, seek assistance where necessary.

CORRECT INSTALLATION OF 3CF20 CIRCULATION FAN MODEL

Rotating blade must be installed a “MINIMUM” of 7' above floor or working level

on fan model 3CF20. The fan model CCF20 can be installed at any height above

floor or working level.

PNEG-1565 Circulation Fan 5

2. Safety Decals

DC-1540

DC-2187

Lockout power

before servicing.

HIGH VOLTAGE

Will cause serious

injury or death.

STAY CLEAR OF

ROTATING BLADE

May cause serious injury.

Blade may start

automatically.

Disconnect and

lockout power sources

before servicing.

FLYING OBJECTS

HAZARD

Danger of eye injury.

Wear eye protection.

DANGERDANGER WARNING

WARNING

DC-1540The GSI Group 217-226-4421

WARNING

GSI Group 217-226-4421 DC-2187

ROTATING BLADE

Stay clear.

Rotating blade must be installed a minimum

of 7 feet (2.13 m) above floor or working level.

Rotating blade will cut

and crush, causing

serious injury.

INSTALLATION INSTRUCTIONSINSTALLATION INSTRUCTIONS

6PNEG-1565 Circulation Fan

3. Installation

NOTE: It does not apply to 24" and 36" size Circulation Fans.

NOTE: Locate packing slip and make sure that all listed parts are enclosed. If parts are missing contact

the dealer immediately. Read and understand all instructions in this manual before installing the

fan mounting bracket and fan.

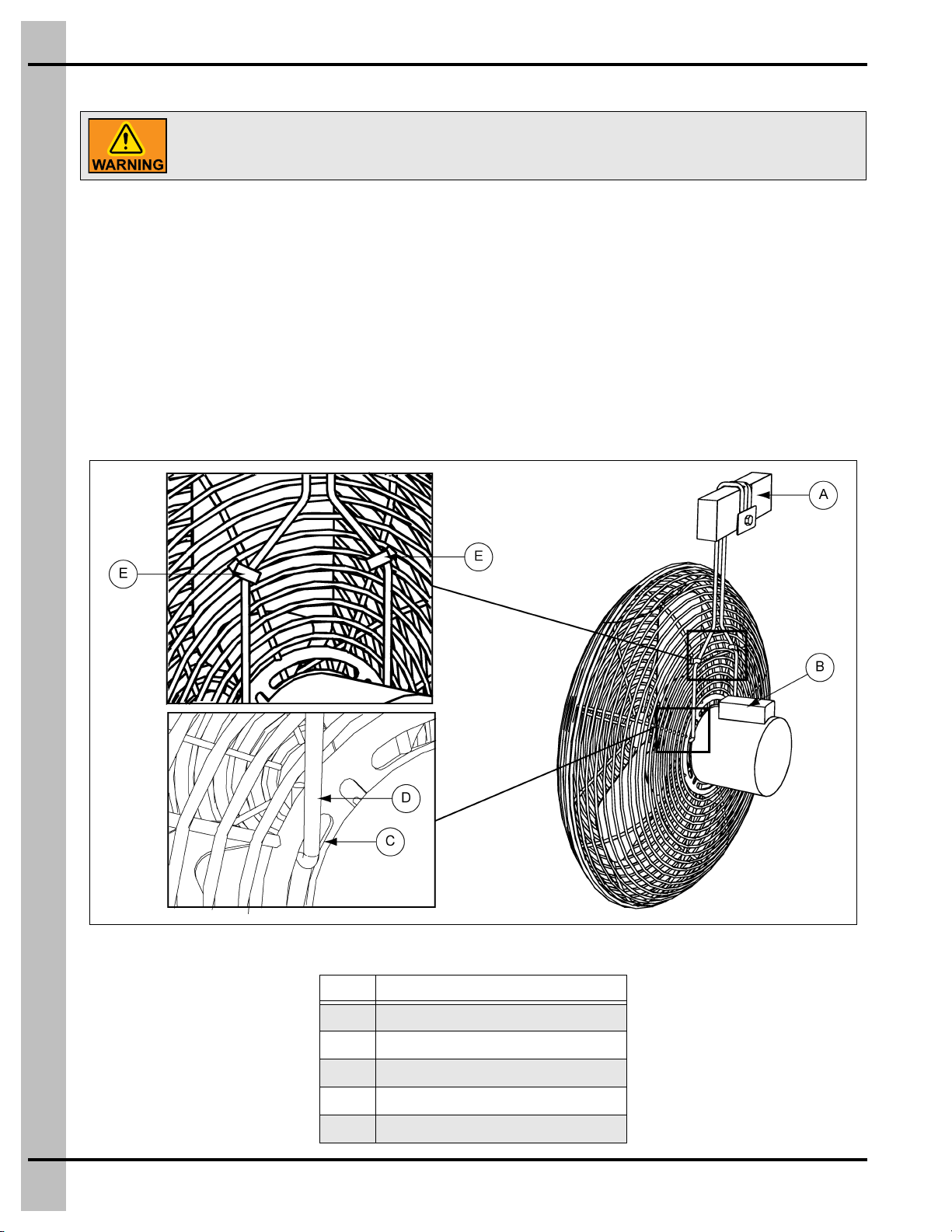

Fan Hanger Installation

1. Slide both hooks (D) between inner ring (C) of guard and motor. (See Figure 3A.)

2. Using two (2) plastic zip ties (E), attach hanger to grill guard. Wrap zip ties around main support

rod of grill, grill ring and hanger. Trim zip ties when attached. (See Figure 3A.)

NOTE: When fan is hung in place, capacitor cover must be oriented on top of motor (B).

(See Figure 3A.)

Figure 3A

Ref # Description

AOvertop Rafter

B Capacitor Cover on Top of Motor

CInner Ring

D Hanger Hook

EZip Ties Attached

Disconnect all electrical power sources before installing the fan mounting

bracket and fan.

3. Installation

PNEG-1565 Circulation Fan 7

Fan Installation Options

NOTE: It does not apply to 24" and 36" size Circulation Fans.

1. Overtop rafter - Install fan, placing fan hanger overtop of rafter. Place fanmount washer on front side

of loop end. Install lag screw/bolt (not included). (See Figure 3A on Page 6.)

Recommended Lag Screw/Bolt

Wood application (lag screw) - Use a minimum diameter of 1/4" with a minimum thread length into

the wood of 2".

Steel application (bolt) - With varying truss designs use a minimum diameter of 1/4" with appropriate

washer and lock nut.

2. Ceiling/underside of rafter - Install fan, placing top of fan hanger flush with bottom side ceiling/rafter.

Place fan mount washer on the underneath side of the top end. Install lag screw/bolt (not included).

(See Figure 3B.)

Recommended Lag Screw/Bolt

Wood application (lag screw) - Use a minimum diameter of 1/4" with a minimum thread length into

the wood of 2".

Steel application (bolt) - With varying truss designs use a minimum diameter of 1/4" with appropriate

washer and lock nut.

Figure 3B

Ref # Description

AUnderside of Rafter/Ceiling

3. Installation

8PNEG-1565 Circulation Fan

Fan Installation Options (Continued)

NOTE: It does not apply to 24" and 36" size Circulation Fans.

3. Open house/angular rafter - Recommended installation on angular rafter (C). NOTE: Fan must be

hung plum (VERTICAL). Using a cut 2 x 4 approximately 4"-5" long screw 2 x 4 (B) into rafter where

fan will be placed. NOTE: 4"-5" Flat side of 2 x 4 must be parallel to the ground floor. Follow Step 2

on Page 7 for placing fan on underside of rafter/2 x 4. (See Figure 3C.)

Figure 3C

Ref # Description

B4"-5" Level 2 x 4

C Angled Rafter

PNEG-1565 Circulation Fan 9

4. Parts List

1. 20" Circulation Fan (CCF20) Parts - (See Page 10.)

2. 20" Circulation Fan (3CF20) Parts - (See Page 11.)

3. 24" Circulation Fan (BSK24) Parts - (See Page 12.)

4. 24" HD Circulation Fan (BSK24HD) Parts - (See Page 13.)

5. 36" Circulation Fan (BSK36) Parts - (See Page 14.)

4. Parts List

10 PNEG-1565 Circulation Fan

20" Circulation Fan (CCF20) Parts

20" Circulation Fan (CCF20) Parts List

Ref # Part # Description Qty

111-0475 Grill, 20" Front White Painted (7' Plus Install) 1

211-0476 Grill, 20" Back White Painted (7' Plus Install) 1

311-0373 Hanger Circulation Fan 20" 1

413-0146R Prop 20" Circulation Fan (2 Blade Prop) 1

515-0134 Motor, 0.10 HP 1725 RPM 60 Hz 1 PH 1

6S-8723 Fender Washer 3/16" x 1" ZN Grade 2 8

7S-7277 Nylock Nut #10-32 ZN Grade 2 4

8S-9405 Washer - Fan Mount 1

9S-9352 Wire Tie Blk 0.300" x 8.0" 2

10 DC-1897 Decal, 2" Diameter Cumberland Logo 1

11 DC-1540 Decal, Danger/Warning, Danger (DC-1224), Warning 1

12 DC-2187 Decal, 20" Fan Mounting Instructions 1

N/S PNEG-1565 Circulation Fan Instruction Manual 1
