Cuisinart CGWM-094 Manual de usuario
DO NOT RETURN YOUR TABLE TO THE STORE
Before visiting your local retailer, call our customer
service department at 1-866-994-6390 from 9:00 am
to 5:00 pm Eastern time, Monday through Friday.
Model NO: CGWM-094
OUTDOOR
PREP TABLE
Customer Service Hotline
1-866-994-6390
SAFETY INFORMATION
CARE AND MAINTENANCE
2
WARNINGS AND USAGE
-----------------------------------------------------------------------------------
IMPORTANT: ALL INSTRUCTIONS AND SAFEGUARDS IN THIS SECTION MUST BE FOLLOWED TO
PREVENT DAMAGE AND/OR INJURY.
• Not for permanent installation.
• For outdoor use only
• Use caution with all electric appliances, tools, extension cords and lights on and around table.
• Surface can become hot in direct sun or high temperatures.
• Maximum top weight load of 50 LBS
• Maximum shelf weight load of 30 LBS
• Use only on level surfaces.
• Before use ensure wheels are height adjusted so that the table does not rock when in use.
• Lock wheels when in use.
• Do not allow children to climb the product.
CALIFORNIA PROPOSITION 65 WARNING:
• WARNING: This product can expose you to lead, which is known to the State of California
to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
CLEANING
-----------------------------------------------------------------------------------
Painted and Plastic surfaces
Wash with mild detergent or non-abrasive cleaner and warm water.
Stainless steel surfaces
Wash with mild detergent and warm soapy water or use a stainless steel cleaner. Wipe dry with a soft cloth
after each use. Wash only in the direction of the stainless brushed finish to avoid damage.
Stainless steel can rust under certain conditions. This can be caused by acidic marinades, chlorine, saltwater,
exposure to coastal climates, other natural elements, or improper cleaning tools such as wire or steel wool.
WHAT’S IN THE BOX
2(x4)
(x1)
(x1)
(x1)
(x1)
(x2)
(x2)
(x2)
(x1)
(x1)
(x1)
(x1)
(x1)
(x1)
(x1)
(x32) (x1)
(x2)
1
3
4
5
6
7
8
11
10
9
12
13
14
15
16
AA BB
PART PARTDESCRIPTION DESCRIPTIONQTY QTY
3
Counter Top
Assembly
Garbage Bag
Ring
Garbage Bag
Support
Side Panel
Name Plate
Left Back
Leg (LB)
Shelf
Left Front
Leg (LF)
Right Back
Leg (RB)
Paper Towel
Bar
Right Front
Leg (RF)
Towel
Bar End
Locking
Caster
Non-Locking
Caster
Screw Wrench
Tool
Hook
Rear
Support
COMPONENTS
-----------------------------------------------------------------------------------
HARDWARE AND TOOLS
-----------------------------------------------------------------------------------

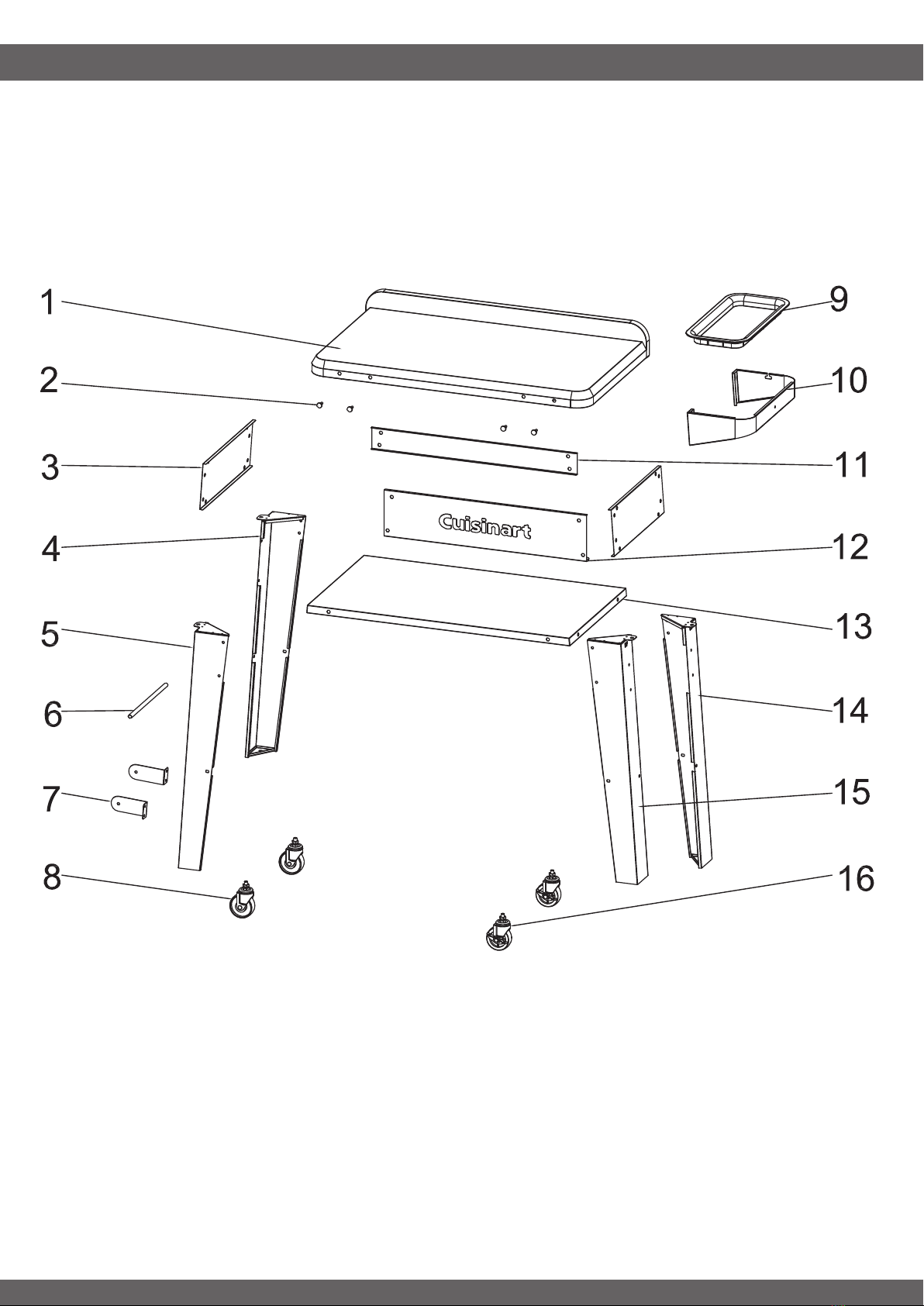

EXPLODED VIEW
4
Assembly Tip: To avoid scratching prep table and to protect floor/patio surfaces, reuse cardboard packaging
and lay parts on top while assembling.
STEP 1
-----------------------------------------------------------------------------------
To create “screw assemblies” for future steps, install all 40 of the lock washers (BB) onto all 40 screws (AA).
Install locking casters (16) and non locking casters (8) on opposing ends as shown. Use the double-ended
open wrench (BB) to attach the 4 casters (16, 8) onto the bottom of each leg.
ASSEMBLY INSTRUCTIONS
Please be careful when handling components. Always wear work gloves during assembly and set up. Read
and follow all safety statements, warnings, assembly instructions and use and care instructions before
attempting to assemble and use. Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents list. If any part is missing or damaged, DO
NOT attempt to assemble the product.
Estimated Assembly Time: 1 hour
Tools required for assembly: (included) Wrench, (not included) Phillips Head Screwdriver (magnetic tip will be
helpful), Gloves
Screw Assembly
AA BB
ASSEMBLY PREPARATION
5
Included Not Included
ASSEMBLY INSTRUCTIONS
STEP 2
-----------------------------------------------------------------------------------
Use screw assemblies to attach the middle portion of left back leg (4) (LB) and the right back leg (14) (RB) to the
shelf (13) as shown below.
• Note: it is important to not fully tighten the screws during initial assembly of the parts. Wait until
the counter top assembly is installed before fully tightening all screws on the cart.
• Note: Legs are punched with markings to indicate position for assembly, (LB, RB, LF, RF).
6
STEP 3
-----------------------------------------------------------------------------------
Use screw assemblies to attach the left front leg (5) (LF) and the right front leg (15) (RF) to the shelf (13).
2
2
2
2
x 2
x 4
x 2
ASSEMBLY INSTRUCTIONS
7
2
x 8
STEP 4
-----------------------------------------------------------------------------------
Use screw assemblies to attach side panels (3) to the left and right leg assemblies using four screws for each).
2
2
2
2
x 4
x 8
ASSEMBLY INSTRUCTIONS
8
STEP 5
-----------------------------------------------------------------------------------
Use screw assemblies to attach name plate (12) to the left front leg (5) (LF) and the right front leg (15) (RF).
Next use screw assemblies to attach the rear support (11) to the left back leg (4) (LB) and the right back leg
(14) (RB).
22
x 2x 2

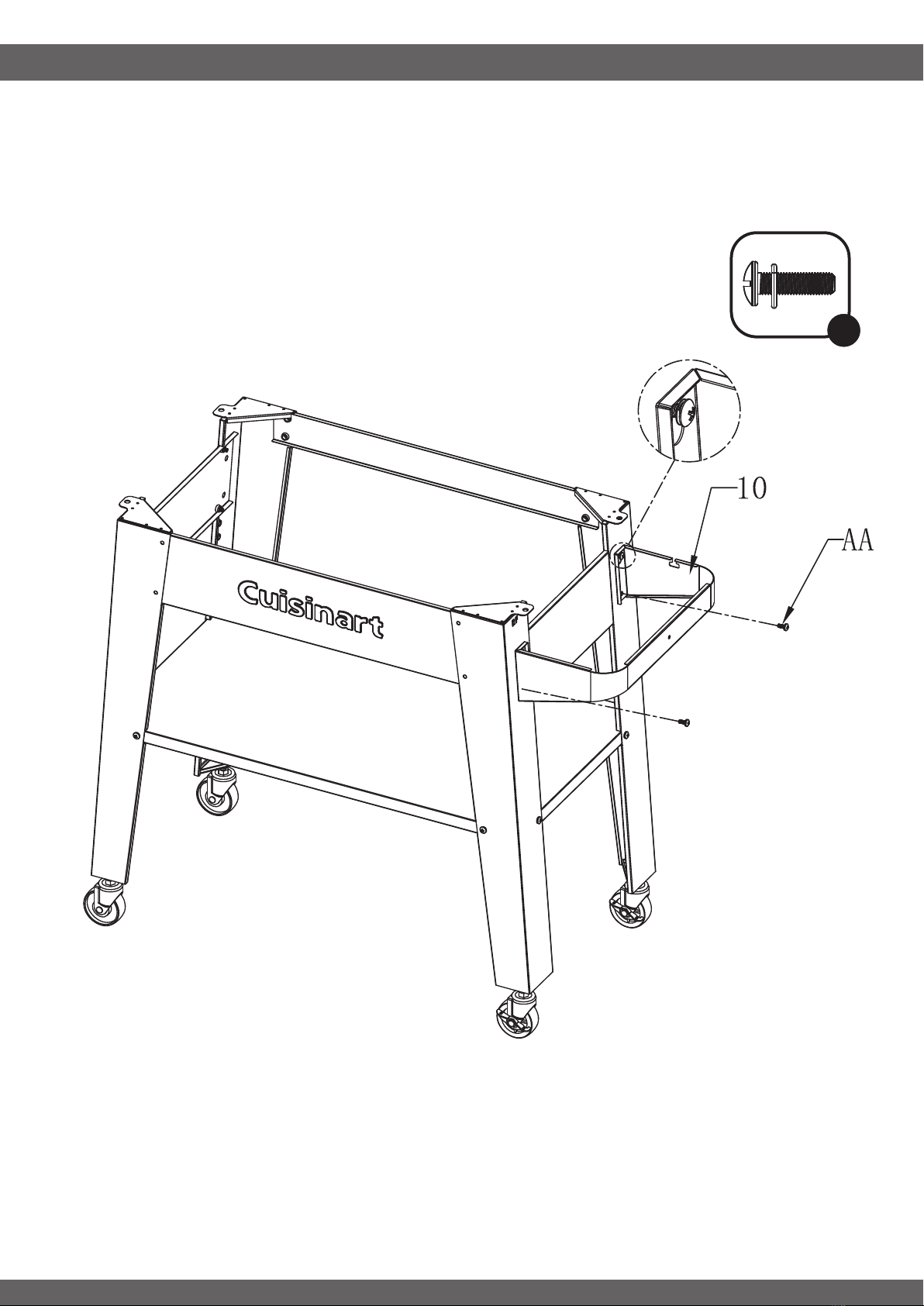

STEP 6
-----------------------------------------------------------------------------------
Use screw assemblies to attach the garbage bag support (10) to the right leg assembly using the two
previously installed screws and the slotted upper holes. Then install two screws in the lower holes to secure in
place.
STEP 6
-----------------------------------------------------------------------------------
Use screw assemblies to attach the garbage bag support (10) to the right leg assembly using the two
previously installed screws and the slotted upper holes. Then install two screws in the lower holes to secure in
place.
ASSEMBLY INSTRUCTIONS
9
22
x 2x 2
ASSEMBLY INSTRUCTIONS
10

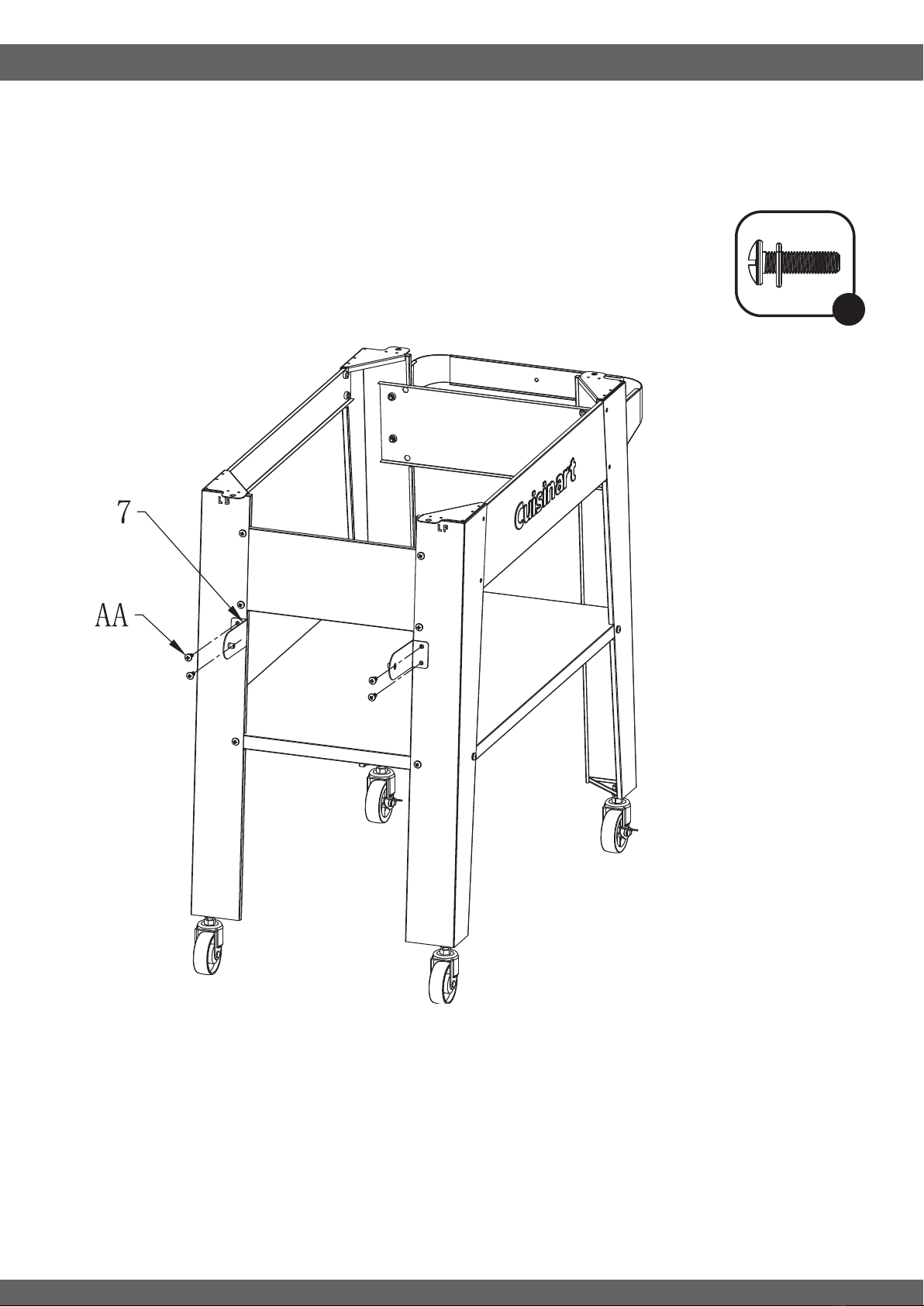

STEP 7
-----------------------------------------------------------------------------------
Use screw assemblies to attach both of the towel bar ends (7) to the left leg assembly.
2
2
x 4
