Crystal Vision ADDEC-100 Manual de usuario

Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.

E-mail: [email protected] Website: www.crystalvision.tv Tel: +44(0) 1223 497049 Fax: +44(0) 1223 497059

ADDEC-100

Analogue to SDI decoding converter

ADDEC-100 User Manual R1.1 Crystal Vision

119/06/2007

Contents

1 Introduction 3

1.1 Operating modes 4

Analogue video formats 4

Video Input loss behaviour 4

Status and control 4

2 Hardware installation 5

2.1 Rear modules and signal I/O 5

Rear module connections with RM01 5

Rear module connections with RM24 6

Rear module connections with RM25 6

Rear module connections with RM27 7

Module configuration 8

V / SDI OUT port configuration 8

U / YC-C / SDI OUT port configuration 8

2.2 General Purpose Interface (GPI) 9

3 Card edge operation 12

3.1 Card edge switch settings 12

3.2 Reading card edge LEDs 13

3.3 Card edge configuration 13

Input Video format 13

Selecting the Input video format 13

Suppressing NTSC setup (pedestal) 13

Vertical blanking interval data 14

Control 14

Factory Reset 14

ADDEC-100 User Manual R1.1 Crystal Vision

219/06/2007

4 Using the active front panel 15

4.1 Module selected 15

The ADDEC-100 menu structure 17

Betacam format 18

NTSC setup (pedestal) 18

Input configuration 18

Vertical blanking interval information 19

5 Statesman 20

5.1 Statesman operation 20

Status 21

6 Trouble shooting 22

6.1 Card edge monitoring 22

Status LEDs 22

6.2 Fault finding guide 23

7 Specification 24

Revision 1. Board edge switch position information corrected. 14-06-07

Crystal Vision Introduction

ADDEC-100 User Manual R1.1 319/06/2007

1Introduction

The ADDEC-100 decoder will convert PAL/NTSC composite, Y/C or YUV component

video to SDI using a high quality 12-bit decoder which can deal with any source from

broadcast quality to VHS, and will accept damaged or jittery signals. The data is sampled

at 54 Mbit per second (four times oversampled) allowing the highest quality digital

filtering. It also offers the latest in comb technology, with a five-line comb resulting in

exceptional decoding. Timing, gains and levels are also adjustable.

The ADDEC-100 will fully integrate with any other interface or keying product from the

Crystal Vision range. The large choice of control options, which include board edge

control, local or remote active control panel and the Statesman PC Control System afford

further flexibility.

•12-bit digital decoding converter

•Suitable for all sources, from broadcast quality to VHS

•High quality digital filtering and 5-line comb

•Flexible control, including PC software.

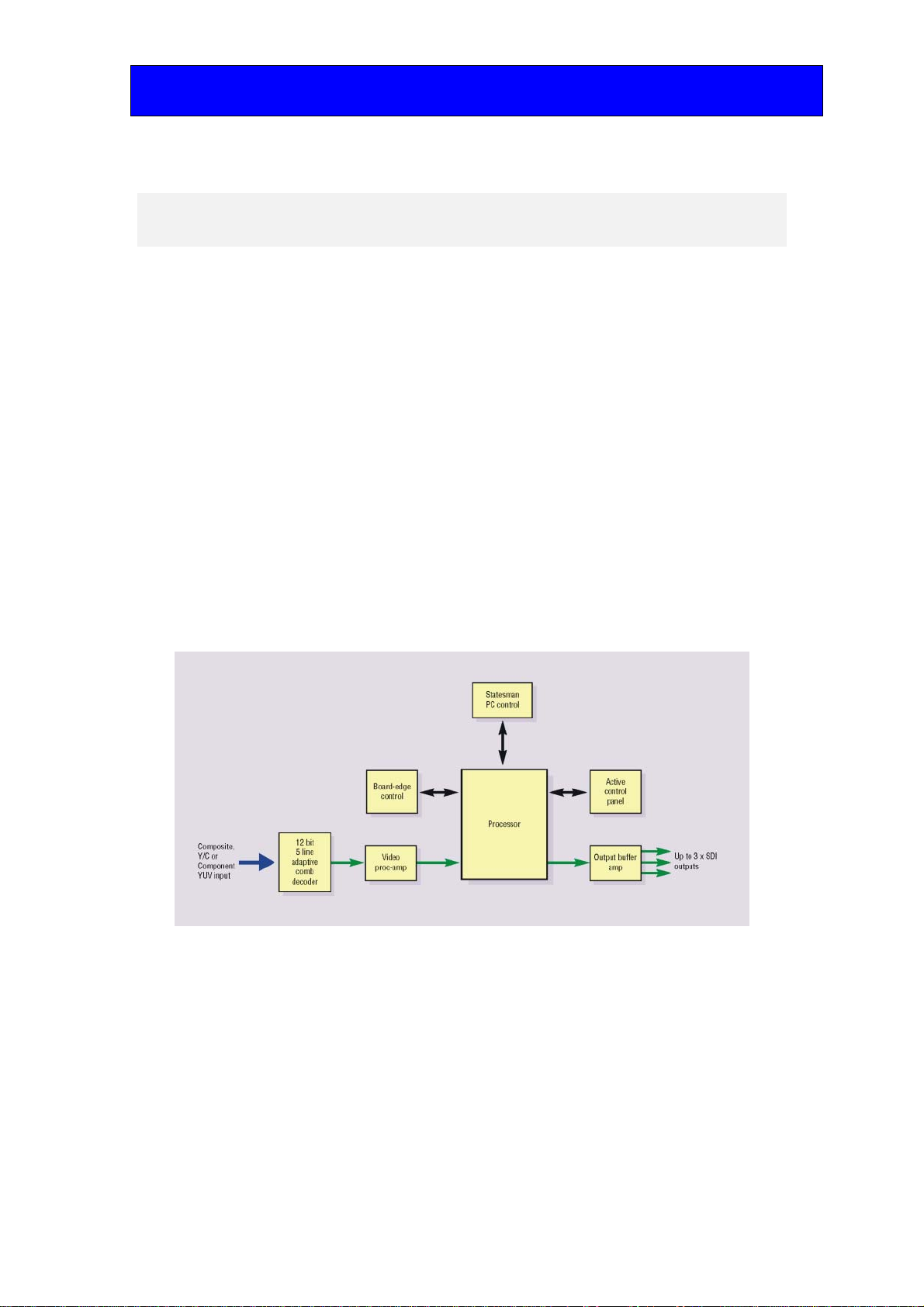

ADDEC-100 12-bit Decoder

ADDEC-100 is a 100mm x 266mm module that fits in Crystal Vision’s four standard

frame sizes. 24 modules fit in 4U, 12 modules fit in 2U, six in 1U or two in a desktop box.

The RM01, RM24, RM25 and RM27 are the rear modules available for the ADDEC-100.

Crystal Vision Introduction

ADDEC-100 User Manual R1.1 419/06/2007

1.1 Operating modes

Analogue video formats

The composite video input may be selected to be composite or Y/C PAL/NTSC or

525/625-line component YUV. Input standard selection is automatic and will follow the

input video. Data in the VBI (vertical blanking interval) of the analogue composite input

can be blanked or passed. NTSC- J and NTSC-M with or without 7.5% IRE setup is also

selectable when receiving an NTSC format video input.

Video Input loss behaviour

The ADDEC-100 output will cut to blue immediately on loss of input video.

Status and control

Comprehensive status and control is available from the ADDEC-100 using the board edge

menu selection switches and LEDs. Control and status reporting is also available from

either an active frame front or remote active control panel. PC control is also available

using Crystal Vision’s Statesman PC control software.

Note: When the ADDEC-100 is set to remote control mode the position of the board edge

switches may not reflect the actual configuration of the card. Returning the card to local

control will reassert the board edge configuration.

Crystal Vision Hardware installation

ADDEC-100 User Manual R1.1 519/06/2007

2Hardware installation

The ADDEC-100 single height module uses the RM01 and RM24 single height, RM27

double height and RM25 quad height (Indigo 2 and Indigo 4 frames only) rear connectors

and fits into all Crystal Vision rack frames. All modules can be plugged in and removed

while the frame is powered without damage.

2.1 Rear modules and signal I/O

The Indigo 4 4U frame will house up to 24 single height modules with up to three power

supplies. The Indigo 2 2U frames will house up to 12 single height modules and dual

power supplies. The Indigo 1 1U frames will house six single height modules and a single

or dual power supply. The Indigo DT desktop boxes have a built-in power supply and will

house up to two single height modules.

Note: For details of fitting rear connectors please refer to the appropriate frame manual.

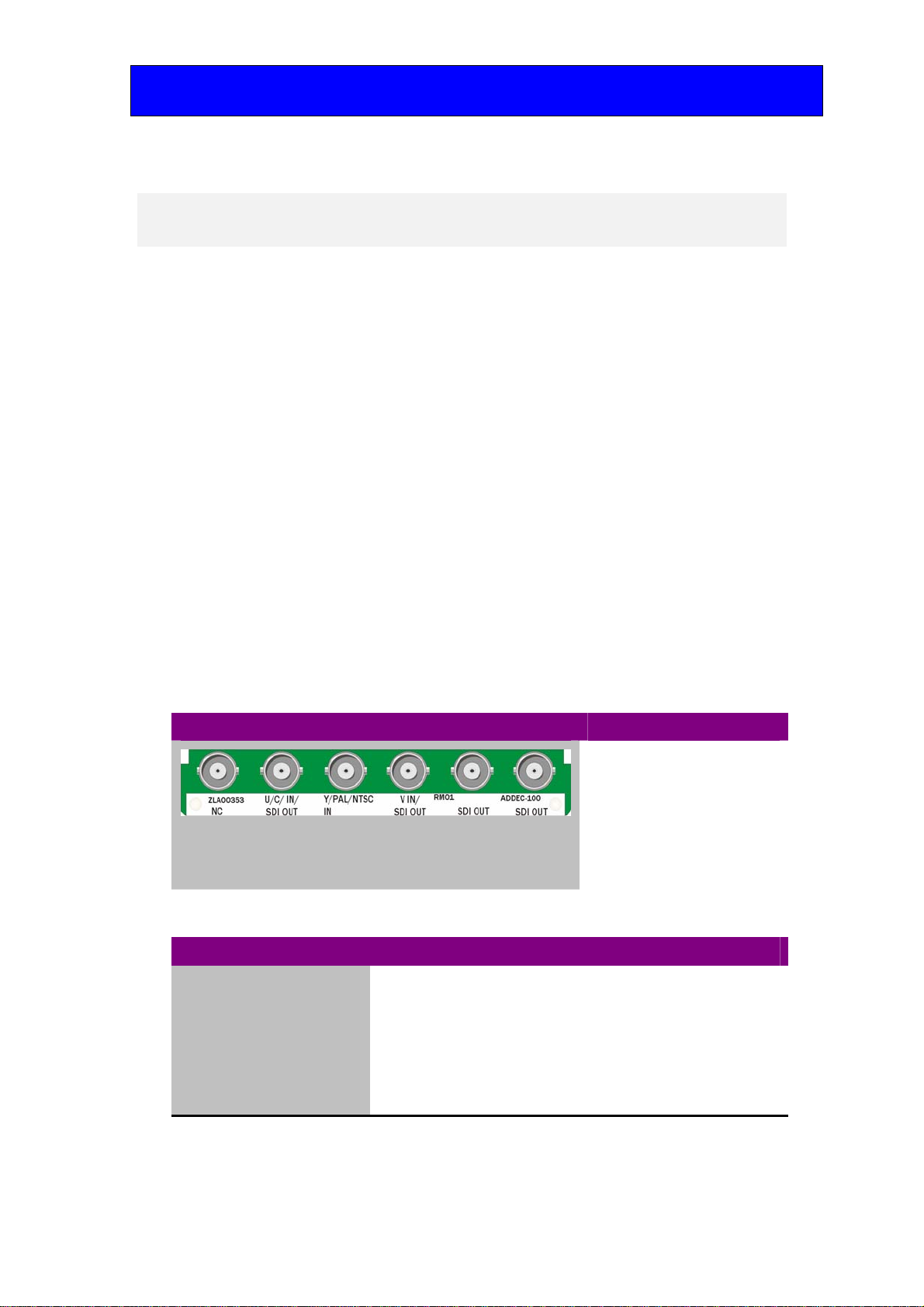

Rear module connections with RM01

RM01 fits in all frames Description

RM01

•24 ADDEC-100 modules

per Indigo 4 frame

•12 per Indigo 2 frame

•Six per Indigo 1 frame

•2 per Indigo DT

•All frame slots can be

used

BNC I/O assignment

SDI OUT Serial digital output

V/SDI OUT Component V / SDI output (link selectable)

Y/ PAL/NTSC IN Component Y, YC-Y / PAL/NTSC input

U/C/SDI OUT Component U / YC-C / Serial digital output (link selectable)

NC No user connection

Crystal Vision Hardware installation

ADDEC-100 User Manual R1.1 619/06/2007

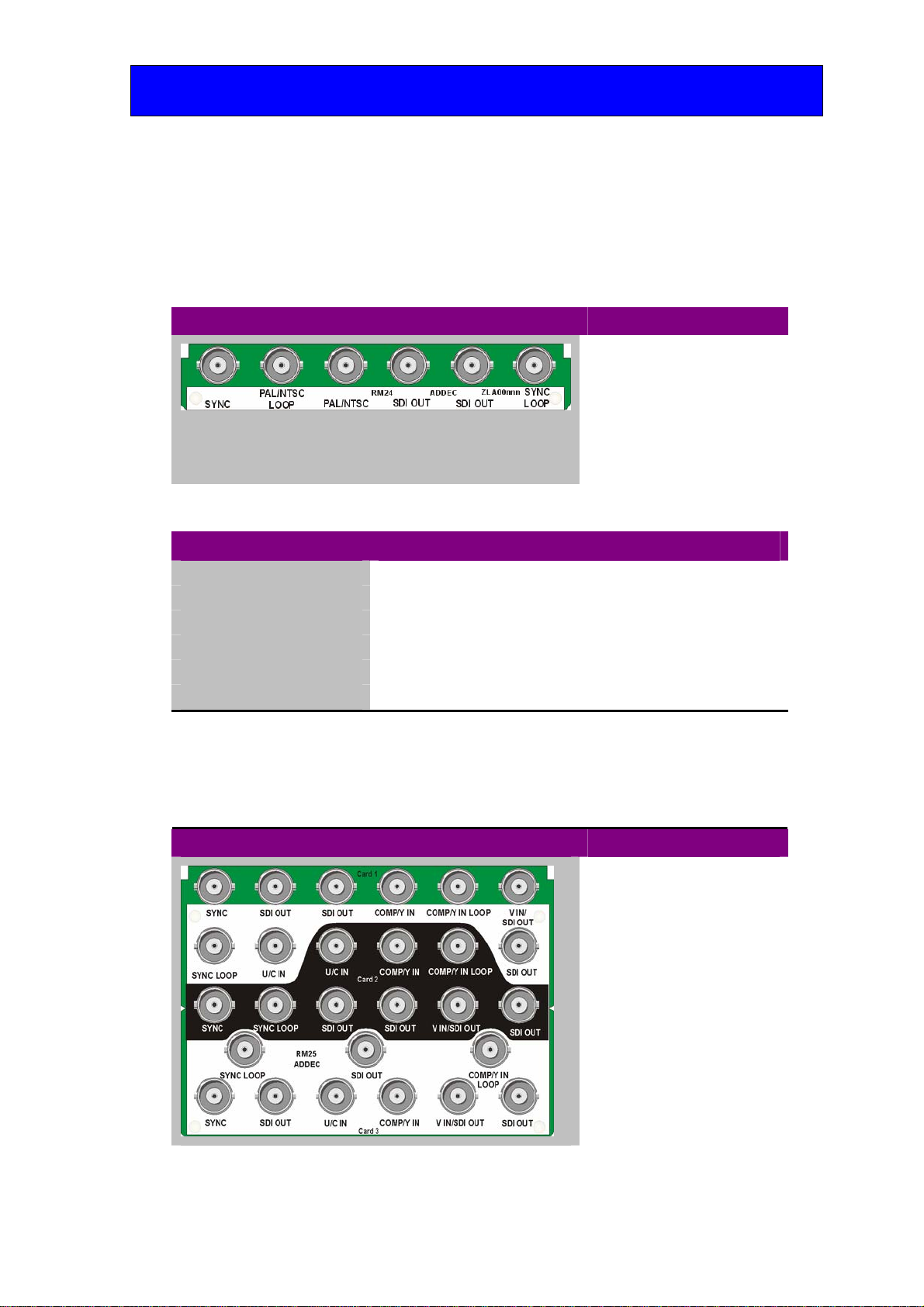

Rear module connections with RM24

The RM24 although having restricted inputs can be used when a loop-through is required

for a composite PAL/NTSC input.

RM24 fits in all frames Description

RM24

•24 ADDEC-100 modules

per Indigo 4 frame

•12 per Indigo 2 frame

•Six per Indigo 1 frame

•2 per Indigo DT

•All frame slots can be

used

BNC I/O assignment

SYNC LOOP No user connection

SDI OUT Serial digital output

PAL/NTSC IN Component PAL/NTSC input

PAL/NTSC LOOP Component PAL/NTSC input loop-though

SYNC IN No user connection

Rear module connections with RM25

The RM25 combines an increased number of connections with a slightly decreased

packing density. Modules may be fitted in the top two and bottom slots.

RM25 fits in Indigo 2 and Indigo 4 frames Description

RM25

•9 ADDEC-100 modules

per Indigo 4 frame

•9 per Indigo 2 frame

•Not supported by Indigo 1

or Indigo DT frames

•Two top slots and bottom

slot can be used

Crystal Vision Hardware installation

ADDEC-100 User Manual R1.1 719/06/2007

Channel A I/O assignment

SDI OUT Serial digital output

V IN/SDI

OUT Component V / SDI output (link selectable)

COMP/Y IN

LOOP Component Y or PAL/NTSC input loop-through

COMP/Y IN Component Y or PAL/NTSC input

SDI OUT Serial digital output

SYNC No user connection

SYNC LOOP No user connection

U/C Component U / YC-C input

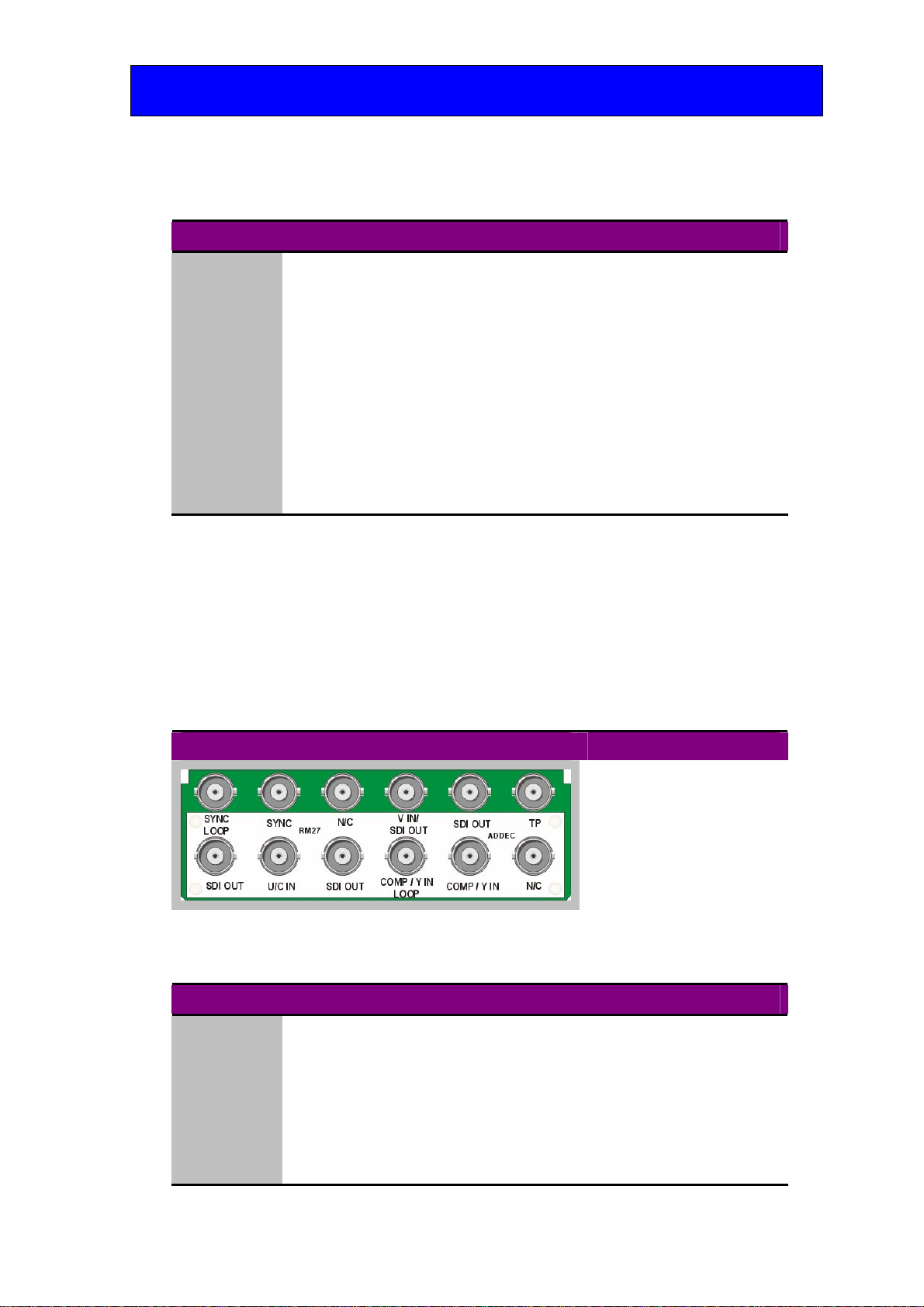

Rear module connections with RM27

The RM27 is a dual height rear module, which although restricts the number that can be

fitted into each style of frame, allows the maximum number of outputs - up to four serial

digital. When fitted the ADDEC-100 uses the top slot of any pair.

RM27 fits in all frames Description

RM27

•12 ADDEC-100 modules

per Indigo 4 frame

•Six per Indigo 2 frame

•Three per Indigo 1 frame

•1 per Indigo DT

•Every other slot can be

used

Channel A I/O assignment

TP No user connection

SDI OUT Serial digital output

V IN/SDI

OUT Component V / SDI output (link selectable)

N/C No user connection

SYNC No user connection

SYNC LOOP No user connection

Crystal Vision Hardware installation

ADDEC-100 User Manual R1.1 819/06/2007

N/C No user connection

COMP / Y IN Component Y, YC-Y / PAL/NTSC input

COMP / Y IN

LOOP Component Y, YC-Y / PAL/NTSC input loop-though

SDI OUT Serial digital output

U/C Component U / YC-C input

SDI OUT Serial digital output

Note: For details of fitting rear connectors please refer to the appropriate frame manual.

Module configuration

The ADDEC-100 has four user selectable jumper links, which are used to configure both

the Component U / YC-C / Serial digital output and the Component V / SDI output.

V / SDI OUT port configuration

The Component V / SDI OUT port can be configured by setting the position of links PL2

& PL5 (to be found just above the middle right hand edge of the module). When a

Component V input is required set jumper links PL2 & PL5 to their upper position. Set

jumper PL2 & PL5 to their lower position when a further SDI output is required.

Note links PL2 & PL5 must be moved together as a pair.

Link Position Select loop-through or termination of reference syncs

PL2 &

PL5

Above centre right hand

edge

Links in their upper position – Set for V IN

Link in their lower position – Set for SDI OUT

U / YC-C / SDI OUT port configuration

The Component U / YC-C / SDI OUT port can be configured by setting the position of

links PL3 & PL6 (to be found approximately in the middle right hand edge of the

module). When a Component U or C input is required set jumper links PL3 & PL6 to

their upper position. Set jumper PL3 & PL6 to their lower position when a further SDI

output is required.

Note links PL3 & PL6 must be moved together as a pair.

Link Position Select loop through or termination of reference syncs

PL3 &

PL6 Centre right hand edge Links in their upper position – Set for U / C IN

Link in their lower position – Set for SDI OUT

Crystal Vision Hardware installation

ADDEC-100 User Manual R1.1 919/06/2007

2.2 General Purpose Interface (GPI)

The ADDEC-100, like most Crystal Vision modules, is equipped with GPI control I/O.

GPI Low (<1V) High (+5V)

0-3 ‘a-d’ No connection

4 ‘e’ No connection

5 ‘f’ Loss of input Alarmed Not alarmed

As supplied, each GPI output has a 220Ωresistor in series with its output. This allows for

an external LED to be driven, connected to a DC voltage of +5V.

4U frame GPI connections

GPI lines ‘a’ to ‘f’ of each card connect to two of eight rear remote connectors as follows:

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)

2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)

3 8 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)

4 7 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)

5 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)

6 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)

7 5 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)

8 4 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)

9 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)

10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)

11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)

12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)

Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin

1 8 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)

2 7 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)

3 8 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)

4 7 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)

5 5 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)

6 4 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)

7 5 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)

8 4 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)

9 3 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)

10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)

11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)

12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)

Table shows pin number (remote number)

UpperLower

Tabla de contenidos

Otros manuales de Convertidor de medios de Crystal Vision

Crystal Vision

Crystal Vision Indigo Wallbox Q-Down Manual de usuario

Crystal Vision

Crystal Vision Up-Down 3G Series Manual de usuario

Crystal Vision

Crystal Vision DDAA132 Manual de usuario

Crystal Vision

Crystal Vision UP-DOWN-VF Series Manual de usuario

Crystal Vision

Crystal Vision Up-and-down-S Manual de usuario

Crystal Vision

Crystal Vision Indigo Q-Down Manual de usuario

Crystal Vision

Crystal Vision Indigo CoolFlow MON210 Manual de usuario

Crystal Vision

Crystal Vision ShARC-XP Manual de usuario

Crystal Vision

Crystal Vision DEC102S Manual de usuario

Crystal Vision

Crystal Vision DDAA246 Manual de usuario

Crystal Vision

Crystal Vision Indigo ALLDAC Manual de usuario

Crystal Vision

Crystal Vision ENC116 Manual de usuario

Crystal Vision

Crystal Vision DEC105S Manual de usuario

Crystal Vision

Crystal Vision Indigo ADDEC-210 Manual de usuario

Crystal Vision

Crystal Vision Up-and-down-AAFD Manual de usuario

Crystal Vision

Crystal Vision DEC103S Manual de usuario

Crystal Vision

Crystal Vision ADDEC-200 Manual de usuario

Crystal Vision

Crystal Vision Indigo Q-Down Mini Manual de usuario

Crystal Vision

Crystal Vision ENDAC Manual de usuario

Crystal Vision

Crystal Vision Vision 3 Manual de usuario

Crystal Vision

Crystal Vision Indigo ADCA412 Manual de usuario

Crystal Vision

Crystal Vision Dual DL-3G Manual de usuario

Crystal Vision

Crystal Vision Q-Down-A-AFD Manual de usuario

Crystal Vision

Crystal Vision ARC-10MC Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
