Croydon SACEG Manual de usuario

SACEG-200001 B3

(STAINLESS STEEL ARM)

SANDWICH GRILL - MODEL: SACEG-200001 B3

ATTENTION:

-PLEASE read these instructions carefully before operating this appliance.

-The temperature is thermostatically controlled between the range of 50ºC to 300ºC (122º F

to 572ºF). A signal lamp adjacent to the thermostat indicates when the heating elements are

energized.

IMPORTANT:

- These units are designed to operate on alternating current (A.C.) only.

- DO NOT CONNECT TO DIRECT CURRENT (D.C.).

- Care should be taken when operating this appliance as HOT SURFACES may cause

burns.

-Ensure that the power supply cord does not come into contact with hot surfaces.

-Do not leave unit in operation without an attendant.

-When not in use for long period unplug the appliance.

INSTALLATION AND OPERATION:

-Check if voltage of your power system corresponds to the same specified on the machine

label.

-Before using the appliance for the first time, turn the control knobs to 300ºC (572ºF), close

the lid and allow the appliance to heat for + / - 30 minutes. You will notice smoke appearing

due to the internal insulation burning, which is normal.

-After 30 minutes heating, turn temperature controls down to operating desired

temperature, keep knobs in this position until pilot lights turn off, at this point the unit will be

ready to be used.

-To turn off the unit turn knobs completely towards left.

CLEANING PROCEDURE

-Always ensure that the appliance is disconnected from the main power supply before

cleaning.

-After appliance has cooled clean cooking surface and body using only a damp cloth. Never

use water jet or immerse appliance in water.

-Wipe off appliance with a dry cloth and wait at least half an hour before re-connecting to

main power outlet.

INSTRUCTION MANUAL

SACEGSACEG

CROYDON

CROYDONMAQ INDUSTRIAL LTDA.

Estrada São Lourenço, 891 - Capivari - Duque de Caxias.

RJ - Brasil - CEP 25243-150 Fax: 55 21 2676-2522

Phone: 55 21 2776-1928 / 55 21 2676-1512

e-mail: [email protected]

Code DescriptionItem

2.113-3

621

15.024-3

2.638-3

623

2.118-3

2.114-3

481

2.648-3

3.503-3

385

2.036-3

2.035-3

2.649-3

2.646-3

2.604-3

2.007-3

2.115-3

232

2.066-3

2.631-3

2.044-3

2.639-3

604

594

355

2.196-3

2.109-3

643

552

2.651-3

2.086-3

10.031-3

3.509-3

557

2.009-A

329

2.131-3

2.671-3

2.009-3

2.657-3

2.659-3

2.039-3

2.616-3

2.615-3

2.655-3

642

601

330

2.654-3

2.091-3

2.658-3

Rubber Protector

1/4” Nut

Shaft

Arm

3/16” Nut

Shaft

Handle

3/16” Screw

Lid

Insulation

3/16” Screw

Heating Fixer

Heating Element (900W)

Upper Heating Plate

Shaft

Protective Conduit

Rubber Protector

Cord Connection

Cord Retainer

Wire Connector

Spring Regulator

Spring

Arm Support

3/16” Screw

3/16” Washer Press

3/16” Screw

Nut Regulator

Screw Regulator

3/16” Washer

3,5 Screw

Plate Protector

Foot

Bottom Cover Plate

Pilot Light ETL

4,8 Screw

50/300C Knob

Special Screw

Grease Collector

Body

Thermostat

Heating Plate Protection

Heating Element Retainer Plate

Heating Element Connection

Heating Element (1100W)

Heating Element (1200W)

Lower Heating Plate

1/4” Washer

1/4” Nut

Screw

Spring Support

Thermostat Bulb Retainer

Heating Element Retainer

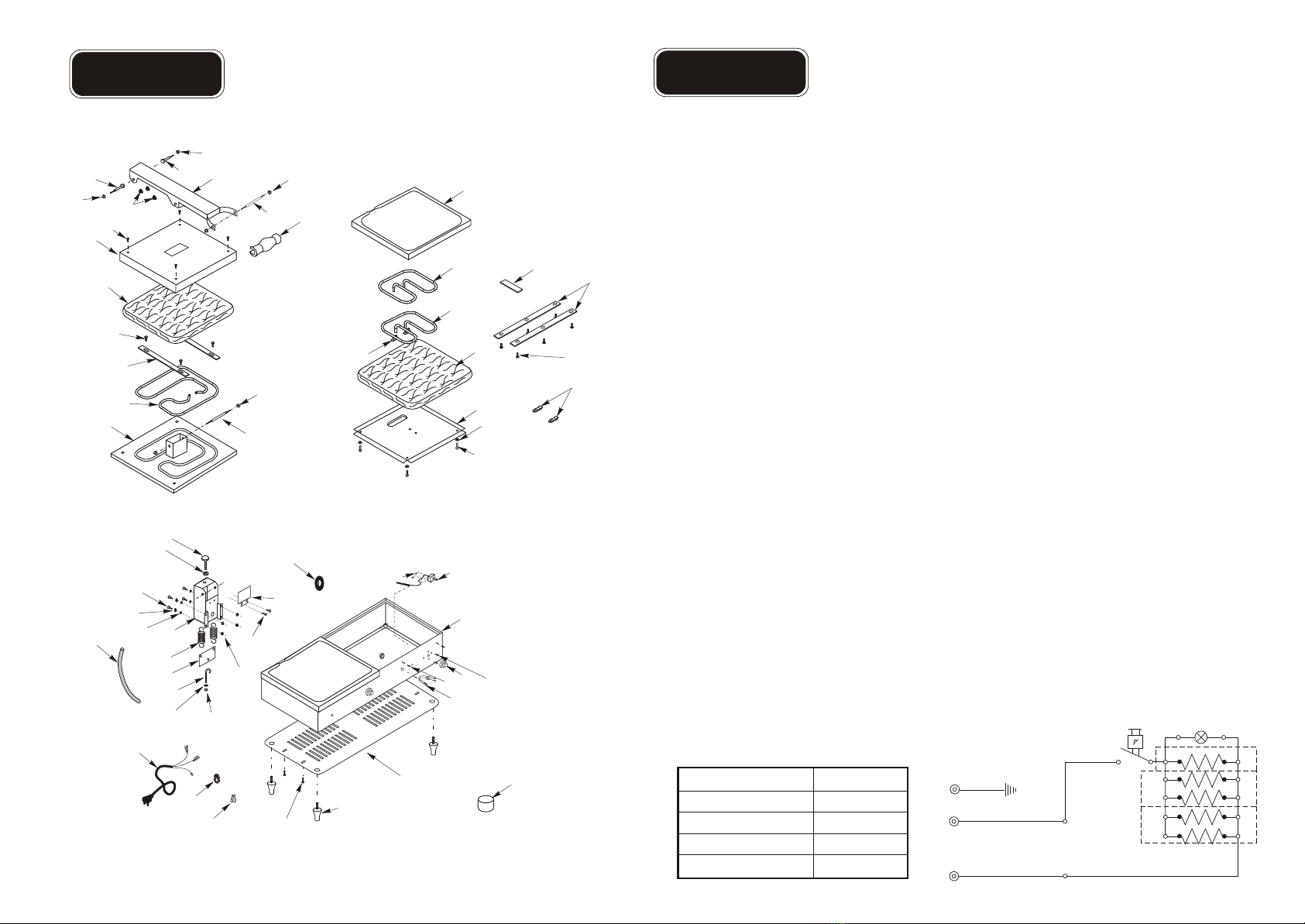

SANDWICH GRILL (SACEG) SANDWICH GRILL (SACEG)

(STAINLESS STEEL ARM) (STAINLESS STEEL ARM)

Wiring Diagram

Amperage (A)

Dimensions WxHxD (cm)

Weight (kg/lbs)

Power (W)

Technical Data
