Crosley W10097009A Manual de usuario

W10096992A

W10097009A - SP

ELECTRIC or GAS DRYER

USE AND CARE GUIDE

Table of Contents Table des matières

DRYER SAFETY ............................................................2

CHECK YOUR VENT SYSTEM

FOR GOOD AIR FLOW .................................................4

USE SENSOR DRY/AUTO DRY CYCLES FOR

BETTER FABRIC CARE AND ENERGY SAVINGS ......4

CONTROL PANEL & FEATURES..................................5

CYCLE GUIDE...............................................................6

USING YOUR DRYER ...................................................7

DRYER CARE................................................................9

TROUBLESHOOTING.................................................11

ACCESSORIES............................................................12

WARRANTY.................................................................13

ASSISTANCE OR SERVICE....................BACK COVER

SÉCURITÉ DE LA SÉCHEUSE ...................................14

VÉRIFICATION D’UNE CIRCULATION D’AIR

ADÉQUATE POUR LE SYSTÈME D’ÉVACUATION ..16

UTILISATION DES PROGRAMMES DE

SÉCHAGE PAR DÉTECTION/AUTOMATIQUE

POUR UN MEILLEUR SOIN DU TISSU ET

DAVANTAGE D’ÉCONOMIES D’ÉNERGIE ................16

TABLEAU DE COMMANDE

ET CARACTÉRISTIQUES ...........................................17

GUIDE DE PROGRAMMES ........................................18

UTILISATION DE LA SÉCHEUSE...............................19

ENTRETIEN DE LA SÉCHEUSE.................................21

DÉPANNAGE. ..............................................................24

ACCESSOIRES............................................................26

GARANTIE...................................................................27

ASSISTANCE OU SERVICE.. COUVERTURE ARRIÈRE

SÉCHEUSE

ÉLECTRIQUE ou À GAZ

GUIDE D’UTILISATION

ET D’ENTRETIEN

Para una versión de estas instrucciones en español, visite www.whirlpool.com

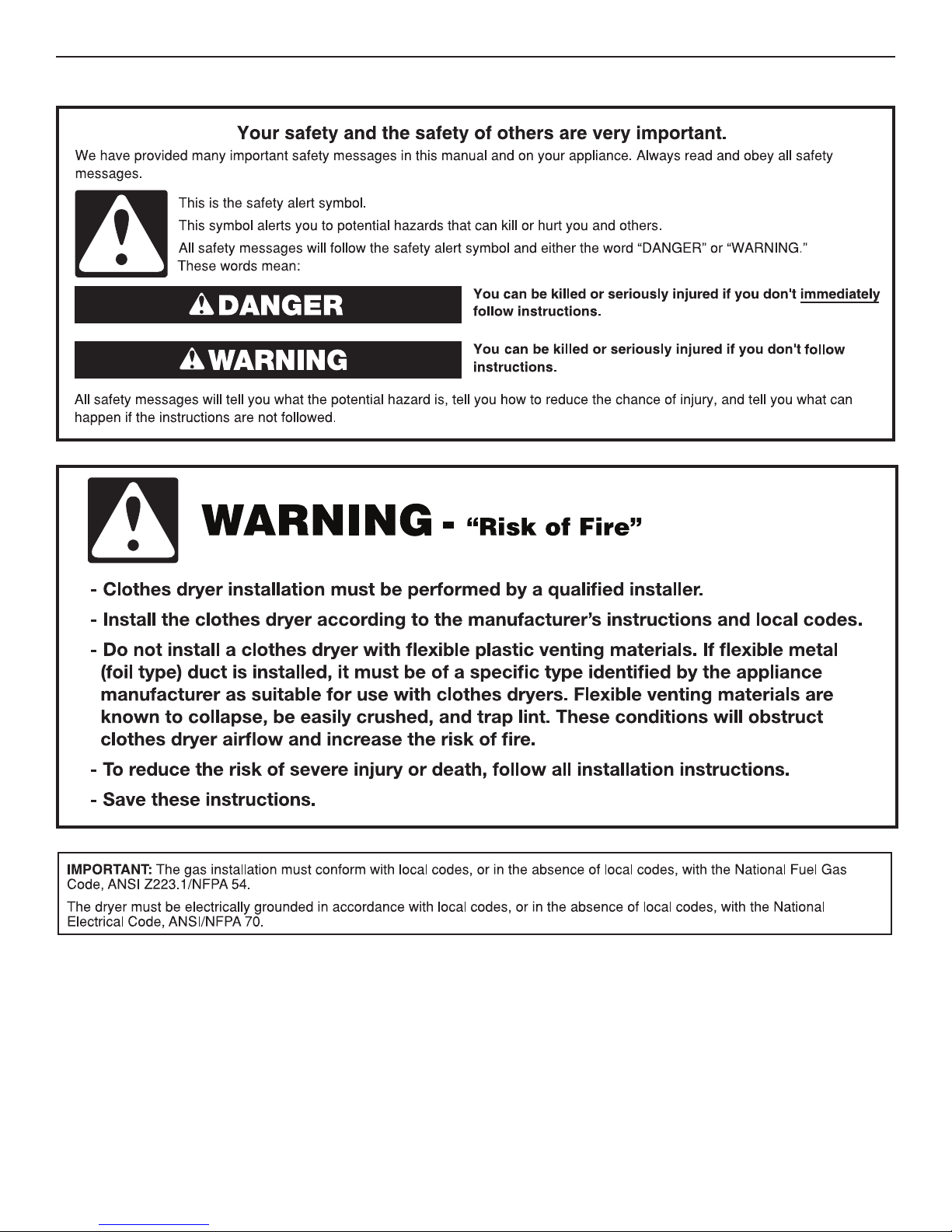

DRYER SAFETY

CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW

Good air ow

Along with heat, dryers require good air ow to efciently

dry laundry. Proper venting will reduce your drying times

and improve your energy savings. See “Installation

Instructions.”

The venting system attached to the dryer plays a big role in

good air ow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Maintain good air ow by:

Good Better

USE SENSOR DRY/AUTO DRY CYCLES FOR BETTER FABRIC CARE

AND ENERGY SAVINGS

Use the Sensor Dry or Auto Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During

Sensor Dry or Auto Dry cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout

the drying cycle and the dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide

optimal energy savings.

With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to over-drying.

Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

n Cleaning your lint screen before each load.

n Replace plastic or foil vent material with 4" (102 mm)

diameter heavy, rigid vent material.

nUse the shortest length of vent possible.

n Use no more than four 90° elbows in a vent system;

each bend and curve reduces air ow.

n Remove lint and debris from the exhaust hood.

n Remove lint from the entire length of the vent system at

least every 2 years. When cleaning is complete, be sure

to follow the “Installation Instructions” supplied with your

dryer for nal product check.

n Clear away items from the front of the dryer.

(102 mm)

CONTROL PANEL & FEATURES

DRYER CYCLE KNOB

Use your Dryer Cycle Knob to select available cycles on

your dryer. Turn the knob to select a cycle for your laundry

load. See “Cycle Guide” for detailed descriptions of cycles.

SENSOR DRY/AUTO DRY

Senses moisture in the load or air temperature and shuts

off when the load reaches the selected dryness level.

Gives the best drying in the shortest time. Drying time

will vary based on fabric type, load size, and temperature

setting.

TIMED DRY

Will run the dryer for the specied time on the control.

On models with a selectable temperature knob, you may

choose a setting based on the fabrics in your load. On

some models, temperature is included in the cycle

selections. Drying time and temperature will depend

on your dryer model.

TEMPERATURE (on some models)

Select a drying temperature based on the fabrics in your

load. If you are unsure of the temperature to select for a

load, select the lower setting rather than the higher setting.

13WRINKLE PREVENT Feature (on some models)

The WRINKLE PREVENT feature will run after your drying

cycle is complete. It periodically starts and stops the dryer,

tumbling the load without heat to help avoid wrinkling.

On some models, WRINKLE PREVENT automatically starts

at the end of the cycle. Opening the door will stop this

feature.

NOTE: A signal will sound periodically when the WRINKLE

PREVENT setting is selected, but only if the End of Cycle

signal is also selected.

PUSH TO START/END OF CYCLE SIGNAL

The End of Cycle Signal produces an audible sound when

the drying cycle is nished. Promptly removing clothes at

the end of the cycle reduces wrinkling.

Turn the END OF CYCLE SIGNAL knob to select the

desired setting (On or Off). Press the PUSH TO START knob

to start the dryer.

Not all features and options are available on all models.

Appearance may vary.

SENSOR DRY/AUTO DRY – Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness

level. Choose ENERGY PREFERRED cycle for optimal energy savings.

Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.

Items to dry: Temperature: Available

Options: Cycle Details:

Wrinkle Prevent

End of Cycle Signal

CYCLE GUIDE — SENSOR DRY/AUTO DRY CYCLES

CYCLE GUIDE — TIMED DRY CYCLES

Items to dry: Temperature:Cycle: Available

Options: Cycle Details:

TIMED DRY – Will run the dryer for the specied time on the control.

Not all cycles and settings are available on all models.

Large or heavy items

such as thick towels or

robes

Small loads,

lightweight items

Heavy Dry

Timed Dry Low

End of Cycle Signal

Choose high to dry large or heavy loads.

Dries items to a damp level or for items

that do not require an entire drying

cycle.

NOTE: If loads do not seem as dry as you would like, select Heavy Dry or Very Dry/More Dry next time you dry a similar load. If loads

seem drier than you like, select Less Dry next time you dry a similar load.

Casual, shirts, pants,

lightweight items,

synthetics, delicates,

athletic wear

High

Wrinkle Prevent

End of Cycle Signal

Setting the Drying Temperature

If your dryer has multiple heat settings:

A High temperature setting may be used for drying

heavyweight items such as towels and work clothes.

A Low to Medium temperature setting may be used for

drying medium-weight items such as sheets, blouses,

dresses, underwear, permanent press fabrics, and

some knits.

Use the Air Dry/No Heat setting for foam, rubber, plastic,

or heat-sensitive fabrics.

Line-dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for

various loads, refer to the care label directions.

Jeans, heavy work

clothes, towels

Heavy Dry

Very or More Dry

Energy Preferred

Less Dry

Heavy Dry

Very or More Dry

Energy Preferred

Less Dry

Heavy Dry

Very or More Dry

Energy Preferred

Less Dry

Wrinkle Prevent

End of Cycle Signal

Automatic cycles give the best drying

in the shortest time. Drying time varies

based on fabric type, load size, and

dryness setting.

Select a drying temperature based on

the fabrics in your load. If you are unsure

of the temperature to select for a load,

select the lower setting rather than the

higher setting.

Dryness Level:

High

Medium or Low

Low

Work clothes, medium

weight fabrics, sheets

Rubber, plastic,

heat-sensitive fabrics Air Dry/

No Heat Air Only/No Heat End of Cycle Signal No-heat drying.

Heavy or bulky items Timed Dry

High Heat High End of Cycle Signal Completes drying if items are still damp.

USING YOUR DRYER

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen out of

its holder. Roll lint off the screen with your ngers. Do not rinse or

wash screen to remove lint. Push the lint screen rmly back into

place.

For additional cleaning information, see “Dryer Care.”

2. Load the dryer

Place laundry in the dryer. Close the door.

NOTE: Your model may have a different door than the one

shown. Some models have drop down doors.

Do not tightly pack the dryer; clothes should be able to tumble

freely.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the “IMPORTANT SAFETY INSTRUCTIONS” before

operating this dryer.

Before using your dryer, wipe the dryer drum with a damp cloth

to remove dust from storing and shipping.

3. Select the desired cycle

Select the desired cycle for your load. See the “Cycle Guide”

for more information about each cycle.

SENSOR DRY/AUTO DRY Cycles

You can select a different dryness level, depending on your load,

by turning the knob to dryness level.

Selecting Heavy Dry, Very Dry/More Dry, ENERGY PREFERRED,

or Less Dry automatically adjusts the dryness level at which the

dryer will shut off. Once a dry level is set, it cannot be changed

without stopping the cycle.

SENSOR DRY/AUTO DRY cycles give the best drying in the

shortest time. Drying time varies based on fabric type, load size,

and dryness setting.

NOTE: Heavy Dry or Very Dry/More Dry removes more load

moisture. ENERGY PREFERRED is used for a starting point for

Sensor Dry/Auto Dry cycles. Choose ENERGY PREFERRED for

optimal energy savings. Less Dry removes less moisture and is

used for loads you may want to put on a hanger to complete

drying.

6. Press PUSH TO START to

begin cycle

Push and hold the PUSH TO START knob to begin the cycle.

Promptly remove garments after cycle has completed to reduce

wrinkling. Use the Wrinkle Prevent feature to avoid wrinkling

when you are unable to remove a load from the dryer as soon

as it stops.

4. Set temperature and options

(on some models)

Select temperature and options by turning the knob to the

desired position or select the Automatic Dry Cycle that has the

temperature included in the cycle selections.

NOTE: Not all options and settings are available with all cycles.

TEMPERATURE

Turn the TEMPERATURE knob to change the drying

temperature setting. See “Setting the Drying Temperature.”

Wrinkle Prevent feature (on some models)

n Get up to 90 minutes of heat-free, periodic tumbling at the

end of a cycle. Turn the WRINKLE PREVENT knob to select

ON or OFF at any time before the cycle has ended.

5. Select End of Cycle Signal

(if desired)

Turn the END OF CYCLE SIGNAL knob to select the desired

setting (On or Off). The End of Cycle Signal produces an

audible sound when the drying cycle is nished. Promptly

removing clothes at the end of the cycle reduces wrinkling.

NOTE: When the Wrinkle Prevent setting is selected and the

End of Cycle Signal is on, the tone will sound every 5 minutes

until the clothes are removed, or the Wrinkle Prevent setting

ends.

Drying Rack

(optional on some models)

Use the Drying Rack to dry items such as sweaters and

pillows without tumbling. The drum turns, but the drying

rack does not move.

If your model does not have a drying rack, you may be

able to purchase one for your model. To nd out whether

your model allows drying rack usage and for information

on ordering, please refer to the “Accessories” section

or contact the dealer from whom you purchased your dryer.

NOTE: The drying rack must be removed for normal

tumbling.

To use the drying rack

1. Place drying rack in dryer.

Slide rear pegs into the dimples on the back wall of the

dryer. Lower the front legs to rest on the dryer opening.

2. Put wet items on top of drying rack, leaving space

between items. Do not allow items to hang over the

edge of the drying rack. Close the door.

3. Select a Timed Dry cycle and temperature, or an air

cycle (on some models). Items containing foam, rubber,

or plastic must be dried on a clothesline or by using an

air cycle. Refer to the following table.

4. Start the dryer. Reset cycle to complete drying, if needed.

Rack Dry: Temp.Cycle: Time

Washable wool items (block to

shape, lay at on drying rack)

Stuffed toys/pillows (foam rubber

lled) (on some models)

Timed

Dry

Air

(no heat) N/A

60 min.

90 min.

Low

Stuffed toys/pillows (cotton or

polyester lled) Timed

Dry Low 60 min.

DRYER CARE

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

Cleaning the lint screen

Every load cleaning

Clean lint screen before each load. A screen blocked by lint

can increase drying time.

To clean:

1. The lint screen is located on top of the dryer. Pull the lint

screen out of its holder. Roll lint off the screen with your

ngers. Do not rinse or wash screen to remove lint. Wet

lint is hard to remove.

2. Push the lint screen rmly back into place.

IMPORTANT:

n Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

n If lint falls off the screen into the dryer during

removal, check the exhaust hood and remove the lint.

The exhaust hood is located where the dryer exhaust

exits your home.

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with hot water and liquid detergent.

Scrub lint screen with the brush to remove residue

buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonammable household cleaner to the

stained area of the drum and rub with a soft cloth until

stain is removed.

2. Wipe drum thoroughly with a damp cloth.

3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim

blue jeans or brightly colored cotton items, may discolor the

dryer interior. These stains are not harmful to your dryer and

will not stain future loads of clothes. Dry these items inside

out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done

by a qualied servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Cleaning the dryer location

Vacation, storage, and moving care

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. For gas dryers only: Close shut-off valve to gas supply

line.

3. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use tape to secure dryer door.

For direct-wired dryers:

1. Turn off power at fuse or breaker box.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

For gas dryers:

1. Unplug or disconnect power to dryer.

2. Close shut-off valve in gas supply line.

3. Disconnect gas supply line pipe and remove ttings

attached to dryer pipe.

4. Cap the open fuel supply line.

5. Make sure leveling legs are secure in dryer base.

6. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the “Installation Instructions” to locate, level,

and connect the dryer.

Changing the drum light

(on some models)

1. Unplug dryer or disconnect power.

2. Open the dryer door. Locate the light bulb cover

on the back wall of the dryer. Using a Phillips-head

screwdriver, remove the screw located in the lower

right-hand corner of the cover. Remove the cover.

3. Turn bulb counterclockwise. Replace the bulb with

a 10-watt appliance bulb only. Replace the cover and

secure with the screw.

4. Plug into a grounded outlet or reconnect power.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Secadora de Crosley

Crosley

Crosley CD-2 Manual de usuario

Crosley

Crosley CDE7400QW0 Manual de usuario

Crosley

Crosley CDE7500KB0 Manual de usuario

Crosley

Crosley 134993900A Manual de usuario

Crosley

Crosley YTD74E2PNDG Manual de usuario

Crosley

Crosley YCEDS563SQ0 Manual de usuario

Crosley

Crosley 137218900A Manual de usuario

Crosley

Crosley CDE4700LB0 Manual de usuario

Crosley

Crosley 134539400 (0503 Manual de usuario

Crosley

Crosley CDG4000HW1 Manual de usuario

Crosley

Crosley 134856900 Manual de usuario

Crosley

Crosley CDEC500FW0 Manual de usuario

Crosley

Crosley DRYER Manual de usuario

Crosley

Crosley Clothes Dryer Manual de usuario

Crosley

Crosley CED7464GW0 Manual de usuario

Crosley

Crosley CONSERVATOR W10151585B Manual de usuario

Crosley

Crosley Conservator CEDS563MQ Manual de usuario

Crosley

Crosley CGDS832VQ1 Manual de usuario

Crosley

Crosley CGD126SDW0 Manual de usuario

Crosley

Crosley CDG7500KB0 Manual de usuario

Crosley

Crosley CDE7500KW0 Manual de usuario

Crosley

Crosley 134856500 Manual de usuario

Crosley

Crosley CED147HXW0 Manual de usuario

Crosley

Crosley YFD45 Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
