Crestron QM-WMIC

Wall Plate Media Center Microphone Input

Operations & Installation Guide

This document was prepared and written by the Technical Documentation department at:

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

All brand names, product names and trademarks are the property of their respective owners.

Crestron QM-WMIC Wall Plate Media Center Microphone Input

Contents

Wall Plate Media Center Microphone Input: QM-WMIC 1

Introduction......................................................................................1

Features and Functions ..........................................................1

Specifications.........................................................................3

Physical Description ..............................................................5

Industry Compliance..............................................................7

Installation........................................................................................8

Setup...............................................................................................11

Programming Software ..................................................................11

Programming with Crestron SystemBuilder...........................12

Programming with SIMPL Windows..................................13

Programming with VisionTools Pro-e.................................17

Example Program ................................................................17

Adjusting the QM-WMIC..............................................................18

Definitions ...........................................................................18

Setting Microphone Gain.....................................................20

Setting the Gating Level ......................................................20

Problem Solving.............................................................................22

Troubleshooting...................................................................22

Further Inquiries ..................................................................24

Future Updates.....................................................................24

Return and Warranty Policies ........................................................25

Merchandise Returns / Repair Service ................................25

CRESTRON Limited Warranty ..........................................25

Operations & Installation Guide - DOC. 6245 Contents •i

Crestron QM-WMIC Wall Plate Media Center Microphone Input

Wall Plate Media Center

Microphone Input: QM-WMIC

Introduction

Features and Functions

The Wall Plate Media Center Microphone Input (QM-WMIC) is an

optional part of the Crestron MediaManager™ line of network devices,

room control systems, and signal routing solutions.

The QM-WMIC is a complementary accessory that can only be used

when installed with a Crestron®QM-WMC Wall Plate Media Center.

The QM-WMIC adds two Neutrik®Combo microphone connectors with

software enabled phantom power to the A/V connections that are present

on the QM-WMC. The microphone inputs feature adjustable gain and an

integrated noise gate with adjustments for gating level, attack time, and

decay time. The microphone signals are transmitted with the program

audio over the Crestron QuickMedia transport.

A QM-WMIC requires a QM-WMC, the far-right space in a 2½” deep,

triple-gang electrical box and a Decora®style faceplate (sold by other)

for installation.

Functional Summary

• 3-gang Decora style (requires installation with QM-WMC)

• Two Neutrik Combo microphone connectors with muting and

software switchable phantom power (48V @ 10mA) for

condenser microphones

• Adjustable gain, noise gate levels, attack time, and decay time

Operations & Installation Guide - DOC. 6245 Wall Plate Media Center Microphone Input: QM-WMIC •1

Wall Plate Media Center Microphone Input Crestron QM-WMIC

The following block diagram illustrates the functional capabilities of a

QM-WMC with the QM-WMIC installed.

Block Diagram of Wall Plate Media Center Microphone Input

2 •Wall Plate Media Center Microphone Input: QM-WMIC Operations & Installation Guide - DOC. 6245

Crestron QM-WMIC Wall Plate Media Center Microphone Input

Specifications

The following table provides specifications for the QM-WMIC.

Specifications for the QM-WMIC

SPECIFICATION DETAILS

Power Requirements

Total QM-WMC & QM-WMIC

3 Watts (0.13 Amp @ 24 VDC)

8 Watts (0.33 Amp @ 24 VDC)

Control System Update Files1,2

2-Series Control System Version 3.093.CUZ or later

Front Connectors

Mic Inputs (2) Neutrik Combo: XLR & ¼”

phone per input

Rear Connectors

QM-WMC (1) Multi-pin ribbon connector for

connecting to QM-WMC

Microphone

XLR

Accepts microphones with 60

Ohm to 600 Ohm output

impedance, balanced

Concentric ¼” Accepts line level inputs,

balanced (tip/ring/sleeve) or

unbalanced (tip/sleeve)

Input Level Range

XLR

¼”

-60 dBV to –20 dBV

-28 dBV to +12 dBV balanced

(-30 dBu to +10 dBu)

-28 dBV to +6 dBV unbalanced

(-30 dBu to +4 dBu)

Max. Input: 4 Vrms balanced

2 Vrms unbalanced

(continued on next page)

Operations & Installation Guide - DOC. 6245 Wall Plate Media Center Microphone Input: QM-WMIC •3

Wall Plate Media Center Microphone Input Crestron QM-WMIC

Specifications for QM-WMIC (continued)

SPECIFICATION DETAILS

Microphone (continued)

Input Impedance

XLR: 10 kΩ

¼”: 4 kΩbalanced

2 kΩunbalanced

Level Monitoring Provided for setup purposes.

Nominal indication at 20 dB

below input clip level. Clip

indication reported at 6 dB below

input clip level.

Noise Gate Software enabled noise gating

with adjustable level, attack time,

and decay time (variable from 10

ms to 5 seconds).

Phantom Power (XLR only)

Voltage

Current

Source Impedance

Software enabled3

48 V

10 mA (combined total)

3.4 kΩ

Operating Temperature and

Humidity

41º to 104º F (5º to 40º C)

10 to 90% relative humidity

(non-condensing)

Dimensions and Weight Width: 1.77 in (4.49 cm)

Height: 4.11 in (10.44 cm)

Depth: 2.14 in (5.43 cm)

Weight: 4.1 oz (0.12 kg)

1. The latest software versions can be obtained from the Downloads | Software

Updates section of the Crestron website (www.crestron.com). Refer to the

NOTE following these footnotes.

2. Crestron 2-Series control systems include the AV2, C2N-DVP4DI,

CP2, CP2E, MC2E, MC2W, MP2, MP2E, PAC2, PRO2, QM-RMCRX, and

RACK2.

3. Phantom power is applied to the XLR connectors of both microphone inputs.

It cannot be enabled on an individual microphone input.

NOTE: Crestron software and any files on the website are for Authorized

Crestron dealers and Crestron Authorized Independent Programmers

(CAIP) only. New users may be required to register to obtain access to

certain areas of the site (including the FTP site).

4 •Wall Plate Media Center Microphone Input: QM-WMIC Operations & Installation Guide - DOC. 6245

Crestron QM-WMIC Wall Plate Media Center Microphone Input

Physical Description

The QM-WMIC features two Neutrik Combo XLR/¼” ports that allow

for connection of up to two microphones. The XLR microphone

connectors feature software switchable phantom power for use with

condenser microphones. Microphone signals are transmitted along with

the program audio and can be manipulated at the receiver.

NOTE: Phantom power is applied to the XLR connectors of both

microphone inputs. It cannot be switched on an individual microphone

input.

An LED on the front of the QM-WMIC indicates whether phantom

power is enabled. The following illustration shows the QM-WMIC

properly installed with a QM-WMC.

NOTE: Decorative faceplates, as shown in the following illustrations,

are not supplied.

QM-WMIC Shown with QM-WMC

Operations & Installation Guide - DOC. 6245 Wall Plate Media Center Microphone Input: QM-WMIC •5

Wall Plate Media Center Microphone Input Crestron QM-WMIC

Physical Views of the QM-WMIC Wall Plate Media Center

2.71 in

(6.89 cm)

1.63 in

(4.14 cm)

4.11 in

(10.44 cm)

2.14 in

(5.43 cm)

1.79 in

(4.54 cm)

1.77 in

(4.49 cm)

All microphone connections to the QM-WMIC are made through the

connectors on the front panel. An LED on the front of the QM-WMIC

indicates when phantom power is on. The connection to the QM-WMC is

made on the rear of the unit. Refer to the illustrations and descriptions

that follow.

6 •Wall Plate Media Center Microphone Input: QM-WMIC Operations & Installation Guide - DOC. 6245

Tabla de contenidos

Otros manuales de Hardware de red de Crestron

Crestron

Crestron HZA-PWR-15A Manual de usuario

Crestron

Crestron RACK2 Manual de usuario

Crestron

Crestron Network Device PWE-4803RU Manual de usuario

Crestron

Crestron 4 Channel Dimmer Module CLX-1DIM4 Manual de usuario

Crestron

Crestron C2N-NPA8 Manual de usuario

Crestron

Crestron CEN-NSP-1 Manual de usuario

Crestron

Crestron Zūm Manual de usuario

Crestron

Crestron NAT Manual de usuario

Crestron

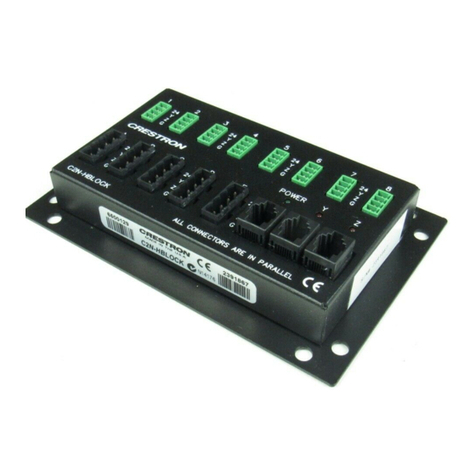

Crestron C2N-HBLOCK Manual de usuario
