Crestron BB-2000L
Wall Mount Back Box
Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2003 Crestron Electronics, Inc.
Crestron BB-2000L Wall Mount Back Box
Contents
Wall Mount Back Box: BB-2000L 1
Description.................................................................................................................................1
Installation .................................................................................................................................2
Assembly.....................................................................................................................2
Mounting .....................................................................................................................3
Other Mounting Option Accessories ...........................................................................5
Further Inquiries ........................................................................................................................6
Future Updates........................................................................................................................... 6
Return and Warranty Policies ....................................................................................................7
Merchandise Returns / Repair Service ........................................................................ 7
CRESTRON Limited Warranty...................................................................................7
Installation Guide - DOC. 5973A Contents •i
Crestron BB-2000L Wall Mount Back Box
Wall Mount Back Box: BB-2000L
Description
The BB-2000L is a pre-construction mounting option for the TPS-2000L Compact
Video Touchpanel. The table below lists all parts included with the BB-2000L.
Supplied Components
DESCRIPTION PART NUMBER QUANTITY
Wall Mount Enclosure MTEN02685-1 1
Mounting Plate MTPL02801-1 1
Mounting Bracket MTBK02800-1 2
Cover Plate MTPL02888-1 1
Screw, 6-32, 1/4” L, pan phillips SR06-32-0R2500-2 8
Screw, 8B, 1/4” L, pan phillips SR08-8B-0R2500-1 1
Screw, 4-40, 1 1/2" L, pan phillips SR04-40-1R5000-1 4
The mounted view and mounting plate dimensions (for touchpanel insertion) of the
BB-2000L are shown below.
BB-2000L Mounted View and Mounting Plate Dimensions
7.62 in
(19.36 cm)
6.50 in
(16.51 cm)
3.25 in
(8.26 cm)
6516 in
(160 mm)
4716 in
(135 mm)
Installation Guide - DOC. 5973A Wall Mount Back Box: BB-2000L •1
Wall Mount Back Box Crestron BB-2000L
Installation
Assembly
Required Tools:
#2 Phillips tip screwdriver
Complete the following assembly procedure in the order provided (refer to
illustration below).
1. Remove knockouts as required.
2. Attach the supplied self-tapping pan Phillips (8B x ¼” length) screw to
the wall mount enclosure for grounding.
3. Attach mounting brackets to wall mount enclosure using supplied (4)
#6-32 x ¼” screws.
4. Attach front mounting plate to wall mount enclosure using supplied (4)
#6-32 x ¼” screws.

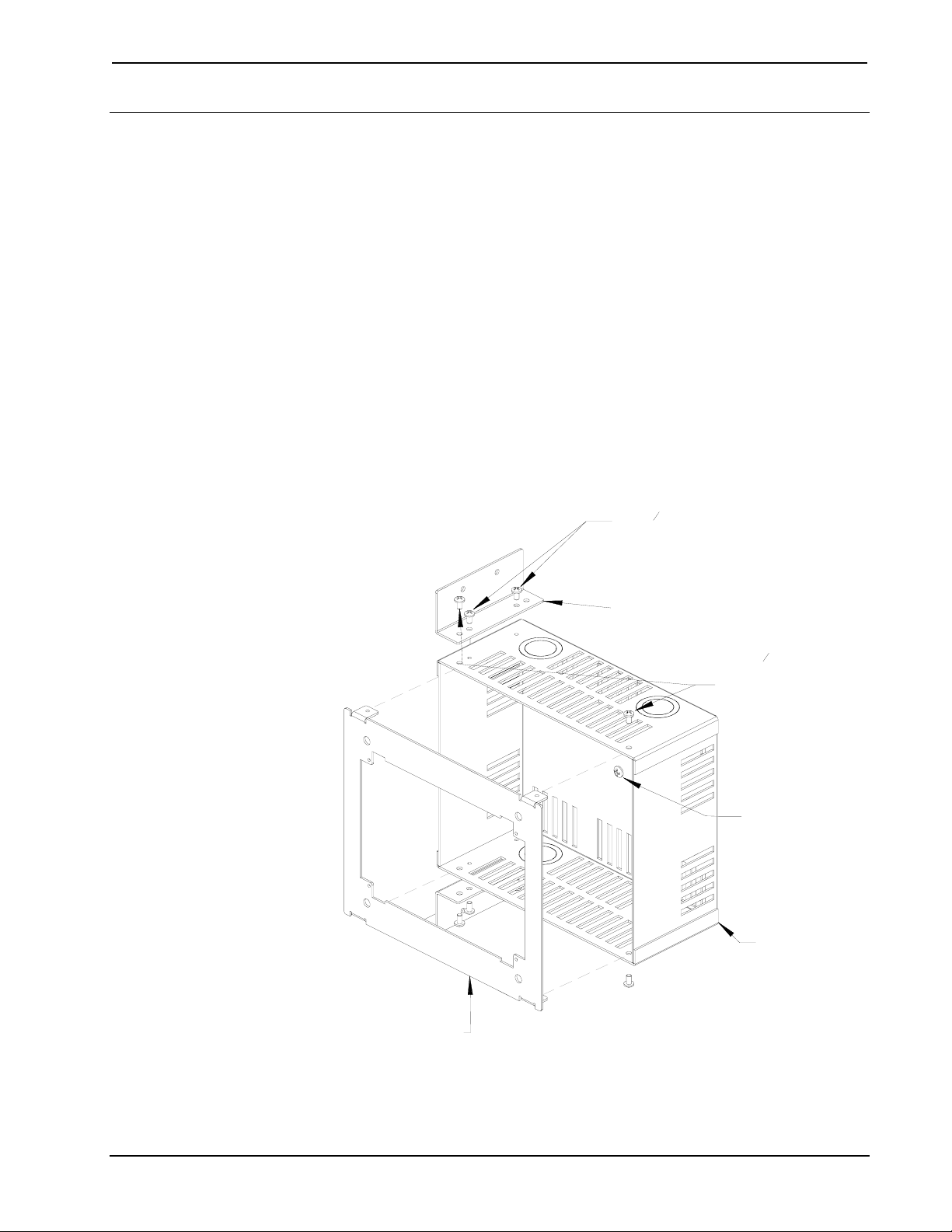

Assembly View
WALL MOUNT
ENCLOSURE QTY. 1
FRONT MOUNTING
PLATE QTY. 1 ATTACH
AFTER ATTACHING
MOUNTING BRACKETS
#8B SELF-
TAPPING SCREW
FOR GROUND
PURPOSES
#6-32 x 14"L SCREW
QTY. 8 TOTAL
(4 USED FOR MOUNTING BRACKETS)
MOUNTING BRACKET
QTY. 2
ATTACH BEFORE ATTACHING FRONT
MOUNTING PLATE
#6-32 x 14"L SCREW
QTY. 8 TOTAL
(4 USED FOR FRONT
MOUNTING PLATE)
2 •Wall Mount Back Box: BB-2000L Installation Guide - DOC. 5973A
Crestron BB-2000L Wall Mount Back Box
Mounting
NOTE: This device must be installed in accordance with local building codes.
Required Tools:
#2 Phillips tip screwdriver or hammer
Level
Complete the following procedure (refer to illustration below) to mount the
assembly.
1. Position assembly to the front edge of the stud and align it as even and
as flush as possible.
2. Use the level and verify that the back box is horizontal. Leveling must
be done before proceeding.
3. Attach the assembly to the left or right side of the stud with standard
drywall screws or nails (supplied by other).
4. Feed cable through knockout holes.
Mounted View with Optional Cover Plate (Mounting Example - Drywall Not Shown)
HOLES FOR STANDARD
DRYWALL SCREWS
OR NAILS TO MOUNT
BACK BOX
BACK BOX MUST BE MOUNTED
TO THE STUD AS LEVEL AS
POSSIBLE
IT IS IMPORTANT THAT THESE
2 SURFACES BE AS EVEN AND
FLUSH AS POSSIBLE WHEN
MOUNTING BACK BOX
QTY, 4 #4-40 x 112" L
(SR-04-40-1R5000-1)
METAL COVER PLATE
MTPL02888-1
USE TO COVER CUTOUT
IN DRYWALL IF TOUCHPANEL
IS NOT INSTALLED (OPTIONAL)
5. After installing drywall, carefully create a rectangular cutout measuring
6 5/16 inches (160 mm) by 4 7/16 inches (135 mm). Refer to the
following diagram for dimensions.
Installation Guide - DOC. 5973A Wall Mount Back Box: BB-2000L •3
Wall Mount Back Box Crestron BB-2000L
Cutout Dimensions
6516 in
(160 mm)
4716 in
(135 mm)
NOTE: Confirm that the four tapped holes in the mounting plate are exposed to
accept the touchpanel mounting screws.
6. Complete the installation by either installing the touchpanel, leaving
the hole open (if permitted by local building codes), or installing the
supplied cover plate with #6-32 x 1½” screws. Refer to the illustration
below.
Mounted BB-2000L with Optional Cover Plate Installed
4.65 in.
(11.81 cm)
6.60 in.
(16.76 cm)
4 •Wall Mount Back Box: BB-2000L Installation Guide - DOC. 5973A
Crestron BB-2000L Wall Mount Back Box
Other Mounting Option Accessories
If too much of the cover plate is exposed after the drywall is cut, you may need to
patch the area. Crestron provides the following accessories:
• MMK-2000L (Doc. 6025) - for larger repairs and to fill in larger
irregularities around the opening (requires plastering).
• TMK-2000L (Doc. 6026) - for smaller repairs and to provide a smooth edge
at the opening. This option provides a finished appearance and is preferred
when wallpaper is hung.
The manuals for the MMK-2000L and TMK-2000L are available for review from
the Downloads | Product Manuals section of the Crestron website
(www.crestron.com).
Installation Guide - DOC. 5973A Wall Mount Back Box: BB-2000L •5
Wall Mount Back Box Crestron BB-2000L
Further Inquiries
If after reviewing this Installation Guide for the BB-2000L, you cannot locate
specific information or have questions, please take advantage of Crestron's award
winning customer service team by calling:
• In the US and Canada, call Crestron’s corporate headquarters at
1-888-CRESTRON [1-888-273-7876].
• In Europe, call Crestron International at +32-15-50-99-50.
• In Asia, call Crestron Asia at +852-2341-2016.
• In Latin America, call Crestron Latin America at +5255-5093-2160.
• In Australia and New Zealand, call Crestron Control Solutions at
+61-2-9737-8203.
Future Updates
As Crestron adds improvements to the BB-2000L, additional information may be
made available as manual updates. These updates are solely electronic and serve as
intermediary supplements prior to the release of a complete technical documentation
revision.
Check the Crestron website (www.crestron.com) periodically for manual update
availability and its relevance. Updates are available from the Download | Product
Manuals section and are identified as an “Addendum” in the Download column.
6 •Wall Mount Back Box: BB-2000L Installation Guide - DOC. 5973A
