Crestron Electronics DM-NVX-E30 Manual de usuario

DM NVX® Network AV

Encoders/Decoders

DM-NVX-E30

DM-NVX-D30

DM-NVX-E30C

DM-NVX-D30C

DM-NVX-D80-IOAV

Product Manual

Crestron Electronics, Inc.

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

The product warranty can be found at www.crestron.com/legal/sales-terms-conditions-warranties.

The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/legal/open-source-software.

Crestron, the Crestron logo, 3-Series, Crestron Toolbox, Crestron XiO Cloud, DigitalMedia, DM NVX, and DM NVX Director

are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries.

Dolby and Dolby Atmos are either trademarks or registered trademarks of Dolby Laboratories in the United States and/or

other countries. DTS HD and DTS:X are either trademarks or registered trademarks of DTS, Inc. in the United States and/or

other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in the

United States and/or other countries. Active Directory is either a trademark or registered trademark of Microsoft

Corporation in the United States and/or other countries. Intel is either a trademark or registered trademark of Intel

Corporation in the United States and/or other countries. DisplayPort is either a trademark or registered trademark of Video

Electronics Standards Association in the United States and/or other countries. Other trademarks, registered trademarks,

and trade names may be used in this document to refer to either the entities claiming the marks and names or their

products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors

in typography or photography.

Product Manual – DOC. 8425D Contents •i

Contents

Introduction.................................................................................................................................... 1

Physical Description......................................................................................................................2

DM-NVX-E30 and DM-NVX-D30 ........................................................................................................... 2

Front Panel, DM-NVX-E30................................................................................................................ 2

Front Panel, DM-NVX-D30 ............................................................................................................... 3

Rear Panel, DM-NVX-E30 and DM-NVX-D30...............................................................................4

DM-NVX-E30C ........................................................................................................................................... 5

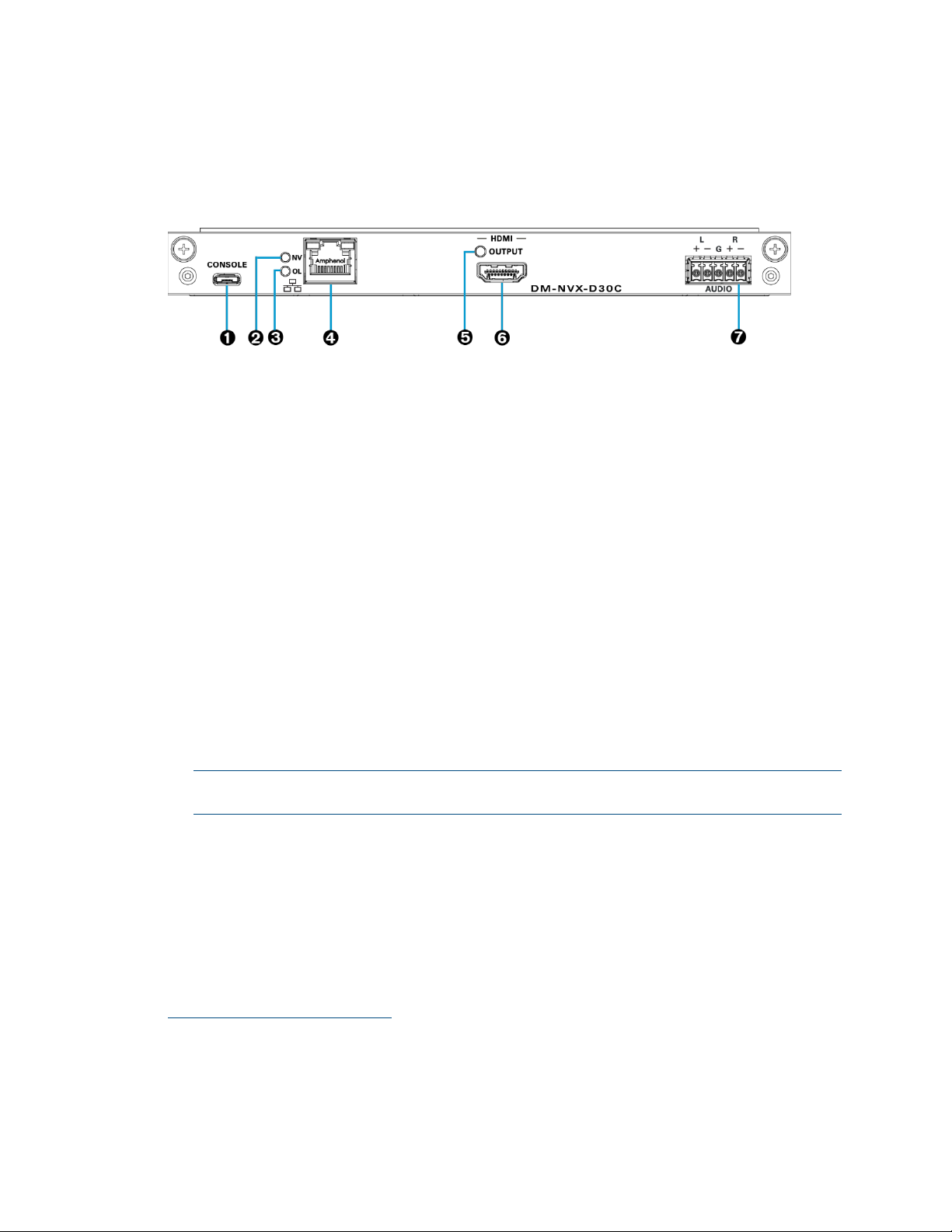

DM-NVX-D30C...........................................................................................................................................6

DM-NVX-D80-IOAV .................................................................................................................................. 7

Front Panel ........................................................................................................................................... 7

Rear Panel.............................................................................................................................................8

Status and Configuration........................................................................................................... 8

DMF-CI-8 Chassis Details........................................................................................................................ 9

Using the Web Interface....................................................................................................................9

Using SIMPL Windows .......................................................................................................................9

DM NVX Director Virtual Switching Appliance..................................................................................10

Crestron XiO Cloud Service Connection ..............................................................................................11

Fan Control ............................................................................................................................................... 12

Using the Web Interface.................................................................................................................. 12

Using SIMPL Windows ..................................................................................................................... 13

Automatic Point-to-Point Connectivity .............................................................................................. 13

Using the Web Interface.................................................................................................................. 13

Using SIMPL Windows ..................................................................................................................... 14

Stream Statistics..................................................................................................................................... 14

Using the Web Interface.................................................................................................................. 14

Using SIMPL Windows ..................................................................................................................... 15

Image Preview .......................................................................................................................................... 15

Using the Web Interface.................................................................................................................. 16

Using SIMPL Windows ..................................................................................................................... 17

Multicast TTL (Time-to-Live)................................................................................................................. 17

Using the Web Interface.................................................................................................................. 18

Using SIMPL Windows ..................................................................................................................... 19

DSCP (Differentiated Services Code Point) ...................................................................................... 19

Adaptive Bit Rate..................................................................................................................................... 21

Using the Web Interface.................................................................................................................. 21

Using SIMPL Windows .....................................................................................................................22

7.1 Surround Sound Audio ......................................................................................................................22

DM NAX Audio over IP (AES67) ............................................................................................................23

Using the Web Interface..................................................................................................................23

Using SIMPL Windows ..................................................................................................................... 27

Analog Audio Output ..............................................................................................................................28

Using the Web Interface..................................................................................................................28

Using SIMPL Windows .....................................................................................................................28

ii •Contents Product Manual – DOC. 8425D

Subscriptions ............................................................................................................................................29

Using the Web Interface..................................................................................................................29

Using SIMPL Windows ..................................................................................................................... 31

EDID (Extended Display Identification Data).................................................................................... 31

Background Image...................................................................................................................................34

Using the Web Interface..................................................................................................................34

Using the Web Interface..................................................................................................................38

Still Image Detection...............................................................................................................................38

USB 2.0 Routing .......................................................................................................................................39

Using the Web Interface................................................................................................................. 40

Using SIMPL Windows .....................................................................................................................42

Test Pattern Generator ..........................................................................................................................44

Using the Web Interface..................................................................................................................44

Using SIMPL Windows .....................................................................................................................47

Enterprise-Grade Security .................................................................................................................... 48

Authentication Management ........................................................................................................ 48

IEEE 802.1X Authentication ............................................................................................................49

Automatic Firmware Update ................................................................................................................ 51

IGMP Snooping........................................................................................................................... 52

Troubleshooting.......................................................................................................................... 55

Appendix: Device Discovery ...................................................................................................... 57

Product Manual – DOC. 8425D DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV •1

Introduction

Crestron® DM NVX® network AV encoders/decoders transport ultra high-definition 4K

video with 60 Hz frame rates and 4:4:4 color sampling over standard Gigabit Ethernet.

Support for High Dynamic Range (HDR) video and HDCP 2.2 ensures high picture quality

and compatibility with a variety of media sources. Using Pixel Perfect Processing

technology, a video signal is encoded and decoded to achieve imperceptible end-to-end

latency of less than 1 frame.

DM-NVX-E30(C) devices consist of the DM-NVX-E30 surface-mountable endpoint

and the DM-NVX-E30C card, which function as encoders (transmitters) only.

DM-NVX-D30(C) devices consist of the DM-NVX-D30 surface-mountable endpoint and

the DM-NVX-D30C card, which function as decoders (receivers) only. The DM-NVX-D80-

IOAV also functions as a decoder only and is compatible with the Intel® OPS (Open

Pluggable Specification).

Compact in design, the DM-NVX-E30 and DM-NVX-D30 are designed to mount to a flat

surface such as a wall. The DM-NVX-E30C and DM-NVX-D30C are designed to occupy

the DMF-CI-8 card chassis. The DM-NVX-D80-IOAV is designed for installation into the

OPS slot of an OPS-supported display.

NOTE: The DM-NVX-D30, DM-NVX-D30C, and DM-NVX-D80-IOAV do not support

video scaling.

This manual provides information about the following:

•Physical description

•Status and configuration

•IGMP snooping

•Troubleshooting

In addition, information about device discovery of a DM NVX device using Crestron

Toolbox™ software is provided in the appendix of this manual. For installation

information, refer to the DM-NVX-E30/DM-NVX-D30 Quick Start (Doc. 8211),

DM-NVX-E30C/DM-NVX-D30C Quick Start (Doc. 8346), or DM-NVX-D80-IOAV Quick

Start (Doc. 8526) as appropriate. For information about designing a DM NVX system,

refer to the DM NVX AV-over-IP System Design Guide (Doc. 7977).

2 •DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV Product Manual – DOC. 8425D

Physical Description

The following sections provide information about the connectors, controls, and indicators

that are available on the DM-NVX-E30(C), DM-NVX-D30(C), and DM-NVX-D80-IOAV

devices.

DM-NVX-E30 and DM-NVX-D30

This section provides information about the front and rear panels of the DM-NVX-E30

and DM-NVX-D30.

Front Panel, DM-NVX-E30

The following illustration shows the front panel of the DM-NVX-E30.

DM-NVX-E30 Front Panel

CONSOLE: Micro USB connector, female;

USB 2.0 computer console port for setup

NV LED:Green LED, indicates that the device is transmitting and encoding

network video

OL LED: Green LED, indicates an online connection to a control system via Ethernet

LAN: 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port;1

PoE+ PD (powered device) port compatible with a PoE+ compliant Ethernet switch, a

Crestron DM-PSU-ULTRA-MIDSPAN, or an approved third-party PSE;

Green LED indicates Ethernet link status;

Amber LED indicates Ethernet activity

HDMI INPUT LED: Green LED, indicates sync detection at the HDMI® input

HDMI INPUT: HDMI Type A connector, female;

HDMI digital video/audio input (DVI and Dual-Mode DisplayPort™ interface

compatible)2, 3

1The LAN port must connect to a 1000BASE-T switch in order to stream network video.

2The HDMI connection requires an appropriate adapter or interface cable to accommodate a DVI or

Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are sold separately.

3Device control via CEC (Consumer Electronics Control) requires the use of a Crestron 3-Series® or later

control system.

Product Manual – DOC. 8425D DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV •3

AUDIO: 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

NOTE: The analog audio output is functional only when the DM-NVX-E30 is receiving

a 2-channel stereo input signal.

Front Panel, DM-NVX-D30

The following illustration shows the front panel of the DM-NVX-D30.

DM-NVX-D30 Front Panel

CONSOLE: Micro USB connector, female;

USB 2.0 computer console port for setup

NV LED: Green LED, indicates that the device is receiving and decoding network

video

OL LED: Green LED, indicates an online connection to a control system via Ethernet

LAN: 8-pin RJ-45 connector, female;

100BASE-TX/1000BASE-T Ethernet port;1

PoE+ PD (powered device) port compatible with a PoE+ compliant Ethernet switch, a

Crestron DM-PSU-ULTRA-MIDSPAN, or an approved third-party PSE;

Green LED indicates Ethernet link status;

Amber LED indicates Ethernet activity

HDMI OUTPUT LED: Green LED, indicates video signal transmission at the

HDMI output

HDMI OUTPUT: HDMI Type A connector, female;

HDMI digital video/audio output (DVI compatible)2, 3

AUDIO: 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

NOTE: The analog audio output is functional only when the DM-NVX-D30 is receiving

a 2-channel stereo input signal.

1The LAN port must connect to a 1000BASE-T switch in order to stream network video.

2The HDMI connection requires an appropriate adapter or interface cable to accommodate a DVI signal.

CBL-HD-DVI interface cables are sold separately.

3Device control via CEC requires the use of a Crestron 3-Series or later control system.

4 •DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV Product Manual – DOC. 8425D

Rear Panel, DM-NVX-E30 and DM-NVX-D30

The following illustration shows the rear panel of the DM-NVX-E30 and DM-NVX-D30.

DM-NVX-E30 and DM-NVX-D30 Rear Panel

PWR: Bicolor green/amber LED, indicates operating power supplied via the power

pack (sold separately), PoE+ compliant Ethernet switch, or injector/PSE;

Lights amber while booting and green when operating

SETUP: Push button for on-screen display of IP address;

Red LED, indicates that the SETUP button is pressed and times out automatically.

RESET: Recessed push button for hardware reset

IR 1–2: 4-pin 3.5 mm detachable terminal block;

Comprises two IR/serial ports∗

IR output up to 1.1 MHz;

1-way serial TTL/RS-232 (0–5 volts) up to 19200 baud;

Crestron IRP2 emitter sold separately

COM: 5-pin 3.5 mm detachable terminal block;

Bidirectional RS-232 port;*

Up to 115.2k baud, hardware and software handshaking support

24VDC 2.0A: 2.1 x 5.5 mm DC power connector;

24 VDC power input;

Power pack included

Ground: 6-32 screw, chassis ground lug

∗Device control via IR and RS-232 requires the use of a Crestron 3-Series or later control system.

Product Manual – DOC. 8425D DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV •5

DM-NVX-E30C

The following illustration shows the connectors, controls, and indicators that are

available on the DM-NVX-E30C.

DM-NVX-E30C

CONSOLE: Micro USB connector, female;

USB 2.0 computer console port for setup

NV LED: Green LED, indicates that the device is transmitting and encoding

network video.

OL LED: Green LED, indicates an online connection to a control system via Ethernet

LAN: 100BASE-TX/1000BASE-T Ethernet port;1

Green LED indicates Ethernet link status;

Amber LED indicates Ethernet activity

HDMI INPUT LED: Green LED, indicates sync detection at the HDMI input

HDMI INPUT: HDMI Type A connector, female;

HDMI digital video/audio input (DVI and Dual-Mode DisplayPort interface

compatible)2, 3

AUDIO: 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

NOTE: The analog audio output is functional only when the DM-NVX-E30C is

receiving a 2-channel stereo input signal.

1The LAN port must connect to a 1000BASE-T switch in order to stream network video.

2Device control via CEC requires the use of a Crestron 3-Series or later control system.

3The HDMI connection requires an appropriate adapter or interface cable to accommodate a DVI or

Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are sold separately.

6•DM-NVX-E30(C)/DM-NVX-D30(C)/DM-NVX-D80-IOAV Product Manual – DOC. 8425D

DM-NVX-D30C

The following illustration shows the connectors, controls, and indicators that are

available on the DM-NVX-D30C.

DM-NVX-D30C

CONSOLE: Micro USB connector, female;

USB 2.0 computer console port for setup

NV LED: Green LED, indicates that the device is receiving and decoding network

video.

OL LED: Green LED, indicates an online connection to a control system via Ethernet

LAN: 100BASE-TX/1000BASE-T Ethernet port;1

Green LED indicates Ethernet link status;

Amber LED indicates Ethernet activity

HDMI OUTPUT LED: Green LED, indicates video signal transmission at the

HDMI output

HDMI OUTPUT: HDMI Type A connector, female;

HDMI digital video/audio output (DVI compatible)2, 3

AUDIO: 5-pin 3.5 mm detachable terminal block;

Balanced/unbalanced stereo line-level audio output;

Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;

Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

NOTE: The analog audio output is functional only when the DM-NVX-D30C is

receiving a 2-channel stereo input signal.

1The LAN port must connect to a 1000BASE-T switch in order to stream network video.

2Device control via CEC requires the use of a Crestron 3-Series or later control system.

3The HDMI connection requires an appropriate adapter or interface cable to accommodate a DVI signal.

CBL-HD-DVI interface cables are sold separately.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Crestron Electronics

Crestron Electronics

Crestron Electronics DM NVX Series Manual de usuario

Crestron Electronics

Crestron Electronics HD-PS621 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
