Condensing

Tumble Dryer

Instruction Book

You must read these instructions prior to using the appliance

and retain them for future reference.

Safety Advice 3-4

Electrical Requirements 5

Features - Get to know the main parts of your Dryer 6

Where to put and vent your Dryer 7

How to use your Dryer 8

The Controls 9-12

Sorting your laundry 13

Wash Care Labels 14

Items requiring special attention 15

Emptying your Water Container 16

Easy Care programme 17

Guide to Drying Times 18

Caring for your dryer 19

If something goes wrong 21

Contents

Retention of this Instruction Book

This Instruction Book must be kept handy for reference as it contains important details on

the safe and proper use of the appliance.

If you sell or pass the appliance to someone else, or move house and leave it behind, make

sure this Book is also provided so the new owner can become familiar with the appliance

and safety warnings.

For your safety

NEVER ● Allow children to play with or otherwise interfere with the dryer.

NEVER ● Allow the air inlet at the front of the dryer or the air outlet at the back

to be obstructed.

NEVER ● Switch the machine off leaving a hot load in the drum.

NEVER ● Tumble dry without the Filter, Water Container or Condenser in

position.

NEVER ● Exceed the maximum load capacity recommended or place

dripping wet items in the drum.

NEVER ● Allow lint to collect around the dryer.

NEVER ● Add liquid fabric conditioner to the dryer, use liquid conditioner in the

final rinse of your wash.

NEVER ●Use the dryer for commercial drying, the dryer is only suitable for

domestic use.

NEVER ●Dry Acrylics or synthetics on the high heat setting.

NEVER ● Tumble articles that have NOT been well washed in water and

detergent then well rinsed and spun.

NEVER ●Dry articles that are contaminated with flammable substances such

as: petrol, oil, paint, hair lacquer, creams, cooking fat or oil.

NEVER ●Tumble dry: rubber, foam rubber, plastic, plastic foam, nappy pants

or liners, polythene or paper. Any dry cleaned garments. Large, very

bulky items including duvets and sleeping bags.

NEVER ●Attempt to stand on top of your dryer, it is not designed for

such use and you could injure yourself or damage the dryer by such

abuse.

NEVER ●Switch electricity On or Off with wet hands.

IMPORTANT

Using your Tumble Dryer is easy.

Nevertheless, for your own safety and to get the best results it is important to know your

Dryer by reading right through this handbook before using your dryer for the first time.

A CHILD COULD CLIMB INTO OR TAMPER WITH AN UNATTENDED

TUMBLE DRYER.

WHEN THE MACHINE IS NOT IN USE SWITCH OFF, REMOVE THE PLUG

AND CLOSE THE DOOR.

IMPORTANT

For your safety

ALWAYS ●Empty the Water Container after EACH drying cycle.

ALWAYS ●Finish every programme with the cool tumble cycle provided on

the control.

ALWAYS ●Clean the filter, it is essential that the filter is kept clear of fluff

after EACH drying cycle.

ALWAYS ●Ensure Condenser is free of fluff, regular cleaning is recommended.

ALWAYS ●When the dryer is not in use, switch off, remove plug and close the

door.

ALWAYS ●Comply with the specified electrical requirements.

ALWAYS ●Ensure that your dryer is installed correctly and has adequate

ventilation. (see, "Where to put your dryer.")

ALWAYS ●Observe the rules for drying garments:

In particular woollen articles should not be dried in a

tumble dryer unless they are labelled ‘Superwash’,

‘Machine washable’ or have the ‘May be tumble dried’

symbol:

If in any doubt do not dry wool in the machine.

Unlike other materials, the mechanism of wool

shrinkage is irreversible, i.e. it will not stretch back to

the original size and shape.

ALWAYS ●Buy genuine accessories and spares.

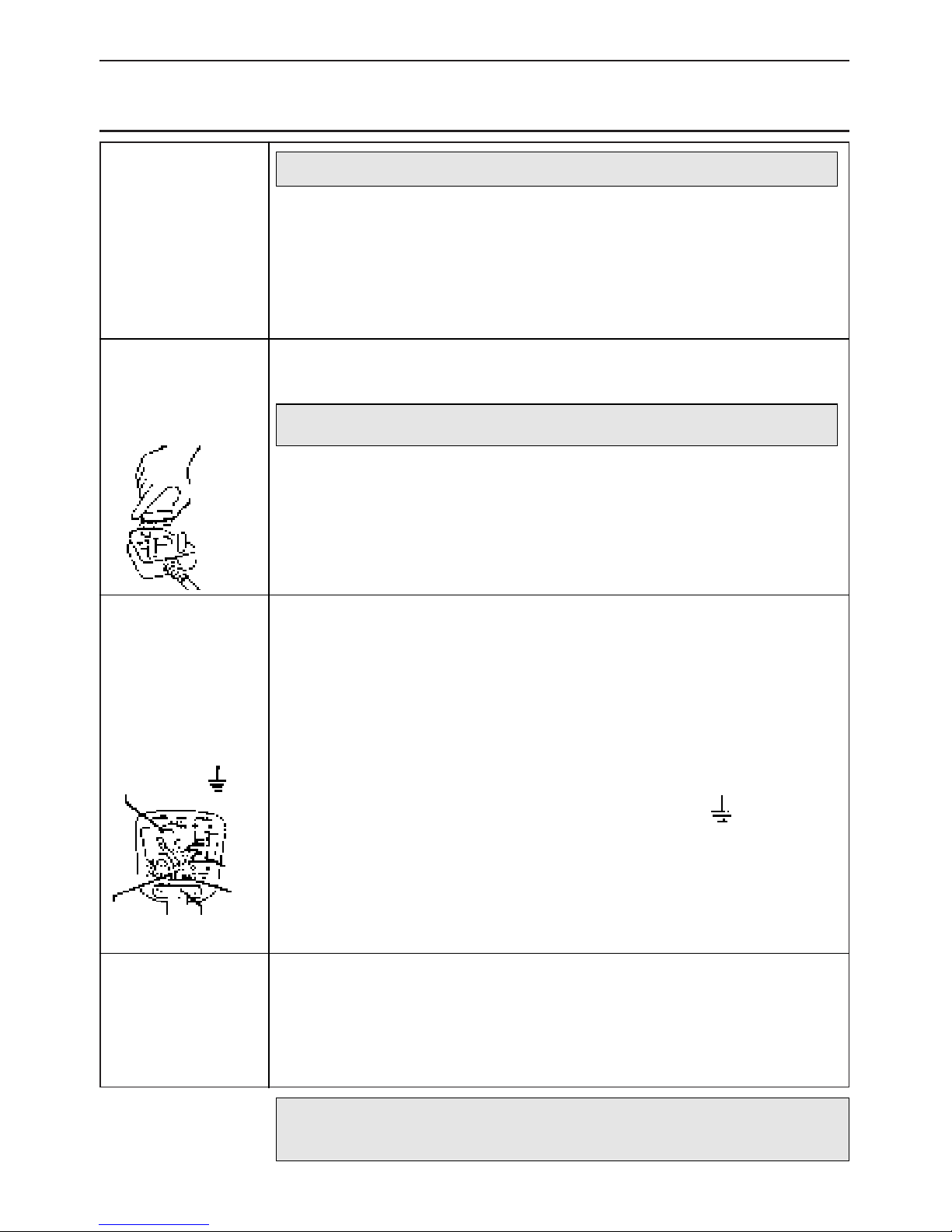

Electrical Requirements

Supply

Changing

the fuse

Moulded plug

Changing

the plug

Rewirable plug

Changing the

mains cable

WARNING: This appliance must be earthed!

REFER TO THE RATING PLATE FOR VOLTAGE AND CURRENT

REQUIREMENTS. (see diagram for location.)

The flexible mains lead is supplied fitted with a BS1363 plug and

with a 13 amp BS1362 fuse.

The plug should be connected to the mains supply via a suitable

switched socket which is accessible after installing your dryer.

If it is necessary to fit a replacement fuse, it must be a 13 amp

ASTA approved to BS1362 type.

If a replacement fuse holder/cover is required, it must be of the

same colour coding or wording as shown on the base of the plug.

Replacements are available from your Spares stockist.

The wires in the mains lead are coloured in accordance with the

following:

GREEN/YELLOW - EARTH

BLUE - NEUTRAL

BROWN - LIVE

If a replacement plug is to be fitted, the appropriate wire must be

connected to the correct terminal, the following gives some

examples.

Connect:

Green/Yellow to terminal marked Earth or Green or

Blue to terminal marked Neutral or N or Black

Brown to terminal marked Live or L or Red.

if the plug being replaced is a non-rewirable type then the cut-off

plug must be disposed of safely. DO NOT leave where it can be

inserted into a socket and create a shock hazard.

Should the mains lead ever require replacing at any time please

contact your nearest Service Centre. A charge will be made for the

replacement of the mains lead or if you require a longer lead.

The mains lead must only be replaced by a specially prepared

cable obtainable from your Spares Stockist and fitted by a

qualified electrician.

WARNING: The plug must not be used without a fuse cover.

NOTE: IF IN DOUBT ABOUT ANY OF THE ABOVE CONSULT A

QUALIFIED ELECTRICIAN.

GREEN &

YELLOW TO

EARTH

13 AMP

FUSE

BROWN

TO LIVE

CORD

CLAMP

BLUE TO

NEUTRAL

Features - Get to know the main parts of your dryer

Push here to

open door

NOTE: If your

dryer is new wipe

out the inside of

the drum before

you first use it

to remove any

dust which may

have accumulated

during transit.

Air intake

grille

Plinth Moulding

(Not fitted to all models)

Serial & Model

numbers

Rating Plate

Fluff filter

CLEAN AFTER

EACH LOAD

Door

catch

Condenser

(Keep clear of fluff)

Clean periodically

Door latch

see "The Controls"

Water Container

(Empty after Each Load)

Your Tumble Dryer should NOT be located adjacent to a gas hob,

cooker, heater or eye level grill as flames from the burners could

cause damage to your dryer.

When the dryer is fitted under a work surface, allow space for air

to exit the rear grille, a 15mm gap each side of the dryer is

recommended. This airflow is essential to condense the water

produced drying the washing.

If you are using this dryer adjacent or stacked on top of a wash-

ing machine SEPARATE mains plugs and sockets must be used

for each appliance.

DO NOT use 2-way adaptors or extension leads.

Both your tumble dryer and front loading washing machine are

similar in design allowing the tumble dryer to be permanently

stacked on top saving you valuable floor space. A special stacking

kit complete with instructions is available from your retailer or

nearest Spares Centre.

IMPORTANT

Only use genuine stacking kits. When ordering you must

state the model numbers of both your Washing Machine and

your Tumble Dryer. Unsuitable kits may result in a potential

hazard and will invalidate your warranty rights.

Stack it on your

Washing Machine

Where to put your dryer

●

How to use your dryer

1. Plug in, switch

on electricity. 2. Sort your laundry

(see section “Sorting

Your Laundry”)

3. Open the door

by pressing and

releasing the front

panel in the position

shown.

4. Always check

the following:

5. Load the dryer

placing the

clothes carefully in

the drum pushing

them well towards

the back and

away from the

door seal. Close

the door.

6. Select the rele-

vant heat setting

(see section “The

Controls”)

7. Select the

required programme

or drying time. (see

section “The

Controls”)

8. Press the

START switch to

commence the dry-

ing programme.

9. When finished

open the door and

take out the laun-

dry. Clean and

replace the fluff fil-

ter, and empty the

water container.

10.Switch off elec-

tricity and remove

plug from socket.

WARNING: WHEN

SWITCHING ON

OR OFF, PLEASE

ENSURE THAT

YOUR HANDS

ARE DRY

WARNING: WHEN

SWITCHING ON

OR OFF, PLEASE

ENSURE THAT

YOUR HANDS

ARE DRY

FLUFF FILTER

is clean and in place

WATER CONTAINER

is empty and in place

CONDENSER

is clean and in place

The ‘Cool Tumble’

phase

About 10 minutes before the programme is completed, the heating

elements will be switched off and the programme enters the final

‘Cool Tumble’ phase. During this phase the fabric is cooled. You

should always allow the dryer to complete this phase.

By opening the door you can check the dryness of the load as often

as you wish and if you want to remove some items before they are

fully dry. (This is particularly useful for a mixed load where you want

to iron some items, but others are to be fully dried.) You will need

to press the start button after closing the door to re-start the

programme. See section ‘The Controls’.

The Controls - All Models

Selecting the

required Heat

Switch Setting

Starting the Dryer

Empty Water Light

The ‘Cool Tumble’

phase

Audio Signal

(Buzzer)

To select high heat (Cottons), the heat selection switch must be In.

To select Low heat (Acrylics and Synthetics), the heat selection switch

must be Out, a blue indicator will be visible on the top of the switch.

See section “Guide to Drying Times”.

Press and release the START Drying button to commence a drying

programme (or delayed start programme on Excel models). The door

must have been securely closed first.

After releasing the start button, it will return to its original position.

This light will glow when the water container is full.

You should not wait for this light to glow before emptying the

container, but empty it after each load (See section “Emptying the

Water Container”).

NOTE: If the light glows during a programme you must stop the dryer

and empty the water container. If this is not done the timer will

advance to the Cool Tumble phase without drying the load.

The light will take approximately 10 seconds to go out after replacing

the empty container.

About 10 minutes before the programme is completed, the heating

elements will be switched off and the programme enters the final

‘Cool Tumble’ phase. During this period, the fabric is cooled. You

should always allow the dryer to complete this phase.

By opening the door you can check the dryness of the load as often

as you wish, and if you want to remove some items before they are

fully dry. (This is particularly useful for a mixed load, where you want

to iron some items but others are to be fully dried). You will need to

press the start button after closing the door to restart the

programme. See section “The Controls”.

After completion of the ‘Cool Tumble” phase, a buzzer (if selected) will

indicate that the programme has finished.

To silence the alarm, open the door or press the Audio Signal button.

This option is cancelled with the Audio Signal button IN and selected

with the button OUT.

NOTE: If the door is opened during a programme, the dryer

will automatically stop.

To continue the programme after closing the door, the

START button must be pressed again.

The Controls - Advance and First Choice Models

Setting the timer

Easy Care cycle

Filter Care light

(selected models

only)

Heat Switch (OUT low heat, IN high heat) Audio Switch Start button

Filter Care Light (selected models) Empty water light Indicator

Turn the timer clockwise to select the required drying time.

The drying time for both heat settings is controlled by the timer. All you

have to do is turn the timer control clockwise until the required time

appears in line with the indicator. If you have selected more time than

you require turn the knob to select the correct time required.

The “Guide to Drying Times” section will tell you how much time you’ll

need for various loads.

This is a short programme of approximately 10 minutes to condition

previously dried clothes, see section “Easy Care Programme”. It

consists of a period of heating followed by a short cool tumble period

(as detailed below).

Select high heat for this programme. It should not be used on

damp loads as it is NOT a drying programme.

Whenever the door is opened and there is power supplied to the dryer,

the light marked ‘Filter Care’ will glow. This light advises the user to

check the filter is clear of fluff. It does not necessarily mean that the

filter is blocked or that there is anything wrong with the dryer. The light

will go out when the door is closed.

THE START BUTTON MUST BE PRESSED TO START

ALL PROGRAMMES.

Tabla de contenidos

Otros manuales de Secadora de Creda

Creda

Creda HB37513 Manual de usuario

Creda

Creda HB37436 Guía del producto

Creda

Creda HB37567E Manual de usuario

Creda

Creda HB37069 Manual de usuario

Creda

Creda HB37679 Manual de usuario

Creda

Creda 5kg Manual de usuario

Creda

Creda C3TDBL Manual de usuario

Creda

Creda HB37649 Manual de usuario

Creda

Creda S102GW, S202PW Manual de usuario

Creda

Creda HBT622CW Manual de usuario

Creda

Creda HB37647 Manual de usuario

Creda

Creda Tumble Dryer Manual de usuario

Creda

Creda HB37496 Manual de usuario

Creda

Creda HB37549 Guía del producto

Creda

Creda TCS3 Manual de usuario

Creda

Creda HB37765X Manual de usuario

Creda

Creda T301IS Manual de usuario

Creda

Creda HB37766E Manual de usuario

Creda

Creda HB37427 Guía del producto

Creda

Creda TCR2 Manual de usuario

Creda

Creda HB373 Manual de usuario

Creda

Creda HB37447 Manual de usuario

Creda

Creda TVU1 TVR2 Manual de usuario

Creda

Creda HBT620CW Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
