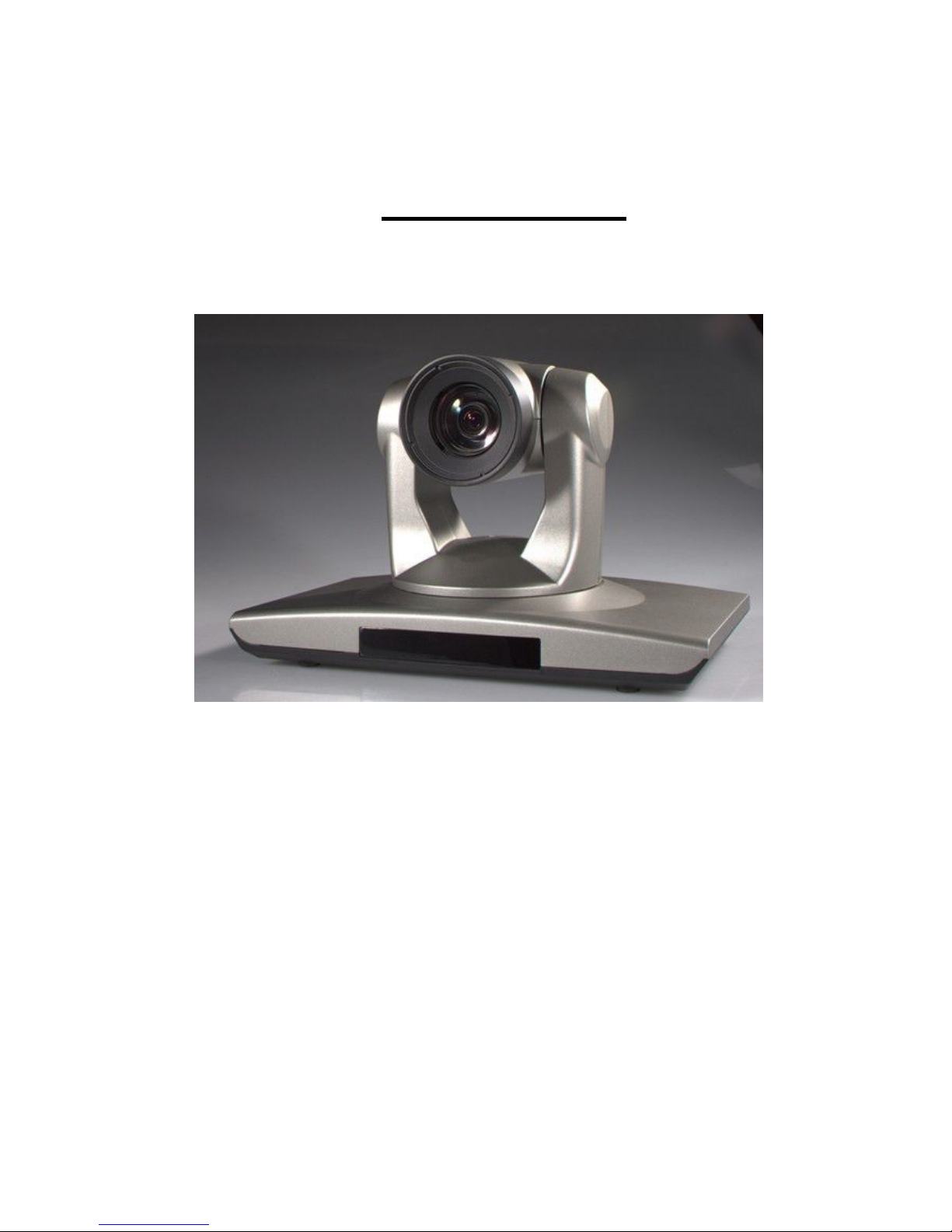

HD Color Video Camera
User Manual
１
Preface:
Thanks for using our HD color video conference camera.
This manual introduces the function installation and operation of
the HD camera. Prior to installation and usage, please read the
manual thoroughly.
Warning
This product can be only used in specified range in order to avoid any
damage or danger.
Don’t expose the camera to rain or moisture place.
Don’t remove the cover to reduce the risk of electric shock. Refer
servicing to qualified personnel.
Never operate the camera under unqualified temperature, humidity
and power supply.
Only use the replacement parts recommended by us.
Please use the soft cloth to clean the camera. Use neuter cleanser if
bad smeared .No uses the strong or cleanser avoiding scuffing.
Be careful or moving; never press the drive parts heavily avoiding
camera trouble.
Notes
Electromagnetic fields at the specific frequency may affect the image
quality.
２
【Contents】
Notes ………………………………………… ………………..
Accessories …………………………………………………….
Fast Installation…………………………………………………
Camera Highlights………………………………………………
Camera specifications………………………………………….
Camera interface explanation…………………………………
Remote Controller explanation…………………………………
Usage of IR remote controller …………………………………
VISCA RS-232 pin specs……………………………………….
Series COM Control …………………………………………….
Menu Setting……………………………………………………...
Maintenance and Trouble Shooting…………………………….
３
Notes
Electric Safety
Installation and operation must accord with electric safety standard
Caution to transport
Avoid stress, vibration and soakage in transport, storage and installation.
Polarity of power supply
The power supply of the product is +12V, the max electrical current is 2.5A .polarity of the
power supply drawing.
Careful of installation
Never move the camera by seizing the camera head. Don’t rotate camera head by hand;
otherwise, mechanical trouble will occur.
This series item must put on the smooth desk or platform, and it can not be installed
slantways.
If the camera is installed on TV or computer, the base can be fixed by three double-sided
adhesive trays.
Don’t apply in corrosive liquid, gas or solid environment to avoid the cover which is made up
of organic material.
To make sure no obstacle in rotation range.
Never power on before installation is not completed.
Don’t dispatch discretionarily
We are not responsible for any unauthorized modification or dismantling.
Attention: Electromagnetic filed under certain rate may affect camera image!
４
Supplied Accessories
When you unpack, check that all the supplied accessories are included:
Camera …………………………1
Power adaptor …………………1
Power cable…………………….1
RS232 cable……………………1
Remote controller………………1
User manual ……………………1
Double-side glue shim ………..4
Fast Installation
1. Please check the connection before turn on.
2. Bottom Dial Switch Setting
Two DIP switch set to be OFF, which is normal working mode
SW2-2
SW2-1
Explanation
1
ON
OFF
Undefined
2
OFF
OFF
Updating mode
3
OFF
ON
Debugging mode
4
ON
ON
Working mode
５
3. The Rotary Switch Setting
The video format setting selections
Note: Please restart the camera after shift the video format
4. When Power supply switch is “on”, the indicator light is open (red color)
5. Camera initializes after powered on, the indicating lights on front panel will start flicker by
the order of Red - Yellow- Green : Rotate Pan to the left limit, rotate tilt to the down limit; Then
rotate to the middle of both pan and tilt, the motor stops. Camera lens initializes until the
indicating light become green. Initialization finishes. (Note: If the users do not operate the
camera in 12 seconds, the camera will move to the preset position No.0 or No.1 if saved 0 or
1 preset)
Switch Setting
0
1080P60
1
1080P50
2
1080I60
3
1080I50
4
720P60
5
720P50
6
1080P30
7
1080P25
8
--------
9
--------
A
--------
B
--------
C
--------
D
--------
E
--------
F
Display as the video format set by the menu
RESET
＝＝＝＝＝＝＝＝＝＝＝＝＝＝
SYSTEM. RESET NO
CAM.RESET NO
PT. RESET NO
ALL. RESET NO
BACK／ＭＥＮＵ
６
6. Restore default setting: enter into the OSD menu by press the menu key of remote
controller, select 【Restore Default】, moving the left/right key to press 【Yes】 ，then confirm
by 【HOME】key .
7. Camera Standby: Press the 【Standby】key on the remoter, camera pan tilt will rotate to
the down limit, and then rotate to the right limit to be standby. The working indicates light turn off
and flick as red light once every 20 seconds. If need to wake up the camera, user need to press
again the 【Standby】key and camera will start and run self-checking again.
Camera highlights
1. Camera support both Chinese and English menu which is convenient for using.
2. Multiple and completed HD interfaces; Provide the DVI interface (including YPbPr, HDMI
and VGA signal) and HD-SDI interface.
3. IR remote controller signal transparent transmission function: camera can receive both its
own remote controller signal and the controller signal of terminal equipment by converting to
serial signal then executing. Thus, the terminals can be working in the background.
Camera Specifications:
1. Video format : 1080P60/50, 1080P30/25, 1080I60/50, 720P60/50 (S)
1080P30/25, 1080I60/50, 720P60/50 (M)
720P60/50 (C)
2. Output Interface : DVI（YPbPr, HDMI, VGA）, HD-SDI, CVBS(optional)
3. Image Sensor: 1/2.8 type CMOS, 2.07million effective pixels and 2.74 million total pixels.
4. Lens: 4.7mm ~ 84.6 mm，F1.6 - 2.8, angle of view : 55.2°- 3.2°.
5. The Rotation : ±170°for pan rotation and -30°~ +90°for tilt rotation
Support in-ceiling installation.
6. The Control speed: 0.1°-180°/sec for pan rotation, 0.1°-80°/sec for tilt rotation .
7. Preset position No.: 10 preset position with precision error less than 0.2°.
And it can reach to 128 presets position by COM command.
8. Support auto/manual/indoor/outdoor/auto key-control/auto-tracking white balance;
Auto/manual exposure (Iris, Shuttle) and auto/manual/One-Push focus.
9. Support WDR technical: performance ≥100dB, anti-flicker.
10. Control Signal interface: 8 pin mini DIN,RS232，VISCA/Pelco-D/Pelco-P
11. Power interface: HEC3800 power jack, Power supply adapter: DC12V/2.5A.
12. Maximum consumption 12W
13. Working temperature: -5℃to +45℃
14. Storage temperature:-20℃to +60℃
15. Weight 1.3kg
７
Camera Interface Explanation
1 - Camera lens
2 - Camera base
3 - Working status indicator light (red)
4 - Bottom dial Switch
5 - Tripod screw hole
6 - Installation Orientation Hole
7 - Rotary Switch: video format optional
8 - RS232 controller serial interface (input)
9 - RS232 controller serial interface (output)
10 - CVBS interface (optional)
11 - HD-SDI interface
12 - DVI-I interface（including YPbPr, HDMI and VGA interface）
13 - DC12V Input Power Supply Jack
14 - Power indicator light (red)
８
Remote Controller:
Definition of IR controller
0、Standby key
After press the standby key, the camera will step into
standby mode. Press again, the camera will open
again. (Note: Standby mode power consumption is
about half of the normal mode)
1、Number key
Setting or Running presets
2、* key
Key combination use
3. Set preset key:
Set preset：Preserve a preset
Set preset key + 0-9 number key ：Set a preset
corresponding to the number.
Clear preset key：
Clear preset key + 0-9 number key: Clear the relative
preset
or：＃+＃+＃：Clear all the presets
4、BLC control key
Black Light compensation ON/ OFF：Not supported by
the camera
5、Focus control key
【Auto Focus】Enter into auto focus model
Press 【Manual Focus】key to switch to manual focus, the focus can be adjusted by pressing
【Focus+】or【Focus-】
6、Camera address selection
Camera address selection (Note: current version only supports No.1 address)
7、# key
Key combination use
8、pan/tilt control key
Press key ：Up
Press key ：Down
Press key ：Left
Press key：Right
“HOME” key: Return to the middle position
９
9、Menu setting
Open or close the OSD menu
10、Zoom Control key
zoom＋：lens near
zoom－：lens far
11、Controlling camera address selection
【*】+【＃】+【F1】：the 1st camera address
【*】+【＃】+【F2】：the 2nd camera address
【*】+【＃】+【F3】：the 3rd camera address
【*】+【＃】+【F4】：the 4th camera address
IR Remote Control
When the camera is working, users can control the pan/tilt/zoom, setting and taking preset
positions via remote controller.
Instruction:
1. In this instruction, “press the key” means a click other than a long-press, and a special note
will be given if a long-press for more than one second is required.
2. When a key-combination is required, do it in sequence. For example, “+#+F1”means
press“*”first and then press“#” and press“F1”at last.
1. Pan/Tilt Control
Up: press
Down: press
Left: press
Right: press
Back to middle position：press“HOME”
Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until
it run to the endpoint; The pan/tilt running stops as soon as the key is released.
