4CYCLONE CHAFF SPREADER - JD
SAFETY
1. FollowALLoperating,maintenance, and safetyinforma-
tion in this manual.
2. Supportthemachinewith blocks or safety stands when
working around it.
3. Follow good shop practices:
• Keep service area clean
and dry.
• Be sure electrical outlets
and tools are properly
grounded.
• Use adequate light for the
job at hand.
4. Use only tools, jacks and hoists of sufficient capacity
for the job.
5. Place all controls in neutral or off, lower header to the
ground,stopcombineengine,setparkingbrake,chock
wheels, remove ignition key and wait for all moving
parts to stop before servicing, adjusting, repairing or
unplugging.
6. When maintenance work is completed, install and se-
cure all guards before resuming work.
7. Relievepressurefrom hydraulic circuit before servicing
or disconnecting from combine.
8. Keep hands, feet, hair and clothing away from all mov-
ing and/or rotating parts.
9. Cleartheareaofbystanders, especially small children,
whencarrying out anymaintenanceand repairsormak-
ing any adjustments.
1. ReadandunderstandtheOwner’sManual andall safety
decals before servicing, adjusting or repairing.
2. Installandsecure all guards and shields before starting
or operating.
3. Keep hands, feet, hair and clothing away from all mov-
ing and/or rotating parts.
4. Place all controls in neutral or off, lower header to the
ground,stopcombineengine,setparkingbrake,chock
wheels, remove ignition key and wait for all moving
parts to stop before servicing, adjusting, repairing or
unplugging.
5. Cleartheareaofbystanders, especially small children,
before starting.
6. Keep all hydraulic lines, fittings, and couplers tight and
free of leaks before and during use.
7. Clean reflectors and lights before transporting.
8. Reviewsafetyrelateditemsannually with all personnel
who will be operating or maintaining the machine.
9. Shut the combine off when connecting the machine
hydraulics.
2.3 OPERATING SAFETY
2.4 MAINTENANCE SAFETY

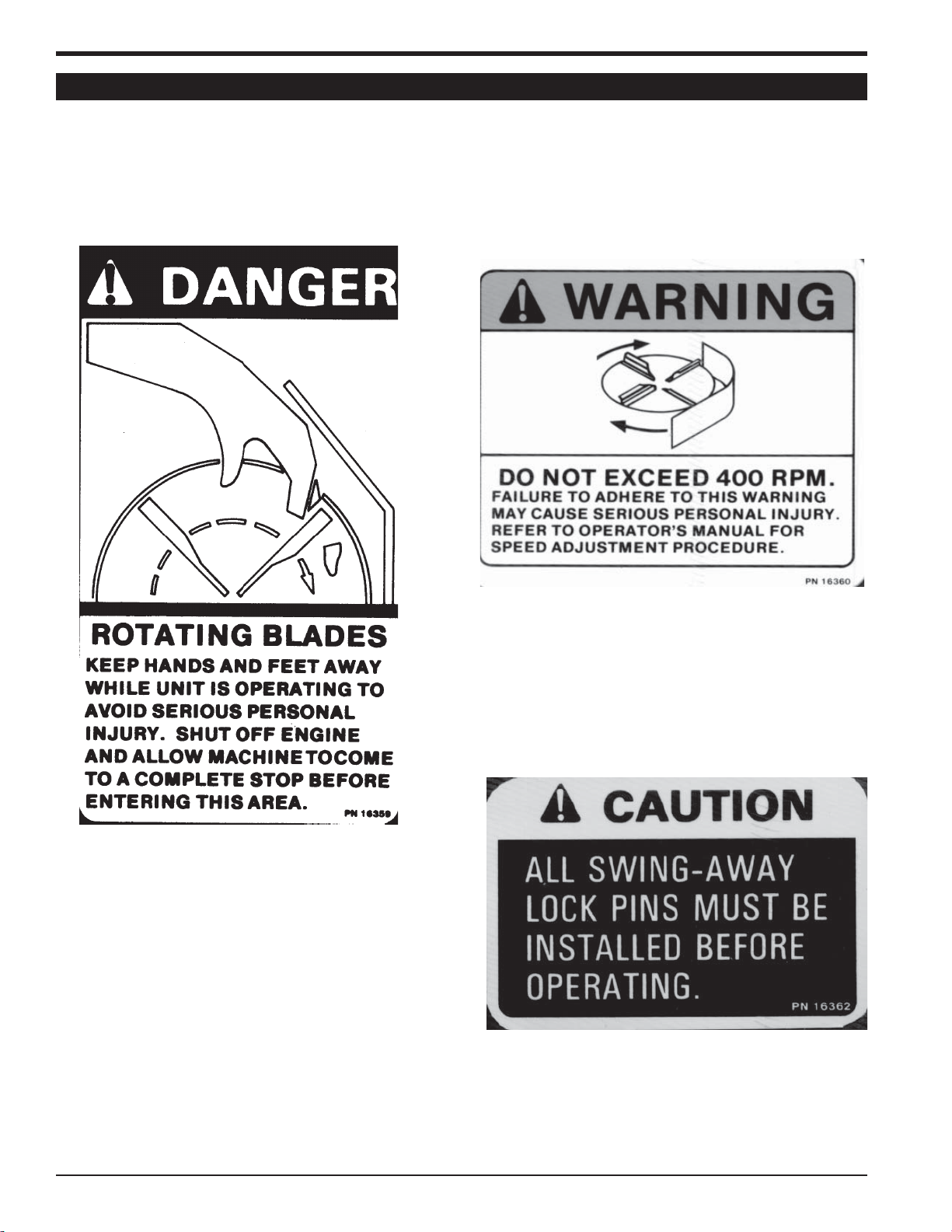

10. Keep safety decals clean. Replace any decal that is
damaged or not clearly visible.
11. First-class maintenance is a prerequisite for the safest
operation of your machine. Maintenance, including
lubrications, should be performed with the machine
stopped and locked out.
1. Always place all combine hydraulic controls in neutral
before disconnecting from combine or working on hy-
draulic system.
2. Make sure that all components in the hydraulic system
are kept in good condition and are clean.
3. Relieve pressure before working on hydraulic system.
4. Replace any worn, cut, abraded, flattened or crimped
hoses.
5. Do not attempt any makeshift repairs to the hydraulic
fittings or hoses by using tape, clamps or cements.
The hydraulic system operates under extremely high-
pressure. Such repairs will fail suddenly and create a
hazardous and unsafe condition.
6. Wear proper hand and eye protec-
tion when searching for a high-
pressure hydraulic leak. Use a
piece of wood or cardboard as a
backstop instead of hands to iso-
late and identify a leak.
7. If injured by a concentrated high-
pressure stream of hydraulic fluid,
seek medical attention immedi-
ately. Serious infection or toxic
reaction can develop from hydraulic fluid piercing the
skin surface.
8. Before applying pressure to the system, make sure all
components are tight and that lines, hoses, and cou-
plings are not damaged.
2.5 HYDRAULIC SAFETY
2.6 STORAGE SAFETY
2.7 ASSEMBLY SAFETY
1. Store the unit in an area away from human activity.
2. Do not permit children to play on or around the stored
machine.
3. See the Owner’s manual that came with your combine
and header for proper storage.
1. Assemble in an area with sufficient space to handle
the largest component and access to all sides of the
machine
2. Use only lifts, cranes and tools with sufficient capacity
for the load.
3. When necessary, have someone assist you.
4. Do not allow spectators in the working area.
