Craftsman C3 Manual de usuario

Operator's Manual

CRAFTSMAN°

C3 19.2-Volt LITHlUMN-ION

CORDLESS LED WORKLIGHT

Model No. 5518

LISTED

_WARNING: To reduce the risk of injury,

the user must read and understand the

Operator's Manual before using this product.

• WARRANTY

• SAFETY

• DESCRIPTION

• ASSEMBLY

• OPERATION

•MAINTENANCE

•ESPANOL

Sears Brands Management Corporation, Hoffman Estates,

IL 60179 U.S.A.

www.craftsman.com

Warranty Page 2

Safety Symbols Pages 3-4

Safety Instructions Page 5

Description Page 6

Assembly Page 7

Operation Pages 8-9

Maintenance Page 9

Parts List Page 10

CRAFTSMAN LIMITED WARRANTY

FOR ONE YEAR from the date of sale, this product is warranted against

any defects in material or workmanship.

WITH PROOF OF SALE, a defective product will be replaced free

of charge.

For warranty coverage details to obtain free replacement, visit the

web page: www.craftsman.com/warranty

This ONE YEAR warranty is void if this product is ever used while

providing commercial services or if rented to another person. For 90 DAY

commercialand rental use terms, see the Craftsman warranty web page.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179.

SAVE THESE INSTRUCTIONS!

READ ALL INSTRUCTIONS!

This LED worklight has many features for making its use more pleasant and

enjoyable. Safety, performance, and dependability have been given top

priority in the design of this product making it easy to maintain and operate.

DANGER: People with electronic devices, such as pacemakers, should

consult their physician(s) before using this product. Operation of electrical

equipment in close proximity to a heart pacemaker could cause interference or

failure of the pacemaker.

Thepurposeofsafetysymbolsistoattractyourattentiontopossibledangers.

Thesafetysymbolsandtheexplanationswiththemdeserveyourcareful

attentionandunderstanding.Thesymbolwarningsdonot,bythemselves,

eliminateanydanger.Theinstructionsandwarningstheygivearenosubstitutes

forproperaccidentpreventionmeasures.

WARNING:Besuretoreadandunderstandallsafetyinstructionsinthis

manual,includingallsafetyalertsymbolssuchas"DANGER,""WARNING,"

and"CAUTION,"beforeusingthistool.Failuretofollowingallinstructionslisted

belowmayresultinelectricshock,fire,and/orseriouspersonalinjury.

SYMBOL SIGNAL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION; may

be used in conjunction with other symbols or pictographs.

DANGER: Indicates a hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING: Indicates a hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION: Indicates a hazardous situation which, if not avoided, could

result in minor or moderate injury.

Damage Prevention and Information Messages

These inform the user of important information and/or instructions that could

lead to equipment or other property damage if they are not followed. Each

message is preceded by the word "NOTICE," as in the example below:

NOTICE: Equipment and/or property damage may result if these instructions are

not followed.

WARNING: To ensure safety and reliability, all repairs should be performed

by a qualified service technician.

_, WARNING:The operation of any power tool can result in

foreign objects being thrown into your eyes, which can result

in severe eye damage. Before beginning power tool operation,

always wear safety goggles or safety glasses with side shields

and a full-face shield when needed. We recommend a Wide

Vision Safety Mask for use over eyeglasses or standard safety

glasses with side shields. Always use eye protection which is

marked to comply with ANSI Z87.1

SAVE THESE INSTRUCIONS

Some of the following symbols may be used on this tool. Please study them

and learn their meaning. Proper interpretation of these symbols will allow you to

operate the tool better and more safely.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

A Amperes Current

Hz Hertz Frequency (cycles per second)

W Watt Power

rain Minutes Time

Alternating Current Type of current

--_ Direct Current Type or a characteristic of current

n 0 No Load Speed Rotational speed, at no load

] Class II Construction Double-insulated construction

.../min Per Minute Revolutions, strokes, surface speed,

orbits, etc., per minute

Wet Conditions Alert Do not expose to rain or use in damp

locations.

To reduce the risk of injury, user must

Read The Operator's Manual read and understand operator's manual

before using this product.

OAlways wear safety goggles or safety

Eye Protection glasses with side shields and a full face

shield when operating this product.

,_ Alert Precautions that involve

Safety your safety.

No-Hands Symbol Failure to keep your hands away from theblade will result in serious personal injury.

Failure to keep your hands away from theNo-Hands Symbol blade will result in serious personal injury.

No-Hands Failure to keep your hands away from the

Symbol blade will result in serious personal injury.

Failure to keep your hands away from the

No-Hands Symbol blade will result in serious personal injury.

Hot Surface To reduce the risk of injury or damage,

avoid contact with any hot surface.

Save all warnings and instructions for future reference.

WARNING: When using electric appliances, basic precautions should

always be followed, including the following:

•Read all the instructions before using the appliance.

•To reduce the risk of injury, close supervision is necessary when an

appliance is used near children.

•Do not contact moving parts.

•Only use attachments recommended or sold by the manufacturer.

•Do not use outdoors.

•For a rechargeable appliance - Use only the charger supplied by the

manufacturer to recharge.

•For use only with C3 19.2V, max. 4000mAh,Lithium-ion type

rechargeable battery pack. Replace with battery pack recommended by

the manufacturer.

ID]_'_o_[[o_]

KNOW YOUR LED WORKLIGHT (Fig.l)

Fig. 1

200 ° Pivoting_

'E°sIt,,

_ _'__..._ -Hand,e

PRODUCT SPECIFICATIONS

LED Power 19.2 V, 110mA

Illumination Source 24 Light Emitting Diodes (LED)

Head Pivot 200 °

WARNING: The safe use of this product requires an understanding of the

information on the appliance and in this operator's manual, as well as knowledge

of the project you are attempting. Before use of this product, familiarize yourself

with all operating features and safety rules.

_f>'[,,'t

WARNING: If any part is broken or missing, do not attempt to operate the

worklight until the broken or missing part is replaced. Failure to do so could

result in possible serious injury.

WARNING: Do not attempt to modify this worklight or create accessories not

recommended for use with this worklight. Any such alteration or modification is

misuse and could result in a hazardous condition leading to possible serious injury.

UNPACKING

• Carefully remove the appliance and any accessories from the carton. Make

sure that all items listed in the packing list are included.

• Inspect the tool carefully to make sure no breakage or damage occurred

during shipping.

• Do not discard the packing material until you have carefully inspected and

satisfactorily operated the tool.

• If any parts are damaged or missing, please return the tool to the place of

purchase.

PACKING LIST

LED Worklight, Operator's Manual.

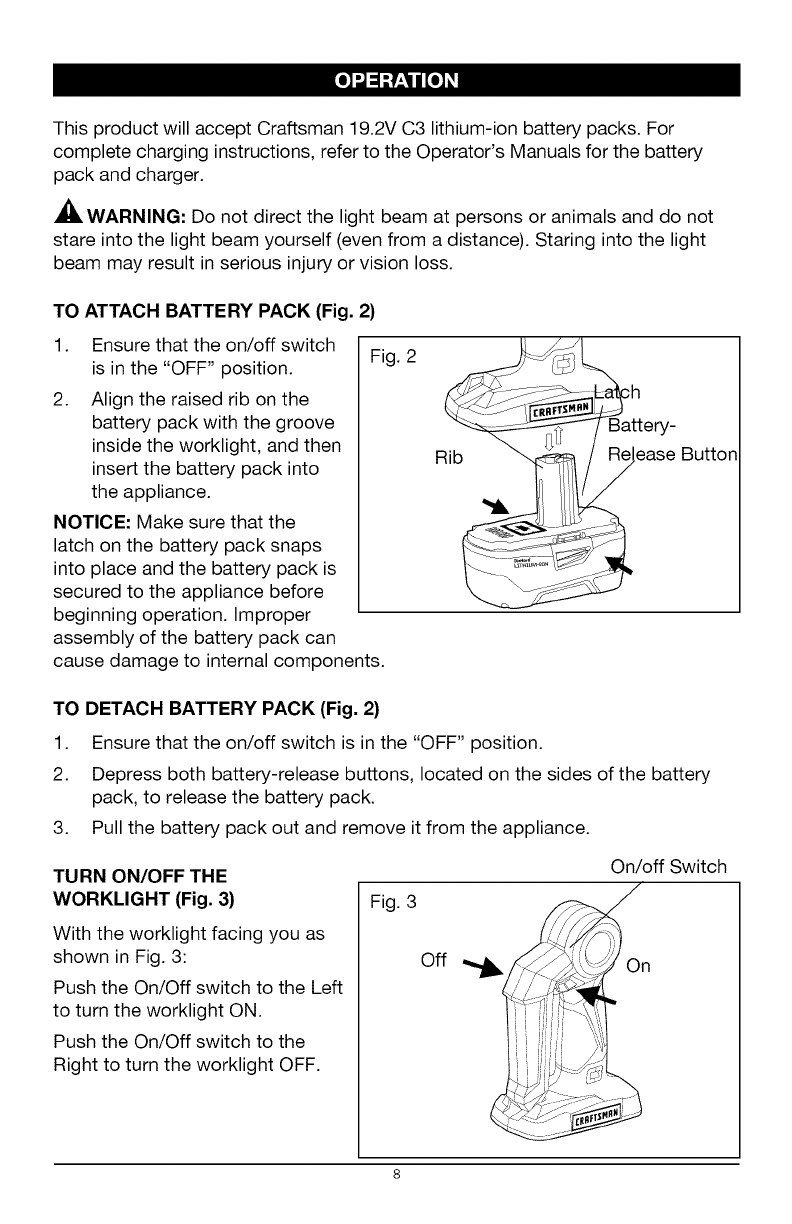

This product will accept Craftsman 19.2V C3 lithium-ion battery packs. For

complete charging instructions, refer to the Operator's Manuals for the battery

pack and charger.

WARNING: Do not direct the light beam at persons or animals and do not

stare into the light beam yourself (even from a distance). Staring into the light

beam may result in serious injury or vision loss.

TO ATTACH BATTERY PACK (Fig. 2)

1. Ensure that the on/off switch

is in the "OFF" position.

2. Align the raised rib on the

battery pack with the groove

inside the worklight, and then

insert the battery pack into

the appliance.

NOTICE: Make sure that the

latch on the battery pack snaps

into place and the battery pack is

secured to the appliance before

beginning operation. Improper

assembly of the battery pack can

cause damage to internal components.

Fig. 2

Rib

3attery-

aase Button

TO DETACH BATTERY PACK (Fig. 2)

TURN ON/OFF THE

WORKLIGHT (Fig. 3)

With the worklight facing you as

shown in Fig. 3:

Push the On/Off switch to the Left

to turn the worklight ON.

Push the On/Off switch to the

Right to turn the worklight OFF.

Ensure that the on/off switch is in the "OFF" position.

Depress both battery-release buttons, located on the sides of the battery

pack, to release the battery pack.

Pull the battery pack out and remove it from the appliance.

On/off Switch

Fig. 3

Off _ On

ADJUSTING THE WORKLIGHT

HEAD (Fig.4)

The worklight head independently

pivots 200 ° for maximum

flexibility.

Move the head by manually

adjusting it to any position within

the 200 ° pivot range. Do not force

the head beyond the 200 ° range.

Fig. 4

AWARNING: To avoid serious personal injury, always remove the battery pack

from the tool when cleaning or performing any maintenance.

WARNING: Always wear safety goggles or safety glasses with side shields

when using compressed air to clean the tool. If the operation is dusty, also wear a

dust mask.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible

to damage from various types of commercial solvents and may be damaged by

their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids, gasoline, petroleum-based

products, penetrating oils, etc. come in contact with plastic parts. Chemicals can

damage, weaken or destroy plastic which may result in serious personal injury.

WARNING: When servicing, use only identical craftsman replacement parts.

Use of any other parts may create a hazard or cause product damage. To ensure

safety and reliability, all repairs should be performed by a qualified

service technician.

0 00

4--'

.__o_

__.__

c'-"

4--,

0.°9

0..

_ c c

_ 0 CO

_ _ _ ,

,r--

Nz_

_ o

)

)o 0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Luz de trabajo de Craftsman

Craftsman

Craftsman 315.114073 Manual de usuario

Craftsman

Craftsman 11391 Manual de usuario

Craftsman

Craftsman CMMT25165 Manual de usuario

Craftsman

Craftsman nextec 320.10005 Manual de usuario

Craftsman

Craftsman CMXELAYMPL1028 Manual de usuario

Craftsman

Craftsman 11407 Manual de usuario

Craftsman

Craftsman CMXELAYMPL1027 Manual de usuario

Craftsman

Craftsman 315.113913 Manual de usuario

Craftsman

Craftsman CMCL050 Manual de usuario

Craftsman

Craftsman 315.113913 Manual de usuario

Craftsman

Craftsman 973.113900 Manual de usuario

Craftsman

Craftsman CMXELAYMPL1029 Manual de usuario

Craftsman

Craftsman 11390 Manual de usuario

Craftsman

Craftsman 320.2966 Manual de usuario

Craftsman

Craftsman CMCL090 Manual de usuario

Craftsman

Craftsman CMCL005 Manual de usuario

Craftsman

Craftsman CMXELAYMPL1032 Manual de usuario

Craftsman

Craftsman CMCL020 Manual de usuario

Craftsman

Craftsman CMXELAYMPL1030 Manual de usuario

Craftsman

Craftsman CMXELAYMPL1033 Manual de usuario

Craftsman

Craftsman 315.110990 Manual de usuario

Craftsman

Craftsman 26826 Manual de usuario

Craftsman

Craftsman 315.CLED1000 Manual de usuario

Craftsman

Craftsman 73904 Manual de usuario

Manuales populares de Luz de trabajo de otras marcas

ANSMANN

ANSMANN POWERLIGHT 5.1 Manual de usuario

RTRMAX

RTRMAX RTX1868 Manual de usuario

FeinTech

FeinTech LAL00220 Manual de usuario

Bunker Hill Security

Bunker Hill Security 64735 Manual de usuario

Goobay

Goobay 30450 Manual de usuario

REV Ritter

REV Ritter SPOT Manual de usuario

Ignition

Ignition Stagepix Line 100 IP Manual de usuario

SCANGRIP

SCANGRIP DUO CONNECT Manual de usuario

Bosch

Bosch GLI 18 V Manual de usuario

Bayco

Bayco SL-1514 Manual de usuario

EUFAB

EUFAB SMD LED 8+1 Manual de usuario

DeWalt

DeWalt DCL510 Manual de usuario

PowerSmith

PowerSmith PWLD080T Manual de usuario

MaxLite

MaxLite 73683 Manual de usuario

Heitronic

Heitronic Trend 27867 Manual de usuario

Monzana

Monzana Gore MZCL10 Manual de usuario

EINHELL

EINHELL TE-CL 18/2000 LiAC Manual de usuario

Bayco

Bayco NIGHTSTICK Dual-Light Xtreme Lumens... Manual de usuario
