Craftsman Incredi-Pull 316.791080 Manual de usuario

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.

Visit our website: www.craftsman.com

CAUTION: Before using this

product, read this manual

and follow all safety rules

and operating instructions.

Operator’s Manual

2-Cycle

WEEDWACKER®GAS TRIMMER

Model No. 316.791080

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, P. 13

769-05781 P00 01/10

Plug-In Power Start or Power Bit Start Optional!

This unit has an alternative starting method that many people find easier than pulling a rope

(items sold separately). For more information, read this manual, contact a local Craftsman outlet

or go to www.craftsman.com.

Item Part No. Description

19 791-181930 Tank Screw

20 753-05057 Fuel Cap

21 791-182366 U-Shaped Nut

22 753-05877 Lead Wires

23 753-06251 Throttle Cable

24 753-06303 Module Assembly

25 753-06252 Cylinder Gasket

26 753-05703 Cylinder Bolt

27 753-06193 Spark Plug

28 753-06189 Insulator Assembly (includes 29)

29 753-06184 Insulator O-Ring

30 753-06185 Carburetor O-Ring

31 753-06288 Carburetor

32 753-06253 Carburetor Gasket

33 753-06289 Aircleaner Assembly (includes 34)

34 753-06085 Aircleaner Filter

35 753-06291 Short Block Assembly

(includes Crankcase, Cylinder, Piston, 8-10 & 24-27)

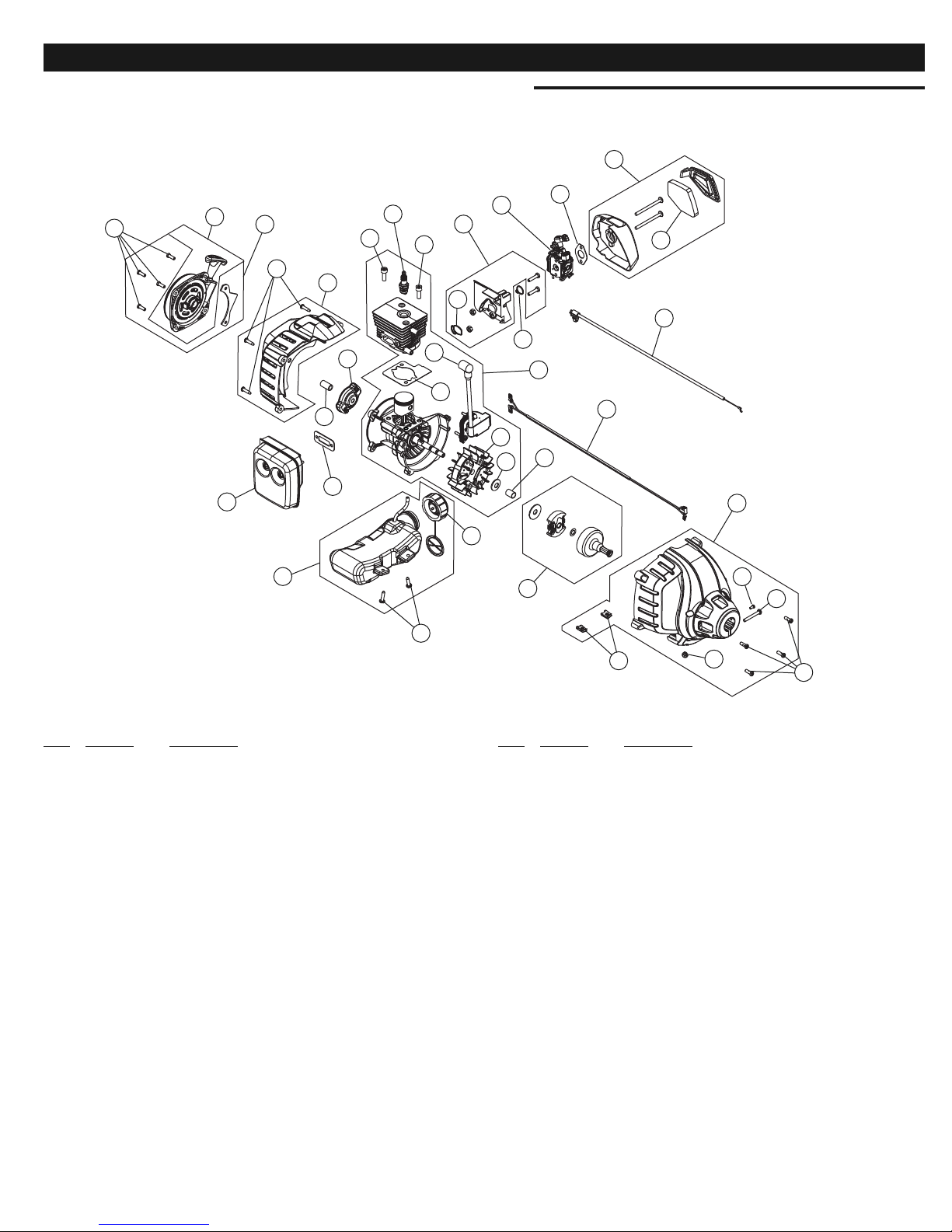

Item Part No. Description

1 753-06282 Rear Cover Assembly (includes 2 & 3)

2 791-181862 Starter Screw

3 753-06244 Starter Assembly Guard (includes 2)

4 753-06245 Rear Engine Cover (includes 5)

5 791-181345 Cover Screw

6 753-06104 Adapter

7 753-06091 Pawl Assembly

8 753-06246 Flywheel Assembly

9 753-06247 Washer

10 753-06248 Spacer

11 753-05860 Clutch Assembly

12 753-06285 Clutch Cover Assembly (includes 2, 13-15 & 21)

13 791-182519 Anti-Rotation Screw

14 753-04003 Clamp Screw

15 791-180217 Clamp Nut

16 753-06182 Muffler Assembly

17 753-04619 Muffler Gasket

18 753-06250 Fuel Tank Assembly (includes 19 & 20)

PARTS LIST

REPLACEMENT PARTS - MODEL 316.791080

2-CYCLE GAS TRIMMER

14 17

910

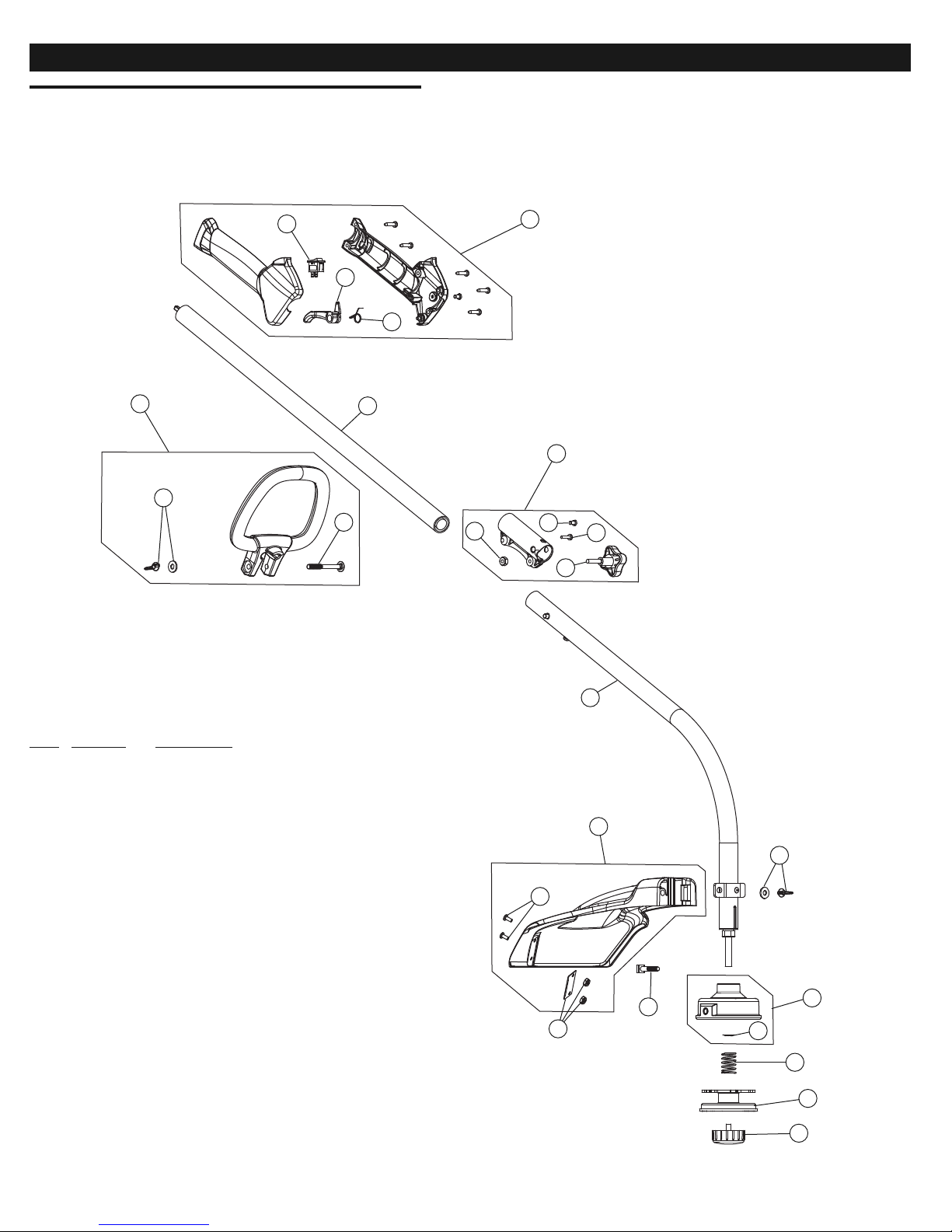

Item Part No. Description

1 753-04234 Throttle Housing Assembly (includes 2-4)

2 791-182405 Switch

3 753-04119 Throttle Trigger

4 791-182690 Throttle Trigger Spring

5 753-04344 Upper Shaft Housing Assembly

6 753-05461 D-Handle (includes 7)

7 791-181587 D-Handle Hardware Assembly

8 753-1190 Split Boom Coupler (includes 9-12)

9 791-182057 Anti-Rotation Screw

10 791-181617 Bolt

11 791-181981 Adjustment Knob

12 753-04386 Knob Retainer Nut

13 753-04508 Lower Shaft Housing Assembly

14 753-04282 Shield Mounting Hardware

15 753-04283 Shield Assembly (includes 16)

16 791-180553 Blade Assembly

17 753-04284 Outer Spool Assembly (includes 18)

18 791-610660 Retainer

19 791-610317B Spring

20 753-1155 Inner Reel

21 791-153066B Bump Head Knob Assembly

* 753-1156 .095 Line Reel & Line Assembly

* Items Not Shown

PARTS LIST

REPLACEMENT PARTS - MODEL 316.791080

2-CYCLE GAS TRIMMER
