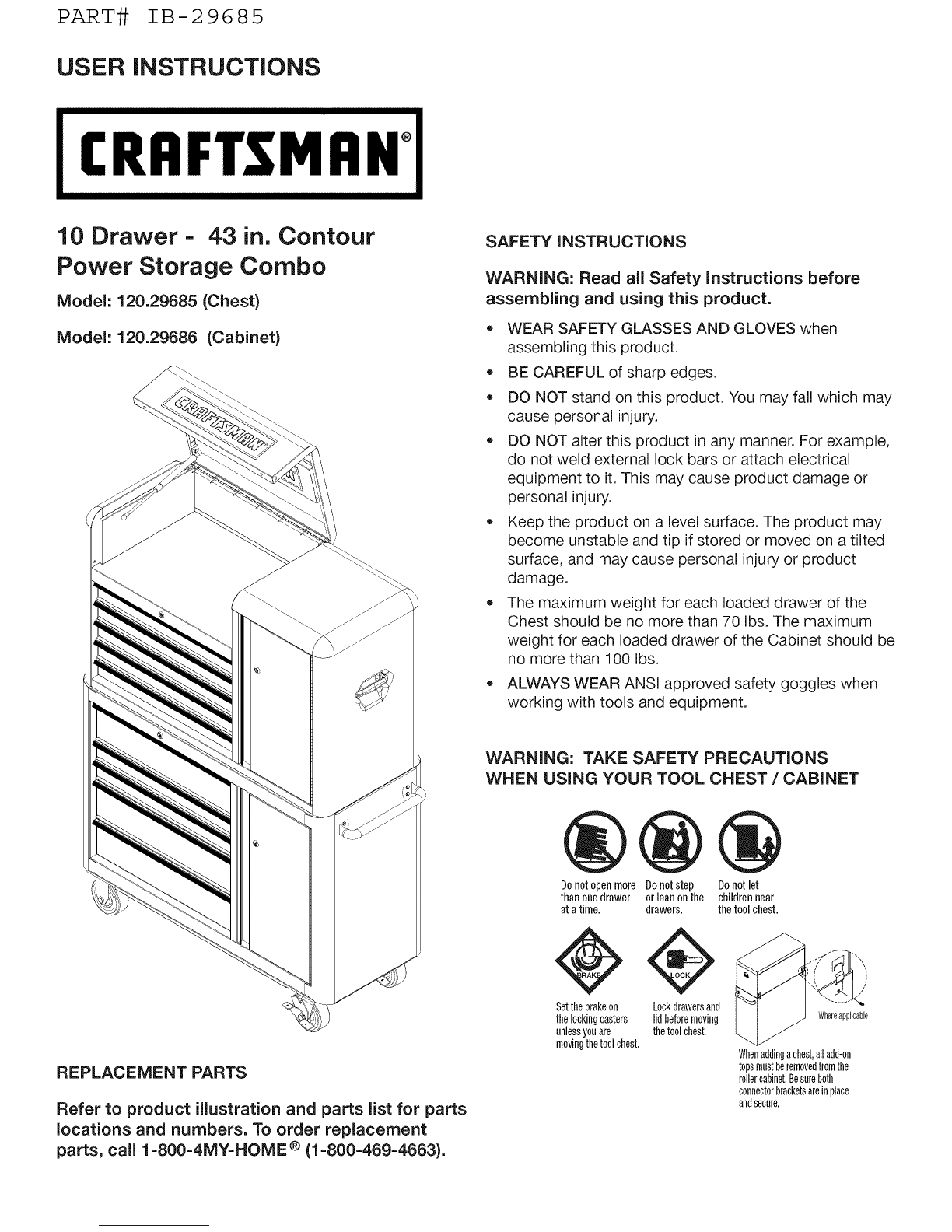

PART# IB-29685

USER iNSTRUCTiONS

[ M °

10 Drawer - 43 in. Contour

Power Storage Combo

Model: 120.29685 (Chest}

Model: 120.29686 (Cabinet}

SAFETY iNSTRUCTiONS

WARNING: Read all Safety Instructions before

assembling and using this product.

• WEAR SAFETY GLASSES AND GLOVES when

assembling this product.

BE CAREFUL of sharp edges.

DO NOT stand on this product. You may fall which may

cause personal injury.

DO NOT alter this product in any manner. For example,

do not weld external lock bars or attach electrical

equipment to it. This may cause product damage or

personal injury.

Keep the product on a level surface. The product may

become unstable and tip if stored or moved on a tilted

surface, and may cause personal injury or product

damage.

The maximum weight for each loaded drawer of the

Chest should be no more than 70 Ibs. The maximum

weight for each loaded drawer of the Cabinet should be

no more than 100 Ibs.

ALWAYS WEAR ANSi approved safety goggles when

working with tools and equipment.

REPLACEMENT PARTS

Refer to product illustration and parts list for parts

locations and numbers. To order replacement

parts, call 1=800=4MY=HOME ® (1=800=469=4663).

WARNING: TAKE SAFETY PRECAUTIONS

WHEN USING YOUR TOOL CHEST /CABINET

Donotopenmore Donotstep Donotlet

than0nedrawer 0rlean 0nthe childrennear

atatime. drawers, theto01chest.

Setthebrakeon

thelockingcasters

unlessyouare

movingthet001chest.

Lockdrawersand

lidbeforemoving

thetoolchest. Whereapplicable

Whenaddingachest,alladd-on

topsmustberemovedfromthe

rollercabinet.Besureboth

connectorbracketsareinplace

andsecure.

CHEST

The chest keys are taped to the top storage area of

the chest. The key code is printed on the face of the

chest lock.

Ref. # Description Part # Qty

1 Gas strut 303080 2

2 Chest handle 306070 2

3 Lock 304000 2

4 Power strip 333031 1

5 Slide (left) 300020L 5

6 Slide (right) 300020R 5

7 M6xl 2 hex bolt 321054 2

8 Connector 200837 2

ASSEMBLY

Assembly requires 10 mm and 14 mm sockets or wrenches.

To install the handles, simply position them over the holes

and attach with the bolts provided. Tighten securely.

/..-¸¸¸¸ i -.

CABINET

The cabinet keys are taped to the top of the caster

shipping box located in the bottom drawer of the cabinet.

The key code is printed on the face of the cabinet lock.

Ref. # Description Part # Qty

1 M6xl 2 bolt 321054 4

2 Cabinet handle 303076 1

3 Swivel caster 302108 2

4 M8x20 hex bolt 321027 16

5 Washer 324255 16

6 Fixed caster 302109 2

7 Slide (left) 300020L 8

8 Slide (right) 300020R 8

9 Lock 304000 2

Installing Casters

Carefully lay bottom cabinet on its back, with a soft mat

under the back for the purpose of protection. Remove

caster attachment bolts from bottom of cabinet. Position

the two swivel casters on the same side of the cabinet

bottom. Insert the bolts through washers, then through

the casters and into the cabinet bottom. Tighten securely.

Repeat for the two rigid casters on the other side.

iNSTALL CHEST ON CABINET

With the help of another person, install chest on top of

cabinet inside of the 4 corner stays. The chest will stay

securely atop the cabinet under its own weight.

OPERATION

CHEST AND CABINET CONNECTION

WARNING: (Where applicable) When adding a

chest, all add-on tops must be removed from the

roller cabinet. Be sure both connector brackets

are in place and secure.

Place the chest on the cabinet. Attach the connectors

making sure the connectors slide into the openings on the

back of the chest. Fasten the connectors to the back of

the chest with screws.

//f _\ \\\\\

To remove drawers

Empty drawer. Pull drawer out to almost full extension.

Push up on right hand black release lever, while pulling

down on left hand black release lever. While holding the

levers in the positions as instructed above, pull the drawer

outward until it is released from the drawer slide.

PUSH UP

(RIGHT HAND SIDE)

PULL DOWN

(LEFT HAND SIDE)

To replace drawers

Empty drawer. Extend the drawer slides from the tool

chest, insert the brackets on each side of the drawer into

the slots in the cabinet slides, being careful that they are

properly positioned. Once properly inserted, completely

close the drawer to set the slides in their proper positions.

RAISE AND RELEASE DRAWER FRONTS:

These units are equipped with the raise and release drawer

fronts. To open, lift up on the drawer front while pulling

towards you. To close, shut the drawer firmly until the latch

engages. If the drawer does not stay closed, the hook may

be bent, or it may rub against the drawer slides. To fix this

problem, lightly bend the hook until the drawer will engage

in the slide.

CRAFTSMAN THREE YEAR LIMITED WARRANTY

FOR THREE YEARS from the date of purchase, this

product is warranted against any defects in material or

workmanship. With proof of purchase, a defective part will

be replaced free of charge. If a replacement part is unavail-

able, the product will be replaced with one of equal value.

This warranty does not apply to a product that is

damaged or altered through misuse, abuse, accident,

neglect, modification or mishandling.

For warranty coverage details, visit the web site:

www.craftsman.com

This warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

SearsBrandsManagement Corporation,

Hoffman Estates, IL 60179

REPLACEMENT PARTS

Refer to product illustration and parts list for parts

locations and numbers, To order replacement parts, call

1=800=4MY=HOME ® {1=800=469=4663}.

For replacement keys: key codes are printed on the face

of the locks.
