Instruction Manual

Model No. 71-24831

SNOW THROWER KIT

STOP

DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

A B C F

SHOWN ACTUAL SIZE

REF QTY PART NO DESCRIPTION

A 2 43087 3/8" x 1-1/4" Hex Bolt

B 14 43001 3/8" x 1" Hex Bolt

C 4 43350 3/8" x 1" Carriage Bolt

REF QTY PART NO DESCRIPTION

D 12 HA21362 3/8" Nylock Nut

E 12 43003 3/8" Lock Washer

F 2 23625 Spacer

HARDWARE PACKAGE CONTENTS

REF QTY PART NO DESCRIPTION

1 2 25301 Frame Bracket

2 1 64943 Front Hanger Bracket, L.H. 54"

3 1 64944 Front Hanger Bracket, R.H. 54"

REF QTY PART NO DESCRIPTION

4 1 63571 Hanger Bracket, L.H.

5 1 63572 Hanger Bracket, R.H.

6 2 26557 Mounting Bracket

7 1 26556 Side Plate, R.H.

13 5 6

42 7

CARTON CONTENTS

PRINTED IN U.S.A. FORM NO. 41039 (06/19/08)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

2Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

USE THE FOLLOWING INSTRUCTIONS

IN PLACE OF STEPS #1 THRU #46 IN THE

SNOW THROWER MANUAL.

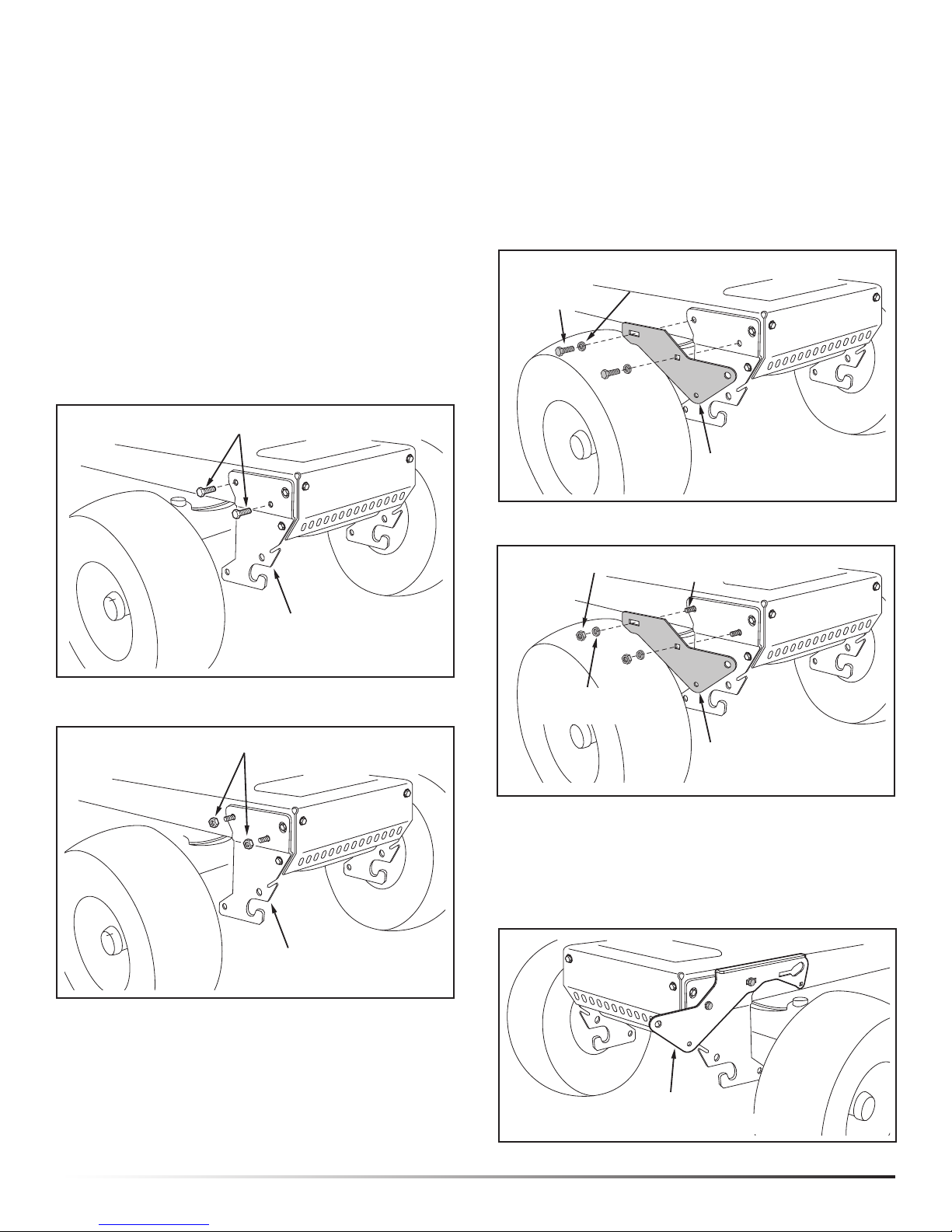

FIGURE 2a RIGHT SIDE VIEW

STEP 2: (SEE FIGURE 2a or 2b)

• Attach the R.H. side plate (supplied with the kit) to the

tractor. If you removed bolts as shown in gure 1a,

install two 3/8" x 1" hex bolts and 3/8" lock washers as

shown in gure 2a. If you removed nuts as shown in

gure 1b, install two 3/8" x 1" carriage bolts, 3/8" lock

washers and 3/8" nylock nuts as shown in gure 2b.

NOTE: If you remove the side plates from the tractor, be

sure to reassemble bolts and nuts back into the frame.

SIDE PLATE (L.H.)

supplied with snow thrower

STEP 3: (SEE FIGURE 3)

• Attach the L.H. side plate (supplied with the snow

thrower) to the left side of the tractor frame in the

same manner as the R.H. side plate.

FIGURE 3 LEFT SIDE VIEW

Right hand (R.H.) and left hand (L.H.) are determined

from the operators position while seated on the tractor.

STEP 1: (SEE FIGURE 1a or 1b)

• Determine if your tractor has bolts like those shown in

gure 1a or 1b.

• Remove either the hex bolts as shown in gure 1a or

the nuts as shown in gure 1b.

• Repeat for the L.H. front suspension bracket.

FIGURE 1a RIGHT SIDE VIEW

REMOVE BOLTS

FRONT SUSPENSION

BRACKET (R.H.)

FRONT SUSPENSION

BRACKET (R.H.)

REMOVE NUTS

FIGURE 1b RIGHT SIDE VIEW

3/8" LOCK

WASHER

3/8" x 1"

HEX BOLT

R.H. SIDE PLATE

supplied with kit

FIGURE 2b RIGHT SIDE VIEW

3/8" NYLOCK NUT

R.H. SIDE PLATE

supplied with kit

3/8" LOCK

WASHER

3/8" x 1"

CARRIAGE BOLT

PARTS SHOWN IN GRAY ARE SUPPLIED WITH THE KIT.

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

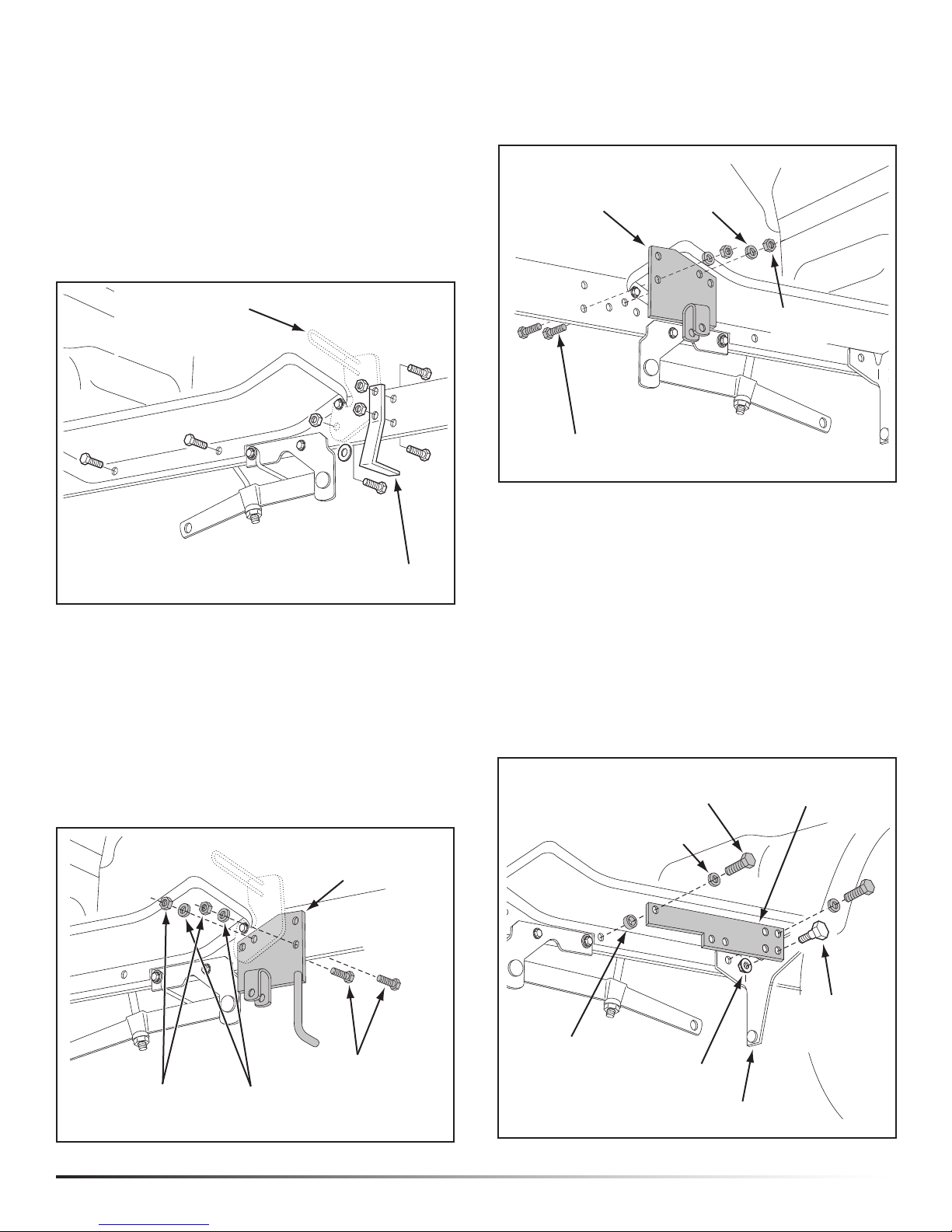

FIGURE 5 RIGHT SIDE VIEW

FIGURE 4 RIGHT SIDE VIEW

STEP 5: (SEE FIGURE 5)

• Assemble the R.H. hanger bracket to the bottom hole

where the mower stop bracket was removed and to

the upper hole under the front of the foot rest. Fasten

with two 3/8" x 1" hex bolts, 3/8" lock washers and

3/8" nylock nuts. (On tractors with mufer guards,

slide the hanger bracket between the guard and the

tractor frame.)

STEP 4: (SEE FIGURE 4)

• Remove the mower stop bracket and its two bolts and

nuts from the R.H. side of the tractor frame.

• If the tractor has a mufer guard at the front of the

R.H. foot rest, remove the bottom bolt and nut, and

the washer which is located between the guard and

the tractor frame.

• Remove the two bolts from the bottom of both the

R.H. and L.H. foot rests.

MUFFLER GUARD

(only on models

with side muffler)

REMOVE

BRACKET

REMOVE BOLTS, NUTS

& WASHERS SHOWN

3/8" x 1"

HEX BOLT

3/8" LOCK

WASHER

3/8" NYLOCK

NUT

R.H. HANGER

BRACKET

STEP 6: (SEE FIGURE 6)

• Assemble the L.H. hanger bracket to the left side of

the tractor frame using two 3/8" x 1" hex bolts, two

3/8" lock washers and two 3/8" nylock nuts.

FIGURE 7 LEFT SIDE VIEW

FIGURE 6 LEFT SIDE VIEW

STEP 7: (SEE FIGURE 7)

• Assemble a frame bracket to the L.H. foot rest and

sway bar bracket. Use two 3/8" x 1-1/4" hex bolts, two

3/8" lock washers and one spacer.

• Assemble a shoulder bolt (P) and a 3/8" anged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

3/8" x 1"

HEX BOLT

3/8" LOCK

WASHER

3/8" NYLOCK

NUT

L.H. HANGER

BRACKET

3/8" LOCK

WASHER

FRAME

BRACKET

3/8" x 1-1/4"

HEX BOLT

SWAY BAR

BRACKET

SPACER

SHOULDER

BOLT (P)

(snow thrower)

3/8" FLANGED NUT (BB)

(snow thrower)

If you have a 54" mower deck skip to step #9.

For smaller decks use the following instructions.

4Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

FIGURE 8 RIGHT SIDE VIEW

STEP 8: (SEE FIGURE 8)

• Assemble a frame bracket to the R.H. foot rest. Use

two 3/8" x 1" hex bolts and two 3/8" lock washers.

• Assemble a shoulder bolt (P) and a 3/8" anged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

• Proceed to step #14 on page 6.

3/8" LOCK

WASHER

FRAME

BRACKET

3/8" x 1"

HEX BOLT

SHOULDER

BOLT (P)

(snow thrower) 3/8" FLANGED NUT (BB)

(snow thrower)

STEP 9: (SEE FIGURE 9)

Only for 54" mower decks

• Remove and store the mower stop bracket and bolt

from both sides of the tractor frame.

• Remove the two bolts from the bottom of the foot

rests on both sides of the tractor frame.

FIGURE 9 RIGHT SIDE VIEW

Steps #9 thru #13 for tractors with 54" mower decks.

REMOVEREMOVE

54" MOWER DECKS

FIGURE 10 RIGHT SIDE VIEW

STEP 10: (SEE FIGURE 10)

Only for 54" mower decks

• Assemble the 54" R.H. hanger bracket to the holes on

the right side of the tractor frame where the mower stop

bracket was removed. Fasten with two 3/8" x 1" hex

bolts, two 3/8" lock washers and one 3/8" nylock nut.

3/8" x 1"

HEX BOLT

3/8" LOCK

WASHER

3/8" LOCK

WASHER

3/8" NYLOCK

NUT

R.H. HANGER

BRACKET (54")

3/8" x 1"

HEX BOLT

54" MOWER DECKS

FIGURE 11 LEFT SIDE VIEW

STEP 11: (SEE FIGURE 11)

Only for 54" mower decks

• Assemble the 54" L.H. hanger bracket to the holes

where the mower stop bracket was removed on the left

side of the tractor frame. Fasten with two 3/8" x 1" hex

bolts, two 3/8" lock washers and two 3/8" nylock nuts

3/8" LOCK

WASHER

L.H. HANGER

BRACKET (54")

3/8" x 1"

HEX BOLT

3/8" NYLOCK NUT

54" MOWER DECKS

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

FIGURE 12 LEFT SIDE VIEW

STEP 12: (SEE FIGURE 12)

Only for 54" mower decks

• Assemble a frame bracket to the L.H. foot rest. Use

two 3/8" x 1-1/4" hex bolts, two 3/8" lock washers and

two spacers.

• Assemble a shoulder bolt (P) and a 3/8" anged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

3/8" LOCK

WASHER

FRAME

BRACKET

3/8" x 1-1/4"

HEX BOLT

SPACER SPACER SHOULDER

BOLT (P)

(snow thrower)

3/8" FLANGED NUT (BB)

(snow thrower)

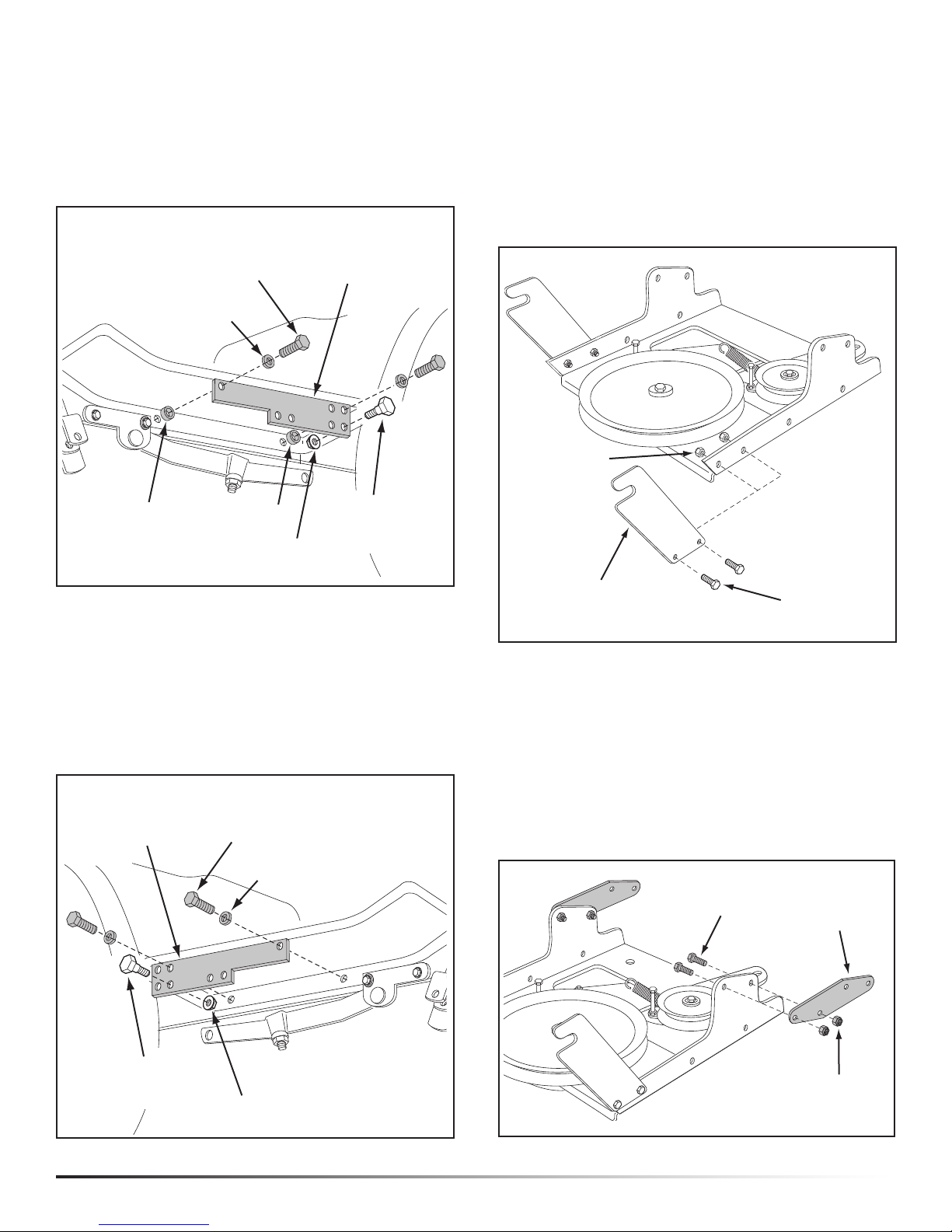

FIGURE 13 RIGHT SIDE VIEW

STEP 13 (SEE FIGURE 13)

Only for 54" mower decks

• Assemble a frame bracket to the R.H. foot rest. Use

two 3/8" x 1" hex bolts and two 3/8" lock washers.

• Assemble a shoulder bolt (P) and a 3/8" anged nut

(BB) (both supplied with the snow thrower) to the

frame bracket.

5/16" NYLOCK

NUT (CC)

5/16" x 3/4"

HEX BOLT (E)

SUSPENSION

ARM

STEP 14: (SEE FIGURE 14)

• Attach the two suspension arms to the outside of the

clutch/idler assembly using two 5/16" x 3/4" hex bolts

(E) and 5/16" nylock nuts (CC) for each arm.

3/8" NYLOCK

NUT

3/8" x 1"

HEX BOLT MOUNTING

BRACKET

STEP 15: (SEE FIGURE 15)

• Attach the two mounting brackets to the front of the

clutch/idler assembly using four 3/8" x 1" hex bolts

and 3/8" nylock nuts. Place the frame brackets on the

outside of the assembly frame.

FIGURE 14

FIGURE 15

3/8" LOCK

WASHER

FRAME

BRACKET

3/8" x 1"

HEX BOLT

SHOULDER

BOLT (P)

(snow thrower) 3/8" FLANGED NUT (BB)

(snow thrower)

ALL PARTS IN THE FOLLOWING INSTRUCTIONS

ARE SUPPLIED WITHTHE SNOW THROWER EXCEPT

FOR THOSE PARTS SHOWN IN GRAY,WHICH ARE

SUPPLIED WITH THE KIT.

54" MOWER DECKS

6Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

STEP 17: (SEE FIGURE 17)

• Turn the clutch/idler assembly right side up.

• Insert the tensioning chains through the holes shown

on the left and right sides. Attach the ends of the chains

to the springs on the upper and lower idler arms.

• Install a 3/32" hairpin cotter (LL) into the left side

chain. If the tractor's engine pulley is smaller than 6",

place it in link #3 from the spring. For larger engine

pulleys, place it in link #6 from the spring.

3/8" HEX

LOCK NUT

(DD)

SPRING (GG)

UPPER

IDLER

ARM

BOTTOM

VIEW

STEP 16: (SEE FIGURE 16)

• Turn the clutch/idler assembly upside down.

• Hook the end of the spring (GG) onto the bottom of the

bolt and nut which secure the idler pulley to the upper

idler arm. Hold the bolt head and assemble a 3/8" hex

lock nut (DD) onto the bolt, leaving enough space for

the spring to pivot freely between the two nuts.

LEFT & RIGHT

TENSIONING

CHAINS (PP)

3/32" HAIRPIN

COTTER (LL)

IN LINK #3 or #6

STEP 18: (SEE FIGURE 18)

•Two different length drive belts are supplied with your

snow thrower. Select the shorter belt with #46989

printed on it.

• Slightly loosen the hex bolt next to the upper idler

pulley. Install the drive belt down between the hex bolt

and the upper idler pulley with the at side of the belt

against the pulley. Retighten the hex bolt.

• Loop the belt around the large v-pulley, placing it

between the v-pulley and the hex bolt next to the pulley.

HEX BOLTS

DRIVE BELT

#46989

UPPER IDLER

PULLEY

FIGURE 16 VIEWED FROM BOTTOM

FIGURE 17

FIGURE 18

Call 1-866-576-8388 for missing parts or assembly help

DO NOT RETURN TO STORE

STEP 19: (SEE FIGURE 19)

Only for mower decks smaller than 54"

• Attach the rear of the clutch/idler assembly to the tractor

frame by sliding the notched arms of the assembly onto

the shoulder bolts assembled to the frame brackets.

Lift the front of the assembly, positioning the upper idler

pulley so that it clears the engine pulley. Attach the front

of the assembly to the hanger brackets using two pivot

lock pins (MM) and two hairpin cotters (KK).

PIVOT LOCK PIN (MM)

HAIRPIN COTTER (KK)

STEP 20: (SEE FIGURE 20)

Only for 54" mower decks

• Attach the rear of the clutch/idler assembly to the tractor

frame by sliding the notched arms of the assembly onto

the shoulder bolts assembled to the frame brackets.

Lift the front of the assembly, positioning the upper idler

pulley so that it clears the engine pulley. Attach the front

of the assembly to the hanger brackets using two pivot

lock pins (MM) and two hairpin cotters (KK).

HAIRPIN COTTER (KK)

PIVOT LOCK PIN (MM)

54" MOWER DECKS

FIGURE 19

FIGURE 20

RETURN TO STEP #64 IN THE SNOW

THROWER MANUAL AND FINISH

ASSEMBLING THE SNOW THROWER.

STEP 21: (SEE FIGURE 21)

• Loosen the two hex bolts and nuts which fasten the top

of the tractor drawbar to the rear of the tractor frame.

• Assemble the notched end of the side brace arms

down onto both loosened bolts. Do not tighten yet.

• Fasten the weight tray to the drawbar using a

1/2" x 1-1/4" hex bolt (A), a 1/2" washer (V) and a 1/2"

nylock nut (EE). Do not tighten yet.

• Fasten the weight tray to the side brace arms using

two 5/16" x 1" carriage bolts (N) and two 5/16" nylock

nuts (CC). Do not tighten yet.

• Fasten the cross brace to the side brace arms using

two 5/16" x 1" carriage bolts (N) and two 5/16" nylock

nuts (CC). Tighten all loose bolts at this time.

FIGURE 21 VIEWED FROM REAR

5/16" x 1"

CARRIAGE

BOLT (N)

SIDE BRACE

ARM

WEIGHT TRAY

5/16" NYLOCK

NUT (CC)

1/2" x 1-1/4"

HEX BOLT (A)

LOOSENED

NUT AND BOLT

CROSS

BRACE

1/2" NYLOCK NUT (EE)

1/2" WASHER (V)

COMPLETE STEPS #47 THRU #59 IN THE

SNOW THROWER MANUAL, THEN RETURN

TO STEP 21 ON THIS PAGE.

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC

Get it fixed, at your home or ours!

Your Home

For repair – in your home – of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

For expert home solutions advice: www.managemyhome.com

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

Call anytime, day or night

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYERMC

(1-800-533-6937)

www.sears.ca

Tabla de contenidos

Otros manuales de Soplador de nieve de Craftsman

Craftsman

Craftsman 536.886122 Manual de usuario

Craftsman

Craftsman 247.88845 Manual de usuario

Craftsman

Craftsman 88704 - 123cc 4 Cycle Single Stage Snow... Manual de usuario

Craftsman

Craftsman 536.885203 Manual de usuario

Craftsman

Craftsman 536.887991 Manual de usuario

Craftsman

Craftsman 247.116830 Manual de usuario

Craftsman

Craftsman 88690 - 250cc 28" Path Two Stage Snow... Manual de usuario

Craftsman

Craftsman 247.887822 Manual de usuario

Craftsman

Craftsman C950-52915-0 Manual de usuario

Craftsman

Craftsman 247.888301 Manual de usuario

Craftsman

Craftsman 247.88700 Manual de usuario

Craftsman

Craftsman 247.887200 Manual de usuario

Craftsman

Craftsman 536.884780 Manual de usuario

Craftsman

Craftsman 247.11683 Manual de usuario

Craftsman

Craftsman 247.88173 series Manual de usuario

Craftsman

Craftsman 247.88957 Manual de usuario

Craftsman

Craftsman 247.889571 Manual de usuario

Craftsman

Craftsman 247.88780 Manual de usuario

Craftsman

Craftsman 247.887000 Manual de usuario

Craftsman

Craftsman 247.881731 Manual de usuario

Craftsman

Craftsman 247.887801 Manual de usuario

Craftsman

Craftsman 247.88999 Manual de usuario

Craftsman

Craftsman 247.888550 Manual de usuario

Craftsman

Craftsman 247.889571 Manual de usuario

Manuales populares de Soplador de nieve de otras marcas

Murray

Murray 624504X4A Manual de usuario

Blizzard

Blizzard POWER PLOW 8100PP Manual de usuario

Yard-Man

Yard-Man E2B5 Manual de usuario

ST ST 526 A Manual de usuario

MTD

MTD 3AA Manual de usuario

Toro

Toro Power TRX 1428 OHXE Manual de usuario

Ryobi

Ryobi RYAC800 Manual de usuario

Poulan Pro

Poulan Pro 416829 Manual de usuario

Poulan Pro

Poulan Pro 437986 Manual de usuario

MTD

MTD 319-180-00 Manual de usuario

Brute

Brute 1695565 Manual de usuario

Egholm

Egholm City Ranger 2250 Manual de usuario

Poulan Pro

Poulan Pro 420915 Manual de usuario

GreenWorks

GreenWorks SNF402 Manual de usuario

LOFTNESS

LOFTNESS 601D1 Manual de usuario

LOFTNESS

LOFTNESS 1082I Manual de usuario

LOFTNESS

LOFTNESS 481EL Manual de usuario

White Outdoor

White Outdoor 769-01923A Manual de usuario
