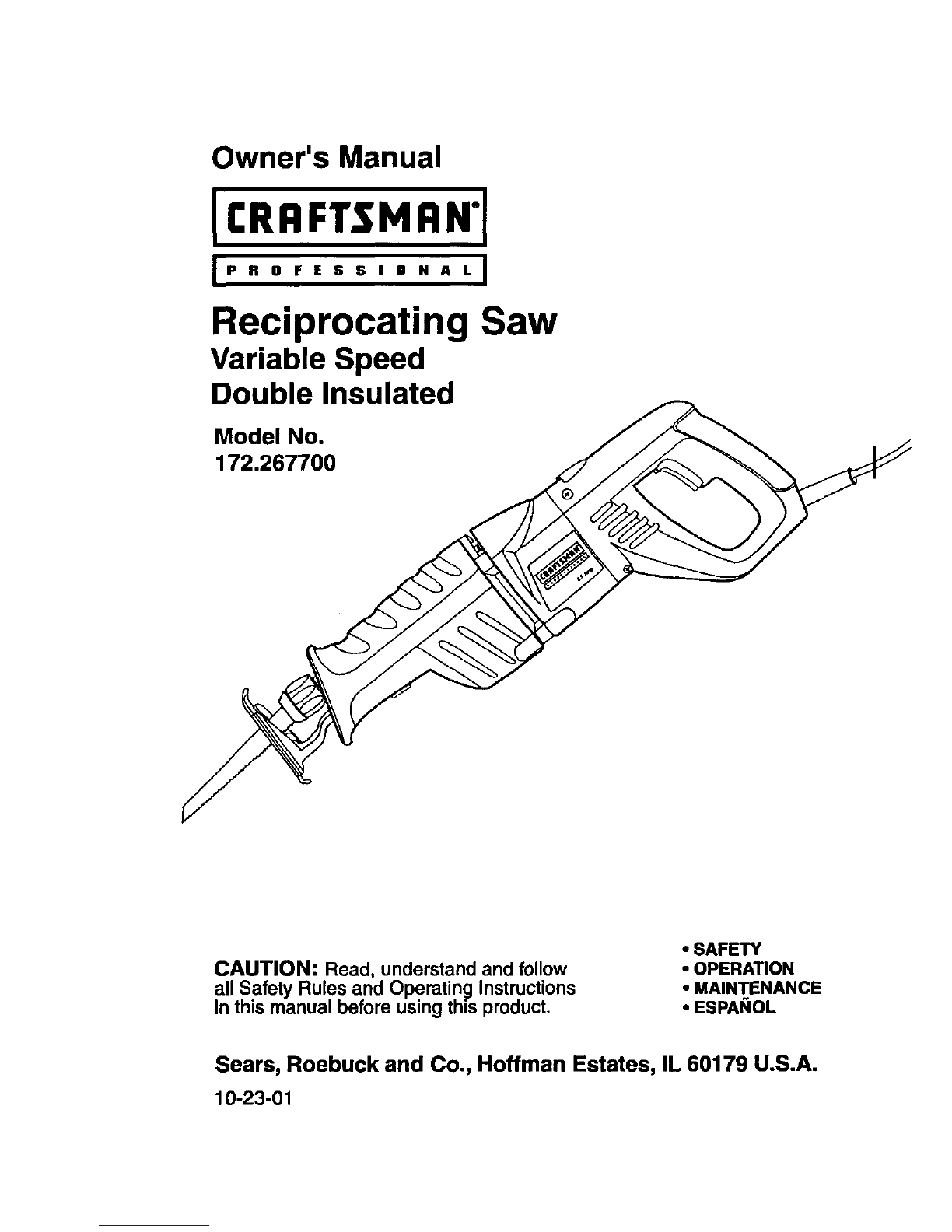

Owner's Manual

iP R 0 F E S S i 0 H A L I

Reciprocating Saw

Variable Speed

Double Insulated

Model No.

172.267700

CAUTION: Read, understand and follow

all Safety Rules and Operating Instructions

in this manual before using this product.

• SAFETY

• OPERATION

•MAINTENANCE

•ESPA_IOL

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

10-23-01

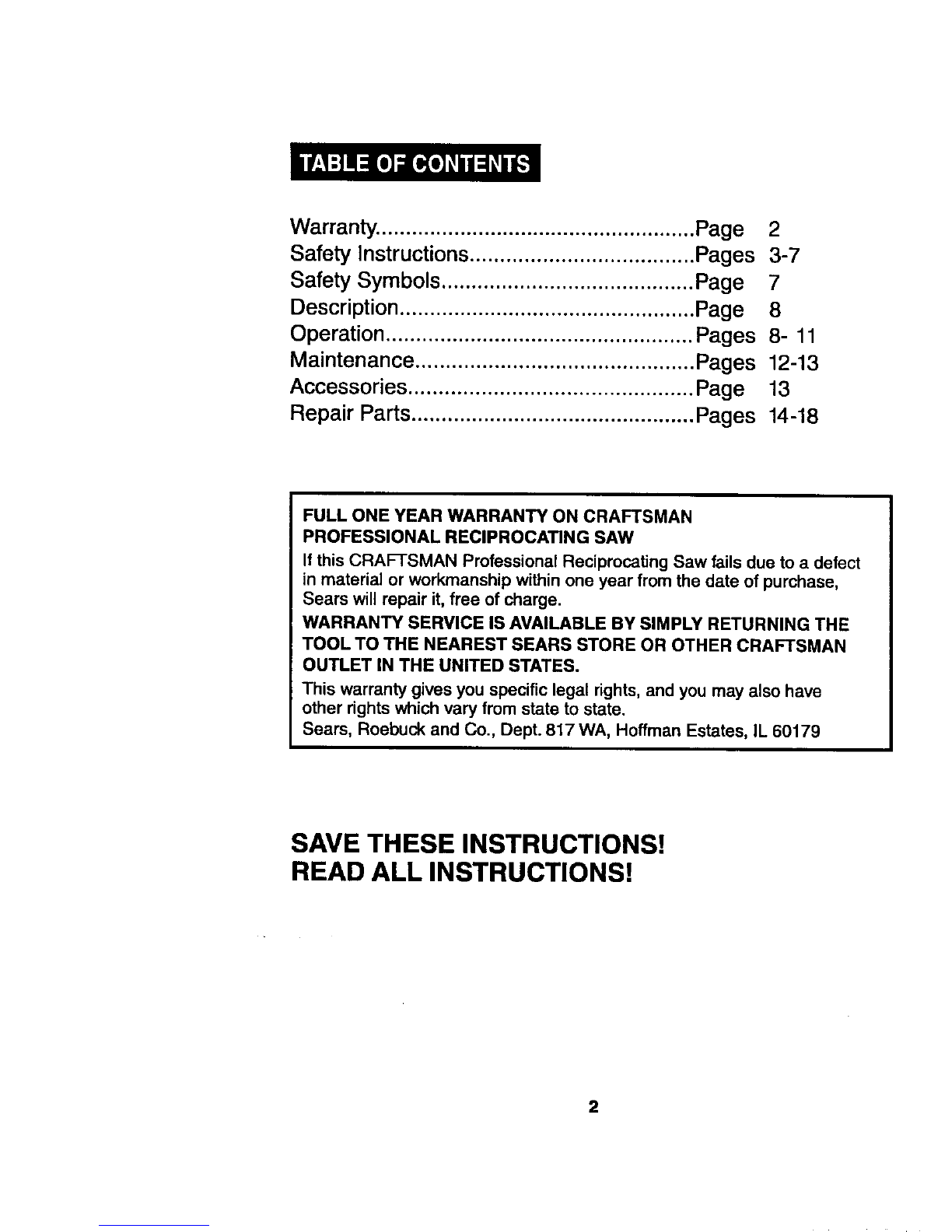

Warranty. .................................................... Page 2

Safety Instructions ..................................... Pages 3-7

Safety Symbols .......................................... Page 7

Description ................................................. Page 8

Operation ................................................... Pages 8-11

Maintenance .............................................. Pages 12-13

Accessories ............................................... Page 13

Repair Parts ............................................... Pages 14-18

FULL ONE YEAR WARRANTY ON CRAFTSMAN

PROFESSIONAL RECIPROCATING SAW

If this CRAFTSMAN Professional Reciprocating Saw fails due to a defect

in material or workmanship within one year from the date of purchase,

Sears will repair it, free of charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY RETURNING THE

TOOL TO THE NEAREST SEARS STORE OR OTHER CRAFTSMAN

OUTLET IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

SAVE THESE INSTRUCTIONS!

READ ALL INSTRUCTIONS!

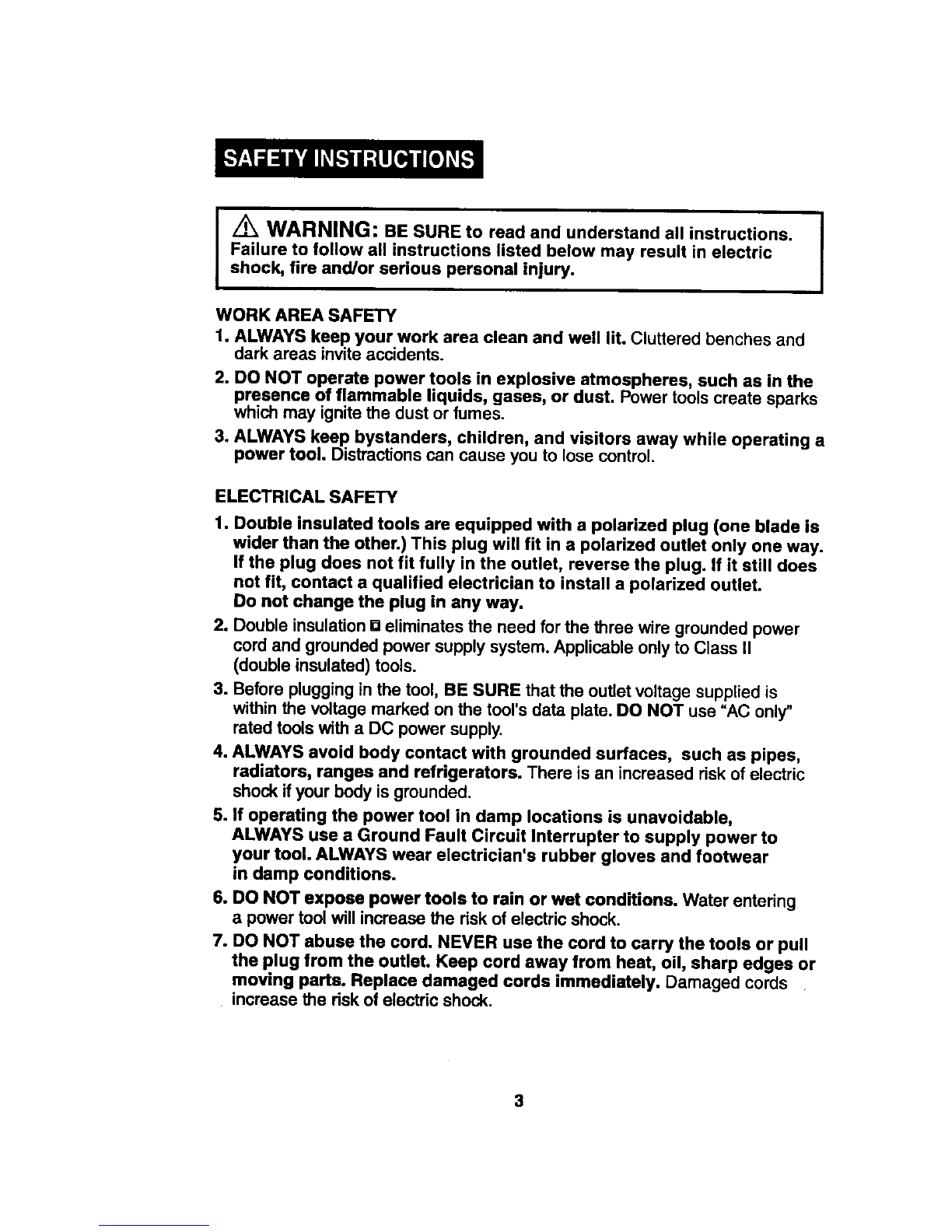

JZ_ WARNING: BE SURE to read and understand all instructions. I

Failure to follow all instructions listed below may result in electric [

shock, fire and/or serious personal injury.

WORK AREA SAFETY

1. ALWAYS keep your work area clean and well lit. Cluttered benches and

dark areas invite accidents.

2. DO NOT operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. ALWAYS keep bystanders, children, and visitors away while operating a

power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other.) This plug will fit in a polarized outlet only one way.

If the plug does not fit fully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to install a polarized outlet.

Do not change the plug in any way,

2. Double insulation[] eliminates the need for the three wire grounded power

cord and grounded power supply system. Applicable only to Class II

(double insulated) tools.

3. Before plugging in the tool, BE SURE that the outlet voltage supplied is

within the voltage marked on the tool'sdata plate. DO NOT use =AC only"

rated tools with a DC power supply.

4. ALWAYS avoid body contact with grounded surfaces, such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is grounded.

5. If operating the power tool in damp locations is unavoidable,

ALWAYS use a Ground Fault Circuit Interrupter to supply power to

your tool. ALWAYS wear electrician's rubber gloves and footwear

in damp conditions.

6. DO NOT expose power tools to rain or wet conditions. Water entering

apower tool will increase the risk of electric shock.

7. DO NOT abuse the cord. NEVER use the cord to carry the tools or pull

the plug from the outlet. Keep cord away from heat, oil, sharp edges or

moving parts. Replace damaged cords immediately. Damaged cords

• increase the risk of electric shock.

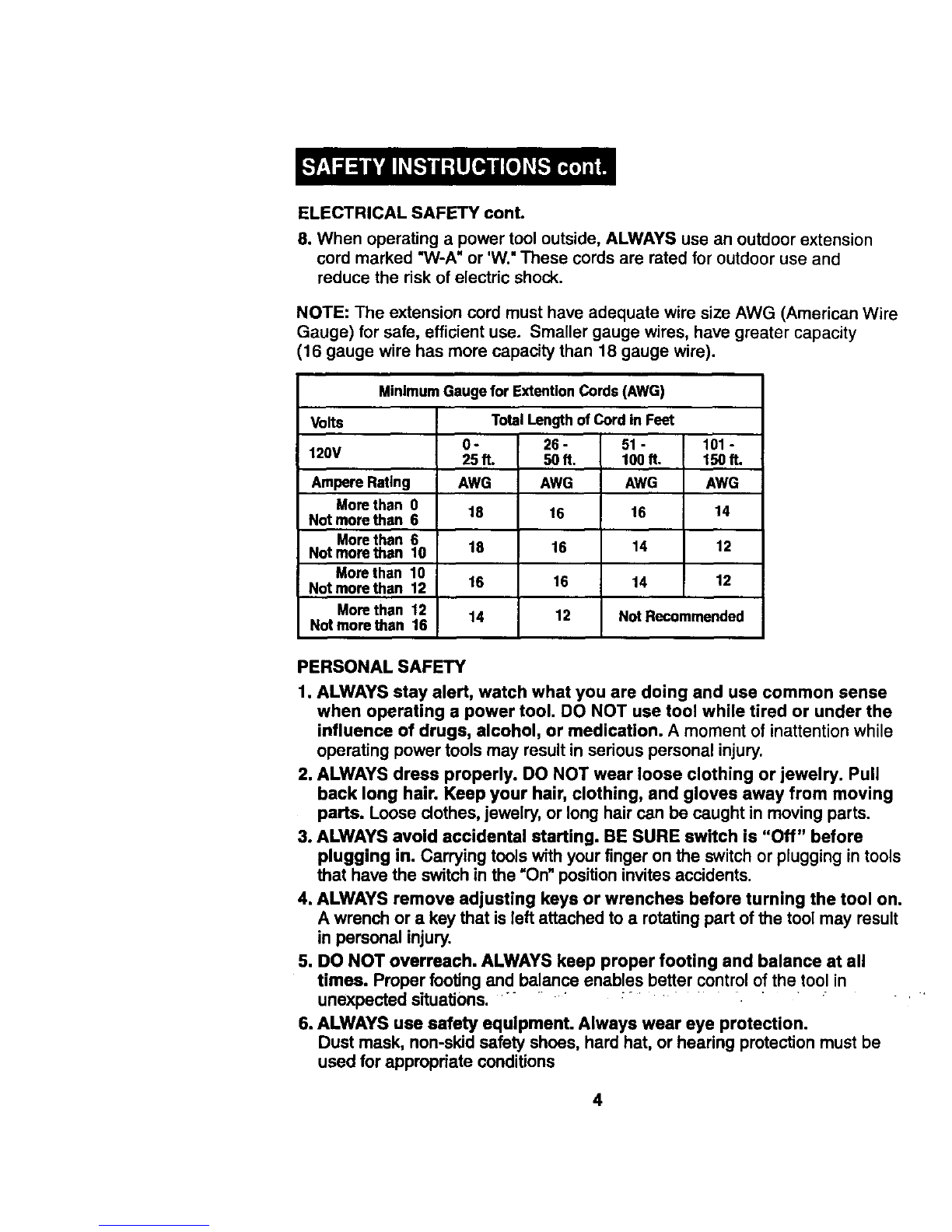

ELECTRICAL SAFETY cont.

8. When operating a power tool outside, ALWAYS use an outdoor extension

cord marked "W-A" or 'W." These cords are rated for outdoor use and

reduce the risk of electric shock.

NOTE: The extension cord must have adequate wire size AWG (American Wire

Gauge) for safe, efficient use. Smaller gauge wires, have greater capacity

(16 gauge wire has more capacity than 18 gauge wire).

Minimum Gauge for Extention Cords (AWG)

Volts Total Length ofCord in Feet

0 - 26 -51 -101 -

120V 25fL 50ft. 100 ft. 150 ft.

Ampere Rating AWG AWG AWG AWG

Morethan 0 18 16 16 14

Not more than 6

Morethan 6

Not more than 10 18 16 14 12

More than 10

Not more than 12 16 16 14 12

More than 12 14 12 Not Recommended

Not more than 16

PERSONALSAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense

when operating a power tool. DO NOT use tool while tired or under the

influence of drugs, alcohol, or medication. A moment of inattention while

operating power tools may result in serious personal injury.

2. ALWAYS dress properly. DO NOT wear loose clothing or jewelry. Pull

back long hair. Keep your hair, clothing, and gloves away from moving

parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

3. ALWAYS avoid accidental starting. BE SURE switch is "Off" before

plugging in. Carrying tools with your finger on the switch or plugging in tools

that have the switch in the =On" position invites accidents.

4. ALWAYS remove adjusting keys or wrenches before turning the tool on.

A wrench or a key that is left attached to a rotating part of the tool may result

in personal injury.

5. DO NOT overreach. ALWAYS keep proper footing and balance at all

times. Proper footing and balance enables better control of the tool in

unexpected situations. - " :

6. ALWAYS use safety equipment. Always wear eye protection.

Dust mask, non-skid safety shoes, hard hat, or hearing protection must be

used for appropriate conditions

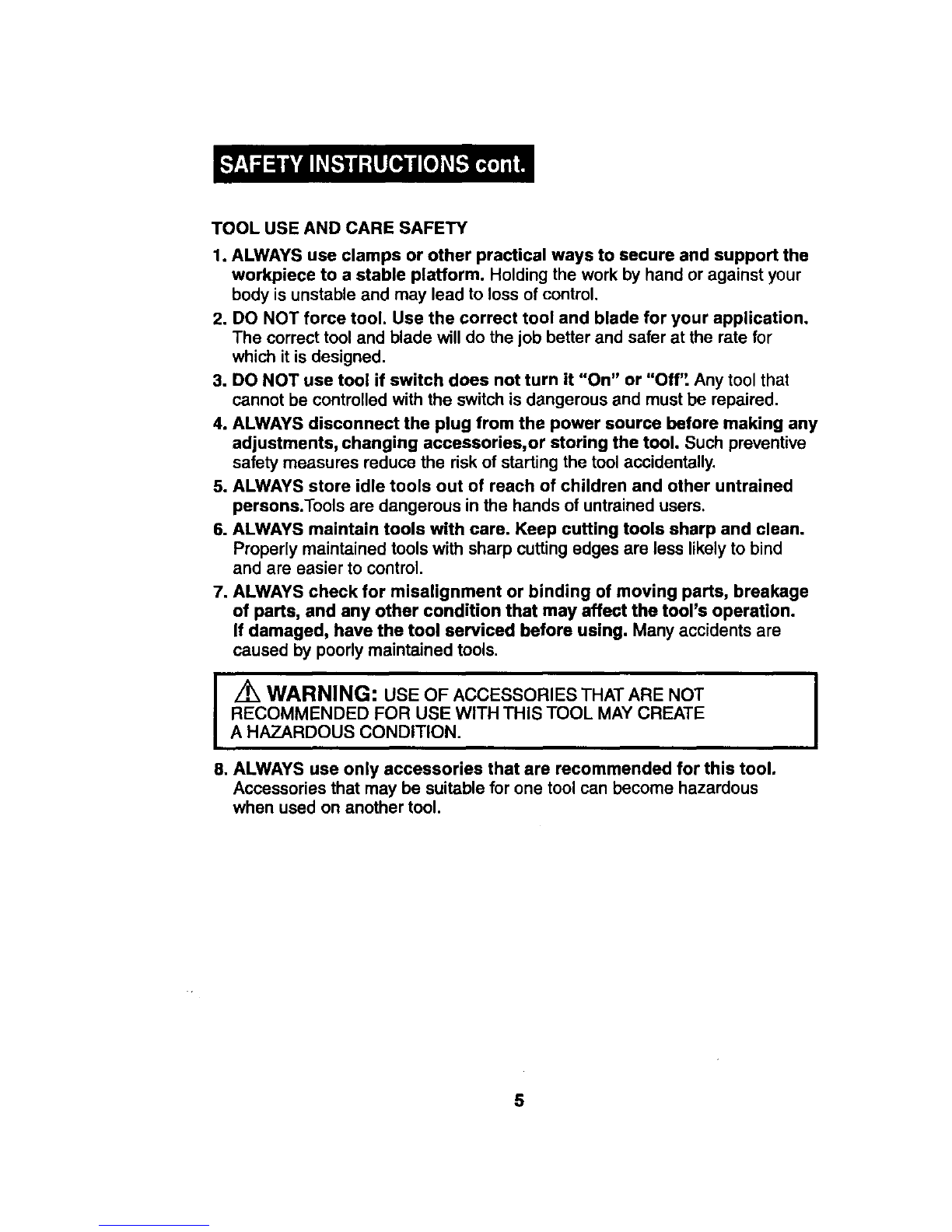

TOOL USE AND CARE SAFETY

1. ALWAYS use clamps or other practical ways to secure and support the

workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

2. DO NOT force tool. Use the correct tool and blade for your application.

The correct tool and blade will do the job better and safer at the rate for

which it is designed.

3. DO NOT use tool if switch does not turn it "On" or "Off". Any tool that

cannot be controlled with the switch is dangerous and must be repaired.

4. ALWAYS disconnect the plug from the power source before making any

adjustments, changing accessories,or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally,

5, ALWAYS store idle tools out of reach of children and other untrained

persons.Tools are dangerous in the hands of untrained users.

6. ALWAYS maintain tools with care. Keep cutting tools sharp and clean.

Properly maintained tools with sharp cutting edges are less likely to bind

and are easier to control.

7. ALWAYS check for misalignment or binding of moving parts, breakage

of parts, and any other condition that may affect the tool's operation.

If damaged, have the tool serviced before using. Many accidents are

caused by poorly maintained tools.

Iz_ WARNING: USE OF ACCESSORIES THAT ARE NOT

RECOMMENDED FOR USE WITH THIS TOOL MAY CREATE

AHAZARDOUS CONDITION.

8. ALWAYS use only accessories that are recommended for this tool.

Accessories that may be suitable for one tool can become hazardous

when used on another tool.

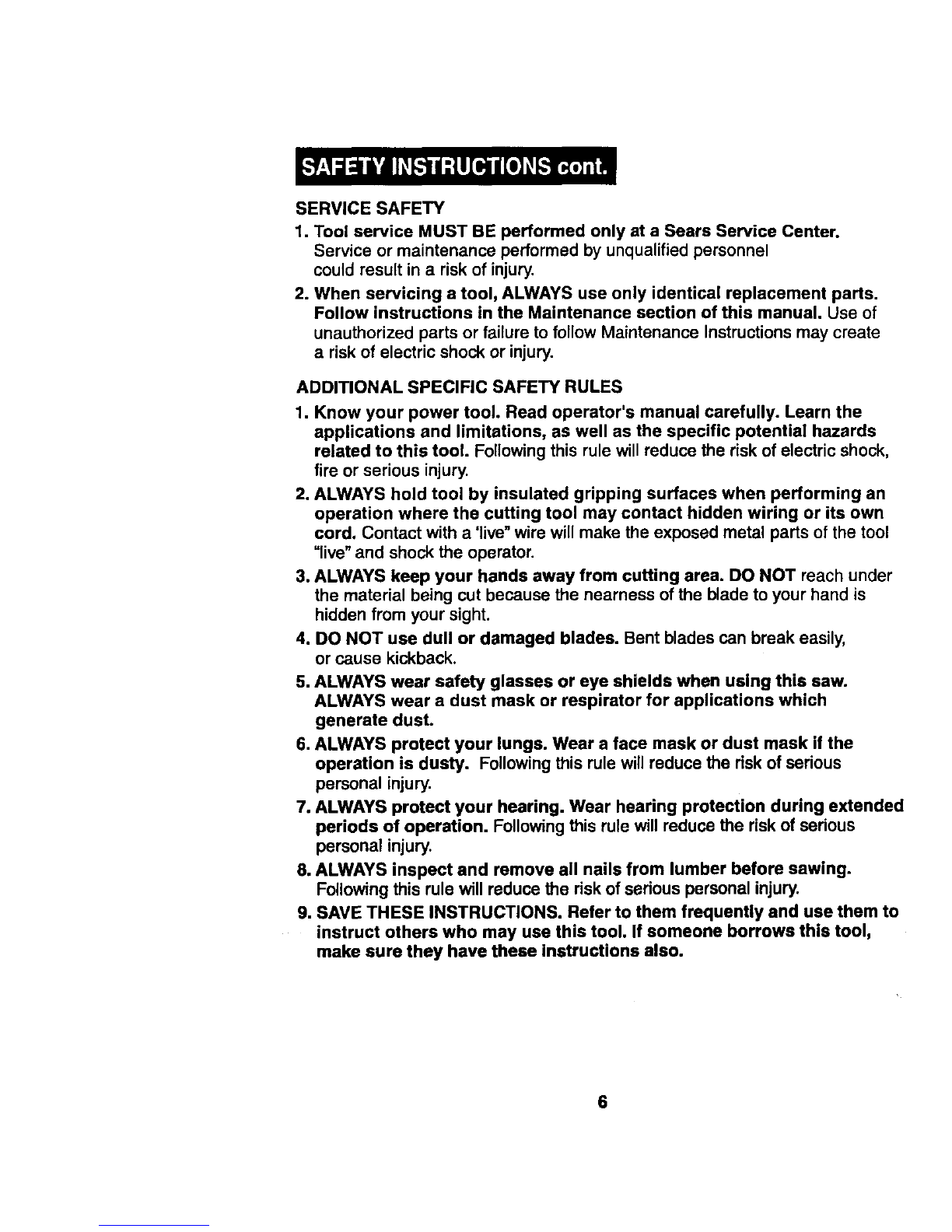

SERVICESAFETY

1. Tool service MUST BE performed only at a Sears Service Center.

Service or maintenance performed by unqualified personnel

could result in a risk of injury.

2. When servicing a tool, ALWAYS use only identical replacement parts.

Follow instructions in the Maintenance section of this manual, Use of

unauthorized parts or failure to follow Maintenance Instructions may create

a risk of electric shock or injury.

ADDITIONAL SPECIFIC SAFETY RULES

1. Know your power tool. Read operator's manual carefully. Learn the

applications and limitations, as well as the specific potential hazards

related to this tool. Following this rule will reduce the risk of electric shock,

fire or serious injury.

2. ALWAYS hold tool by insulated gripping surfaces when performing an

operation where the cutting tool may contact hidden wiring or its own

cord. Contact with a'live" wire will make the exposed metal parts of the tool

"live" and shock the operator.

3. ALWAYS keep your hands away from cutting area. DO NOT reach under

the material being cut because the nearness of the blade to your hand is

hidden from your sight.

4. DO NOT use dull or damaged blades. Bent blades can break easily,

or cause kickback.

5. ALWAYS wear safety glasses or eye shields when using this saw.

ALWAYS wear a dust mask or respirator for applications which

generate dust.

6. ALWAYS protect your lungs. Wear a face mask or dust mask if the

operation is dusty. Following this rule will reduce the risk of serious

personal injury.

7. ALWAYS protect your hearing. Wear hearing protection during extended

periods of operation. Following this rule will reduce the risk of serious

personal injury.

8. ALWAYS inspect and remove all nails from lumber before sawing.

Following this rule will reduce the risk of sedous personal injury.

9. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to

instruct others who may use this tool. If someone borrows this tool,

make sure they have these instructions also.

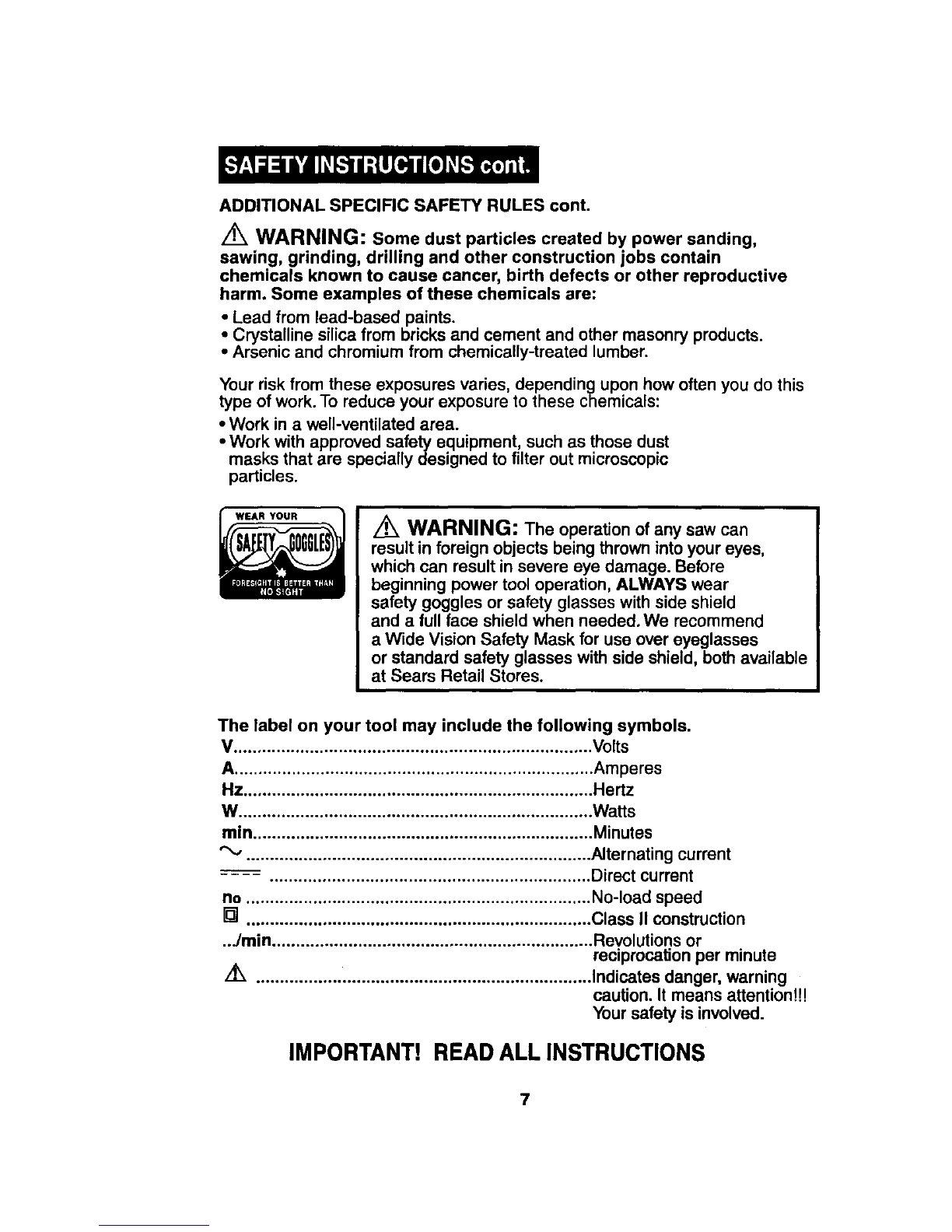

ADDITIONAL SPECIFIC SAFETY RULES cont.

/_, WARNING: Some dust particles created by power sanding,

sawing, grinding, drilling and other construction jobs contain

chemicals known to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

•Lead from lead-based paints.

• Crystalline silica from bricks and cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending upon how often you do this

type of work. To reduce your exposure to these chemicals:

• Work in a well-ventilated area.

• Work with approved safety equipment, such as those dust

masks that are specially designed to filter out microscopic

particles.

Z_ WARNING: The operation of any saw can

result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before

beginning power tool operation, ALWAYS wear

safety goggles or safety glasses with side shield

and a full face shield when needed. We recommend

a Wide Vision Safety Mask for use over eyeglasses

or standard safety glasses with side shield, both available

at Sears Retail Stores.

The label on your tool may include the following symbols.

V........................................................................... Volts

A........................................................................... Amperes

Hz......................................................................... Hertz

W.......................................................................... Watts

rain ....................................................................... Minutes

_-, ........................................................................ Alternating current

.... ................................................................... Direct current

no ........................................................................ No-load speed

[] ........................................................................ Class II construction

..Jmin ................................................................... Revolutions or

reciprocation per minute

Z_ ...................................................................... Indicates danger, warning

caution. It means attention!!!

Yoursafety is involved.

IMPORTANT! READ ALL INSTRUCTIONS

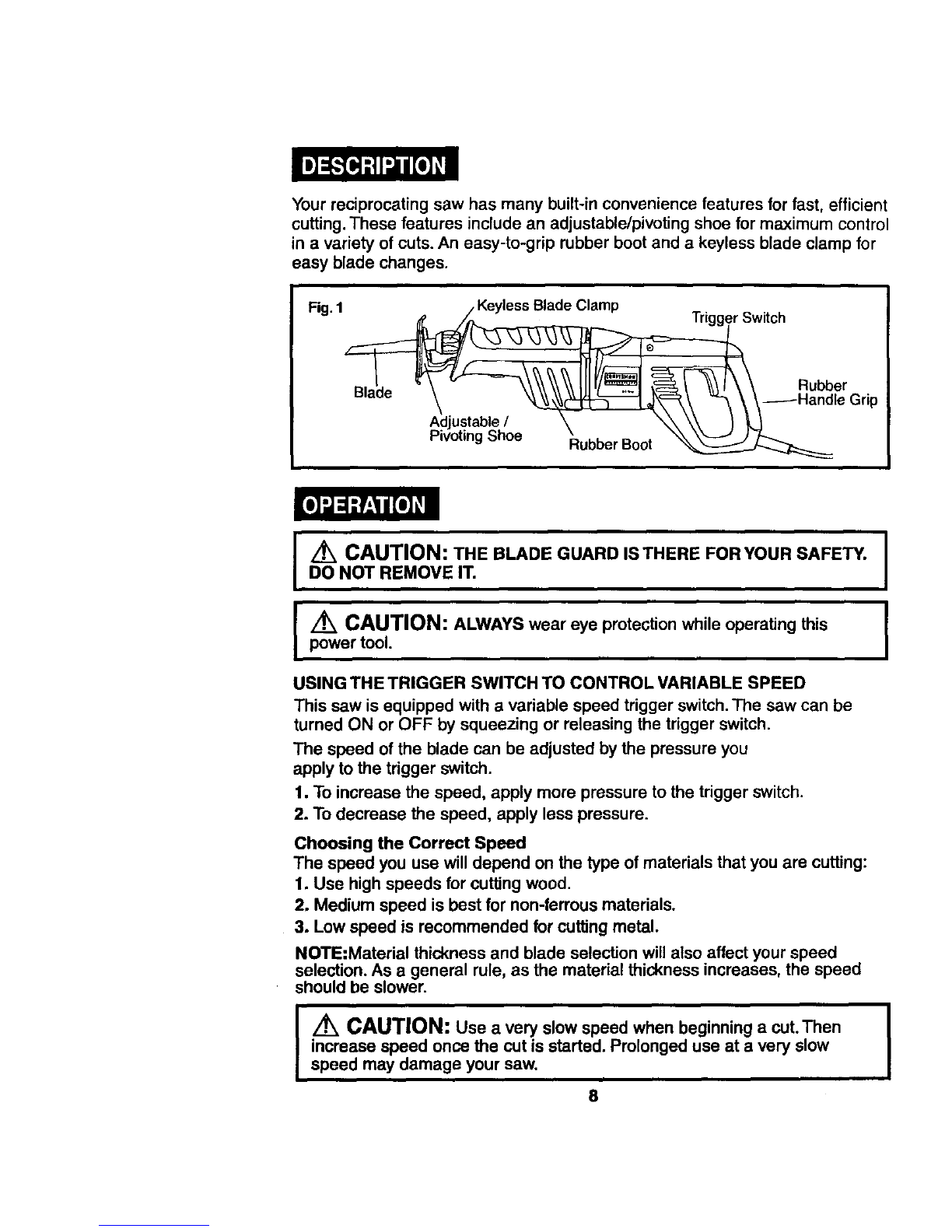

Your reciprocating saw has many built-in convenience features for fast, efficient

cutting. These features include an adjustable/pivoting shoe for maximum control

in a variety of cuts. An easy-to-grip rubber boot and a keyless blade clamp for

easy blade changes.

Fig. 1 /Key ess Blade Camp -witch

_\\\\lllr/'_'_..I ,._\ \\\t \ \ Rubber

"'=_ \ __'k\ '_ \ \_--Handle Grip

_A.djus.labLe.I\ \\\\ )

Pivoting Shoe Rubber Boot ___;===.

CAUTION: THE BLADE GUARD ISTHERE FORYOUR SAFETY.

DO NOT REMOVE IT.

CAUTION: ALWAYS wear eye protection while operating this

power tool.

USING THE TRIGGER SWITCH TO CONTROL VARIABLE SPEED

This saw is equipped with a variable speed trigger switch. The saw can be

turned ON or OFF by squeezing or releasing the trigger switch.

The speed of the blade can be adjusted by the pressure you

apply to the trigger switch.

1. To increase the speed, apply more pressure to the trigger switch.

2. To decrease the speed, apply less pressure.

Choosing the Correct Speed

The speed you use will depend on the type of materials that you are cutting:

1. Use highspeeds for cut'dngwood.

2. Medium speed is best for non-ferrous materials.

3. Low speed is recommended for cuffing metal.

NOTE:Material thickness and blade selection will also affect your speed

selection. As a general rule, as the material thickness increases, the speed

should be slower.

CAUTION: Use a very slow speed when beginning acut.Then

increase speed once the cut is started. Prolonged use at a very slow

speed may damage your saw.

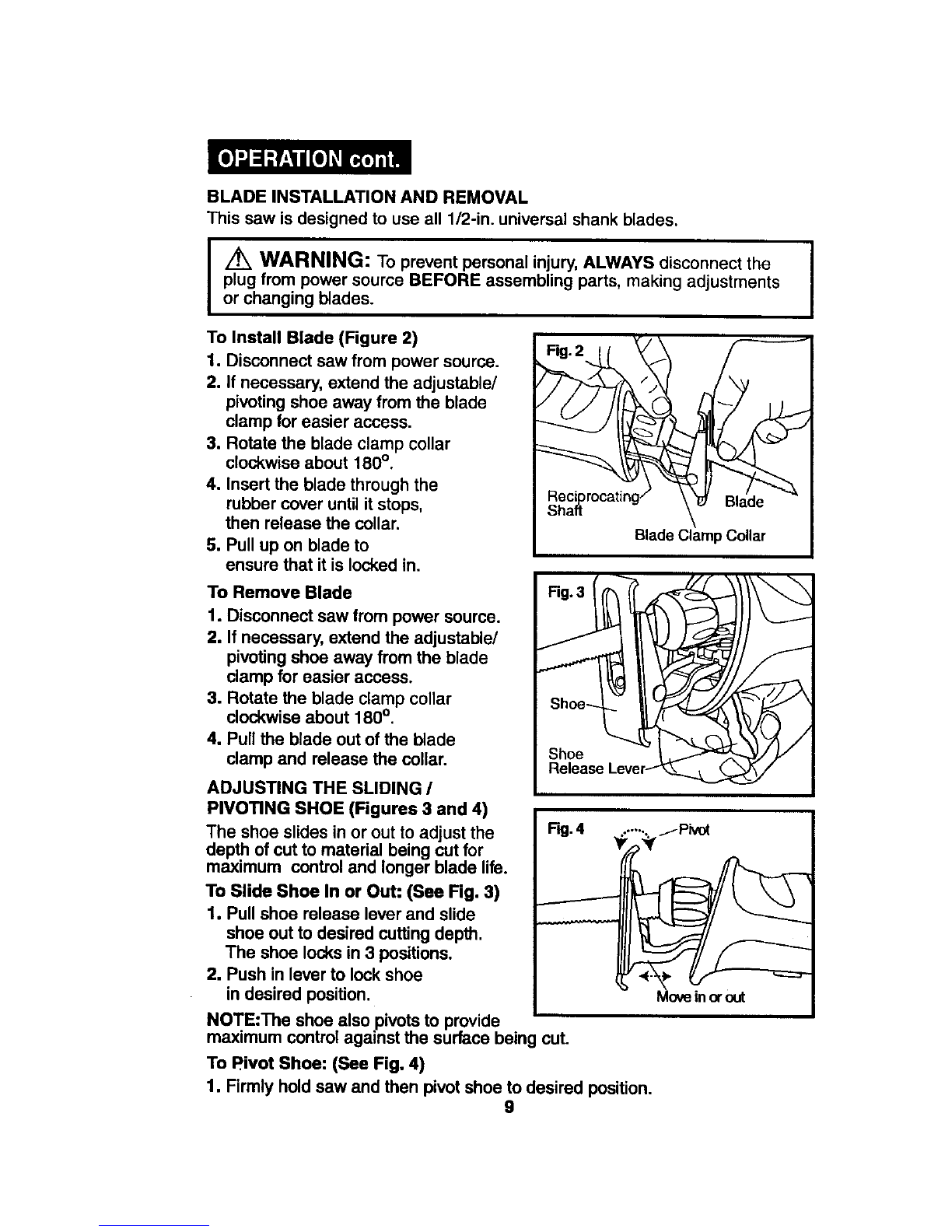

BLADE INSTALLATION AND REMOVAL

This saw is designed to use all 1/2-in. universal shank blades.

I,_ WARNING: To prevent personal injury, ALWAYS disconnect the I

plug from power source BEFORE assembling parts, making adjustments I

or changing blades.

To Install Blade (Figure 2)

1. Disconnect saw from power source.

2. If necessary, extend the adjustable/

pivoting shoe away from the blade

clamp for easier access.

3. Rotate the blade clamp collar

clockwise about 180 °.

4. Insert the blade through the

rubber cover until it stops,

then release the collar.

5. Pull up on blade to

ensure that it is locked in.

To Remove Blade

1. Disconnect saw from power source.

2. If necessary, extend the adjustable/

pivoting shoe away from the blade

clamp for easier access.

3. Rotate the blade clamp collar

clockwise about 180°.

4. Pull the blade out of the blade

clamp and release the collar.

ADJUSTING THE SLIDING /

PIVOTING SHOE (Figures 3 and 4)

The shoe slides in or out to adjust the

depth of cut to material being cut for

maximum control and longer blade life.

To Slide Shoe In or Out: (See Fig. 3)

1, Pull shoe release lever and slide

shoe out to desired cutting depth.

The shoe locks in 3 positions.

2. Push in lever to lock shoe

in desired position.

...2.1

_ting_ Blade

Blade Clamp Collar

Fig.3

Shoe _ ,_*_'_Y/J/

Release kever_

NOTE:The shoe also pivots to provide

maximum control against the surface being cut.

To Pivot Shoe: (See Fig. 4)

1. Firmly hold saw and then pivot shoe to desired position.

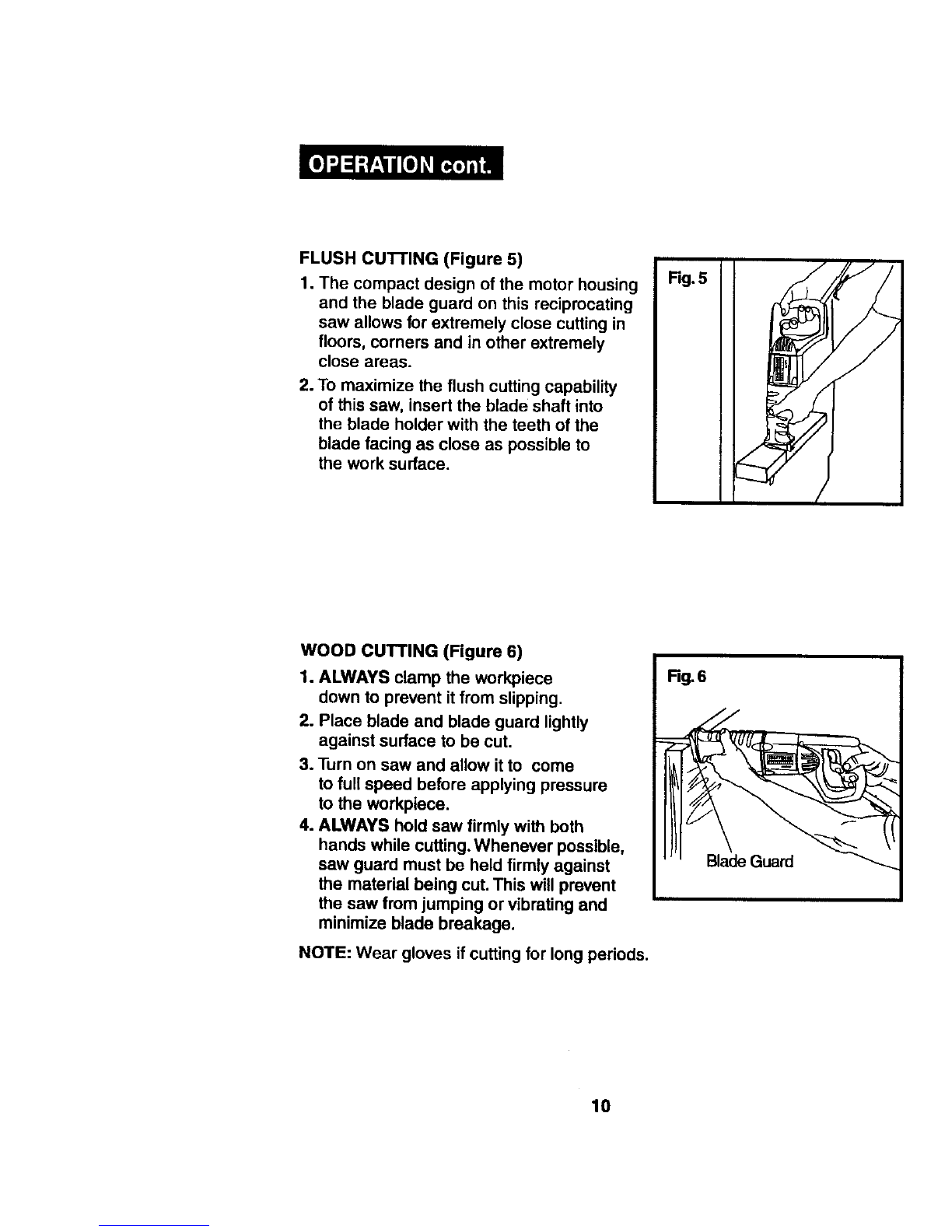

FLUSH cu'rrlNG (Figure 5)

1. The compact design of the motor housing

and the blade guard on this reciprocating

saw allows for extremely close cutting in

floors, corners and in other extremely

close areas.

2. To maximize the flush cutting capability

of this saw, insert the blade shaft into

the blade holder with the teeth of the

blade facing as close as possible to

the work surface.

Rg. 5

WOOD CUTTING (Figure 6)

1. ALWAYS clamp the workpiece

down to prevent itfrom slipping.

2. Place blade and blade guard lightly

against surface to be cut.

3. Turn on saw and allow it to come

to full speed before applying pressure

to the workpiece.

4. ALWAYS hold saw firmly with both

hands while cutting.Whenever possible,

saw guard must be held firmly against

the material being cut. This will prevent

the saw from jumping or vibrating and

minimize blade breakage.

NOTE: Wear gloves if cutting for long periods.

Rg.6
