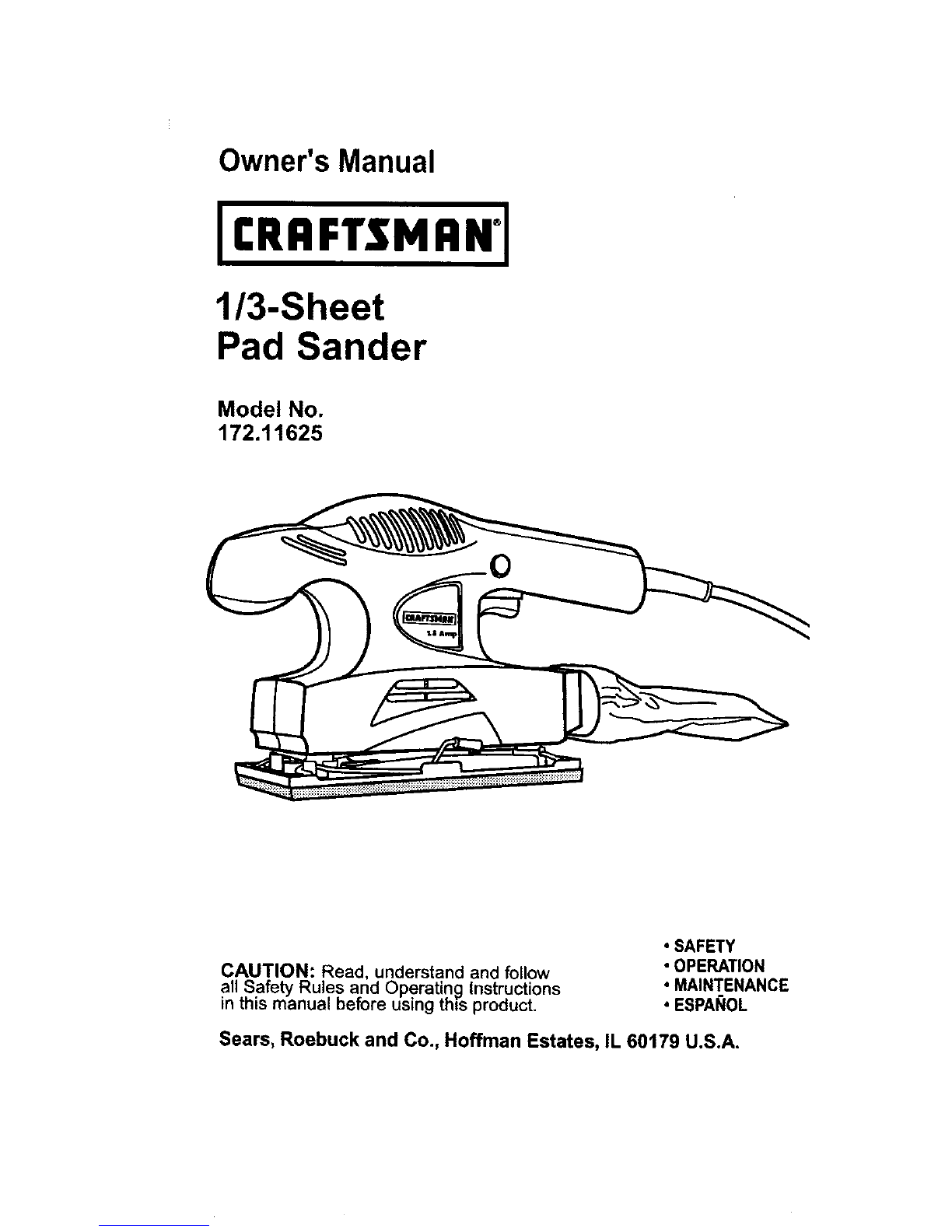

Craftsman 172.11625 Manual de usuario

Owner's Manual

1/3-Sheet

Pad Sander

Model No.

172.11625

CAUTION: Read, understand and follow

all Safety Rules and Operating Instructions

in this manual before using th=s product.

,SAFETY

,OPERATION

,MAINTENANCE

,ESPA_OL

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Warranty. .................................................... Page 2

Safety Instructions ..................................... Pages 3-8

Safety Symbols .......................................... Page 8

Description ................................................. Pages 9-10

Assembly. ................................................... Pages 10-14

Operation ................................................... Pages 15-18

Maintenance .............................................. .Pages 18-19

Accessories ................................................ Page 19

Repair Parts & Phone Numbers ................. Pages 20-22

FULL ONE YEAR WARRANTY ON CRAFTSMAN

1/3-SHEET PAD SANDER

If this CRAFTSMAN 1/3-Sheet Pad Sander fails to give complete

satisfaction within one year from the date of purchase, RETURN IT TO

THE NEAREST SEARS STORE INTHE UNITED STATES, and Sears

will replace it, free of charge.

If this CRAFTSMAN lt3-Sheet Pad Sander is used for commercial

or rental purposes, this warranty applies for only 90 days from the date

of purchase.

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179

SAVE THESE INSTRUCTIONS]

READ ALL INSTRUCTIONS!

IZ_ WARNING: BE SURE to read and understand all instructions, I

Failure to follow all instructions listed below may result in electric I

shock, fire and/or serious personal injury.

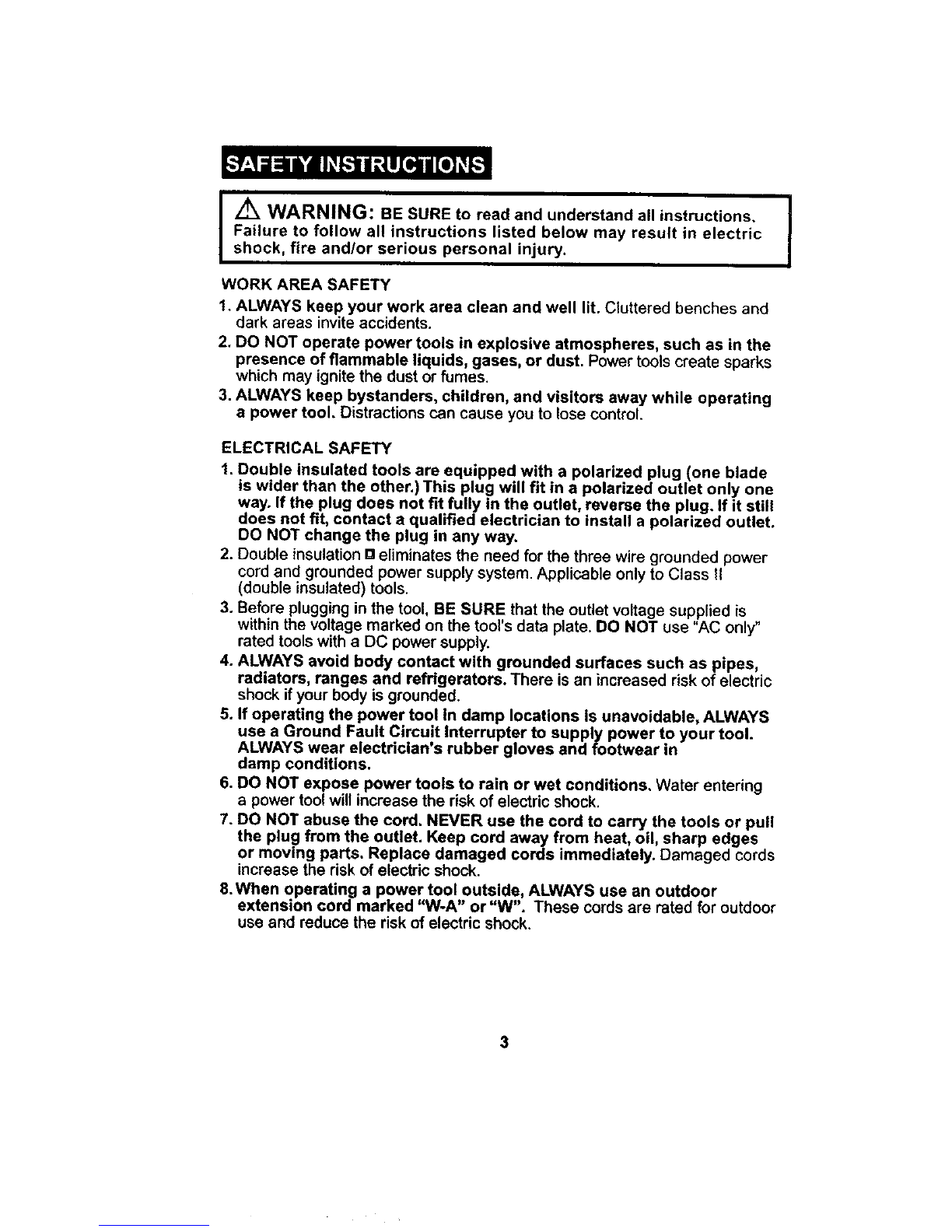

WORK AREA SAFETY

1. ALWAYS keep your work area clean and well lit. Cluttered benches and

dark areas invite accidents.

2. DO NOT operate power tools tn explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. ALWAYS keep bystanders, children, and visitors away while operating

a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Double insulated tools are equipped with a polarized plug (one blade

is wider than the other.) This plug will fit in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still

does not fit, contact a qualified electrician to install a polarized outlet.

DO NOT change the plug in any way.

2. Double insulation [] eliminates the need for the three wire grounded power

cord and grounded power supply system. Applicable only to Class II

(double insulated) tools.

3. Before plugging in the tool, BE SURE that the outlet voltage supplied is

within the voltage marked on the tool's data plate. DO NOT use "AC only"

rated tools with a DC power supply.

4. ALWAYS avoid body contact with grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock ifyour body is grounded.

5. If operating the power tool In damp locations is unavoidable, ALWAYS

use a Ground Fault Circuit Interrupter to supply power to your tool.

ALWAYS wear electrician's rubber gloves and footwear in

damp conditions.

6. DO NOT expose power tools to rain or wet conditions. Water entering

apower too! will increase the risk of electric shock.

7. DO NOT abuse the cord. NEVER use the cord to carry the tools or pull

the plug from the outlet. Keep cord away from heat, oil, sharp edges

or moving parts. Replace damaged cords immediately. Damaged cords

increase the risk of electric shook.

8. When operating a power tool outside, ALWAYS use an outdoor

extension cord marked "W-A" or "W'. These cords are rated for outdoor

use and reduce the risk of electric shook.

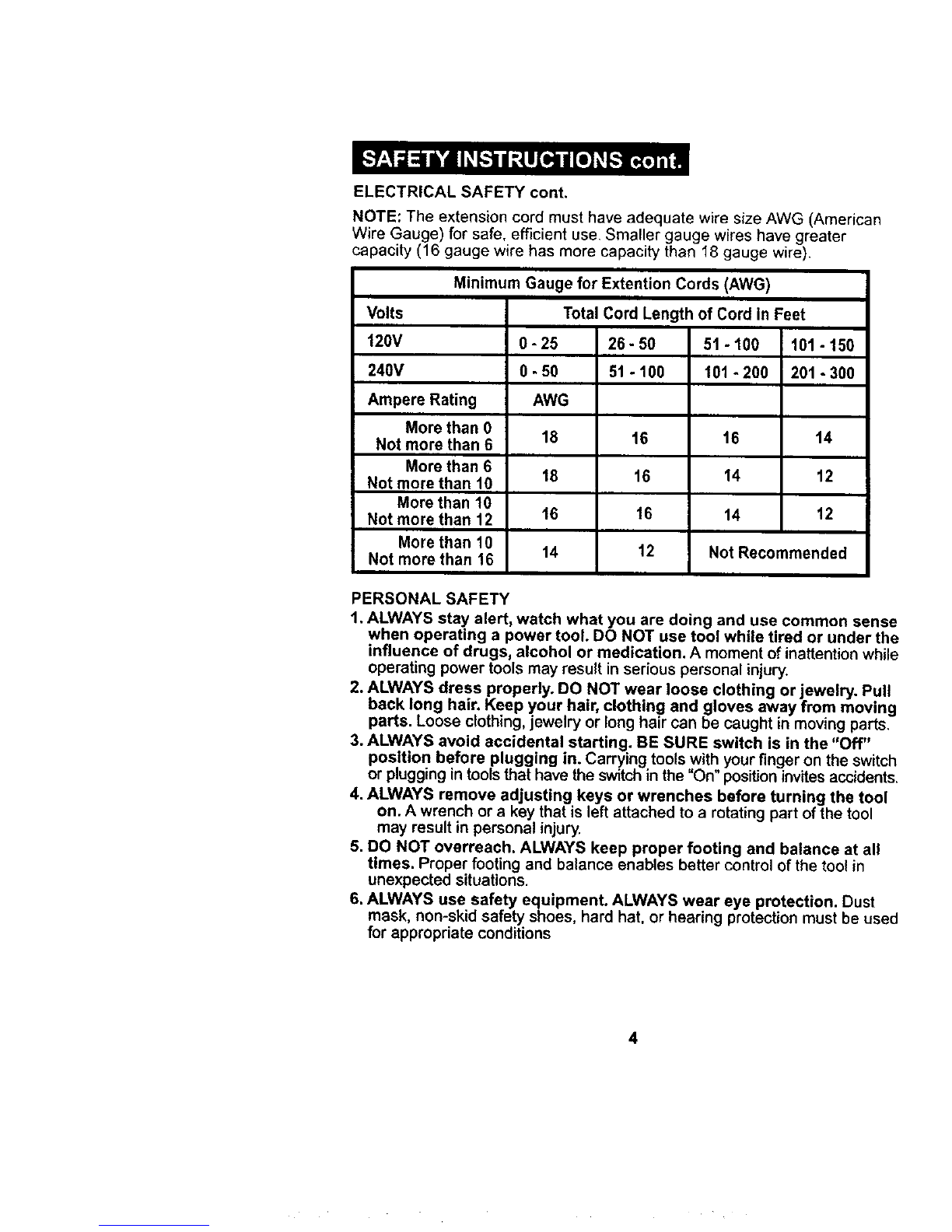

ELECTRICAL SAFETY cont.

NOTE: The extension cord must have adequate wire size AWG (American

Wire Gauge) for safe, efficient use, Smaller gauge wires have greater

capacity (16 gauge wire has more capacity than I8 gauge wire).

Minimum Gauge for Extention Cords (AWG)

Volts

120V

240v

Ampere Rating

More than 0

Not more than 6

More than 6

Not more than 10

More than 10

Not more than 12

More than 10

Not more than 16

Total Cord Length of Cord in Feet

0-25

0-5O

AWG

26 - 50

51 - 100

51 -100 101 -150

101-200 201-300

16 14

14 12

Not Recommended

PERSONAL SAFETY

1, ALWAYS stay alert, watch what you are doing and use common sense

when operating a power tool. DO NOT use tool while tired or under the

influence of drugs, alcohol or medication. Amoment of inattention while

operating power tools may result in serious personal injury.

2. ALWAYS dress properly. DO NOT wear loose clothing or jewelry, Pull

back long hair. Keep your hair, clothing and gloves away from moving

parts. Loose clothing, jewelry or long hair can be caught in moving parts.

3. ALWAYS avoid accidental starting. BE SURE switch is in the "Off"

position before plugging in. Carrying tools with your finger on the switch

or plugging in tools that have the switch in the "On" position invitesaccidents.

4. ALWAYS remove adjusting keys or wrenches before turning the tool

on. Awrench or akey that is left attached to a rotating part of the tool

may result in personal injury.

5. DO NOT overreach. ALWAYS keep proper footing and balance at all

times. Proper footing and balance enables better control of the too! in

unexpected situations.

6. ALWAYS use safety equipment. ALWAYS wear eye protection. Dust

mask, non-skid safety shoes, hard hat, or hearing protection must be used

for appropriate conditions

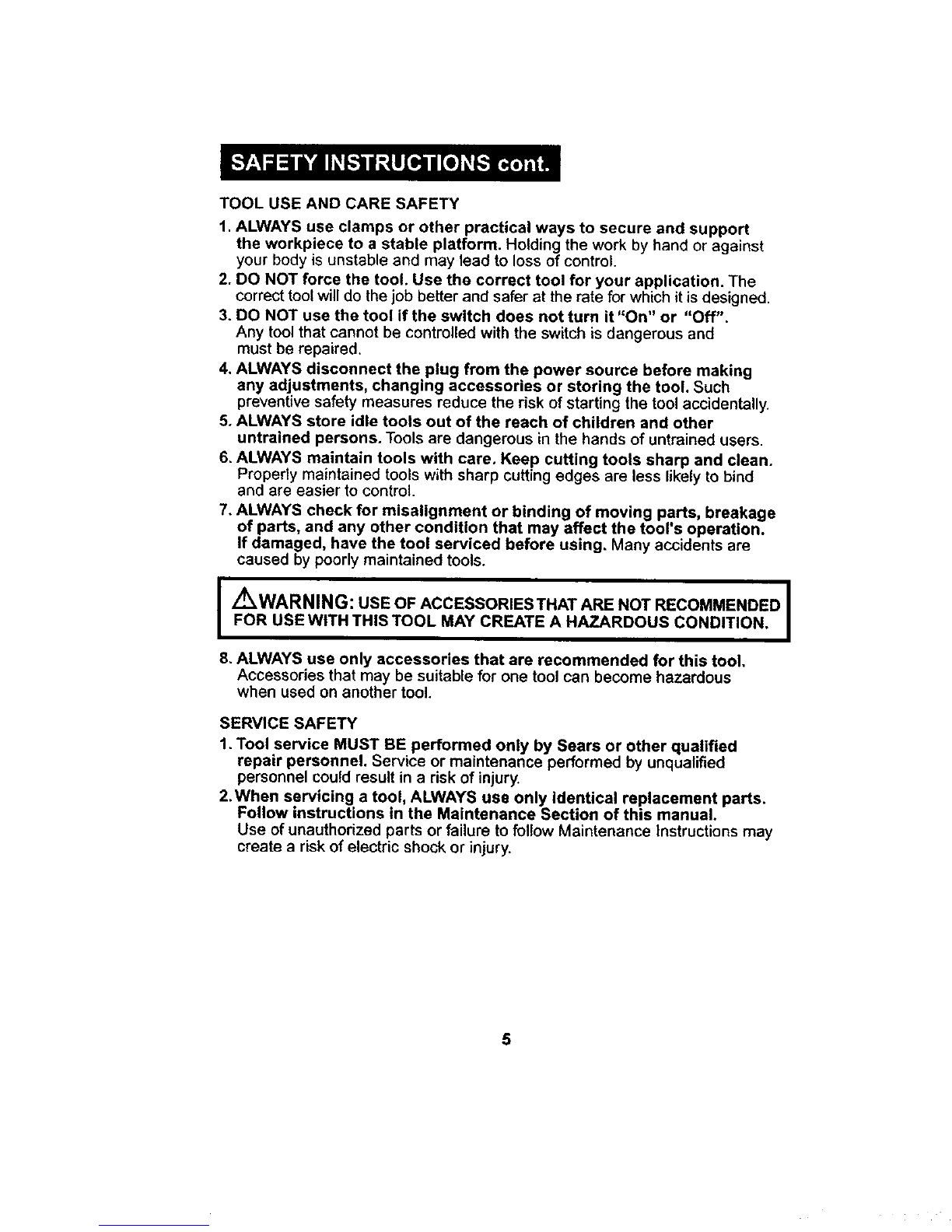

TOOL USE AND CARE SAFETY

1. ALWAYS use clamps or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against

your body is unstable and may lead to loss of control.

2. DO NOT force the tool. Use the correct tool for your application. The

correct toolwill do the job better and safer at the rate for which itis designed.

3. DO NOT use the tool if the switch does not turn it "On" or "Off".

Any tool that cannot be controlled with the switch is dangerous and

must be repaired.

4. ALWAYS disconnect the plug from the power source before making

any adjustments, changing accessories or storing the tool. Such

preventive safety measures reduce the risk of starting the tool accidentally.

5, ALWAYS store idle tools out of the reach of children and other

untrained persons. Tools are dangerous in the hands of untrained users.

6. ALWAYS maintain tools with care, Keep cutting tools sharp and clean.

Properly maintained tools with sharp cutting edges are less likely to bind

and are easier to control

7. ALWAYS check for misalignment or binding of moving parts, breakage

of parts, and any other condition that may affect the tool's operation.

If damaged, have the tool serviced before using. Many accidents are

caused by poorly maintained tools.

IZ_WARNING: USE OF ACCESSORIES THAT ARE NOT RECOMMENDED I

FOR USE WITH THIS TOOL MAY CREATE A HAZARDOUS CONDITION, I

8. ALWAYS use only accessories that are recommended for this tool,

Accessories that may be suitable for one tool can become hazardous

when used on another tool.

SERVICE SAFETY

1. Tool service MUST BE performed only by Sears or other qualified

repair personnel. Service or maintenance performed by unqualified

personnel could result in a risk of injury.

2.When servicing a tool, ALWAYS use only Identical replacement parts.

Follow instructions in the Maintenance Section of this manual.

Use of unauthorized parts or failure to follow Maintenance Instructions may

create a risk of electric shock or injury.

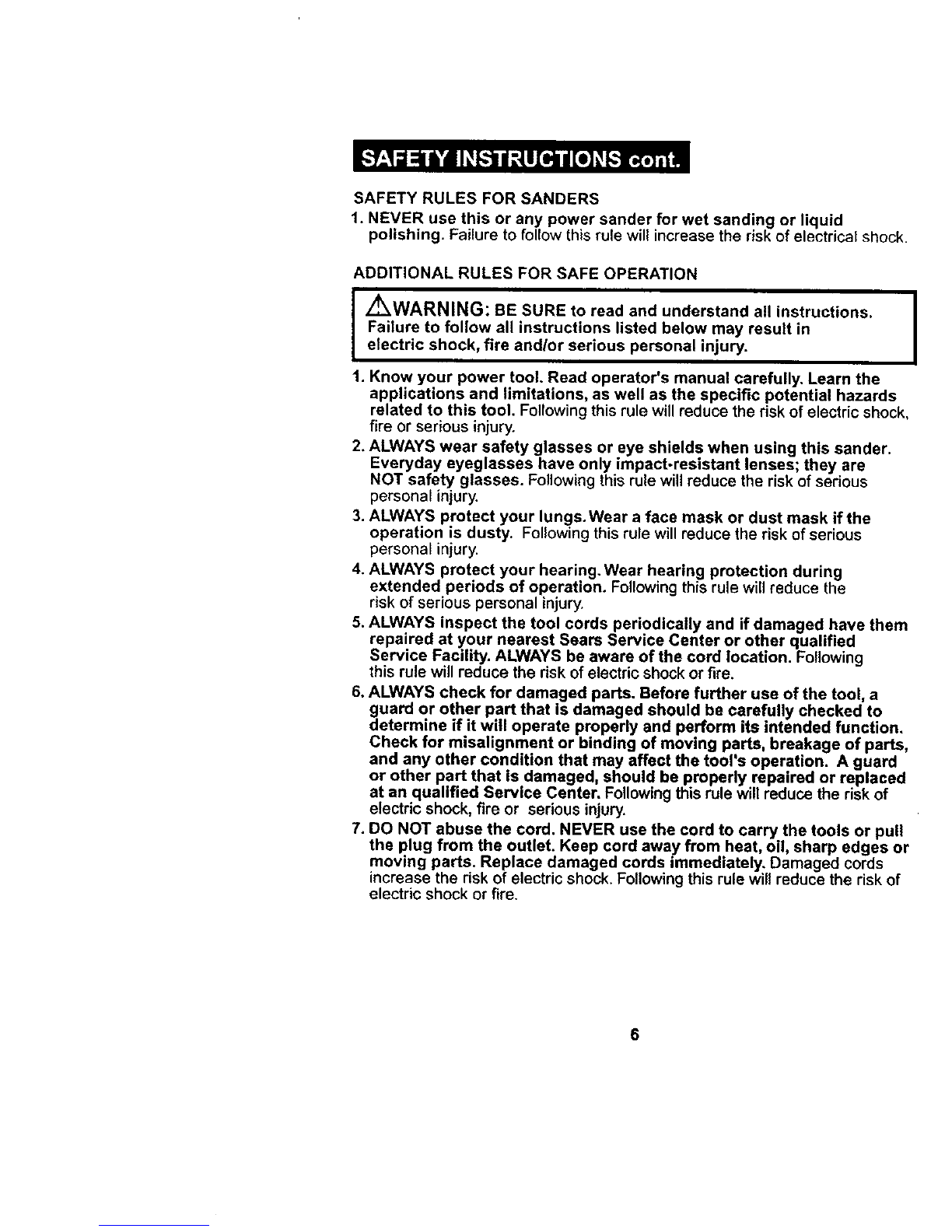

SAFETY RULES FOR SANDERS

1. NEVER use this or any power sander for wet sanding or liquid

polishing. Failure to follow this rule will increase the risk of electrical shock

ADDITIONAL RULES FOR SAFE OPERATION

Z_WARNING: BE SURE to read and understand all instructions.

Failure to follow all instructions listed below may result in

electric shock, fire and/or serious personal injury.

1. Know your power tool. Read operator's manual carefully. Learn the

applications and limitations, as well as the specific potential hazards I

related to this tool. Following this rule will reduce the risk of electric shock,

fire or serious injury,

2. ALWAYS wear safety glasses or eye shields when using this sander.

Everyday eyeglasses have only impact-resistant lenses; they are

NOT safety glasses. Following this rule will reduce the risk of serious

personal injury.

3. ALWAYS protect your lungs.Wear a face mask or dust mask if the

operation is dusty. Following this rule will reduce the risk of serious

personal injury.

4. ALWAYS protect your hearing, Wear hearing protection during

extended periods of operation. Following this rule will reduce the

risk of serious personal injury.

5. ALWAYS inspect the tool cords periodically and if damaged have them

repaired at your nearest Sears Service Center or other qualified

Service Facility. ALWAYS be aware of the cord location. Following

this rule will reduce the risk of electric shock or fire.

6. ALWAYS check for damaged parts. Before further use of the tool, a

guard or other part that is damaged should be carefully checked to

determine if it will operate properly and perform its intended function.

Check for misalignment or binding of moving parts, breakage of parts,

and any other condition that may affect the tool's operation. A guard

or other part that Is damaged, should be properly repaired or replaced

at an qualified Service Center. Following this rule will reduce the risk of

electric shock, fire or serious injury.

7. DO NOT abuse the cord. NEVER use the cord to carry the tools or pull

the plug from the outlet. Keep cord away from heat, oil, sharp edges or

moving parts. Replace damaged cords immediately. Damaged cords

increase the risk of electric shock. Following this rule will reduce the risk of

electric shock or fire.

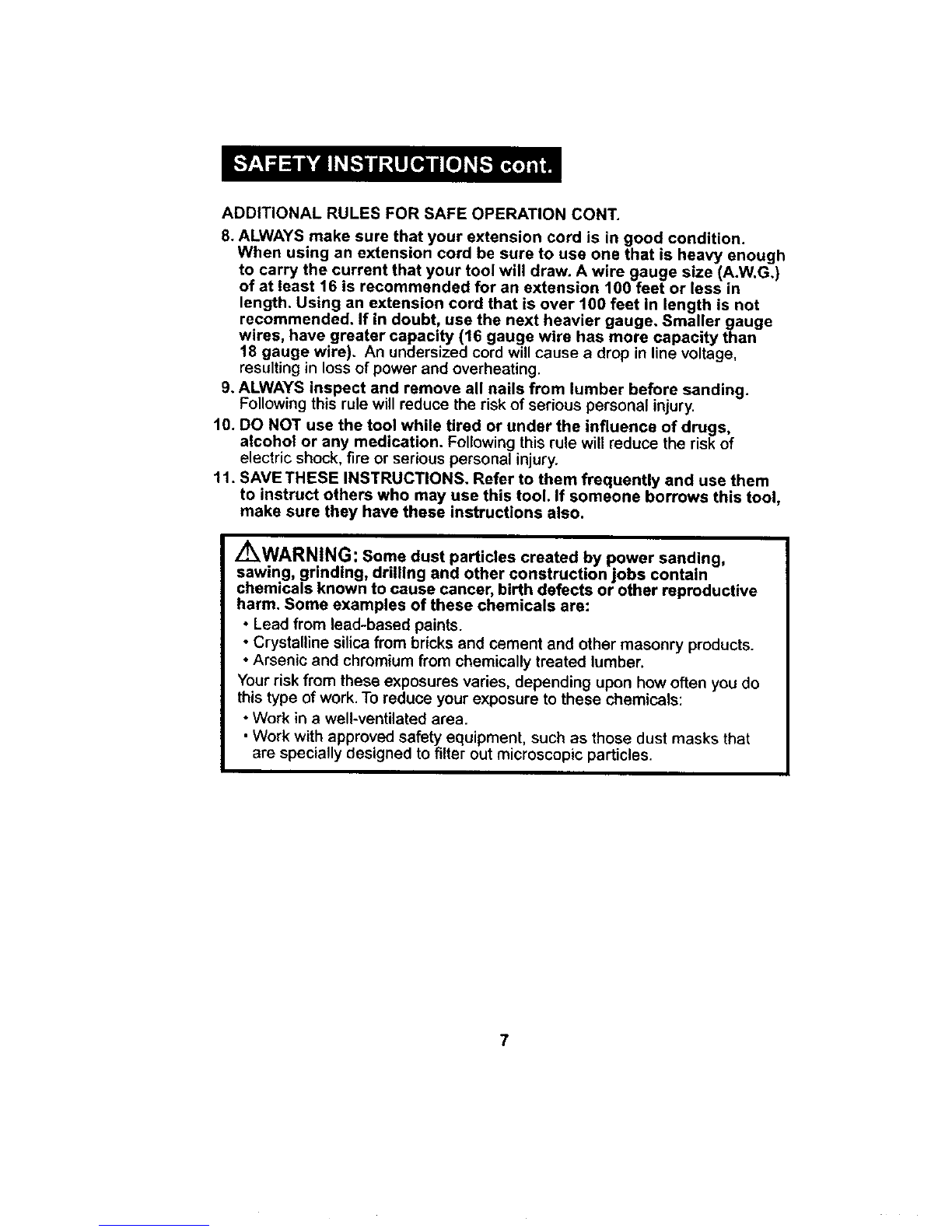

ADDITIONAL RULES FOR SAFE OPERATION CONT.

8. ALWAYS make sure that your extension cord is in good condition.

When using an extension cord be sure to use one that is heavy enough

to carry the current that your tool will draw. A wire gauge size (A.W.G,)

of at least 16 is recommended for an extension 100 feet or less in

length, Using an extension cord that is over 100 feet in length is not

recommended, If in doubt, use the next heavier gauge. Smaller gauge

wires, have greater capacity (16 gauge wire has more capacity than

18 gauge wire), An undersized cord will cause a drop in line voltage,

resulting in loss of power and overheating.

9, ALWAYS inspect and remove all nails from lumber before sanding.

Following this rule will reduce the risk of serious personal injury.

10. DO NOT use the tool while tired or under the influence of drugs,

alcohol or any medication. Following this rule will reduce the risk of

electric shock, fire or serious personal injury.

11. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them

to instruct others who may use this tool. If someone borrows this tool,

make sure they have these instructions also.

Z_WARNING: Some dust particles created by power sanding,

sawing, grinding, drilling and other construction jobs contain

chemicals known to cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

• Lead from lead-based paints.

•Crystalline silica from bricks and cement and other masonry products.

•Arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending upon how often you do

this type of work. To reduce your exposure to these chemicals:

• Work in a well-ventilated area.

• Work with approved safety equipment, such as those dust masks that

are specially designed to filter out microscopic particles.

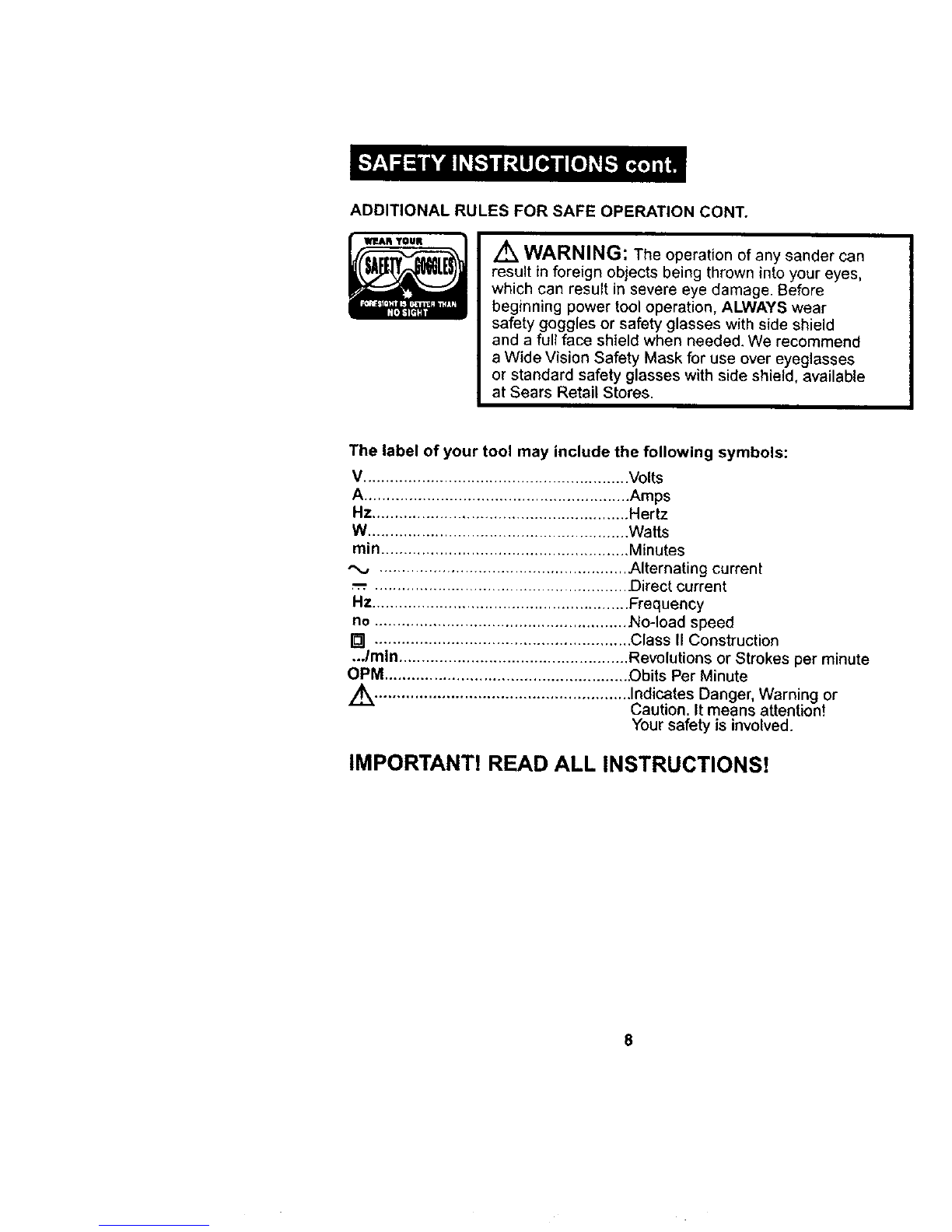

ADDITIONAL RULES FOR SAFE OPERATION CONT.

Z_ WARNING: The operation of any sander can

result in foreign objects being thrown into your eyes,

which can result in severe eye damage. Before

beginning power tool operation, ALWAYS wear

safety goggles or safety glasses with side shield

and a full face shield when needed, We recommend

a Wide Vision Safety Mask for use over eyeglasses

or standard safety glasses with side shield, available

at Sears Retail Stores.

The label of your tool may include the following symbols:

V........................................................... Volts

A ........................................................... Amps

Hz ......................................................... Hertz

W.......................................................... Watts

rain ....................................................... Minutes

....................................................... Alternating current

........................................................ .Direct current

Hz ......................................................... Frequency

no ........................................................ .No-load speed

[] ......................................................... Class II Construction

,.Jmln ................................................... Revolutions or Strokes per minute

OPM ...................................................... Obits Per Minute

,_ ......................................................... Indicates Danger, Warning or

Caution. It means attention!

Your safety is involved.

IMPORTANT! READ ALL INSTRUCTIONSI

Before attempting to use any tool, be sure to familiarize yourself with

an the operating features and safety instructions.

Z_ WARNING: IF ANY PARTS ARE MISSING, DO NOT OPERATE

YOUR SANDER UNTIL THE MISSING PARTS ARE REPLACED.

FAILURE TO FOLLOW THIS RULE COULD RESULT IN SERIOUS

PERSONAL INJURY.

Z_ WARNING: DO NOT let familiarity with your sander make you

careless. Remember that acareless fraction of a second is sufficient

to cause severe injury.

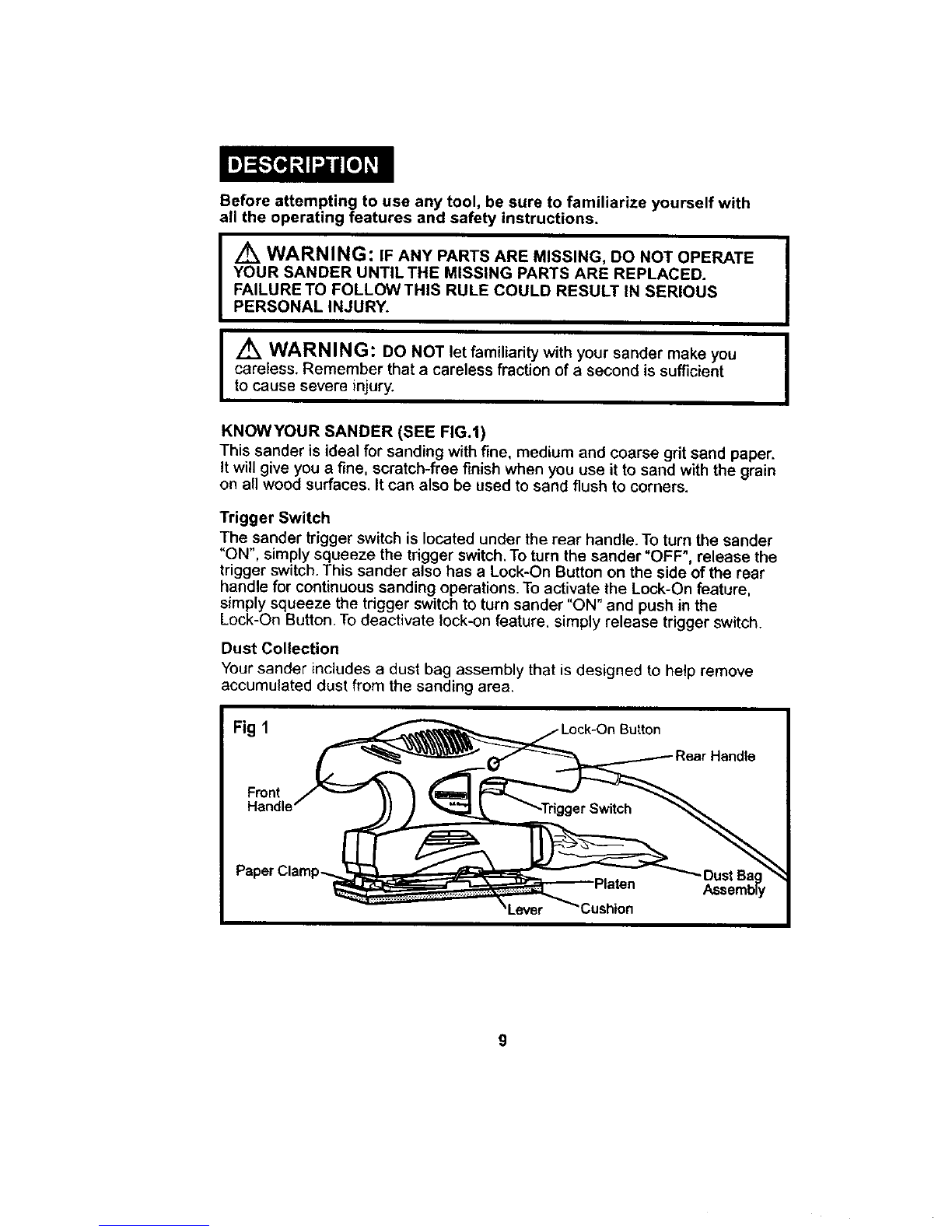

KNOWYOUR SANDER (SEE FIG.l)

This sander is ideal for sanding with fine, medium and coarse grit sand paper.

It will give you a fine, scratch-free finish when you use itto sand with the grain

on all wood surfaces. It can also be used to sand flush to corners.

Trigger Switch

The sander trigger switch is located under the rear handle. To turn the sander

"ON", simply squeeze the trigger switch.To turn the sander "OFF", release the

trigger switch. This sander also has a Lock-On Button on the side of the rear

handle for continuous sanding operations. To activate the Lock-On feature,

simply squeeze the trigger switch to turn sander "ON" and push in the

Lock-On Button. To deactivate lock-on feature, simply release trigger switch.

Dust Collection

Your sander includes adust bag assembly that is designed to help remove

accumulated dust from the sanding area.

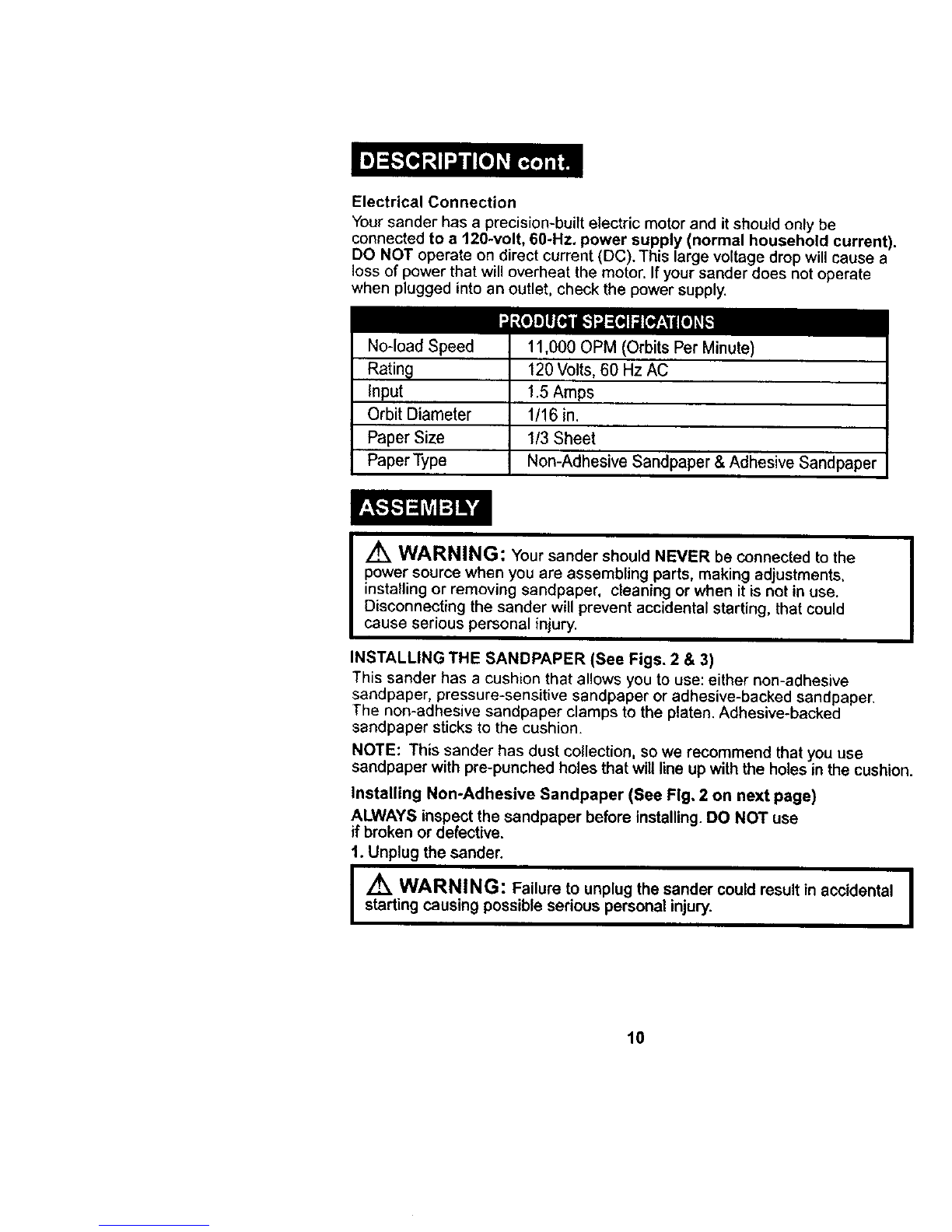

Electrical Connection

Your sander has a precision-buiR electric motor and it should only be

connected to a 120-volt, 60-Hz. power supply (normal household current).

DO NOT operate on direct current (DC). This large voltage drop will cause a

loss of power that will overheat the motor. Ifyour sander does not operate

when plugged into an outlet, check the power supply.

No-load Speed

Rating

Input

Orbit Diameter

Paper Size

Paper Type

11,000 OPM (Orbits Per Minute)

120 Volts, 60 Hz AC

1.5 Amps

1/16 in.

1/3 Sheet

Non-Adhesive Sandpaper & Adhesive Sandpaper

Z_ WARNING: Your sander should NEVER be connected tothe

power source when you are assembling parts, making adjustments,

installing or removing sandpaper, cleaning or when it is not in use.

Disconnecting the sander will prevent accidental starting, that could

cause serious personal injury.

INSTALLING THE SANDPAPER (See Figs. 2 & 3)

This sander has a cushion that allows you to use: either non-adhesive

sandpaper, pressure-sensitive sandpaper or adhesive-backed sandpaper.

The non-adhesive sandpaper clamps to the platen. Adhesive-backed

sandpaper sticks to the cushion.

NOTE: This sander has dust collection, so we recommend that you use

sandpaper with pre-punched holes that will line up with the holes in the cushion.

Installing Non-Adhesive Sandpaper (See Fig, 2 on next page)

ALWAYS inspect the sandpaper before installing. DO NOT use

if broken or defective.

1. Unplug the sander.

IZ_ WARNING: Failure to unplug the sander could result in accidental

starting causing possible serious personal injury. I

Tabla de contenidos

Otros manuales de Lijadora de Craftsman

Craftsman

Craftsman CMEE100 Manual de usuario

Craftsman

Craftsman 113.22521 Manual de usuario

Craftsman

Craftsman 27675 - Professional 5 in. 3.0 Amp Random Orbit... Manual de usuario

Craftsman

Craftsman 875.199601 Manual de usuario

Craftsman

Craftsman 113.226421 Manual de usuario

Craftsman

Craftsman 172.10720 Manual de usuario

Craftsman

Craftsman 172.276750 Manual de usuario

Craftsman

Craftsman 21514 - Belt & Disc Sander Manual de usuario

Craftsman

Craftsman 351.215 Manual de usuario

Craftsman

Craftsman 315.116091 Manual de usuario

Craftsman

Craftsman 172.395560 Manual de usuario

Craftsman

Craftsman CMXPTSG1014NB Manual de usuario

Craftsman

Craftsman 572.11629 Manual de usuario

Craftsman

Craftsman 113.226424 Manual de usuario

Craftsman

Craftsman 315.116211 Manual de usuario

Craftsman

Craftsman 315.116920 Manual de usuario

Craftsman

Craftsman 315.268192 Manual de usuario

Craftsman

Craftsman 315.252220 Manual de usuario

Craftsman

Craftsman Professional 235.19906 Manual de usuario

Craftsman

Craftsman 315.27984 Manual de usuario

Craftsman

Craftsman 315.115060 Manual de usuario

Craftsman

Craftsman 315.116163 Manual de usuario

Craftsman

Craftsman 315.115041 Manual de usuario

Craftsman

Craftsman 351.226711 Manual de usuario

Manuales populares de Lijadora de otras marcas

Oliver

Oliver 6305 Manual de usuario

Jet

Jet 22-44 Pro-3 Manual de servicio

Makita

Makita M9204 Manual

Makita

Makita M9204 Manual de usuario

Clarke

Clarke Woodworker CBS1-5B Manual de instrucciones

Chicago Pneumatic

Chicago Pneumatic CP9778 Manual de usuario

Nitto Kohki

Nitto Kohki BB-20 Manual de usuario

Ferm

Ferm FEOS-135 Manual de usuario

Unior

Unior 1510 Manual de usuario

stayer

stayer ls1200 Manual de usuario

Jet

Jet JSG-96 Manual de servicio

Parkside

Parkside PDS 290 B2 Manual de usuario

Status

Status XPA Series Manual de usuario

Clarke

Clarke EZ Sand Manual de usuario

CLAS

CLAS OP 1429 Manual de usuario

Parkside

Parkside PEXS 270 Al Manual de usuario

Makita

Makita 9207SPB Manual de usuario

Flex

Flex ST 1005 VE Manual de usuario
