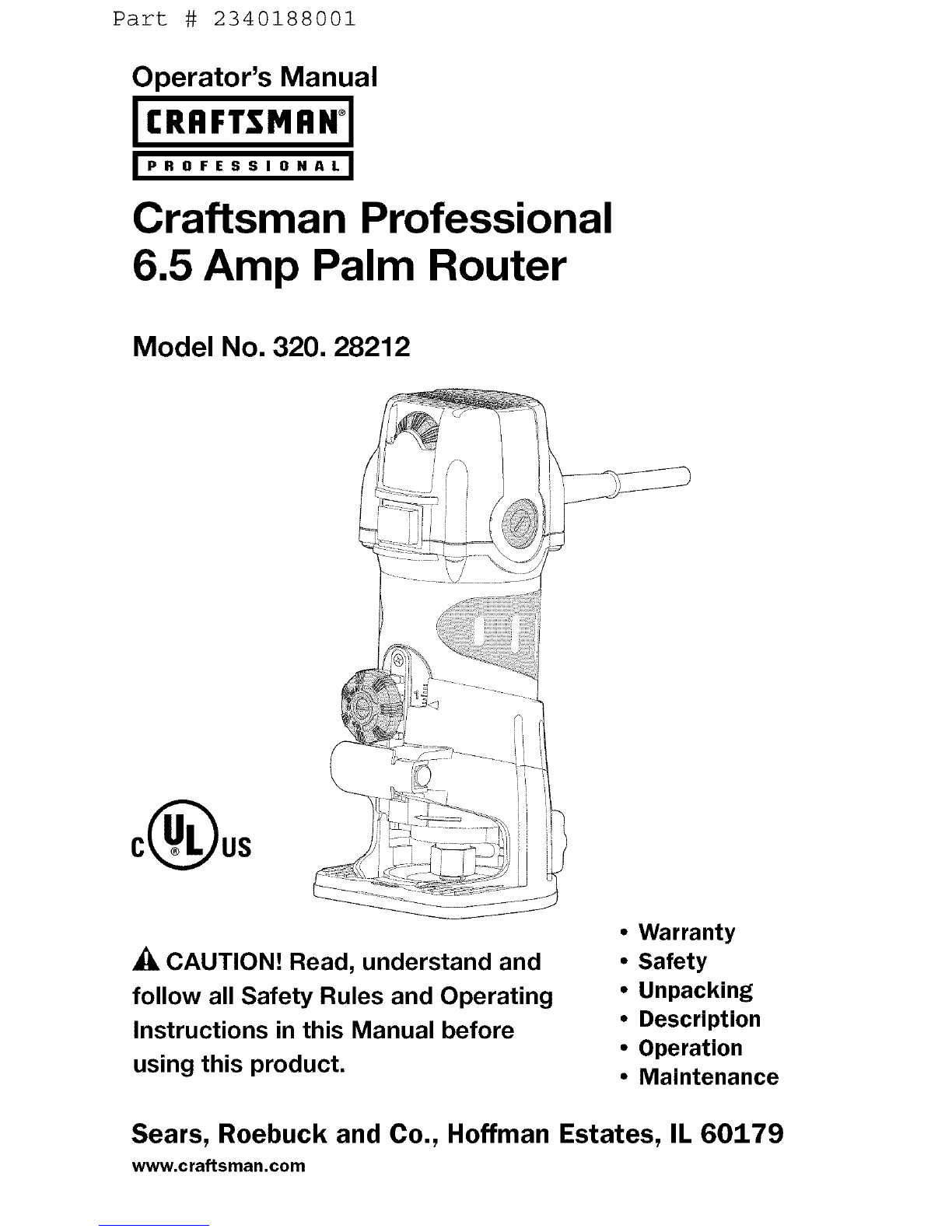

Operator's Manual

I CRRFTSMRNJ

_PR 0 FES S I 0 NAL _

Craftsman Professional

6.5 Amp Palm Router

Model No. 320. 28212

c os

_k CAUTION! Read, understand and

follow all Safety Rules and Operating

Instructions in this Manual before

using this product.

• Warranty

• Safety

• Unpacking

• Description

• Operation

•Maintenance

Sears, Roebuck and Co., Hoffman Estates, IL 60179

www.craftsman.com

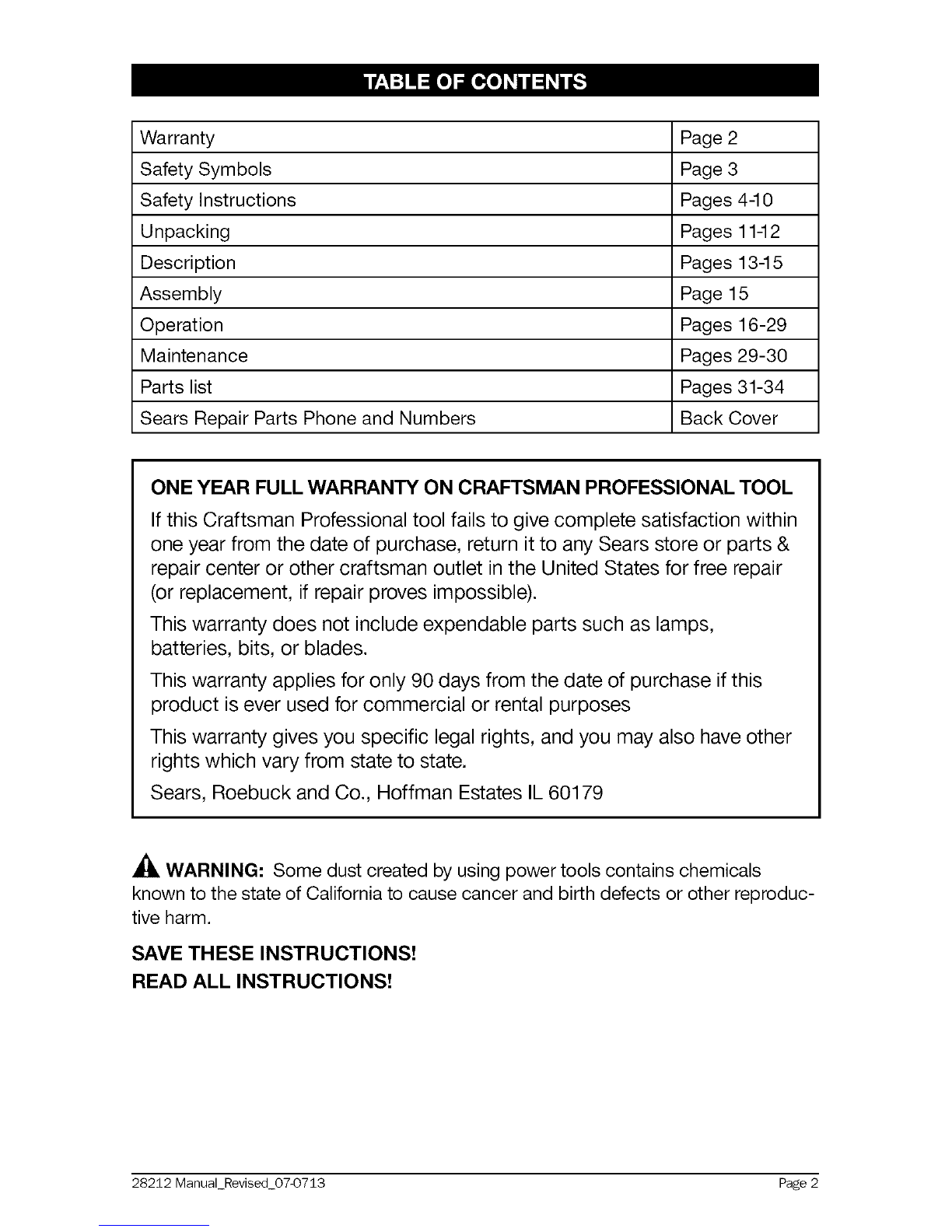

Warranty Page 2

Safety Symbols Page 3

Safety Instructions Pages 4-10

Unpacking Pages 11-12

Description Pages 13-15

Assembly Page 15

Operation Pages 16-29

Maintenance Pages 29-30

Parts list Pages 31-34

Sears Repair Parts Phone and Numbers Back Cover

ONE YEAR FULL WARRANTY ON CRAFTSMAN PROFESSIONAL TOOL

If this Craftsman Professional tool fails to give complete satisfaction within

one year from the date of purchase, return it to any Sears store or parts &

repair center or other craftsman outlet in the United States for free repair

(or replacement, if repair proves impossible).

This warranty does not include expendable parts such as lamps,

batteries, bits, or blades.

This warranty applies for only 90 days from the date of purchase if this

product is ever used for commercial or rental purposes

This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates IL 60179

AWARNING: Some dust created by using power tools contains chemicals

known to the state of California to cause cancer and birth defects or other reproduc-

tive harm.

SAVE THESE INSTRUCTIONS!

READ ALL INSTRUCTIONS!

28212 Manual_Revised_07-0713 Page 2

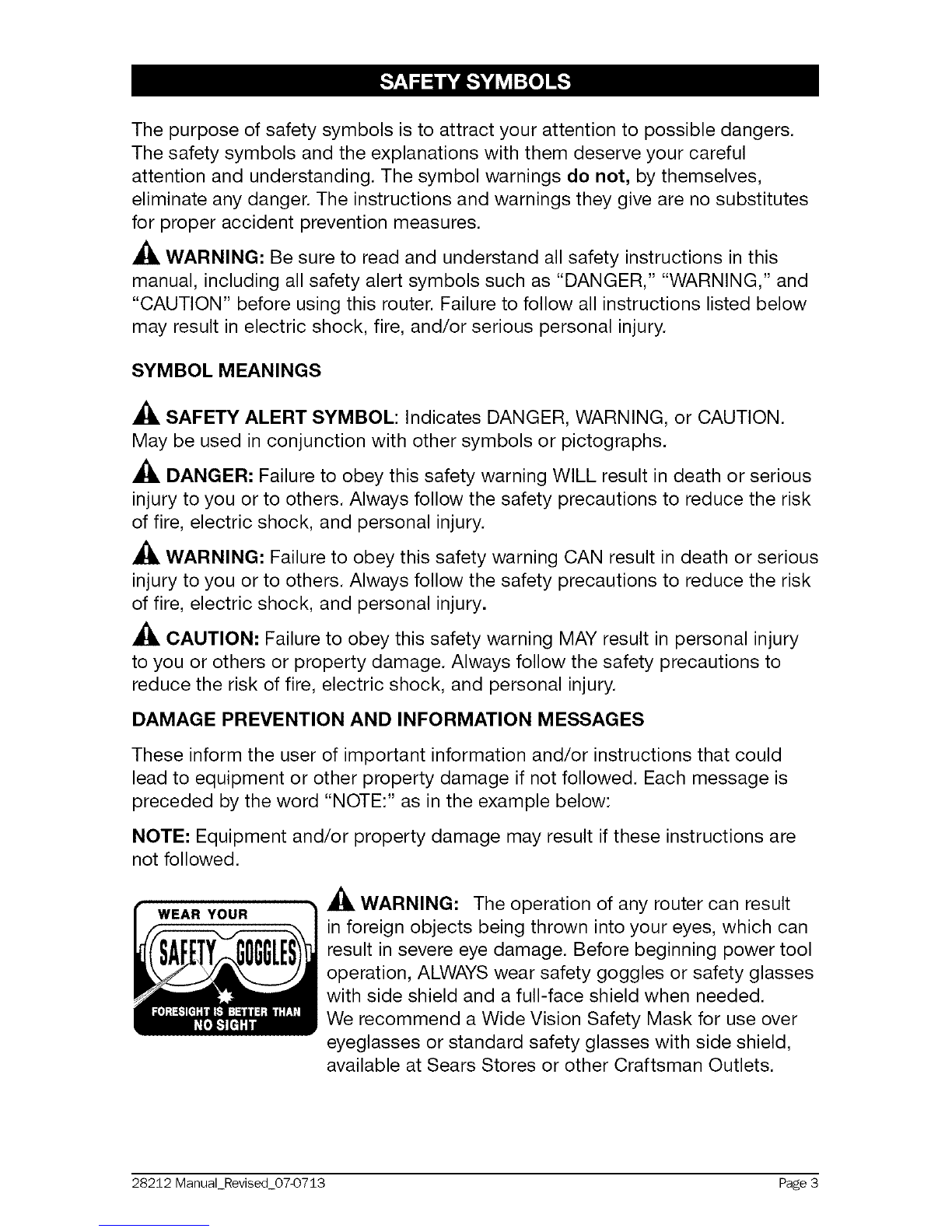

The purpose of safety symbols is to attract your attention to possible dangers.

The safety symbols and the explanations with them deserve your careful

attention and understanding. The symbol warnings do not, by themselves,

eliminate any danger. The instructions and warnings they give are no substitutes

for proper accident prevention measures.

_, WARNING: Be sure to read and understand all safety instructions in this

manual, including all safety alert symbols such as "DANGER," "WARNING," and

"CAUTION" before using this router. Failure to follow all instructions listed below

may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANINGS

,_ SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION.

May be used in conjunction with other symbols or pictographs.

_, DANGER: Failure to obey this safety warning WILL result in death or serious

injury to you or to others. Always follow the safety precautions to reduce the risk

of fire, electric shock, and personal injury.

_, WARNING: Failure to obey this safety warning CAN result in death or serious

injury to you or to others. Always follow the safety precautions to reduce the risk

of fire, electric shock, and personal injury.

_1_ CAUTION: Failure to obey this safety warning MAY result in personal injury

to you or others or property damage. Always follow the safety precautions to

reduce the risk of fire, electric shock, and personal injury.

DAMAGE PREVENTION AND INFORMATION MESSAGES

These inform the user of important information and/or instructions that could

lead to equipment or other property damage if not followed. Each message is

preceded by the word "NOTE:" as in the example below:

NOTE: Equipment and/or property damage may result if these instructions are

not followed.

WEAR YOUR

AlL WARNING: The operation of any router can result

in foreign objects being thrown into your eyes, which can

result in severe eye damage. Before beginning power tool

operation, ALWAYS wear safety goggles or safety glasses

with side shield and a full-face shield when needed.

We recommend a Wide Vision Safety Mask for use over

eyeglasses or standard safety glasses with side shield,

available at Sears Stores or other Craftsman Outlets.

28212 Manual_Revised_07-0713 Page 3

[_Y'-IiI_lIi"dII__id_ll_]id_e]]_,- _]

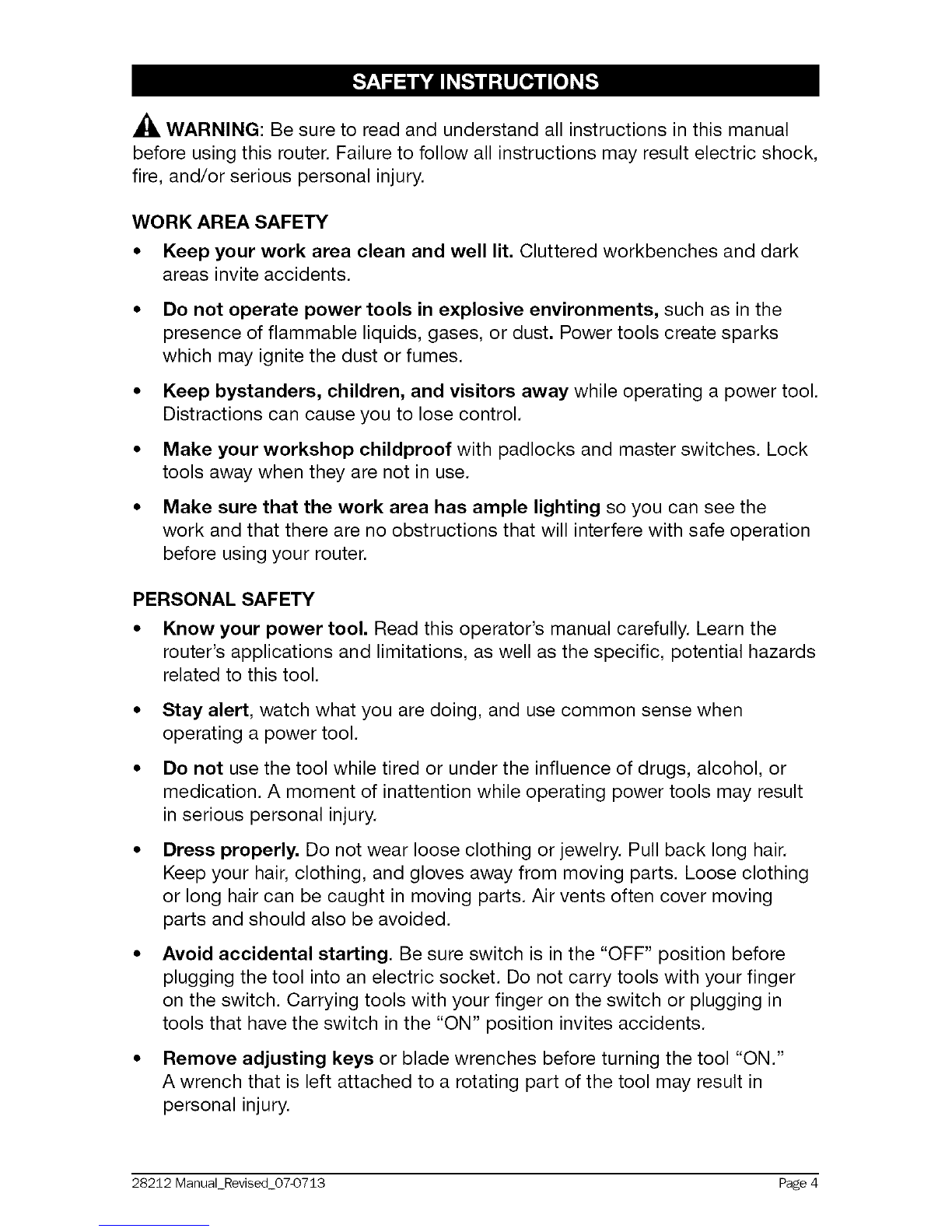

_h, WARNING: Be sure to read and understand all instructions in this manual

before using this router. Failure to follow all instructions may result electric shock,

fire, and/or serious personal injury.

WORK AREA SAFETY

•Keep your work area clean and well lit. Cluttered workbenches and dark

areas invite accidents.

Do not operate power tools in explosive environments, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control.

Make your workshop childproof with padlocks and master switches. Lock

tools away when they are not in use.

Make sure that the work area has ample lighting so you can see the

work and that there are no obstructions that will interfere with safe operation

before using your router.

PERSONAL SAFETY

•Know your power tool. Read this operator's manual carefully. Learn the

router's applications and limitations, as well as the specific, potential hazards

related to this tool.

Stay alert, watch what you are doing, and use common sense when

operating a power tool.

Do not use the tool while tired or under the influence of drugs, alcohol, or

medication. A moment of inattention while operating power tools may result

in serious personal injury.

Dress properly. Do not wear loose clothing or jewelry. Pull back long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose clothing

or long hair can be caught in moving parts. Air vents often cover moving

parts and should also be avoided.

Avoid accidental starting. Be sure switch is in the "OFF" position before

plugging the tool into an electric socket. Do not carry tools with your finger

on the switch. Carrying tools with your finger on the switch or plugging in

tools that have the switch in the "ON" position invites accidents.

Remove adjusting keys or blade wrenches before turning the tool "ON."

A wrench that is left attached to a rotating part of the tool may result in

personal injury.

28212 Manual_Revised_07-0713 Page 4

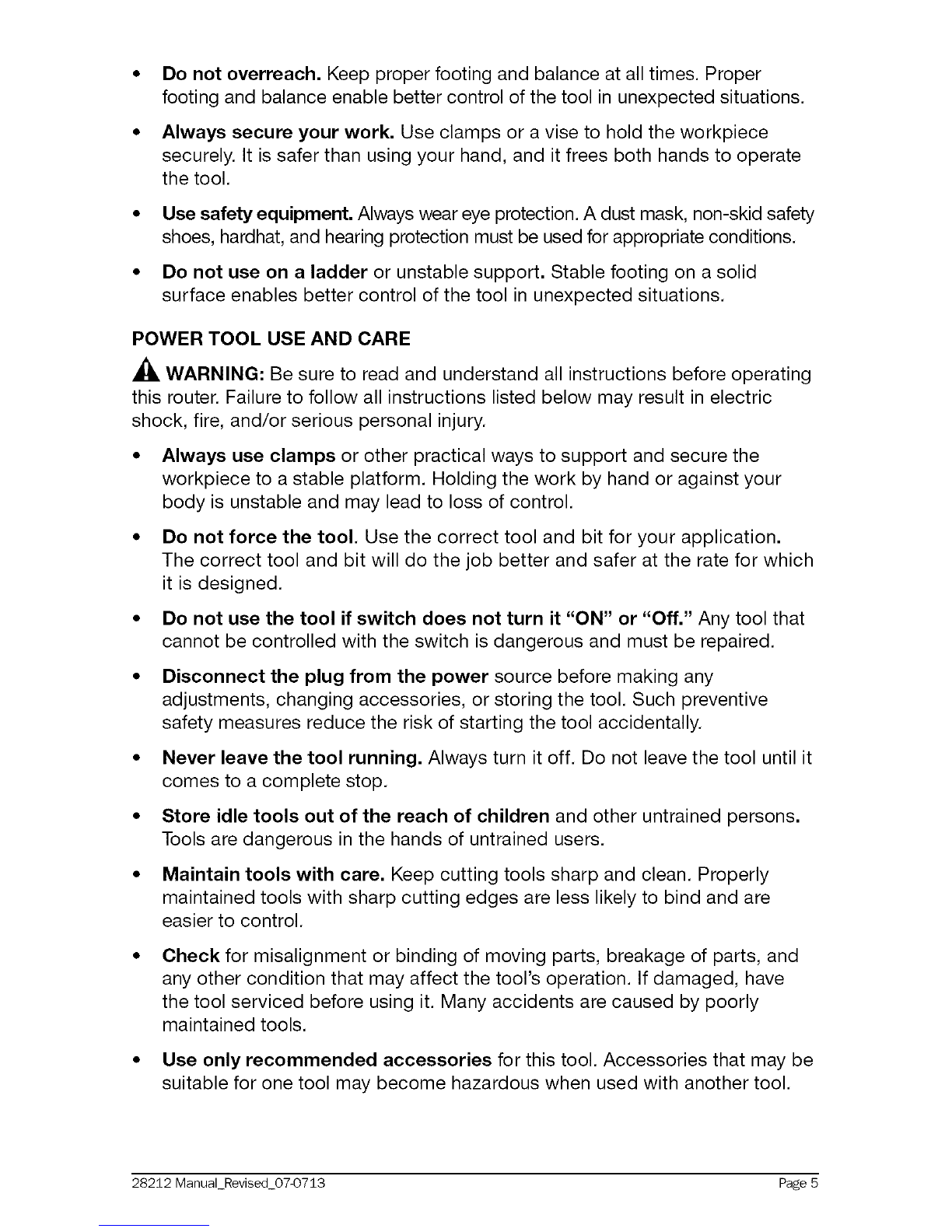

Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enable better control of the tool in unexpected situations.

Always secure your work. Use clamps or a vise to hold the workpiece

securely. It is safer than using your hand, and it frees both hands to operate

the tool.

Use safety equipment. Always wear eye protection. A dust mask, non-skid safety

shoes, hardhat, and hearing protection must be used for appropriate conditions.

Do not use on a ladder or unstable support. Stable footing on a solid

surface enables better control of the tool in unexpected situations.

POWER TOOL USE AND CARE

_, WARNING: Be sure to read and understand all instructions before operating

this router. Failure to follow all instructions listed below may result in electric

shock, fire, and/or serious personal injury.

Always use clamps or other practical ways to support and secure the

workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

Do not force the tool. Use the correct tool and bit for your application.

The correct tool and bit will do the job better and safer at the rate for which

it is designed.

Do not use the tool if switch does not turn it "ON" or "Off." Any tool that

cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source before making any

adjustments, changing accessories, or storing the tool. Such preventive

safety measures reduce the risk of starting the tool accidentally.

Never leave the tool running. Always turn it off. Do not leave the tool until it

comes to a complete stop.

Store idle tools out of the reach of children and other untrained persons.

Tools are dangerous in the hands of untrained users.

Maintain tools with care. Keep cutting tools sharp and clean. Properly

maintained tools with sharp cutting edges are less likely to bind and are

easier to control.

Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool's operation. If damaged, have

the tool serviced before using it. Many accidents are caused by poorly

maintained tools.

Use only recommended accessories for this tool. Accessories that may be

suitable for one tool may become hazardous when used with another tool.

28212 Manual_Revised_07-0713 Page 5

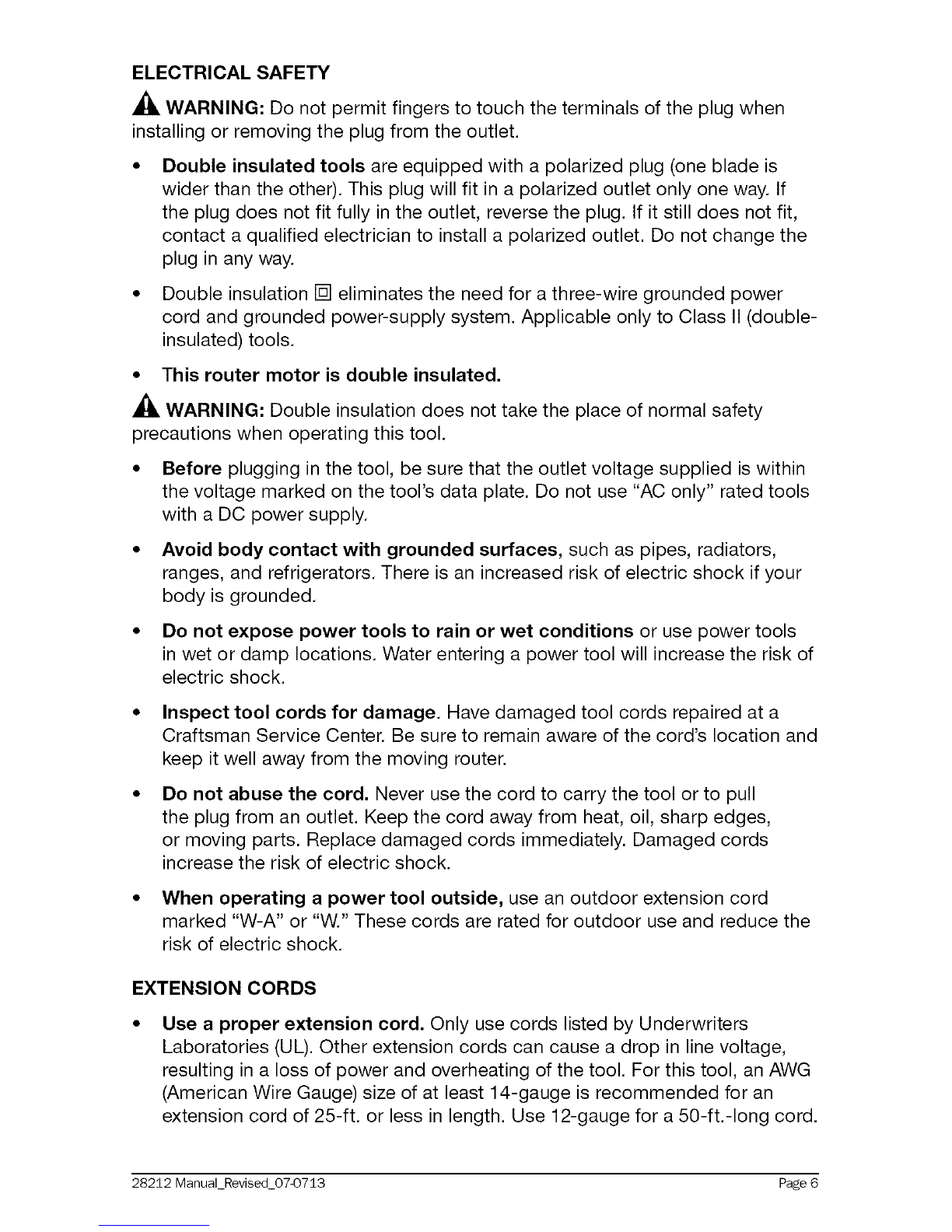

ELECTRICAL SAFETY

_, WARNING: Do not permit fingers to touch the terminals of the plug when

installing or removing the plug from the outlet.

Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician to install a polarized outlet. Do not change the

plug in any way.

Double insulation [] eliminates the need for a three-wire grounded power

cord and grounded power-supply system. Applicable only to Class II (double-

insulated) tools.

•This router motor is double insulated.

A_, WARNING: Double insulation does not take the place of normal safety

precautions when operating this tool.

• Before plugging in the tool, be sure that the outlet voltage supplied is within

the voltage marked on the tool's data plate. Do not use "AC only" rated tools

with a DC power supply.

•Avoid body contact with grounded surfaces, such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

•Do not expose power tools to rain or wet conditions or use power tools

in wet or damp locations. Water entering a power tool will increase the risk of

electric shock.

Inspect tool cords for damage. Have damaged tool cords repaired at a

Craftsman Service Center. Be sure to remain aware of the cord's location and

keep it well away from the moving router.

Do not abuse the cord. Never use the cord to carry the tool or to pull

the plug from an outlet. Keep the cord away from heat, oil, sharp edges,

or moving parts. Replace damaged cords immediately. Damaged cords

increase the risk of electric shock.

•When operating a power tool outside, use an outdoor extension cord

marked "W-A" or "W." These cords are rated for outdoor use and reduce the

risk of electric shock.

EXTENSION CORDS

Use aproper extension cord. Only use cords listed by Underwriters

Laboratories (UL). Other extension cords can cause a drop in line voltage,

resulting in a loss of power and overheating of the tool. For this tool, an AWG

(American Wire Gauge) size of at least 14-gauge is recommended for an

extension cord of 25-ft. or less in length. Use 12-gauge for a 50-ft.-long cord.

28212 Manual_Revised_07-0713 Page 6

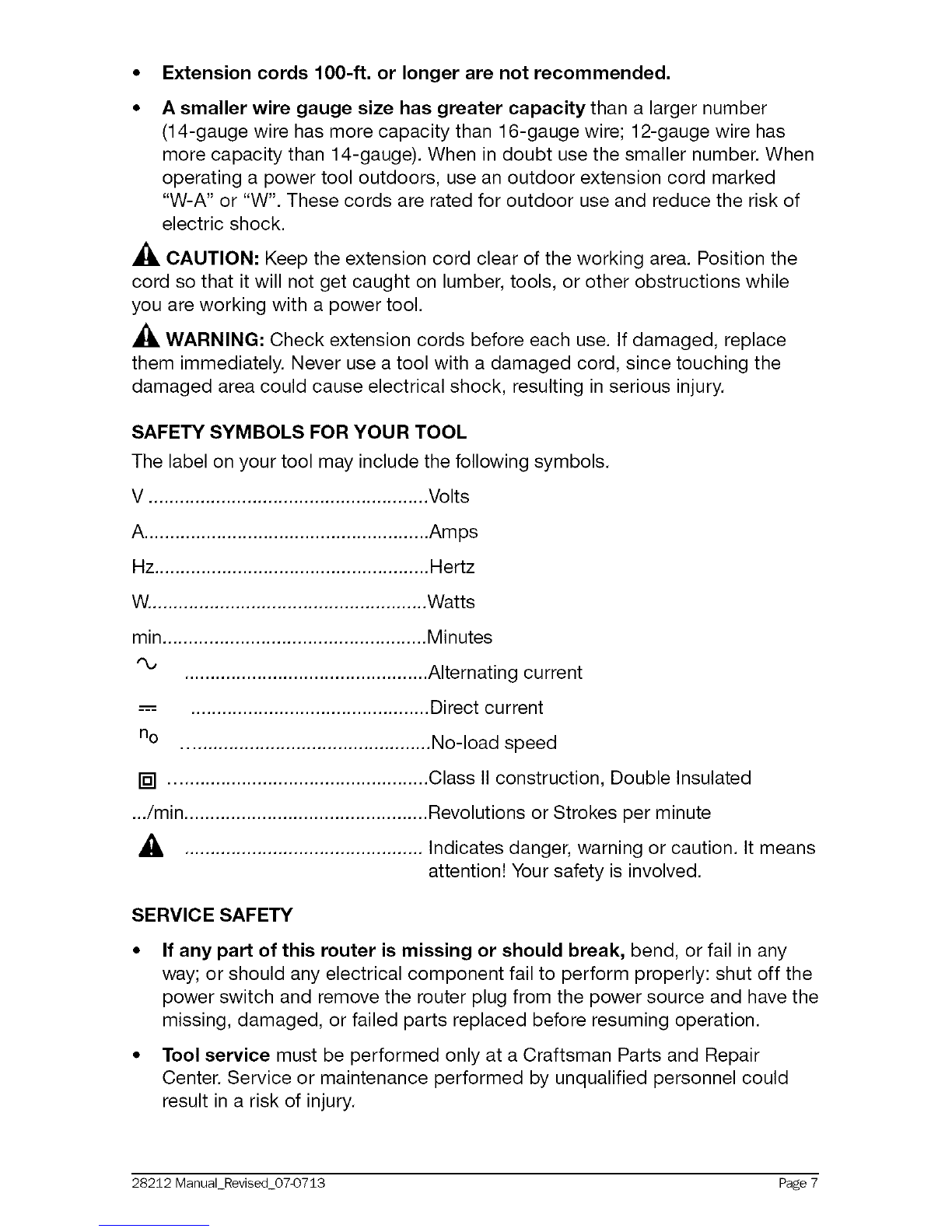

• Extension cords lO0-ft, or longer are not recommended.

•A smaller wire gauge size has greater capacity than a larger number

(14-gauge wire has more capacity than 16-gauge wire; 12-gauge wire has

more capacity than 14-gauge). When in doubt use the smaller number. When

operating a power tool outdoors, use an outdoor extension cord marked

"W-A" or "W". These cords are rated for outdoor use and reduce the risk of

electric shock.

_, CAUTION: Keep the extension cord clear of the working area. Position the

cord so that it will not get caught on lumber, tools, or other obstructions while

you are working with a power tool.

_, WARNING: Check extension cords before each use. If damaged, replace

them immediately. Never use a tool with a damaged cord, since touching the

damaged area could cause electrical shock, resulting in serious injury.

SAFETY SYMBOLS FOR YOUR TOOL

The label on your tool may include the following symbols.

V ...................................................... Volts

A....................................................... Amps

Hz..................................................... Hertz

W...................................................... Watts

min................................................... Minutes

............................................... Alternating current

................................................. Direct current

no ................................................ No-load speed

[] .................................................. Class II construction, Double Insulated

.../min............................................... Revolutions or Strokes per minute

.............................................. Indicates danger, warning or caution. It means

attention! Your safety is involved.

SERVICE SAFETY

If any part of this router is missing or should break, bend, or fail in any

way; or should any electrical component fail to perform properly: shut off the

power switch and remove the router plug from the power source and have the

missing, damaged, or failed parts replaced before resuming operation.

Tool service must be performed only at a Craftsman Parts and Repair

Center. Service or maintenance performed by unqualified personnel could

result in a risk of injury.

28212 Manual_Revised_07-0713 Page 7

Use only identical replacement parts when servicing a tool. Follow the

instructions in the maintenance section of this manual. Use of unauthorized

parts or failure to follow maintenance instructions may create a risk of electric

shock or injury.

SAFETY RULES FOR ROUTER

,_ CAUTION: Cutting bits coast after the router is switched off.

Hold the tool by the insulated gripping surfaces (handles) when

performing an operation where the cutting tool may contact hidden wiring or

its own cord. Contact with a "live" wire will make the exposed metal parts of

the tool "live" and shock the operator.

Maintain a firm grip on the router with both hands to resist starting torque.

Never attempt to use the router motor without first installing it in an approved

base. Failure to heed this warning could result in personal injury and damage

to the motor.

• Make sure that the motor housing does not move up or down when clamped

in the base. If the motor is not securely clamped in a base, adjustments will

not be accurate.

Tighten the collet/nut securely to prevent the cutting bit from slipping. If

the collet/nut is not securely tightened, the cutting bit may detach during use,

causing serious personal injury.

Never tighten the collet/nut without a cutting bit installed in the collet/nut.

Use clamps or other practical ways to support the workpiece and secure it

to a stable platform, and to hold the workpiece rigidly in position. Holding

the workpiece by hand or against your body is unstable and may lead to

loss of control.

Never hold the piece being cut in your hands or across your legs. It is

important to support and clamp the workpiece properly in order to minimize

body exposure, bit binding, and loss of control.

Clear the router-cutting-bit path of any obstructions before starting the motor.

Keep the cutting area clear of all foreign objects while motor is running.

Make sure that the cord will not "hang up" on the work piece or any other

object during routing operations.

Make sure that the cutting bit is not in contact with the workpiece before the

switch is turned on. The bit must always be running at the full selected speed

before coming into contact with the workpiece.

Keep hands clear of the cutting bit when the motor is running to prevent

personal injury.

Provide clearance under the workpiece for the router cutting bit when

through-cutting.

28212 Manual_Revised_07-0713 Page 8

•Keep cutting pressure constant. Do not overload the motor.

• Use only sharp cutting bits that are not chipped or cracked. Blunt cutting

bits will cause stalling and burn the workpiece.

• Never use this router motor with a cutting bit larger than 1-1/2 inch in

diameter.

Always use cutting bits that are designed for this router. Never use cutting

bits that are larger in diameter than the opening in the router sub-base.

Cutting bits that have cutting diameters larger than the opening could cause

possible loss of control or create other hazardous conditions that could

cause serious personal injury.

Do not use large router cutting bits for freehand routing. Using large cutting

bits for freehand routing could cause loss of control or create hazardous

conditions that could result in serious personal injury. If using a router table,

large bits should be used for edging only.

Do not remove more than 1/8-inch of material in a single pass. Excessive

depth of cut can result in loss of control that could result in personal injury.

Turn the motor OFF after completing a cut, and let the motor come to a

complete stop before removing the router from the workpiece.

Allow the motor come to a complete stop before putting the router down.

Cutting bits coast after the power is turned off.

Disconnect the tool from the power source before making any adjustments

or changing cutting bits.

Do not touch the collet/nut or cutting bit with your hands or fingers if you

are changing a bit immediately after use. The heat buildup from cutting could

cause severe burns. Always use the wrench provided.

•Avoid "climb cutting". See "OPERATION" (pages 16-29) section in this

manual. "Climb-cutting" increases the chance for loss of control resulting in

possible serious injury.

_, WARNING: Use of this product can generate dust containing chemicals

known to the state of California to cause cancer, birth defects or other

reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks and cement and other masonry products.

• Arsenic and chromium, from chemically treated lumber.

Your risk from these exposures varies, depending upon how often you do this

type of work. To reduce your exposure to these chemicals:

• Work in a well-ventilated area.

• Work with approved safety equipment, such as those dust masks that are

specially designed to filter out microscopic particles.

28212 Manual_Revised_07-0713 Page 9

Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling

and other construction activities. Wear protective clothing and wash exposed

areas with soap and water. Allowing dust to get into your mouth or eyes or lie on

the skin may promote absorption of harmful chemicals.

a WARNING: Use of this tool can generate and/or disburse dust, which may

cause serious and permanent respiratory or other injury. Always use NIOSH/

OSHA approved respiratory protection appropriate for the dust exposure. Direct

dust particles away from the face and body.

ADDITIONAL RULES FOR SAFE OPERATION

a WARNING: Be sure to read and understand all instructions. Failure to follow

all instructions listed below may result in electric shock, fire, and/or serious

personal injury.

Know your power tool. Read this operator's manual carefully. Learn the

applications and limitations, as well as the specific, potential hazards related

to this tool. Following this rule will reduce the risk of electric shock, fire, and

serious injury.

Always wear safety glasses or eye shields when using this router.

Everyday eyeglasses may have impact-resistant lenses, but they are NOT

safety glasses.

Protect your lungs. Wear a facemask or dust mask if the operation is dusty.

Protect your hearing. Wear appropriate personal hearing protection during

use. Under some conditions, noise from this product may contribute to

hearing loss.

All visitors and bystanders must wear the same safety equipment that the

operator of the router should wear.

Inspect the tool cord periodically and, if it is damaged, have it repaired at

your nearest Craftsman Service Center. Be aware of the cord location.

Always check the tool for damaged parts. Before further use of the tool,

a guard or other part that is damaged should be carefully checked to

determine whether it will operate properly and perform its intended function.

Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool's operation. A guard or other

part that is damaged should be properly repaired or replaced at a Craftsman

Service Center.

Inspect lumber and remove all nails before routing.

Save these instructions. Refer to them frequently, and use them to instruct

others who may use this tool. If someone borrows this tool, make sure they

have these instructions also.

28212 Manual_Revised_07-0713 Page 10

Tabla de contenidos

Otros manuales de Herramientas eléctricas de Craftsman

Craftsman

Craftsman 103.24521 Manual de usuario

Craftsman

Craftsman 351.181820 Manual de usuario

Craftsman

Craftsman 21174 - Utility Sharpener Manual de usuario

Craftsman

Craftsman 137.219090 Manual de usuario

Craftsman

Craftsman 320.23465 Manual de usuario

Craftsman

Craftsman 124.34986 Manual de usuario

Craftsman

Craftsman 171.254790 Manual de usuario

Craftsman

Craftsman 137.2191 Manual de usuario

Craftsman

Craftsman 919.152360 Manual de usuario

Craftsman

Craftsman 900.277303 Manual de usuario

Craftsman

Craftsman CMCE500 Manual de usuario

Craftsman

Craftsman 71.74291 Manual de usuario

Craftsman

Craftsman 17540 - 9.5 Amp 1-3/4 HP Plunge Base Router Manual de usuario

Craftsman

Craftsman 146.669950 Manual de usuario

Craftsman

Craftsman NEXTEC HAMMERHEAD 320.30261 Manual de usuario

Craftsman

Craftsman 315.172320 Manual de usuario

Craftsman

Craftsman 235.185930 Manual de usuario

Craftsman

Craftsman 315.17480 Manual de usuario

Craftsman

Craftsman nEXTEC 320.30566 Manual de usuario

Craftsman

Craftsman 137.229151 Manual de usuario

Craftsman

Craftsman CMCW400 Manual de usuario

Craftsman

Craftsman 351.219071 Manual de usuario

Craftsman

Craftsman 351.252741-3 Manual de usuario

Craftsman

Craftsman evolv 320.17434 Manual de usuario

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
